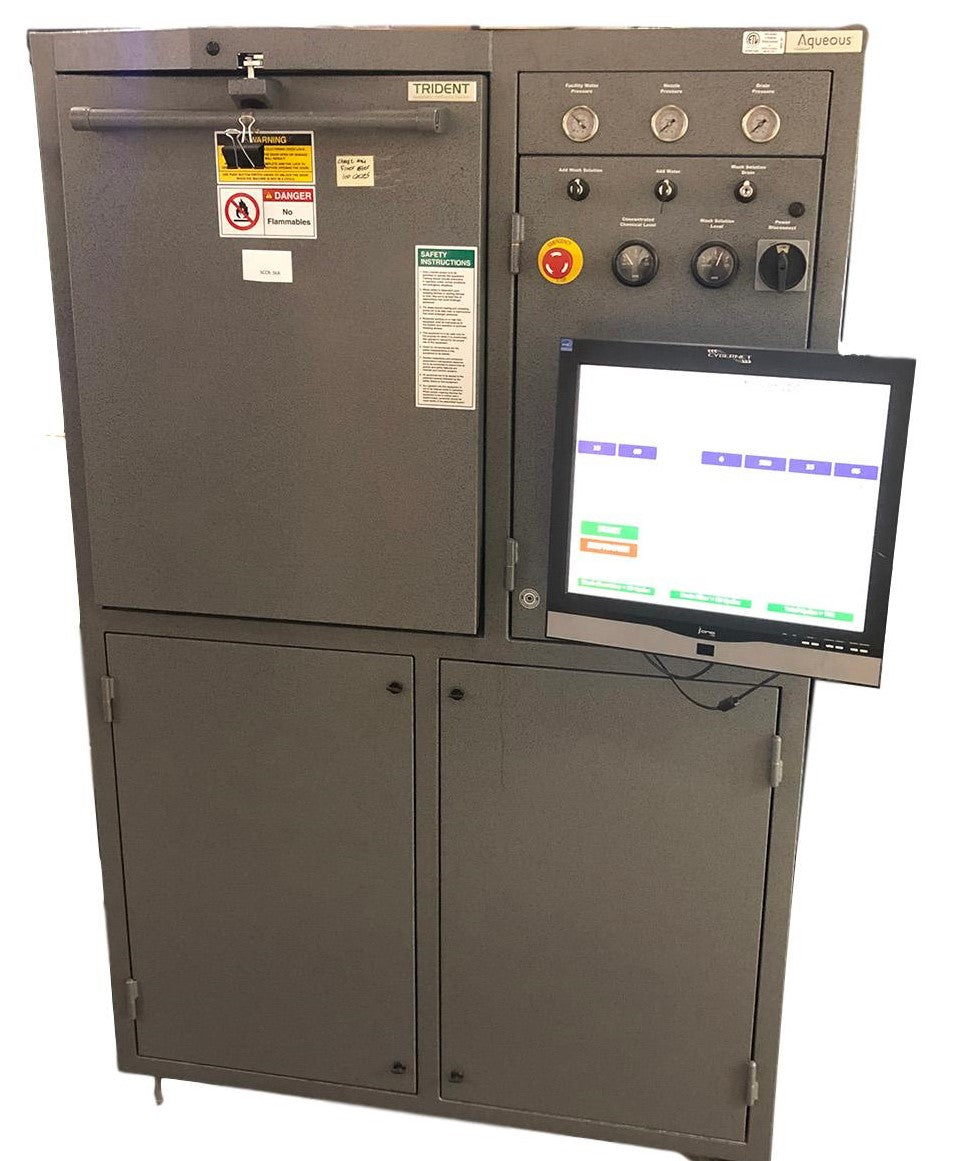

Aqueous Technologies Trident ZDO - 2023- #10356 · S/N: 10356   YOM: 2023  · Purchased new in 2024 & never used.  · Trident ZDO Zero Discharge Chemical Compatible Defluxing System.  With: Drip Tray & Audible Alarm · Dims: 42 ¼”x 56” x 70” (991 lbs.)

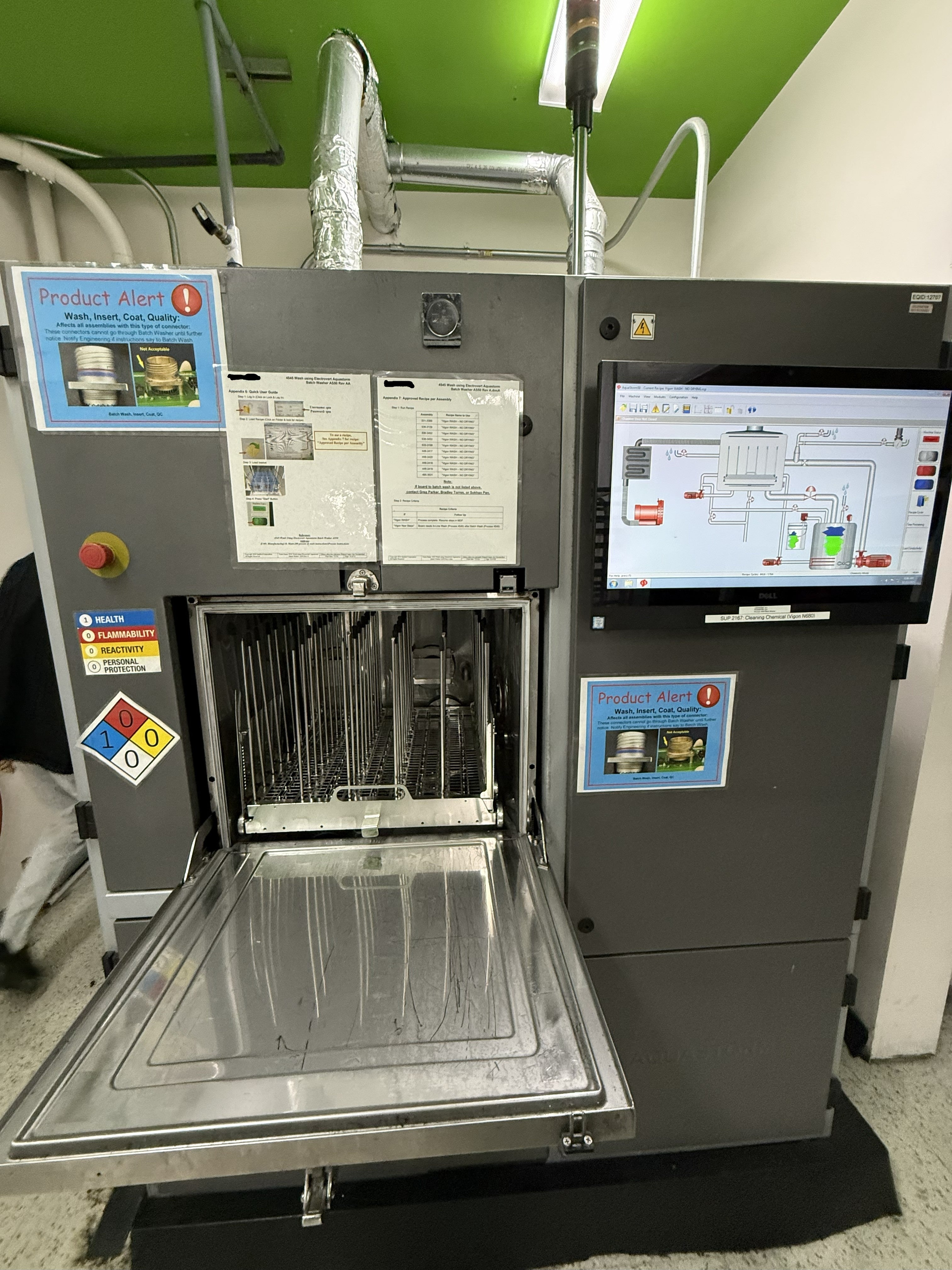

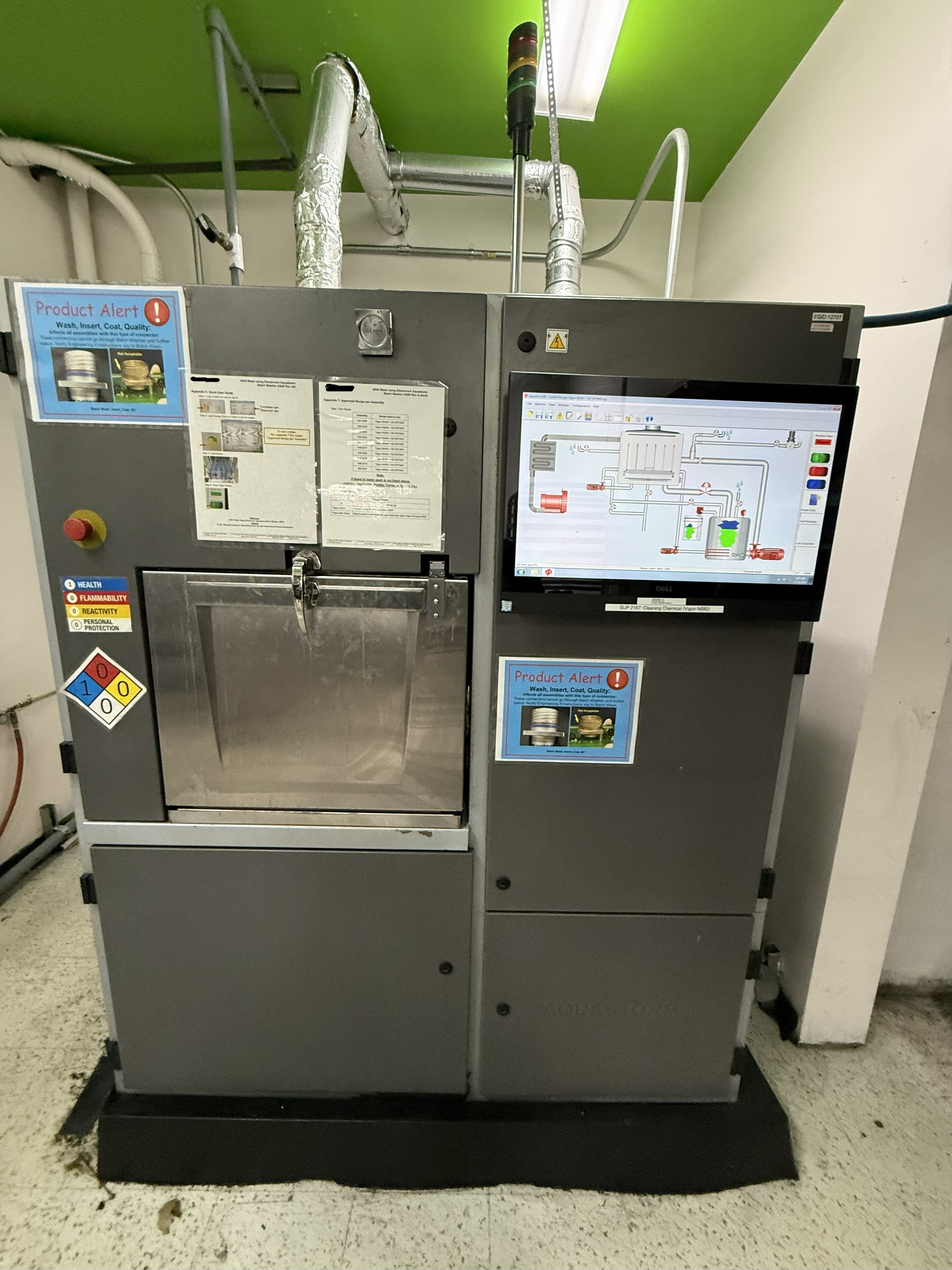

Electrovert/ITW Aquastorm 50 Batch Cleaner  - 2017 # · S/N: AS50-30009   YOM: 2017  · Touch screen PC with Windows®-based operating system and data logging · · Industrial grade materials and construction with stainless steel plumbing in process area · · Top and bottom rotating spray bars for Flood Wash and Rinse · · Independent top and bottom spray bars for Final Rinse · · Capable of 82°C (180°F) in Wash and Final Rinse · · Closed Loop Wash · · Integrated chemistry container storage with level sensor · · Chemical Metering Pump · · Torrid Zone Forced Convection Drying · · Programmable Light Tower · · User friendly graphical user interface that offers user defined recipe and cleaning cycles creation (time and # of cycles for Wash, Power · Wash, Rinse, Final Rinse, and Dry) · · Software selectable between a straight DI or Chemistry application · · ESD grounding plug for operatorlines · · Designed to comply with UL Factory Automation Equipment, Power Clean Basket Technology · · Power clean basket technology includes a dedicated pump that feeds multiple JIC sprays · that create a web of Omni-directional dynamic energy to remove flux residue · · A chemical isolation feature is standard with the power clean basket technology · · All stainless steel construction · Torrid ZoneTM Drying System · · Utilizes mixed technologies for on-board convection drying in a batch footprint · · Capable of temperature set-points up to 149°C (300°F) · · Based upon Aquastorm 200 proven designs and reliability · Typical performance includes drying complex assemblies to within .1g of prewash weight · Dims: 969 mm (38.1 in) x 1527 mm (60.1 in) x 1826 mm (71.9 in)

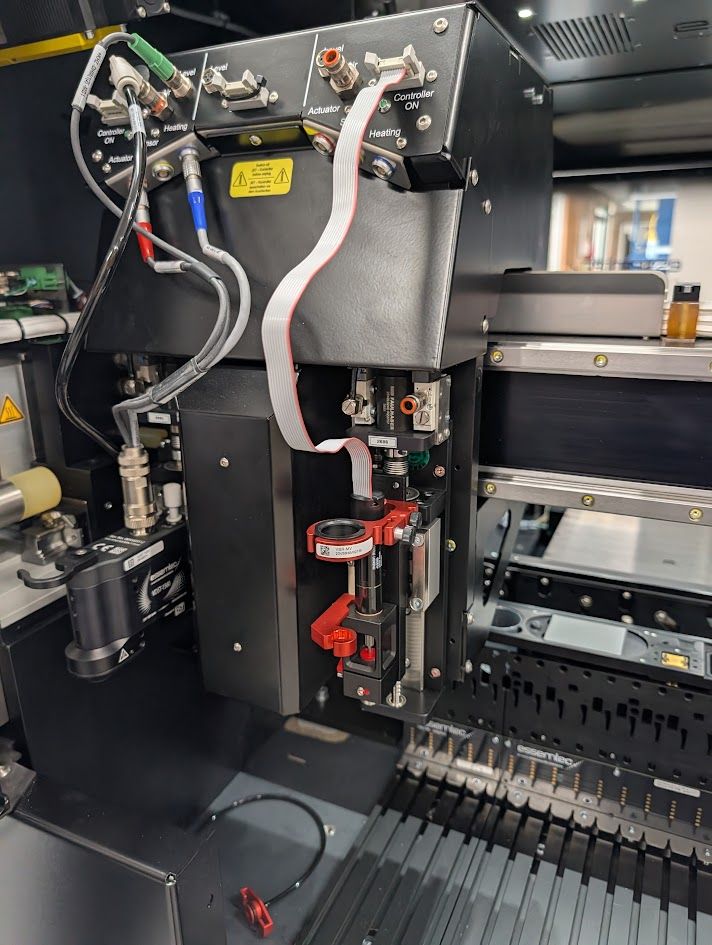

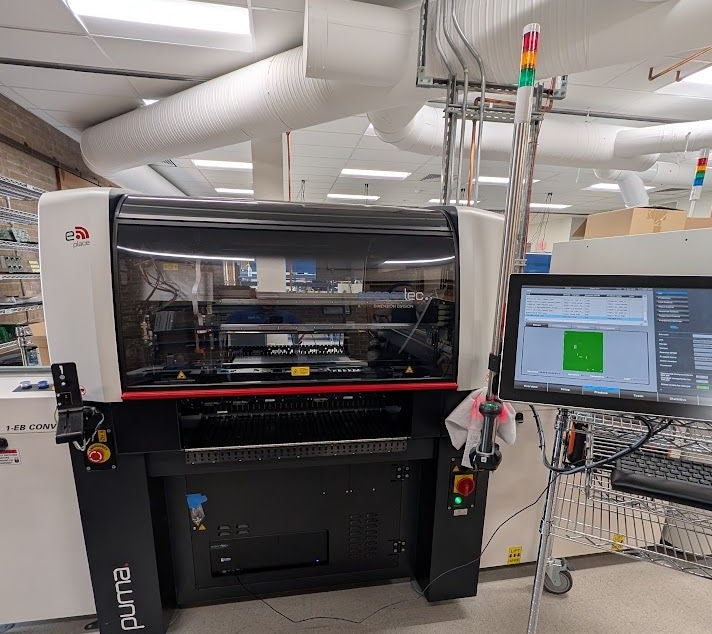

ESSEMTEC PUMA2-PPD-C & Feeder Package - 12/2023 - Barely used · Usage: Approximately 55 production hours.  This machine is equipped with Solder Paste Jet valve! · DOM: 12/2023 SN: 23050131 · PUMA2-PPD-C Info: Highly flexible pick & place system with dispensing preparation, Inline version, placement area up to 560 x 610 mm, (22" x 24"), · CE mark, Cleanroom capable ISO7 / Class 10'000 · Including: · - 2 x high precision pick & place axes, · - 3-stage conveyor system, manual adjustment and SMEMA standard · - Centering with Bottom Camera with programmable illumination, · - High speed feederbus for up to 160 · intelligent feeder places, · - 3 active PCB support pins, · - 10 nozzles for components 0201 up to 80 x 33 mm · - 3-color signal tower · - Automatic needle-height calibration · - Purge station · - Calibration nozzle Z-axis height, · - Calibration set for placement axes, · - LED interior lightning, · - ePlace software system functions, · - Component library, · - Universal CAD conversion software · - Detection of bad PCB's in panels, · - Automated placing constraints · - Process optimization software, · - Direct help functions for the operator, · - Standard user level management · With: · (1) Tray Slider for PUMA Adds up space for 2 additional trays · CVU1 Component Verification Unit for 1 component . Measures values of components before placing them (Resistor, Capacitor, Inductor, Diode / polarity) · Feeder setup station EVO/hyQ installation directly on the machine. 1x slide in unit for feeder set up without production interruption · Wireless Barcode Scanner for 1-D and 2-D · Height measurement by Laser sensor for PCB · warpage compensation and placement/dispensing on different height levels. Enhanced calculation algorithms for shiny and mat surfaces. Extended range +/- 18mm from zero-level. · Solder Paste Jet Valve VDST with bayonet fluidic Fast plug n' play changeover · from different fluidics and settings. Integrated controller and heater. · Fully implemented in ePlace software.  · Needle heating for screw valve VSR-MV-01 · Feeders:  · 40 x  EV0-TF8/2-VO2 Intelligent, fully automatical, high speed double 8mm EVO tape feeder incl. LED status indication · 8 x PC-TF12 Intelligent, fully automatical 12mm HyQ tape feeder incl. LED status indication · 2 x PC-TF16 Intelligent, fully automatical 16mm tape feeder incl. LED status indication · 6 x PC-TF16-24 Intelligent, fully automatical tape feeder · adjustable for 16-24mm width incl. LED status indication · 1x PC-VF60-V2 Intelligent hyQ vibratory feeder for components  · 1 x EVO-FR-CA- M-V02 Feeder Cart for hyQ and EVO- feeder on reels. Capacity for up to 84x double-8mm feeder, means max. 168 feeder lanes. · Machine is consigned, located on the East Coast, not at PFI.

OSAI Automation Neo Router w/BOFA Dust Extractor & Thermo Chiller - 2016 · YOM: 2016 SN: 28510 · Neorouter Modula is the solution for inline mechanical  separation of PCB’s. · The high flexibility in terms of configuration and fast setup  · Suitable for mass production volume but also for high mix lots.  · With:  BOFA  DP1000 Dust Extractor & Thermo Chiller  · Transp. SMEMA compliant · Max. conveyor width 350mm with automatic adjustment · Interface SMEMA · Operating side Front side · Panel length 70mm to 300mm (2.8” to 12”) with second stopper up to 480mm (19”) · Panel width 50mm to 350mm (2” to 13.8”) · Panel weight Up to 3kg (6.6lbs) · PCB conveyor 3mm flat belt · Panel thickness 0,5mm to 3,5mm (19.7mils to 137mils) · Panel clearance Up 100mm (4”) – Down 40mm (1.5”) · Working area 300mm (12”) x 350mm (13.8”) · Cutting area (Width) 320 mm (Up to 12,5") · Air pressure 6 bar (87 p.s.i.)   · Dimensions (LxWxH) 900mm x 2.765mm x 1.924mm (35.5” x 109” x 76”) · .5 meter conveyor pictured is not included.
