Description
ESSEMTEC PUMA2-PPD-C & Feeder Package - 12/2023 - Barely used
Usage: Approximately 55 production hours. This machine is equipped with Solder Paste Jet valve!

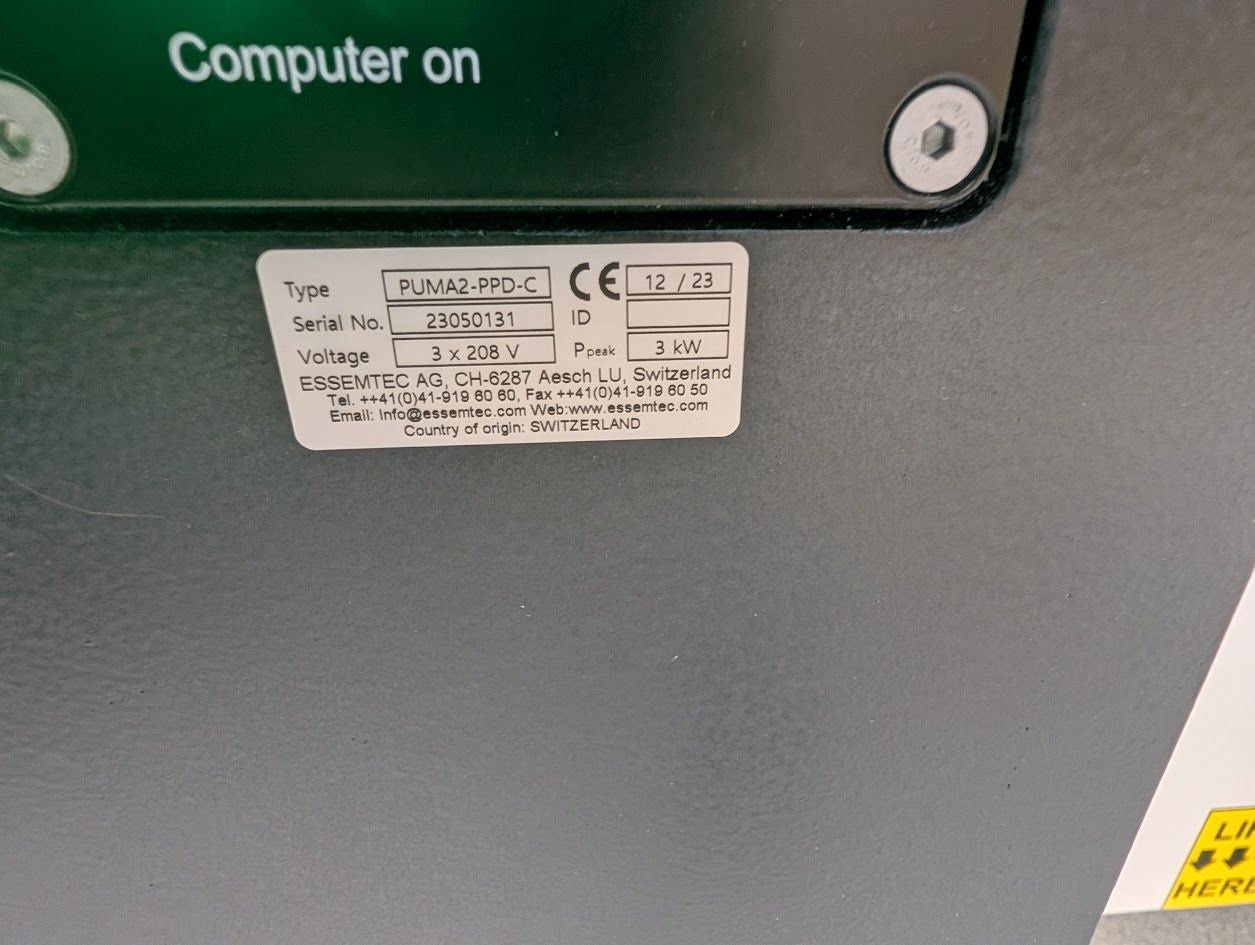

DOM: 12/2023 SN: 23050131

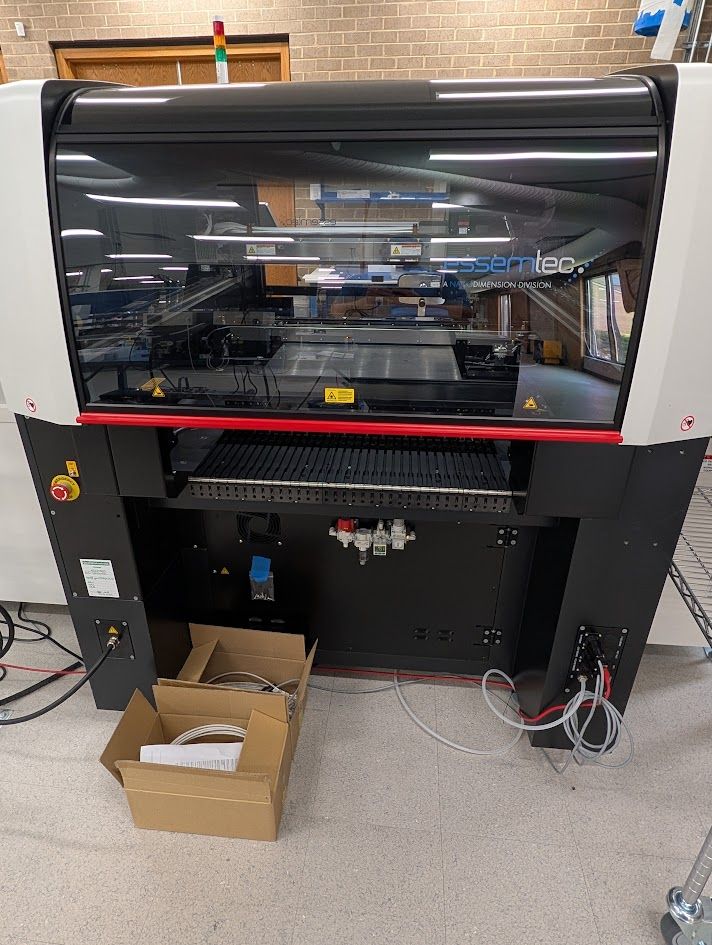

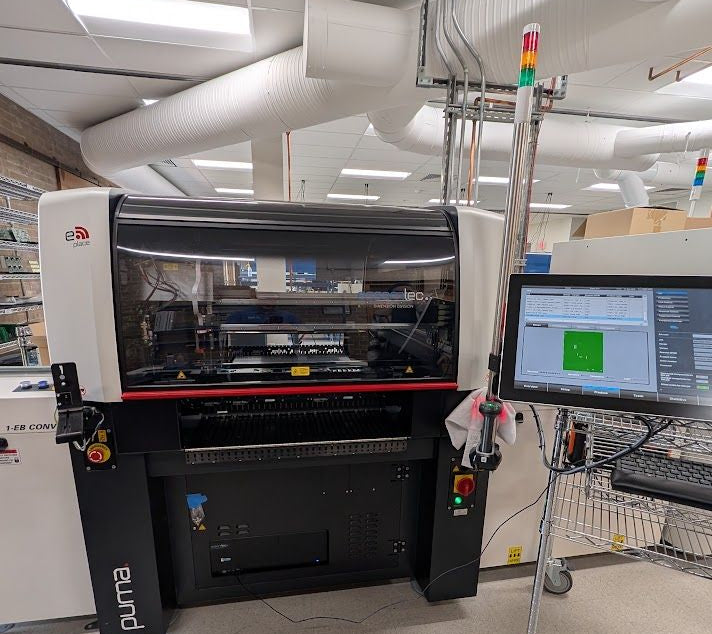

PUMA2-PPD-C Info: Highly flexible pick & place system with dispensing preparation, Inline version, placement area up to 560 x 610 mm, (22" x 24"),
CE mark, Cleanroom capable ISO7 / Class 10'000
Including:
- 2 x high precision pick & place axes,
- 3-stage conveyor system, manual adjustment and SMEMA standard
- Centering with Bottom Camera with programmable illumination,
- High speed feederbus for up to 160
intelligent feeder places,
- 3 active PCB support pins,

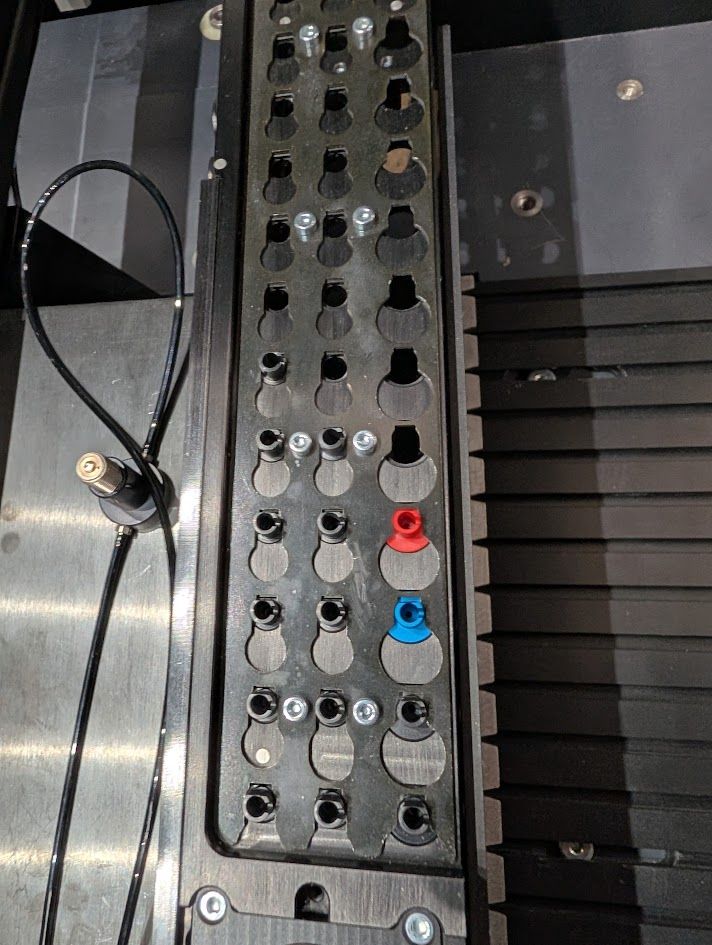

- 10 nozzles for components 0201 up to 80 x 33 mm
- 3-color signal tower
- Automatic needle-height calibration
- Purge station
- Calibration nozzle Z-axis height,
- Calibration set for placement axes,
- LED interior lightning,
- ePlace software system functions,
- Component library,
- Universal CAD conversion software
- Detection of bad PCB's in panels,
- Automated placing constraints
- Process optimization software,
- Direct help functions for the operator,
- Standard user level management
With:
- (1) Tray Slider for PUMA Adds up space for 2 additional trays
- CVU1 Component Verification Unit for 1 component . Measures values of components before placing them (Resistor, Capacitor, Inductor, Diode / polarity)
- Feeder setup station EVO/hyQ installation directly on the machine. 1x slide in unit for feeder set up without production interruption
- Wireless Barcode Scanner for 1-D and 2-D
- Height measurement by Laser sensor for PCB

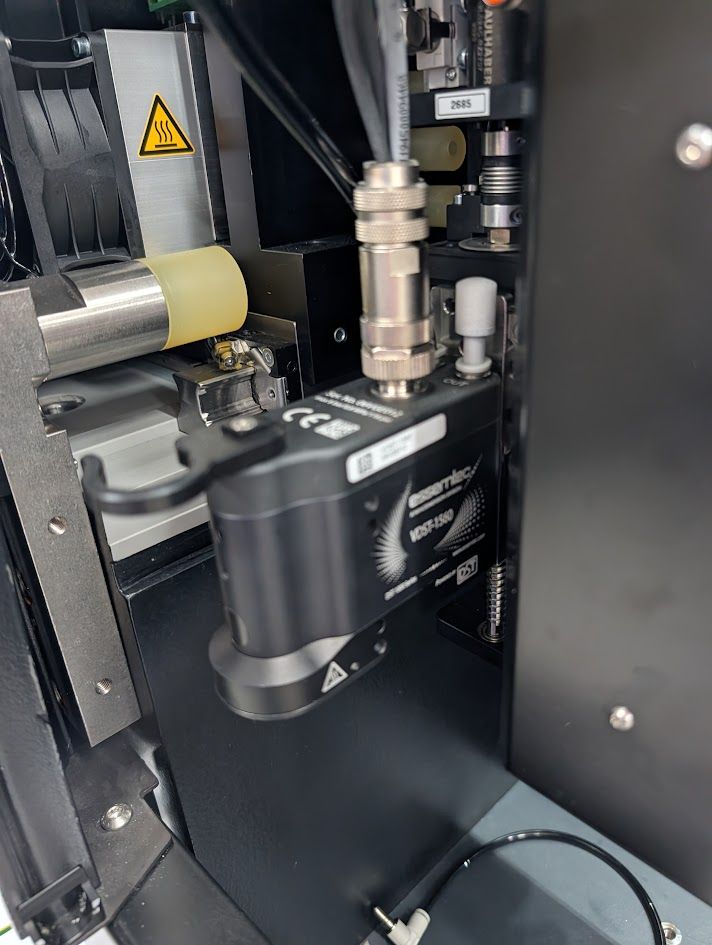

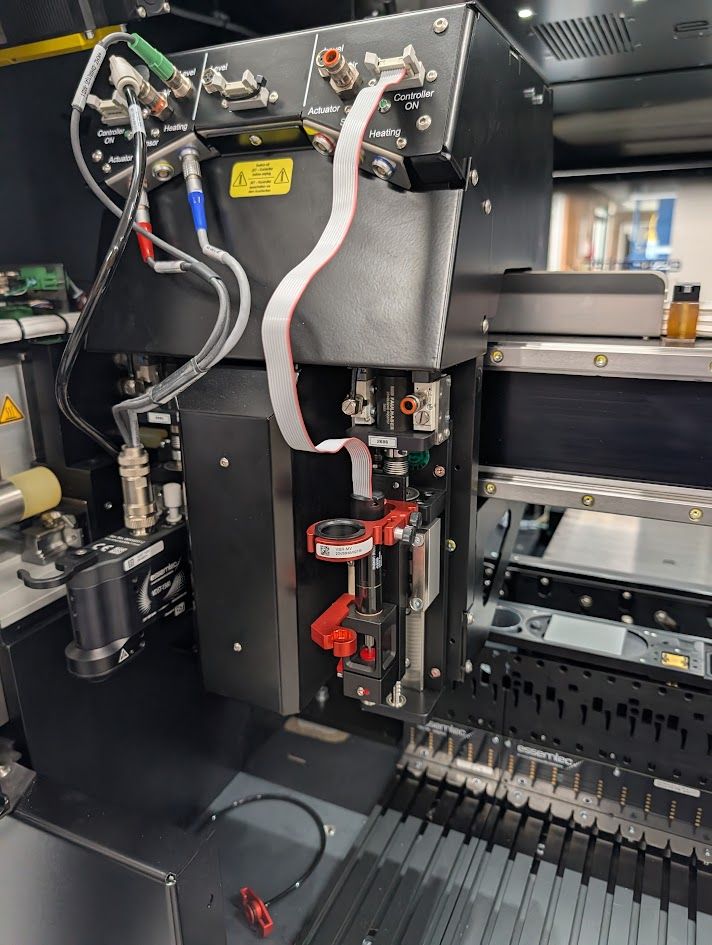

warpage compensation and placement/dispensing on different height levels. Enhanced calculation algorithms for shiny and mat surfaces. Extended range +/- 18mm from zero-level. - Solder Paste Jet Valve VDST with bayonet fluidic Fast plug n' play changeover
from different fluidics and settings. Integrated controller and heater.
Fully implemented in ePlace software. - Needle heating for screw valve VSR-MV-01
Feeders:

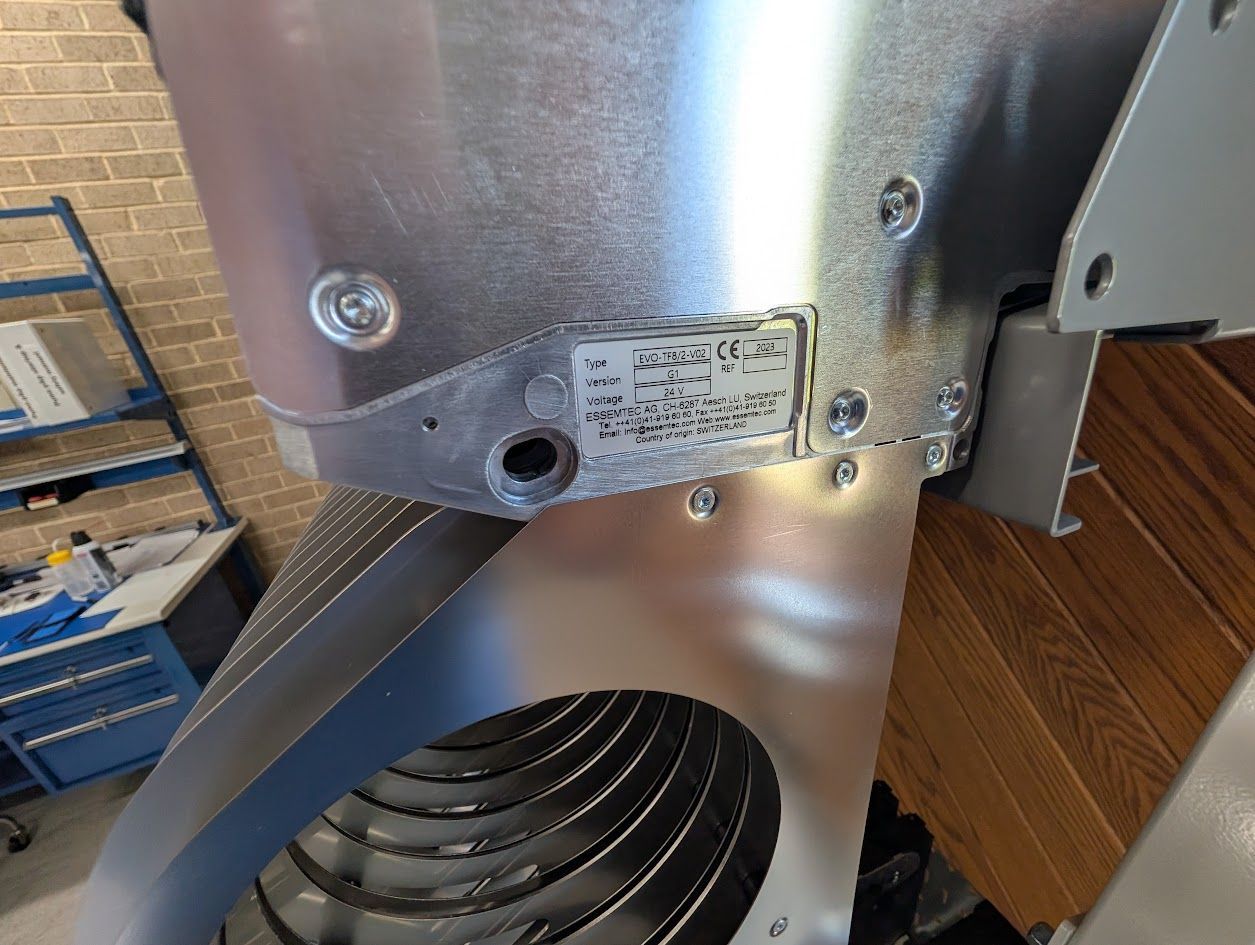

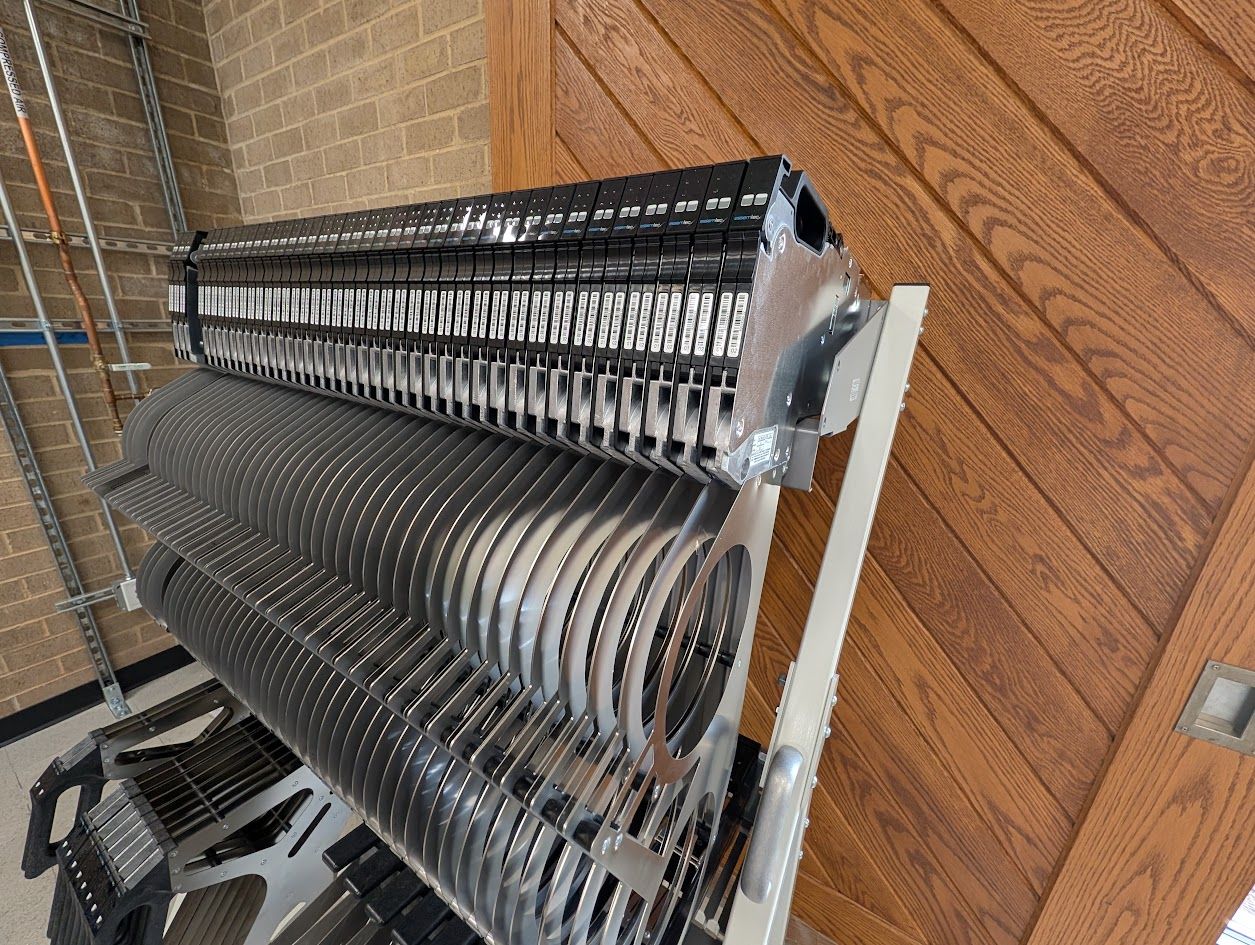

- 40 x EV0-TF8/2-VO2 Intelligent, fully automatical, high speed double 8mm EVO tape feeder incl. LED status indication
- 8 x PC-TF12 Intelligent, fully automatical 12mm HyQ tape feeder incl. LED status indication
-
2 x PC-TF16 Intelligent, fully automatical 16mm tape feeder incl. LED status indication
-
6 x PC-TF16-24 Intelligent, fully automatical tape feeder
adjustable for 16-24mm width incl. LED status indication - 1x PC-VF60-V2 Intelligent hyQ vibratory feeder for components

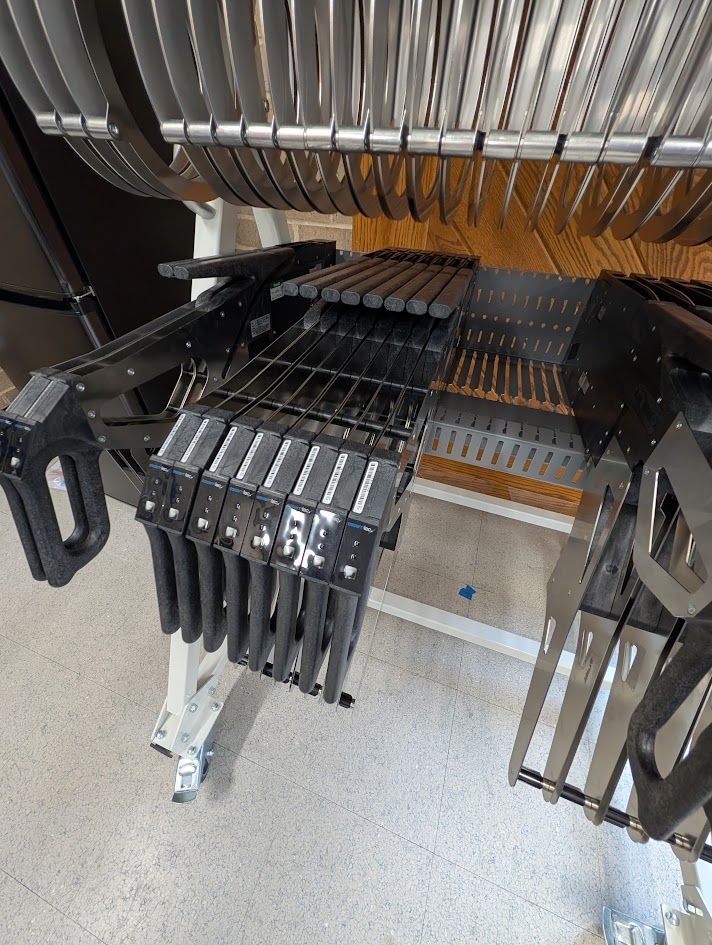

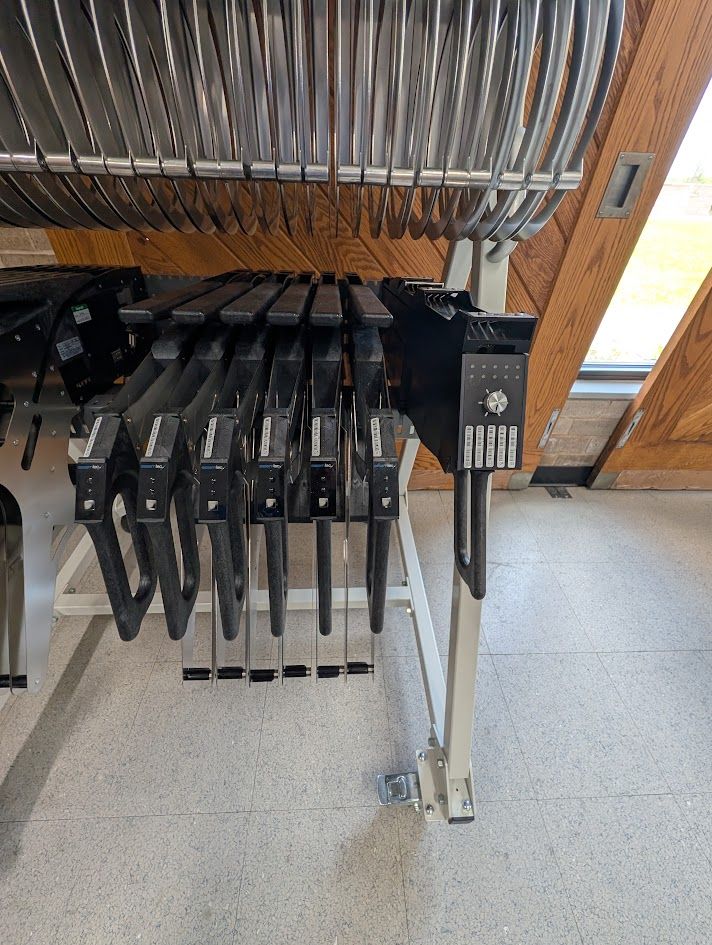

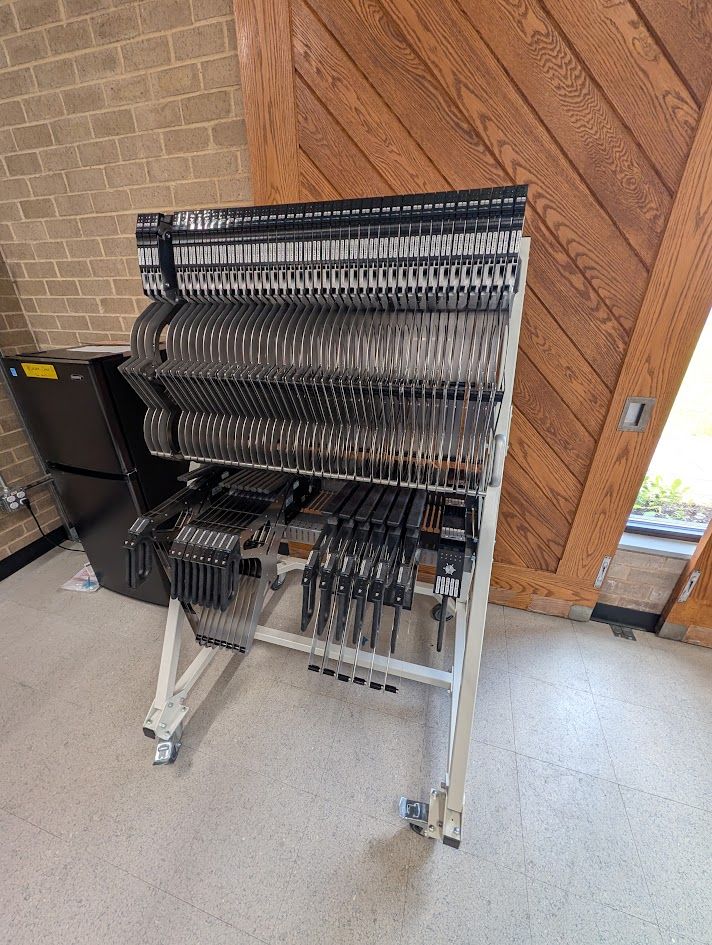

- 1 x EVO-FR-CA- M-V02 Feeder Cart for hyQ and EVO- feeder on reels. Capacity for up to 84x double-8mm feeder, means max. 168 feeder lanes.
Machine is consigned, located on the East Coast, not at PFI.
