OSAI Automation Neo Router w/BOFA Dust Extractor & Thermo Chiller - 2016
OSAI Automation Neo Router w/BOFA Dust Extractor & Thermo Chiller - 2016

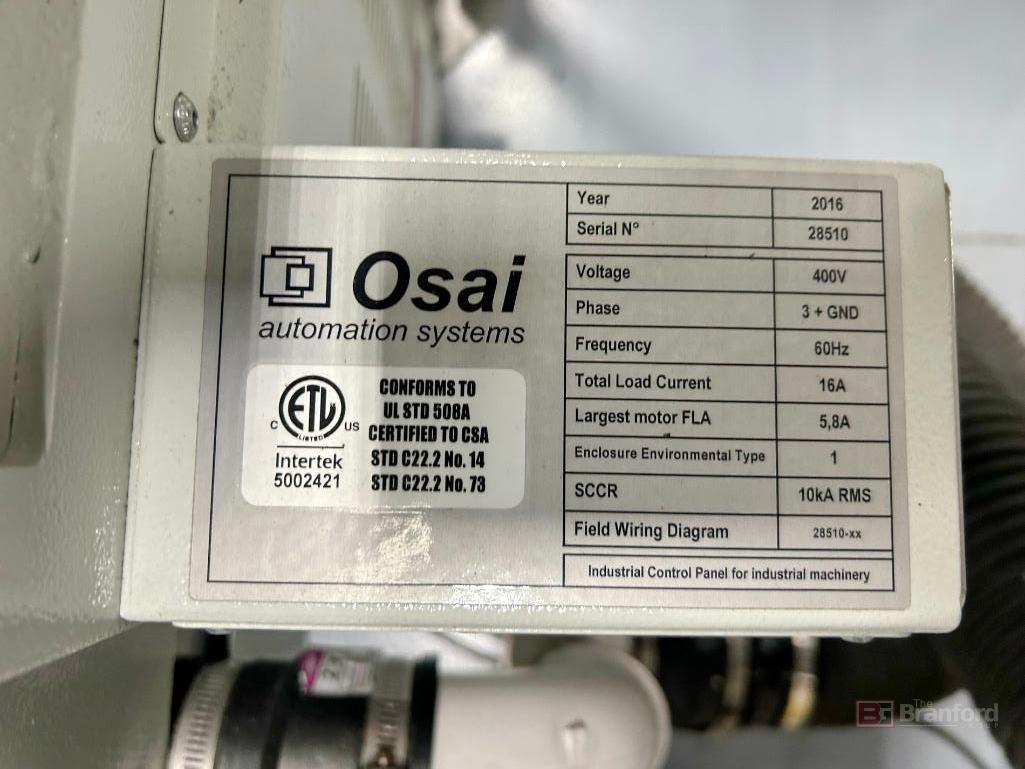

YOM: 2016 SN: 28510
Neorouter Modula is the solution for inline mechanical separation of PCB’s.
The high flexibility in terms of configuration and fast setup
Suitable for mass production volume but also for high mix lots.

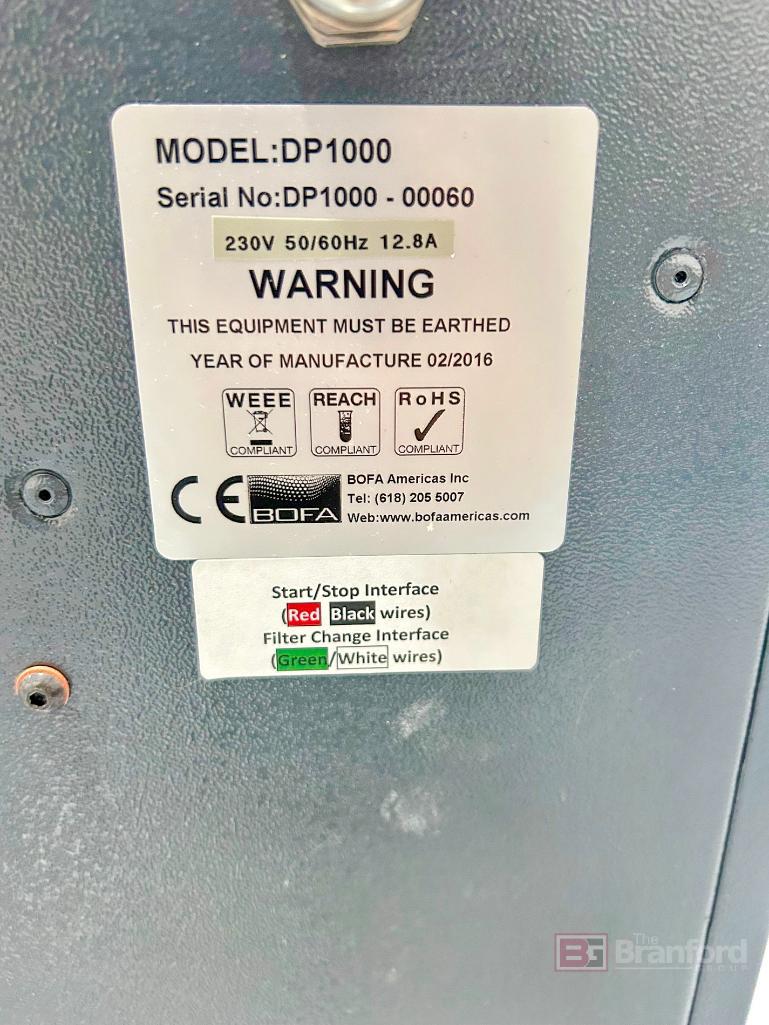

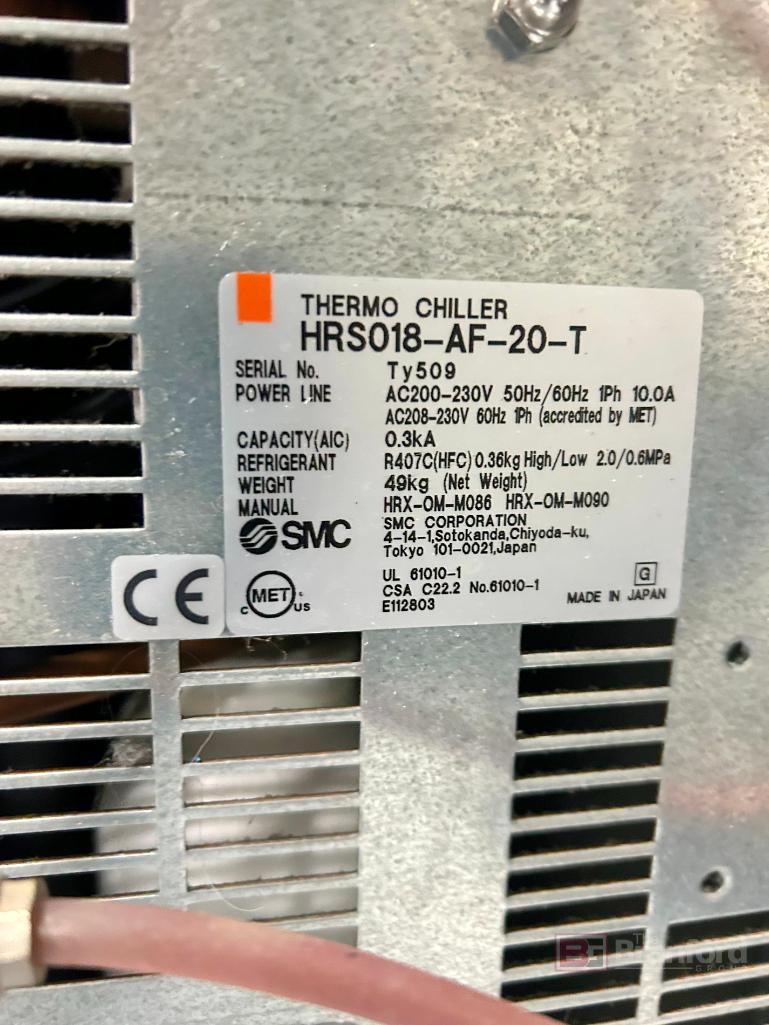

With: BOFA DP1000 Dust Extractor & Thermo Chiller
Transp. SMEMA compliant
Max. conveyor width 350mm with automatic adjustment
Interface SMEMA
Operating side Front side
Panel length 70mm to 300mm (2.8” to 12”) with second stopper up to 480mm (19”)
Panel width 50mm to 350mm (2” to 13.8”)
Panel weight Up to 3kg (6.6lbs)

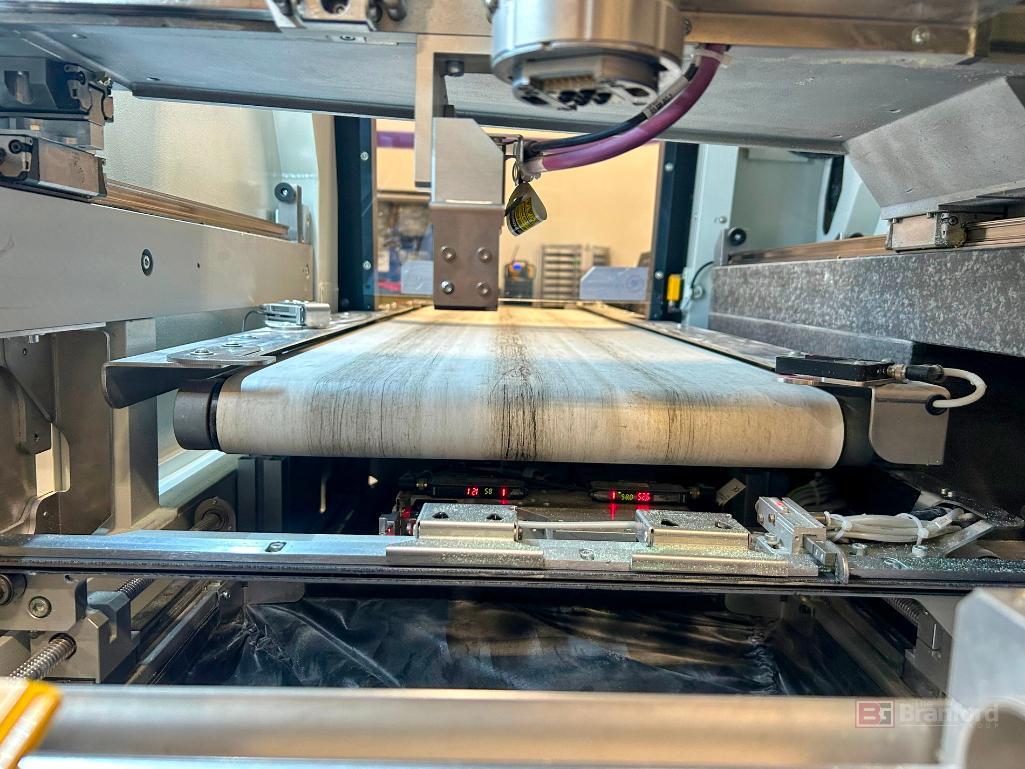

PCB conveyor 3mm flat belt
Panel thickness 0,5mm to 3,5mm (19.7mils to 137mils)
Panel clearance Up 100mm (4”) – Down 40mm (1.5”)
Working area 300mm (12”) x 350mm (13.8”)
Cutting area (Width) 320 mm (Up to 12,5")
Air pressure 6 bar (87 p.s.i.)
Dimensions (LxWxH) 900mm x 2.765mm x 1.924mm (35.5” x 109” x 76”)
.5 meter conveyor pictured is not included.
Condition details, check-out notes and close-up photos for this unit are available on request.
Machine as pictured. Options and details are confirmed on the formal quote.
