Description

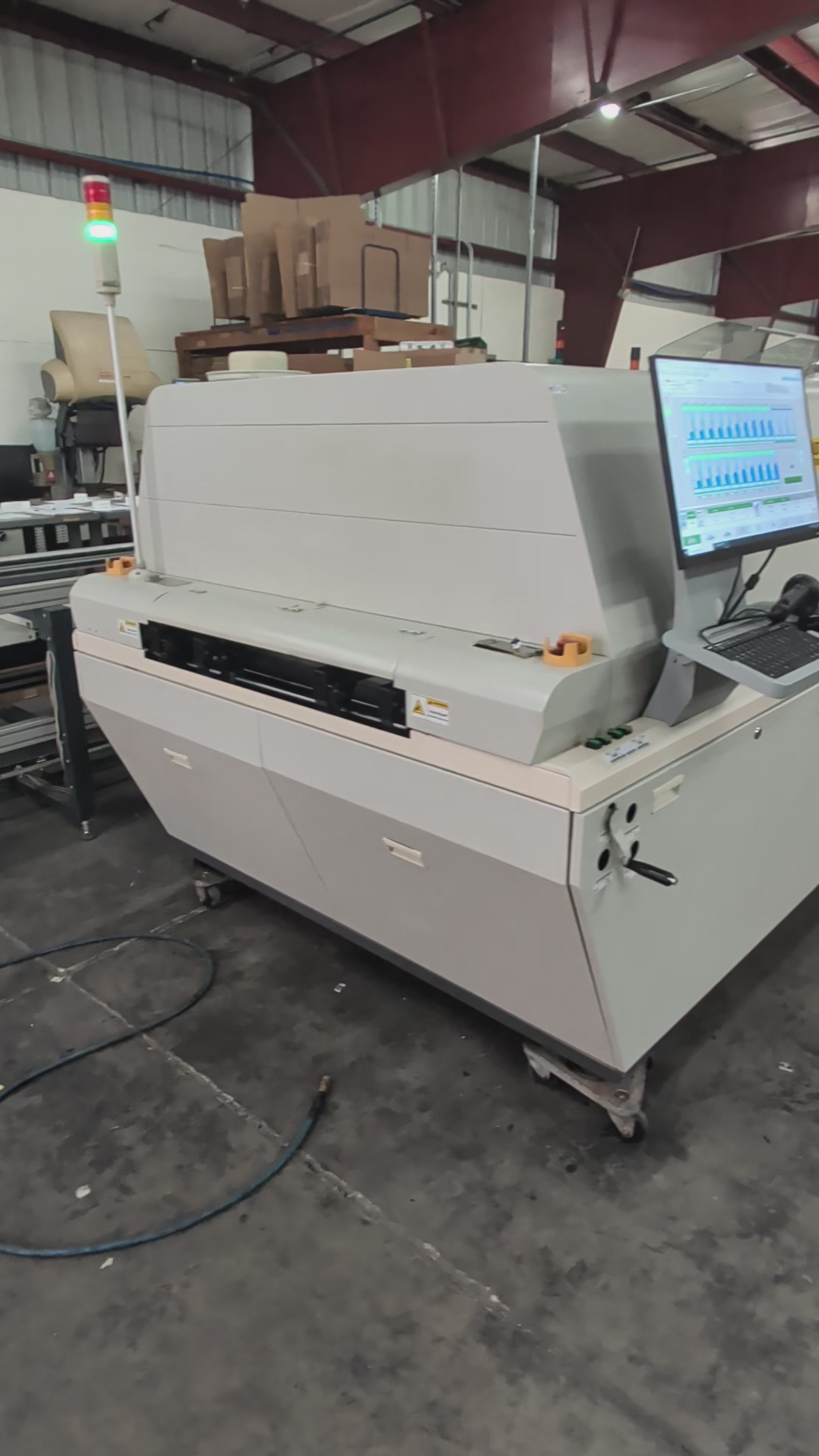

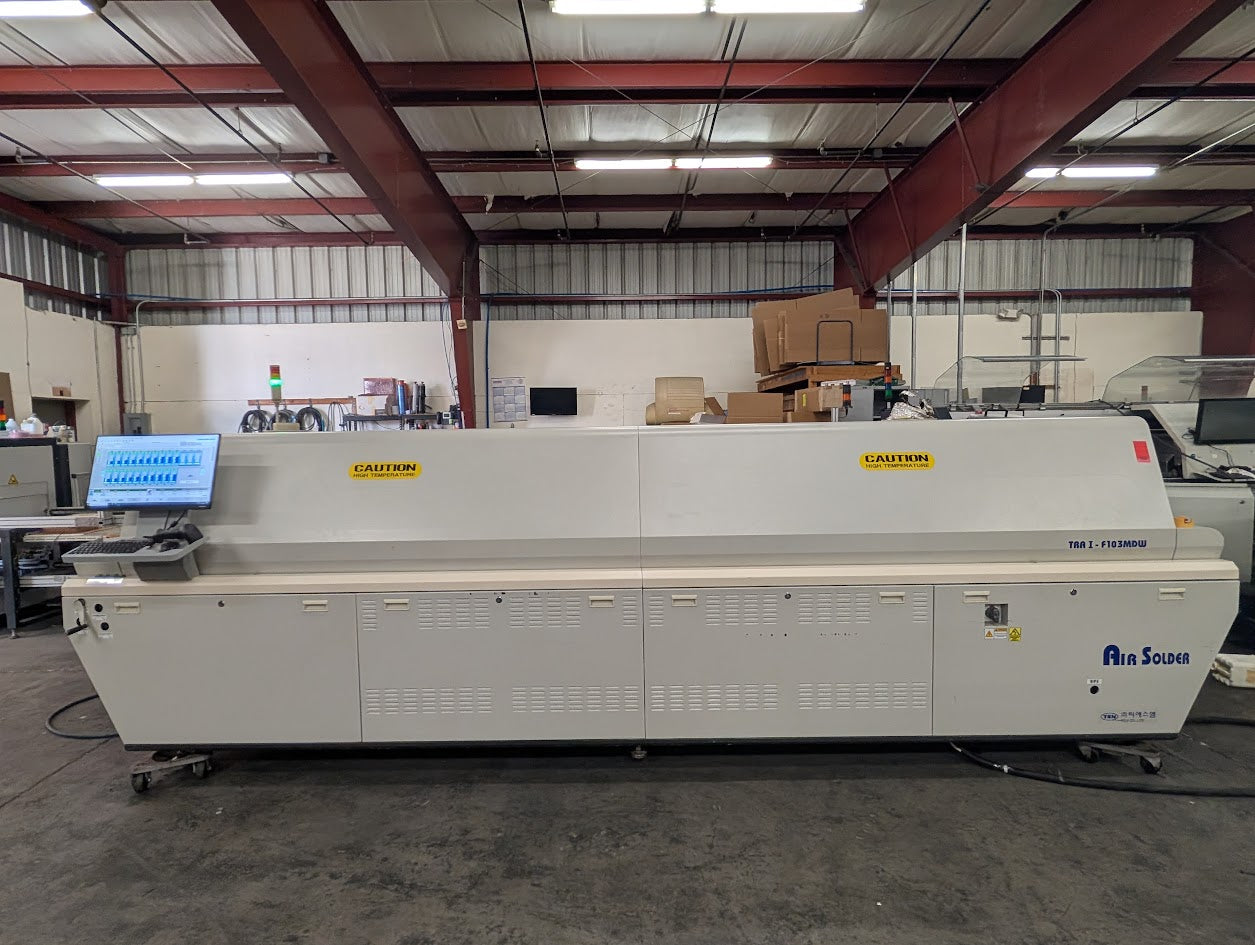

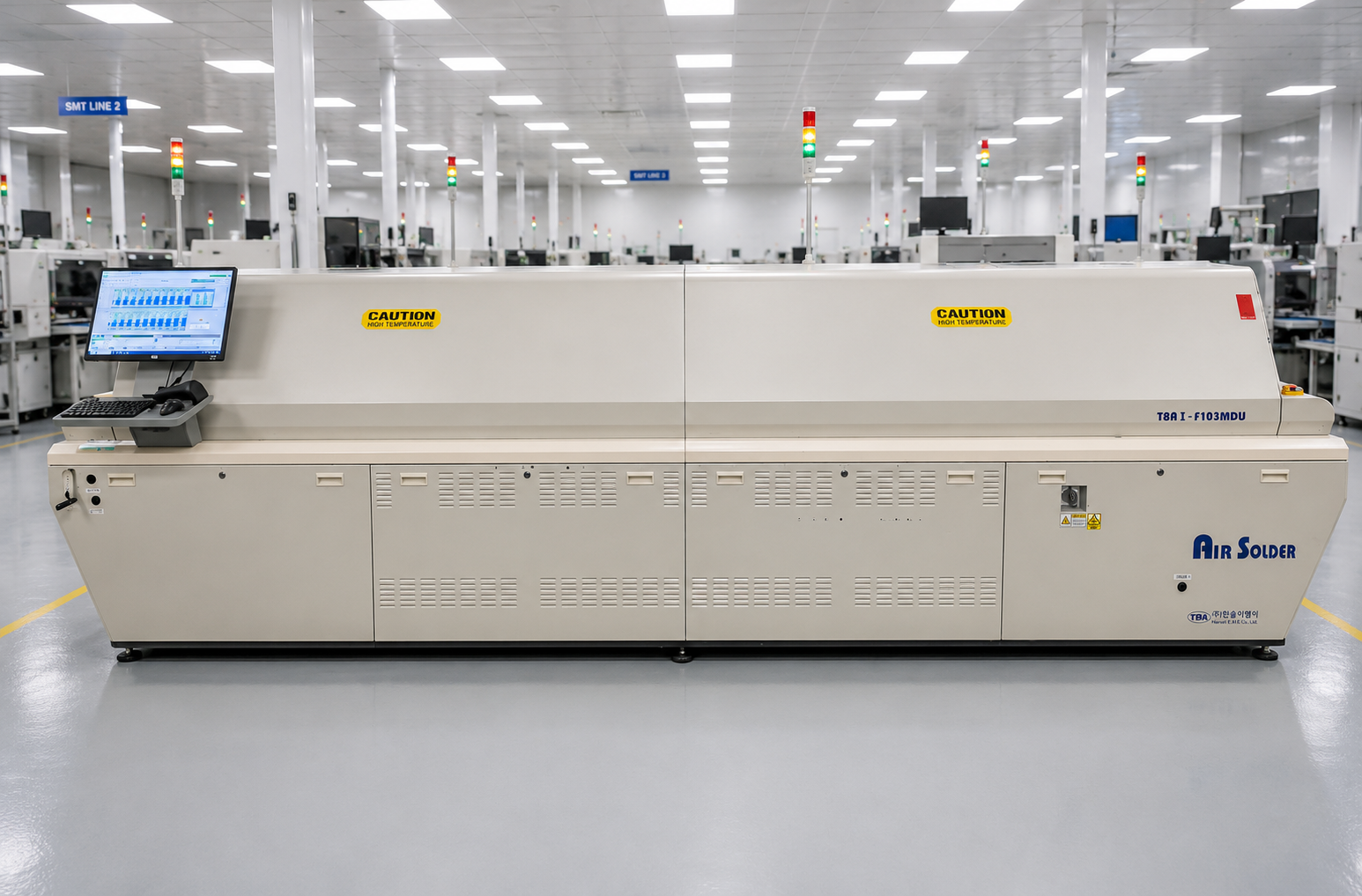

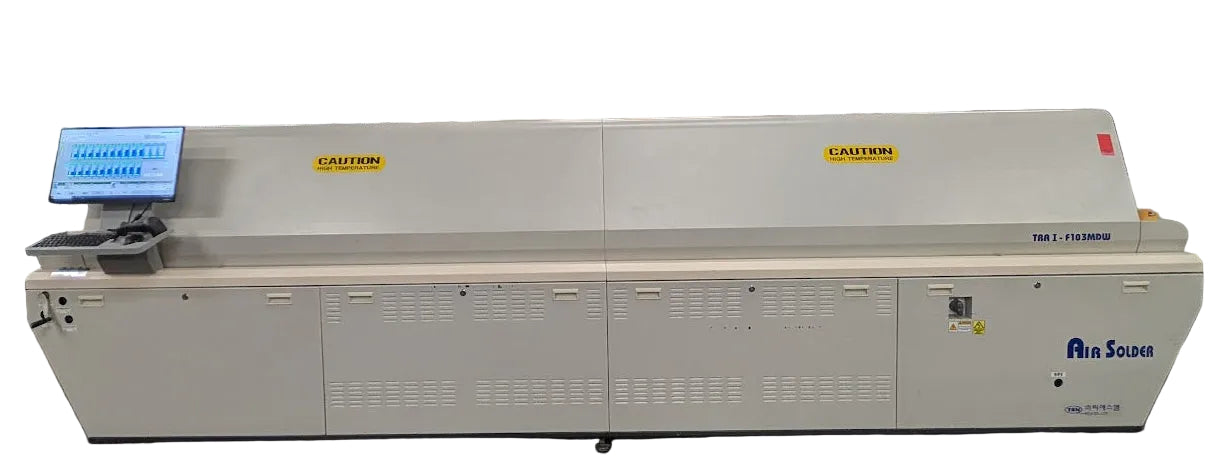

TSM TRA I - F103MDW 10 Zone Reflow Oven - 2023
YOM: 2023
- Heating Zones: 10 Top / 10 Bottom (3,000 mm total heating length)
- Cooling Zones: 3
- Max PCB Width: 50 – 460 mm
- PCB Clearance: 30 mm Top / 23 mm

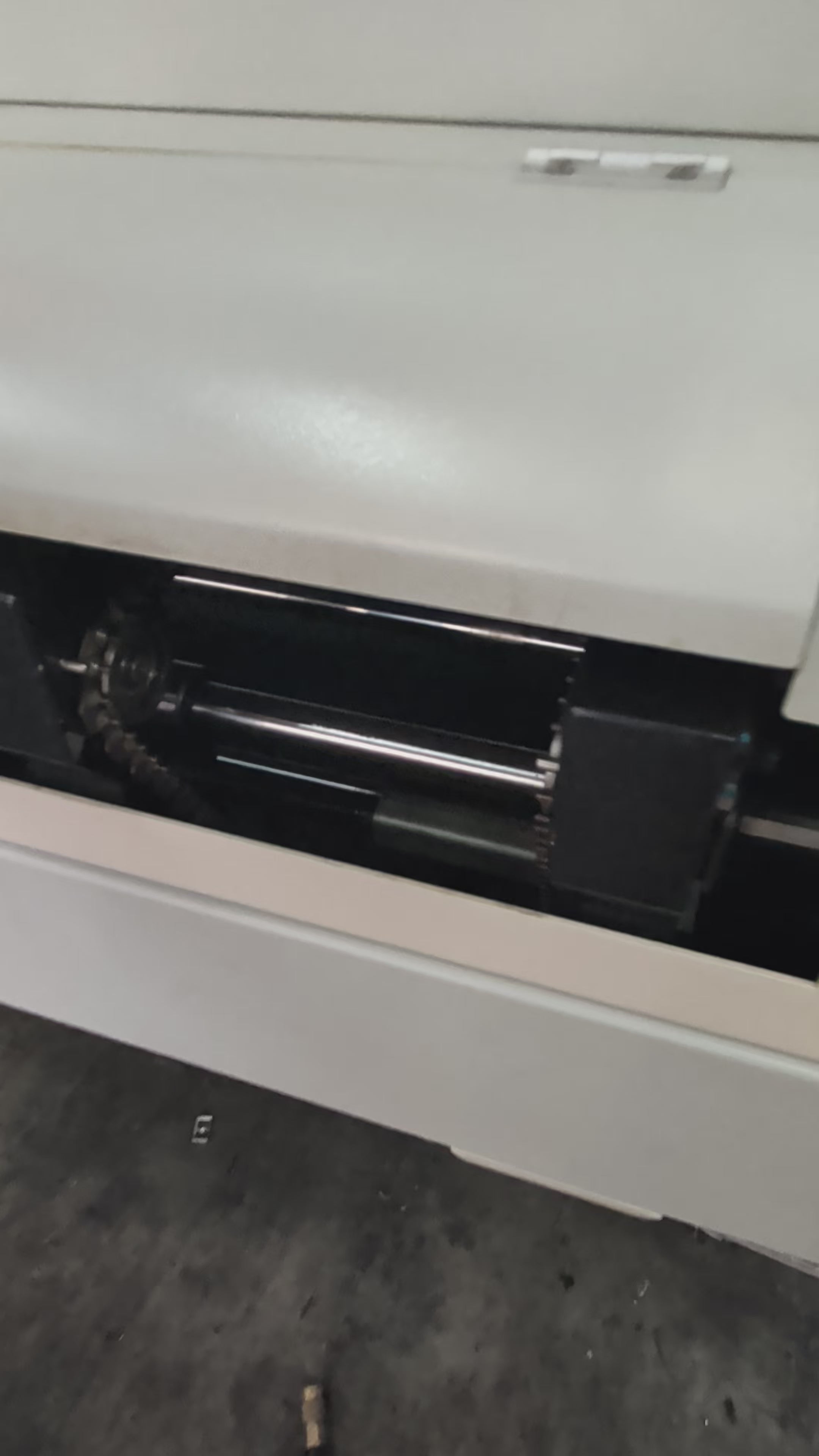

- Conveyor System: Edge rail with CBS
- Conveyor Speed: 0.3 – 1.6 m/minTemperature Accuracy / Repeatability: ± 1ºC
- Machine Dimensions: 5,010 mm (L) × 1,420 mm (W) × 1,550 mm
- Power: 480v 3PH 99A
#264/274/337
