royce
Price:
$ 13,500.00

Description

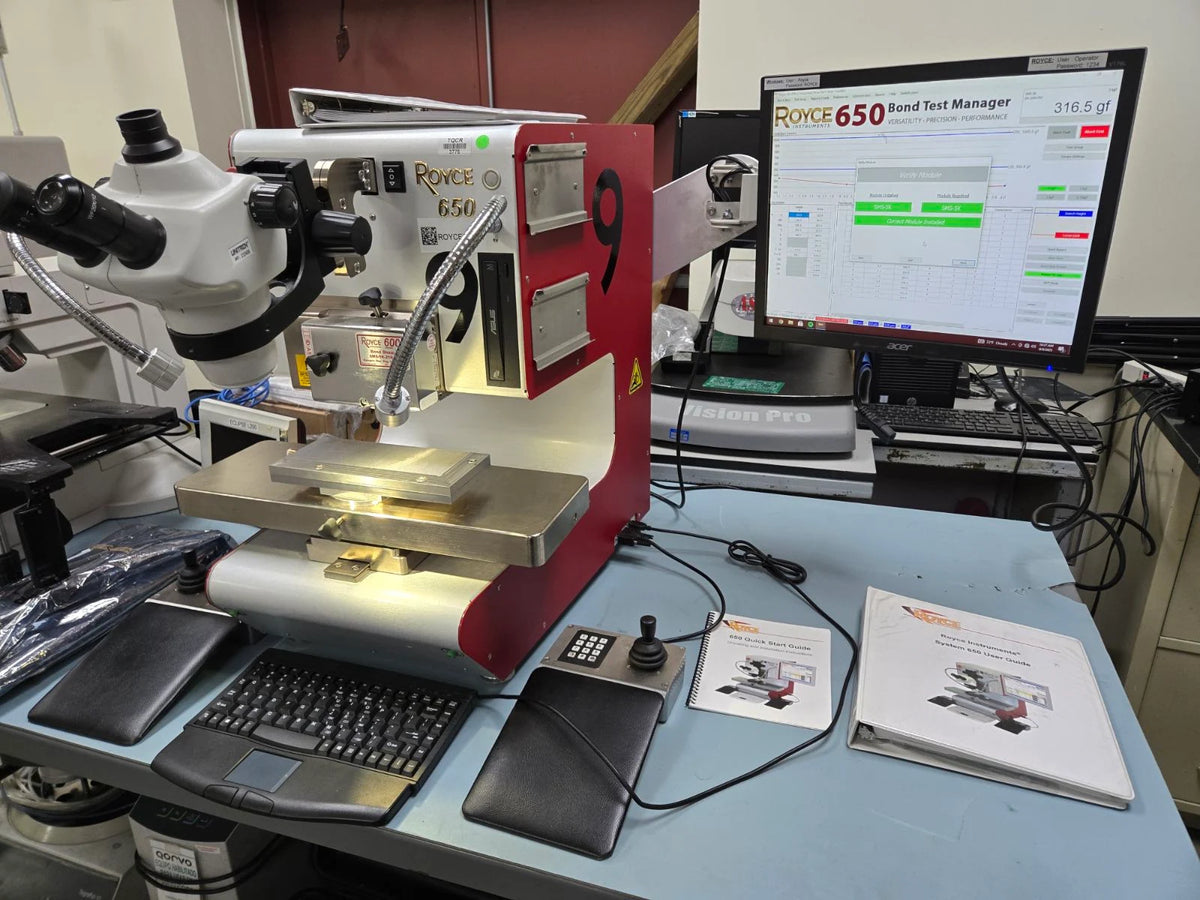

Royce 650 Bond Shear Tester

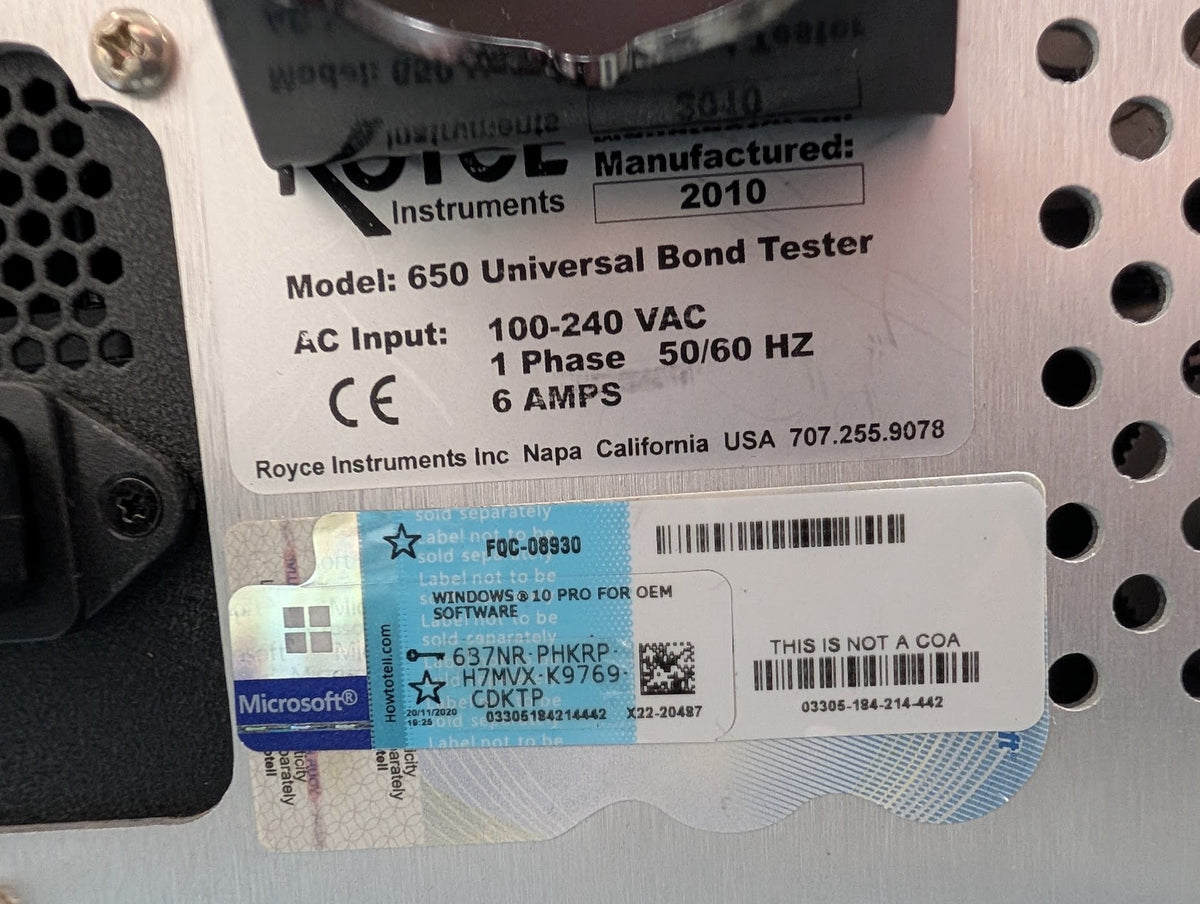

DOM : 2010
Operating system upgraded

Manuals included

Mfg Specs :

The Royce 650 Universal Bond Tester is a high-precision system designed for microelectronics bond testing, wire pull, and shear testing across semiconductor, automotive, and medical device manufacturing.

Key Performance Capabilities

  • Die Shear Force: Up to 200 kgf

  • Wire / Ball Pull Force: Up to 10 kgf

  • Ball Shear Force: Up to 5 kgf

  • Tweezer / Ball Pull Force: Up to 10 kgf

  • 3-Point Bend / Push Force: Up to 10 kgf

  • Applications: Wire pull, ball bond shear, die shear, solder ball (bump) shear, zone shear, tweezer pull, cold ball pull, stud pull, and heated testing
