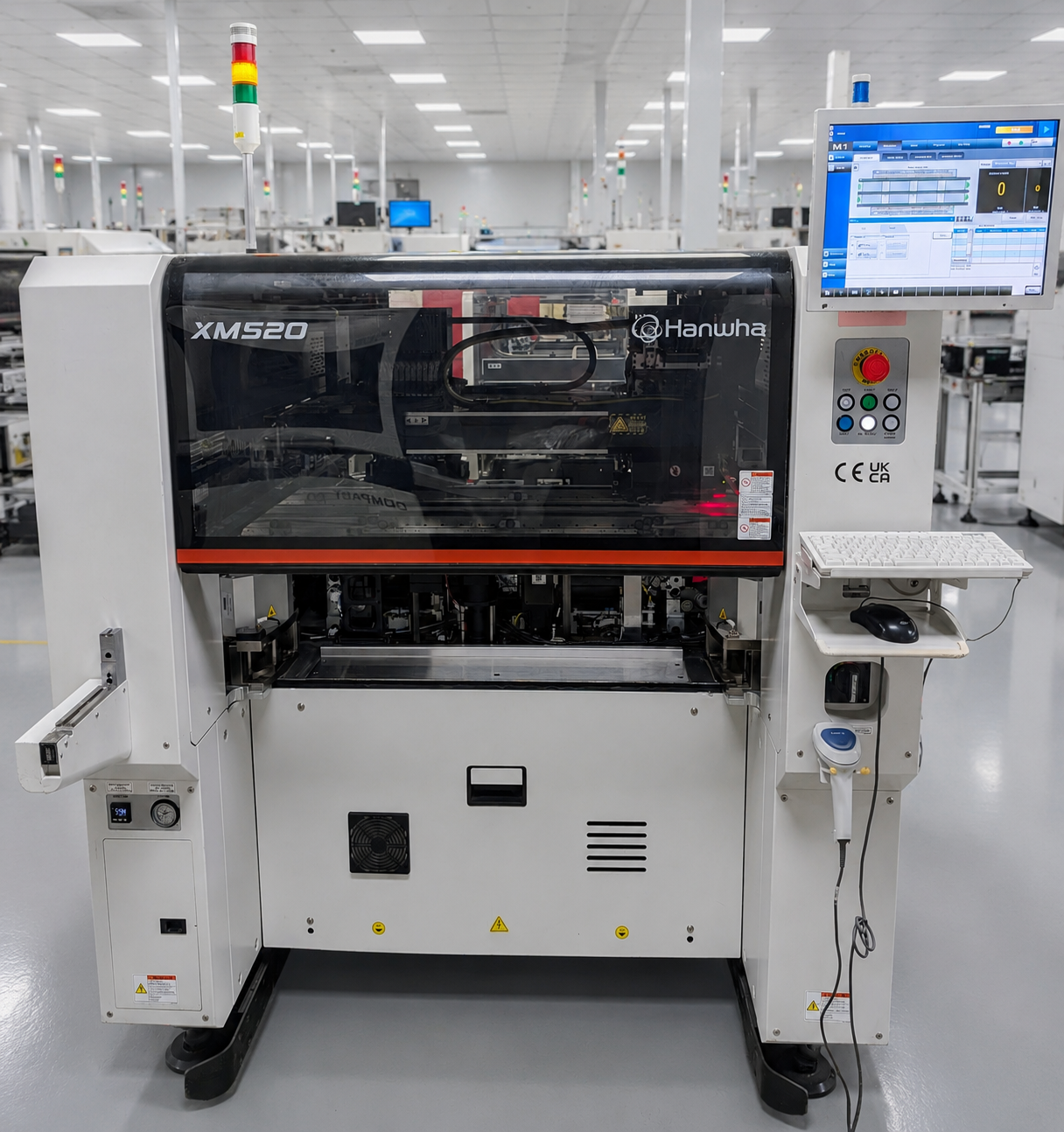

Hanwha XM520 High Speed Mounter - 2023
YOM: 2023 SN: DY-0007 PFI#315
The Hanwha XM520 is a high-speed, highly flexible Surface Mount Technology (SMT) pick-and-place machine. It utilizes a 20-spindle, 2-gantry system to deliver an optimal placement speed of up to 100,000 CPH (Chips Per Hour) while maintaining high precision for a wide array of component types

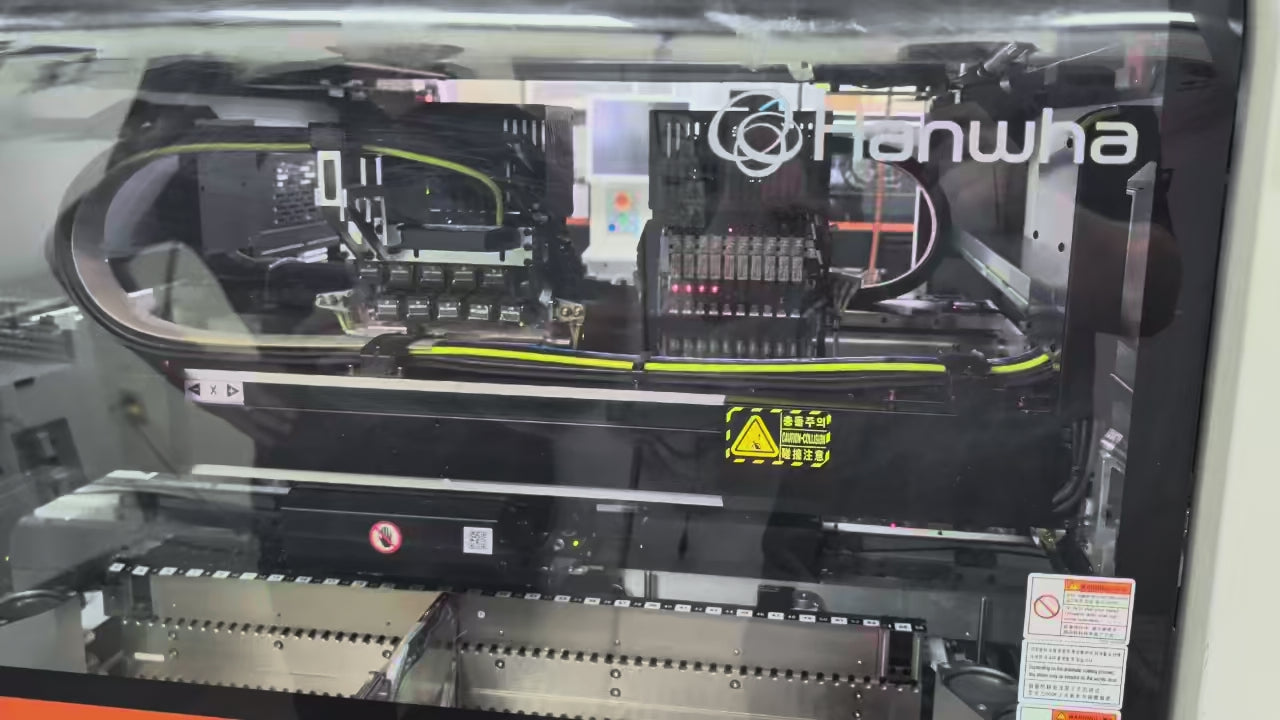

- Dual Gantry
- 10 spindles each head (2)
- Placement speed: up to 100,000 CPH (optimum)
- Feeder capacity: up to 120 8mm standard feeders
Includes: 2 feeder trolleys.
Feeders and additional trolleys are available.
External Dimensions: 1,430 mm (W) × 1,900 mm (D) × 1,994 mm (H)
Power: AC 200V ~ 240V, 50/60 HzAir Requirements: ≥ 0.6 MPa clean dry air
