Description

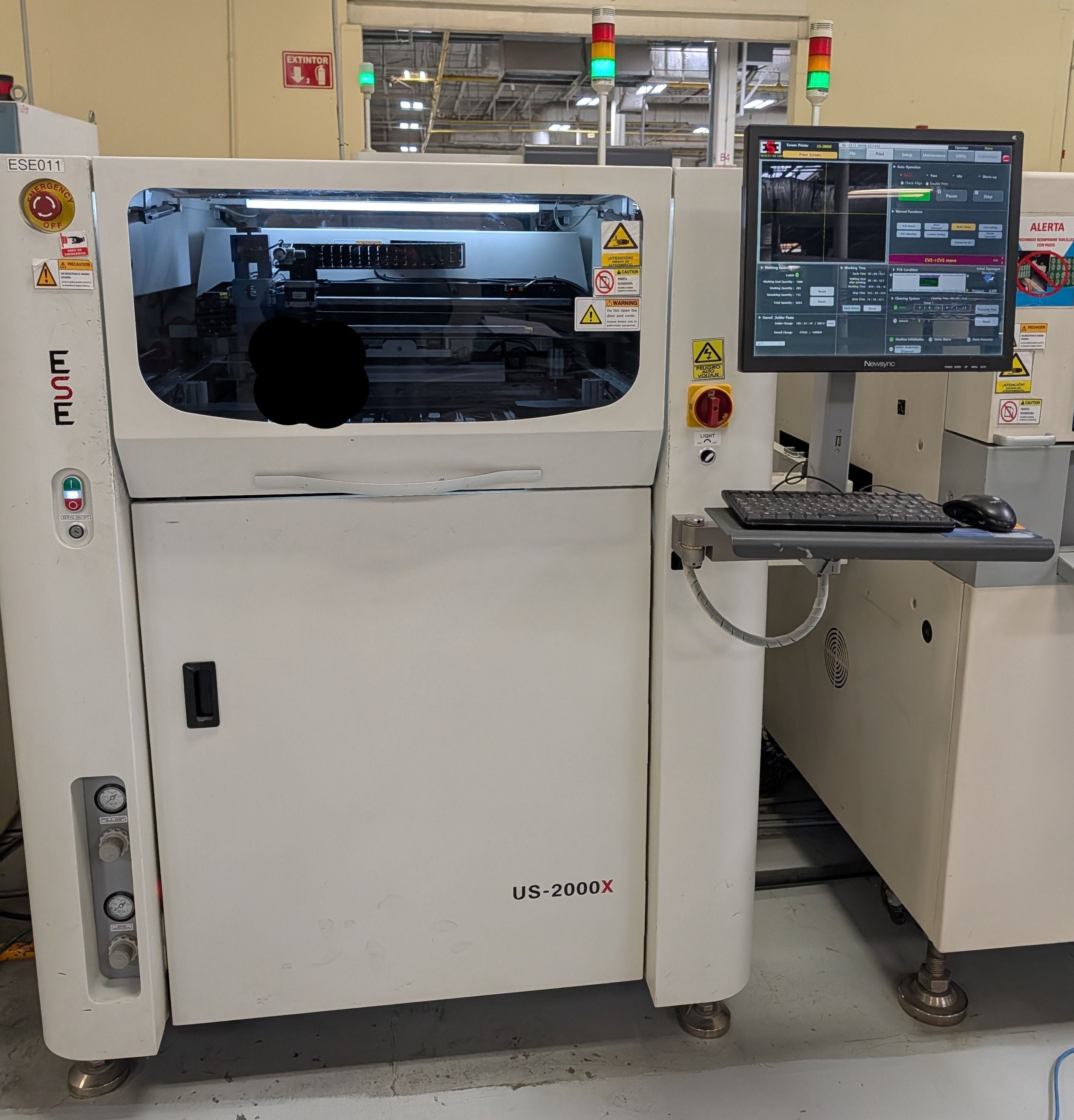

ESE US-2000X Screen Printer - 2022 #22112784 PFI 277

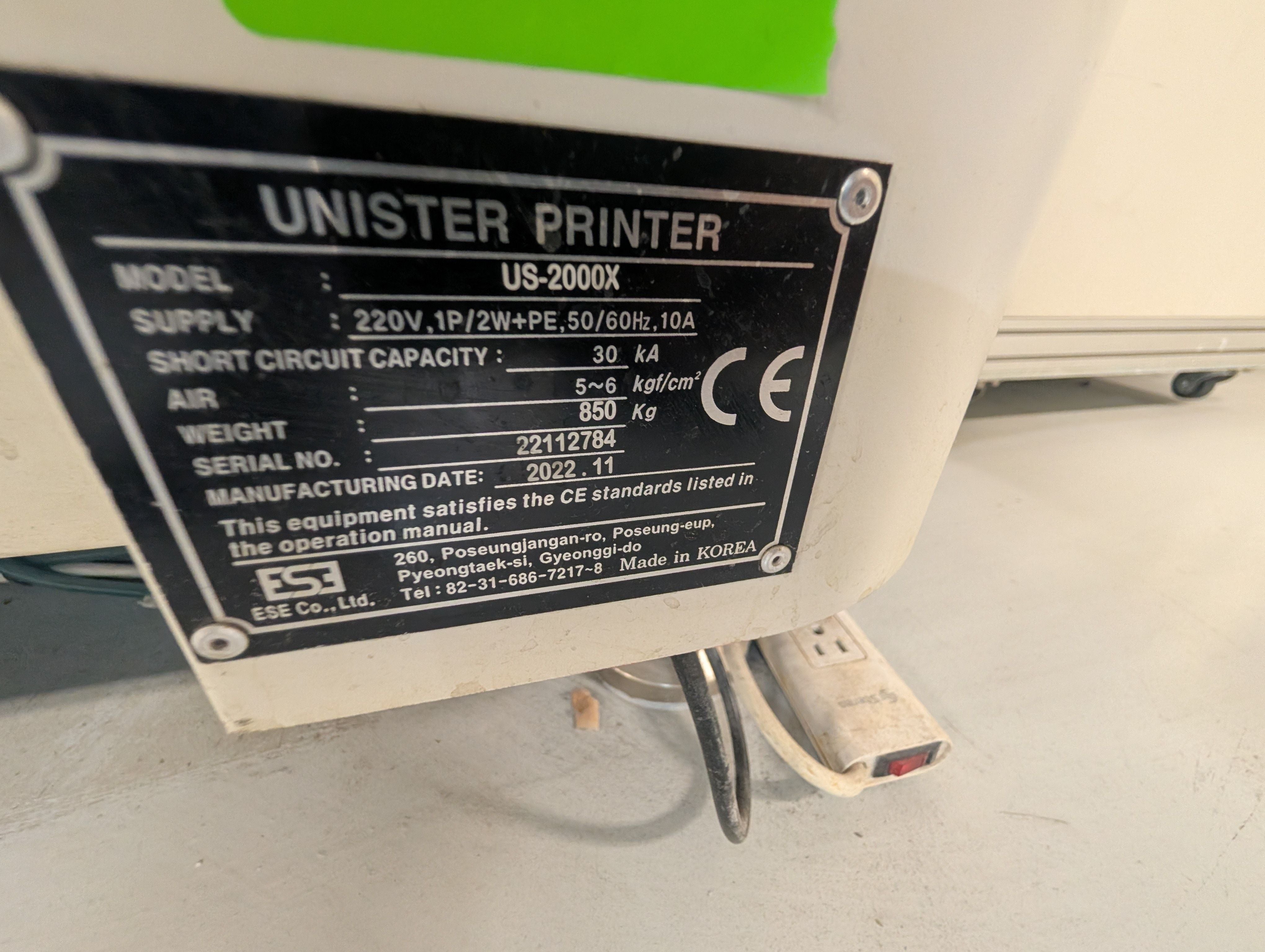

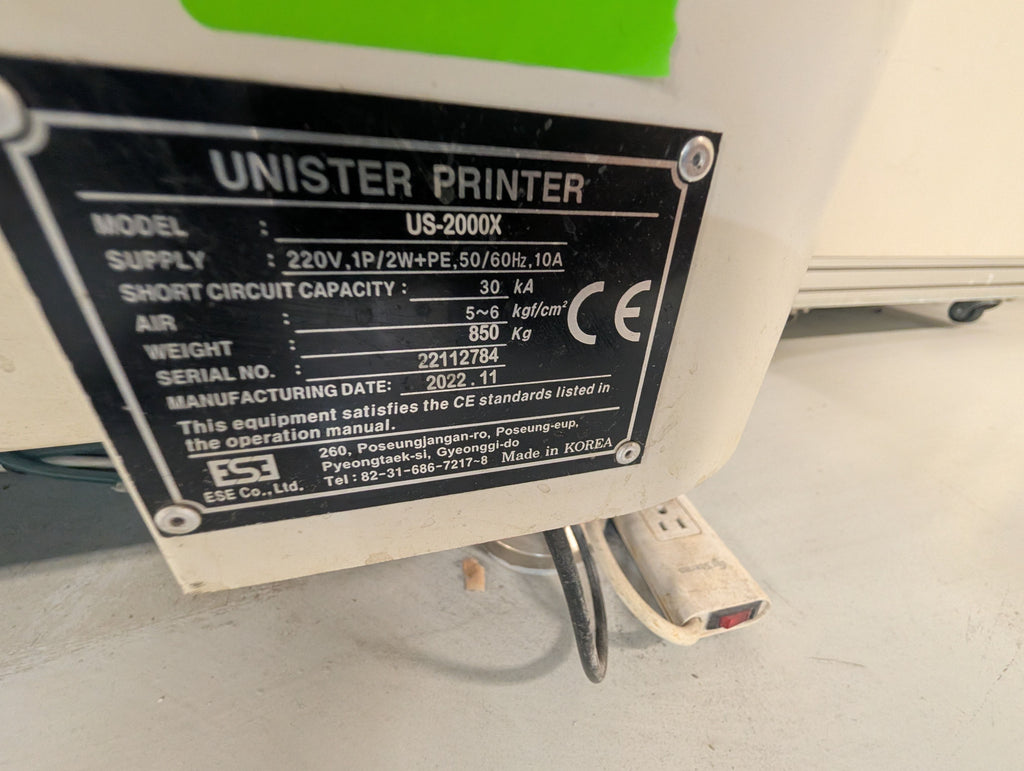

DOM: Nov 2022 SN:22112784 PFI 277
Specs :
- Advanced Features - 2D Inspection: Includes standard 2D solder paste inspection for both the PCB and the stencil apertures.
- Vision System: Equipped with a fast, accurate vision system that uses up/down CCD cameras for fiducial recognition.
-
Cleaning System: Comes standard with an under-stencil cleaning system (USC) that
supports wet, dry, or vacuum cleaning.
Key Specifications
- PCB Size: Supports boards up to 550x400mm
- Cycle Time: Approximately 10 seconds.
- Accuracy: Features an alignment accuracy of 12.5um at 6 sigma and a printing repeatabilityof +/-25um at 6 sigma.
- PCB Thickness: Compatible with boards between 0.1 and 5mm thick.
-
Stencil Handling: Can handle standard stencil sizes of 23" and 29
