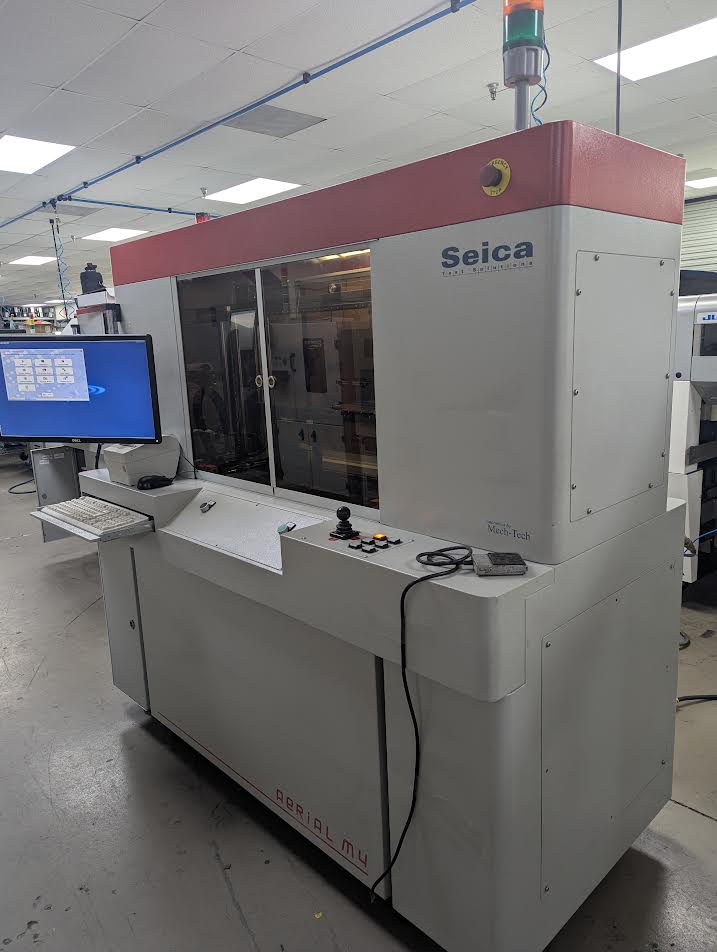

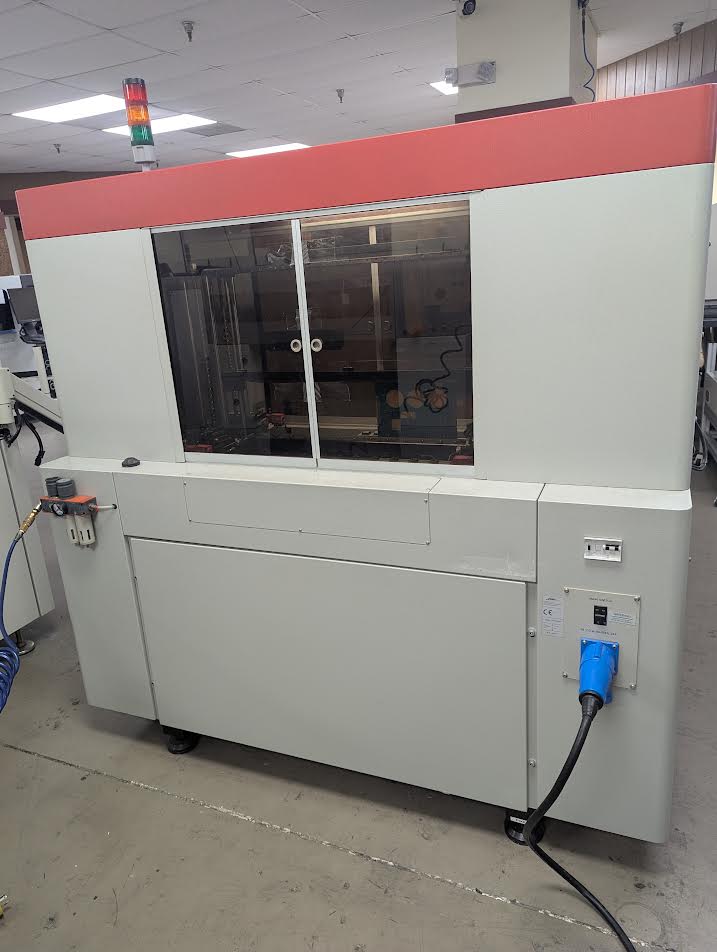

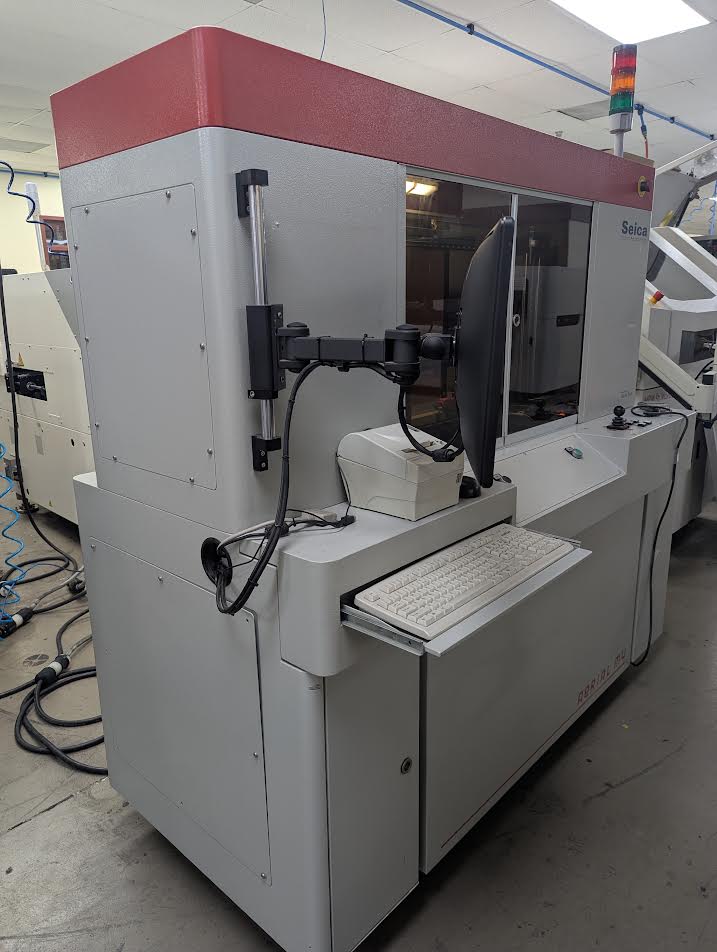

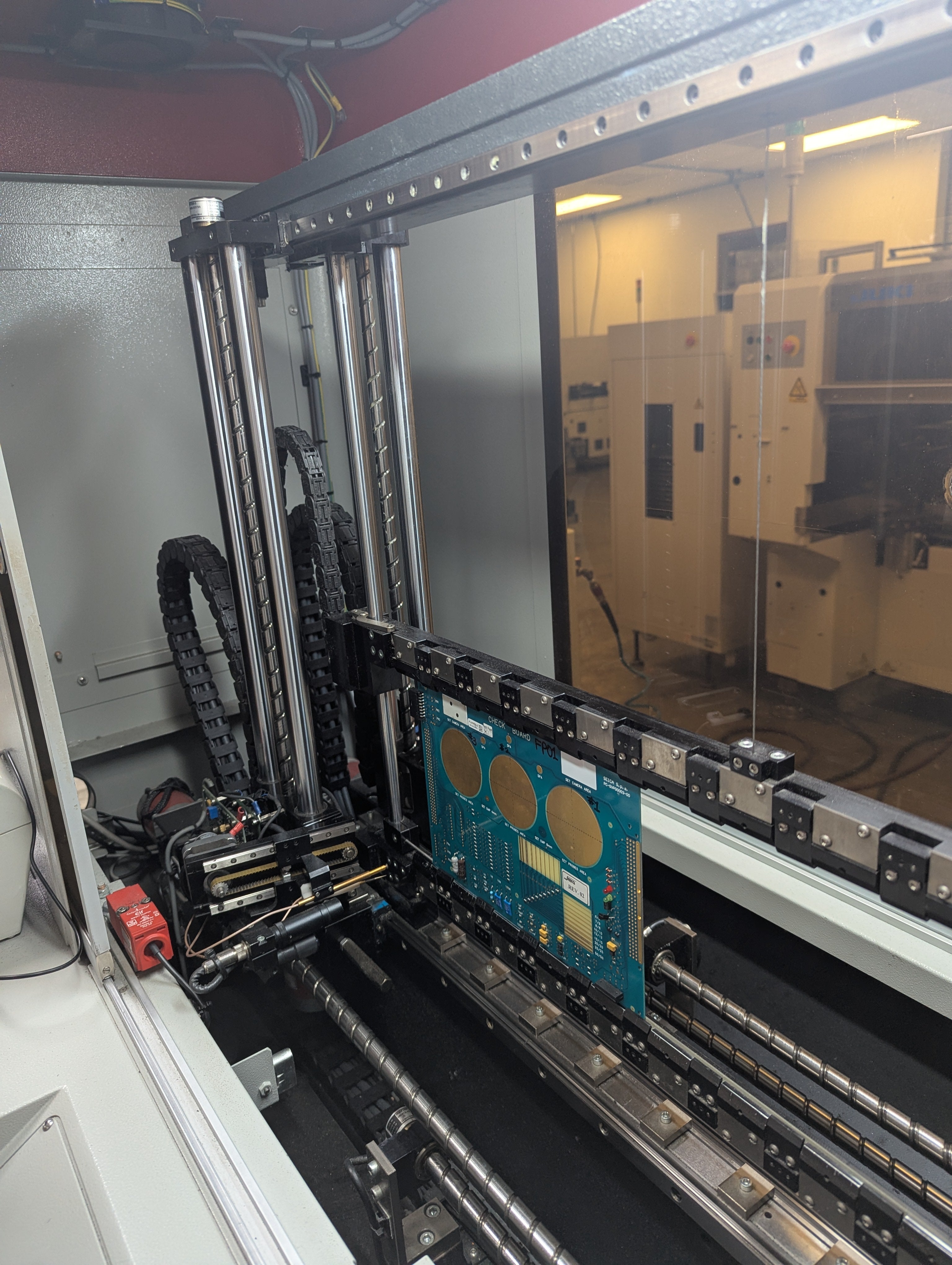

SEICA AERIAL M4 Dual sided Flying Probe
These machines can be purchased individually or as a package. They have been very well kept, and OEM calibrated both this year! Just taken offline week of 11/7/2024
SN: 200812 & SN 200777 YOM: 2007 & 2009

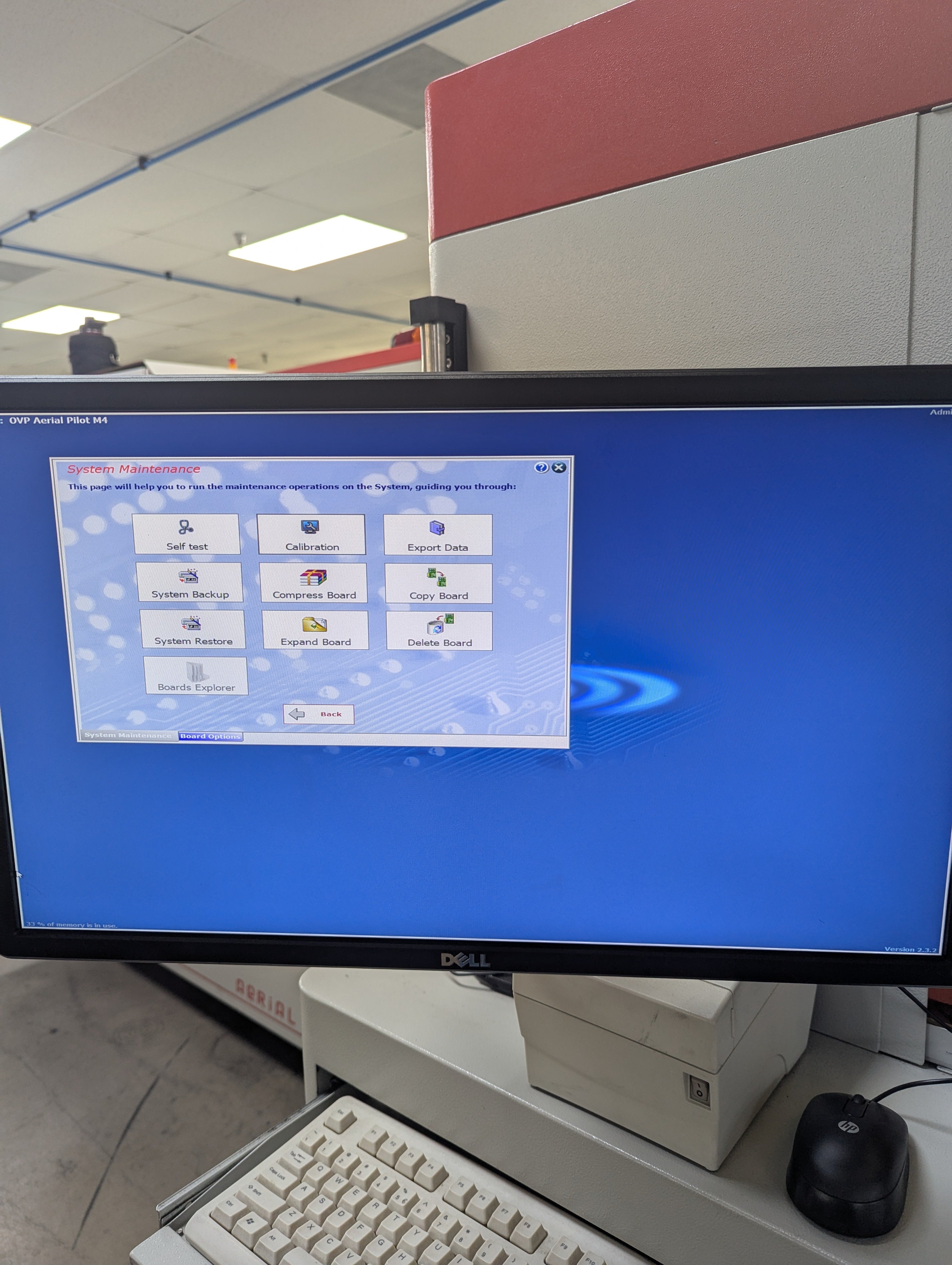

SW: Seica VIVA (2.3.2. Seica Viva software)
Each is configured with:

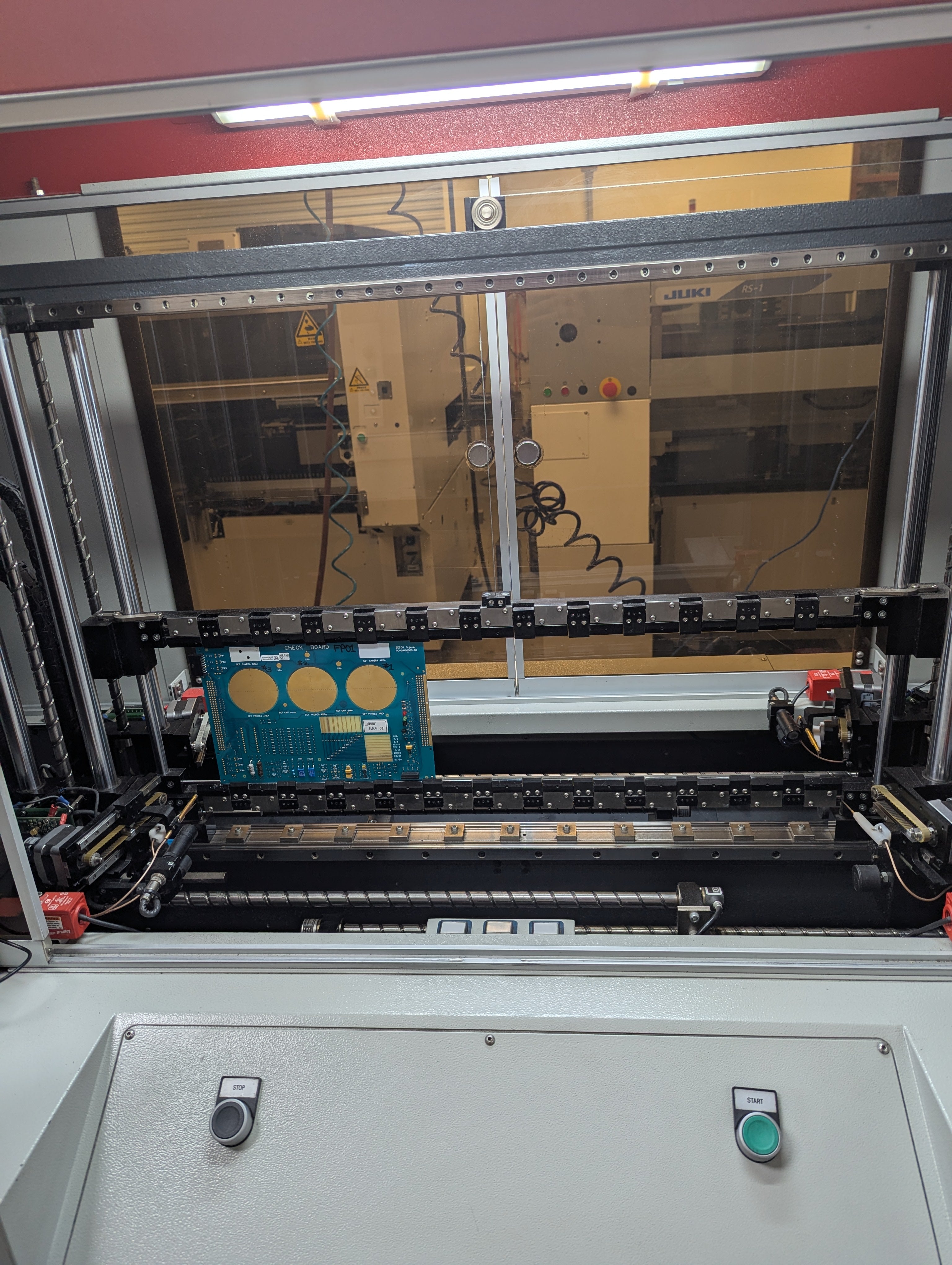

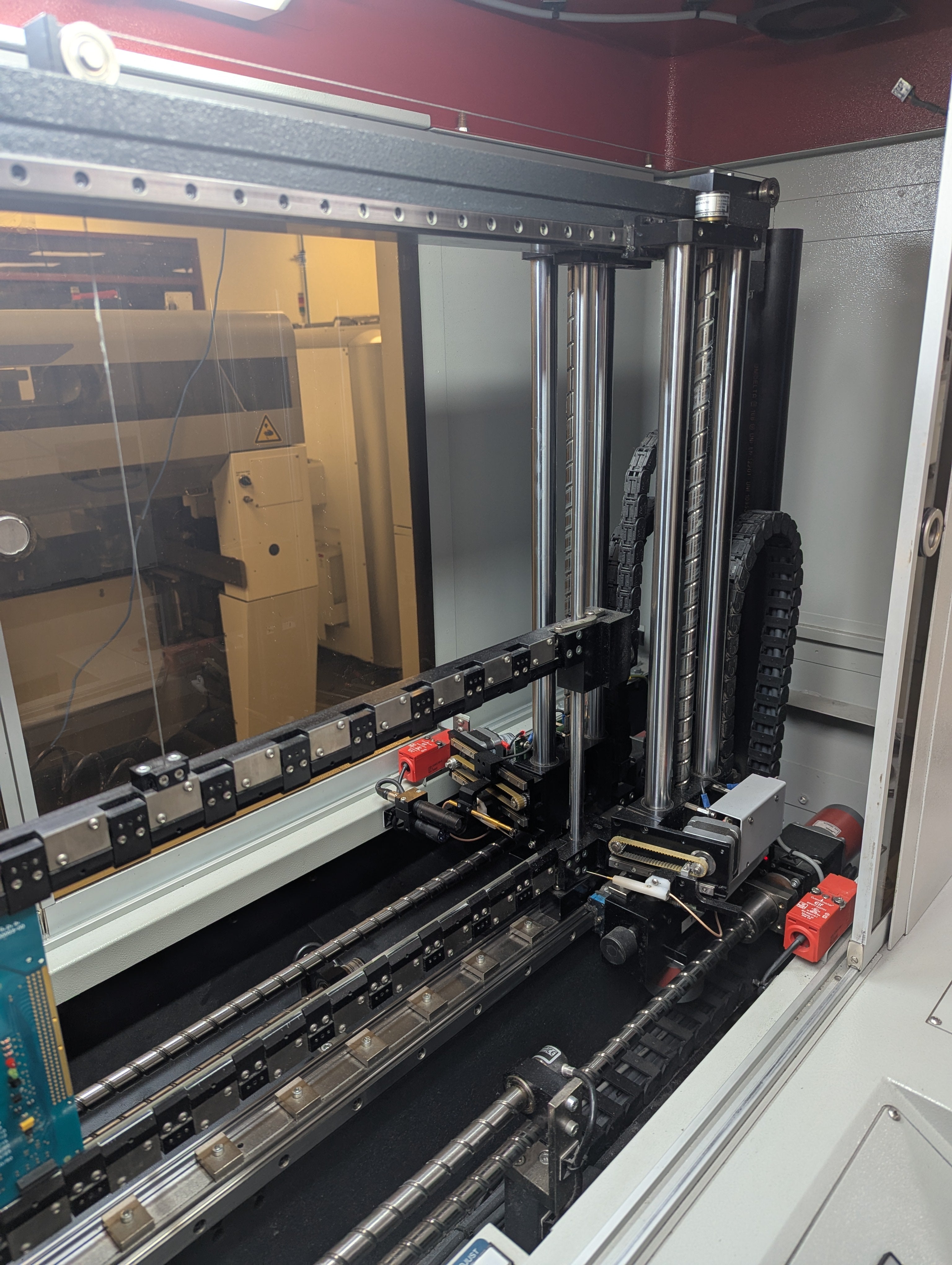

- 4 Independent Flying Probes for independent X, Y and Z movements (2 on Front and 2 on Rear side)
- 2 CCD Camera at Probe for Optical Alignment and Vision Tests (1 on Front and 1 on Rear side)
- Manual - vertical board loading
Per OEM Data Sheet: SYSTEM CAPABILITIES
• Open, expandable architecture (IEEE-488, VXI, Boundary Scan)
• Roller bearings on X axes
• Air Bearings on Y axes
• Stepper Motors with integrated Encoders for X and Y Movements
• Stepper Motors with encoders for Z-Movements
• Positioning Resolution: 3µm (0.12mils) X-Axis, 3µm (0.12mils) Y-Axis
• Positioning Repeatability: ± 3µm (0.12mils)
TEST AREA & U.U.T. CHARACTERISTICS
• Test Area: 420 x 610mm (16.5 x 24")
• Probes angle: 12°
• Maximum testable board size: 420 x 610mm (16.5 x 24")
• Minimum board width: 20mm (0.78 x 0.78")
• Maximum PCB Thickness: 5mm (0.20”)
• Edge Clearance: 2mm Min. (0.11”)
• Probe Clearance: 42mm (1.65”) front side (including UUT thickness)
• Probe Clearance: 42mm (1.65”) rear side
• Minimum Pad size: 100µm (4 mils)
• Minimum Pad Pitch 300µm (12 mils)
• Board alignment: Automatic optical alignment
Facilities:
AIR SUPPLY
• Compressed Air Supply: 5Atm (73.5 PSI)
• Air Flow: 200l/min
• Air Compressor Capacity: 300l/min
POWER: 110V2500VA/60HZ
DIMENSIONS AND WEIGHT
• System Dimensions: 1675mm L x 739mm W x 1652mm H (65.9” L x 29” W x 65” H)
• Weight: 600kg (1323lbs)
