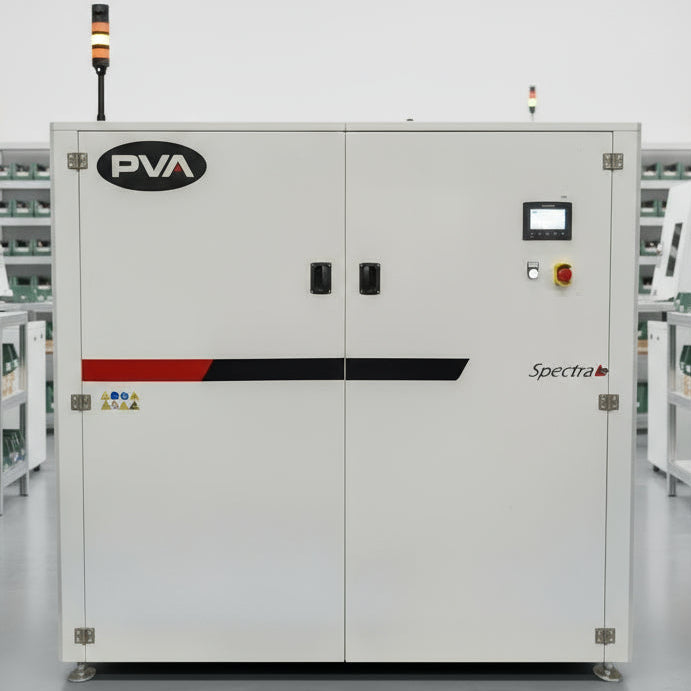

PVA Spectra - 24 2023 UV Conformal Coating Cure oven 24" wide 4 Lamp U1475

PVA SPECTRA-24-1 Conformal Coat UV Cure - Module 2023- 24" Cure Width!

DOM: April 2023

Configured with:

• (4) Topside lamps
• Bulb type: H
• Cure width: 24"
• Max component height: 80mm
• Pin Chain conveyor - L to R
• (4) PIP sensors: (2) standard and (2) high temp
• Conveyor length: ~65"
• Conveyor Height: 37-38"
• Auto Width Adjust (220-610mm)
• Board stops (2x front rail, 2x back rail)
• SMEMA
• CE
• Interlocks: (1) Front door

Facilities:

• Air : Dry, 80-100psi, <10cfm

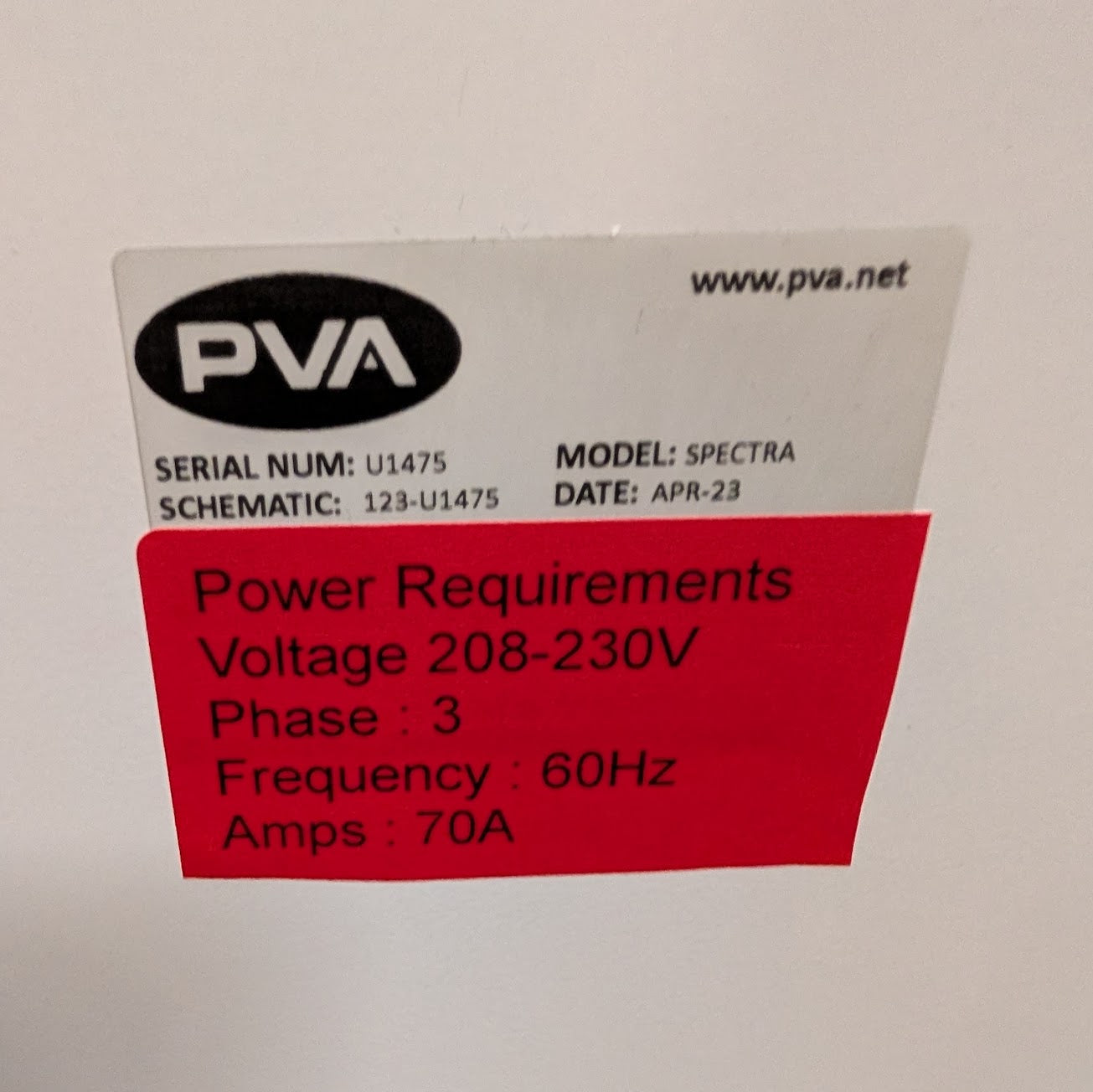

• Power : 208V 60HZ, 70A, 3 phase
• Ventilation: 1000 CFM - Duct diameter: 6", with PVA blower and exhaust switch

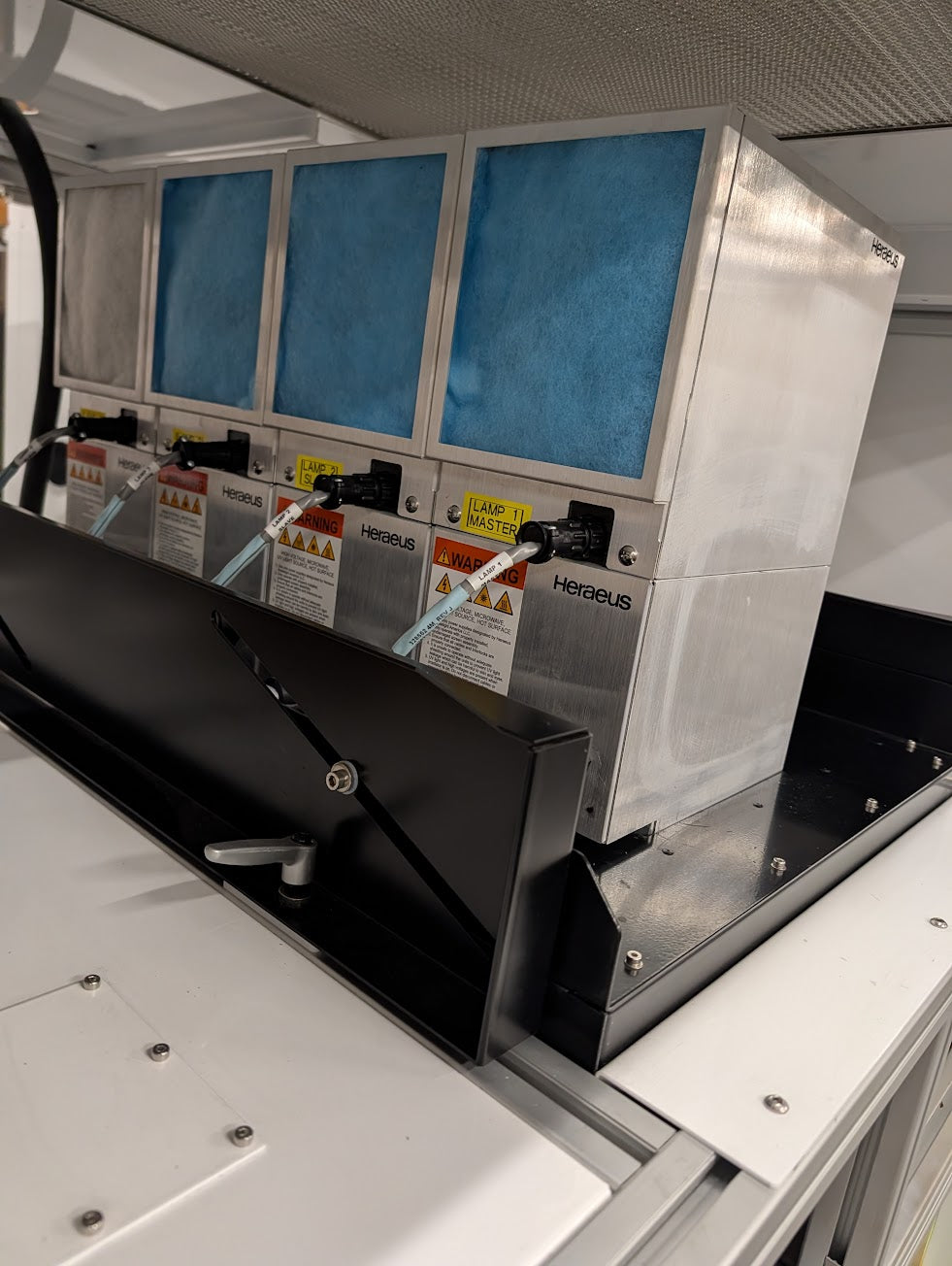

Spectra utilizes Heraeus Fusion® UV lamps to initiate rapid ultraviolet light polymerization of adhesives and coatings.
