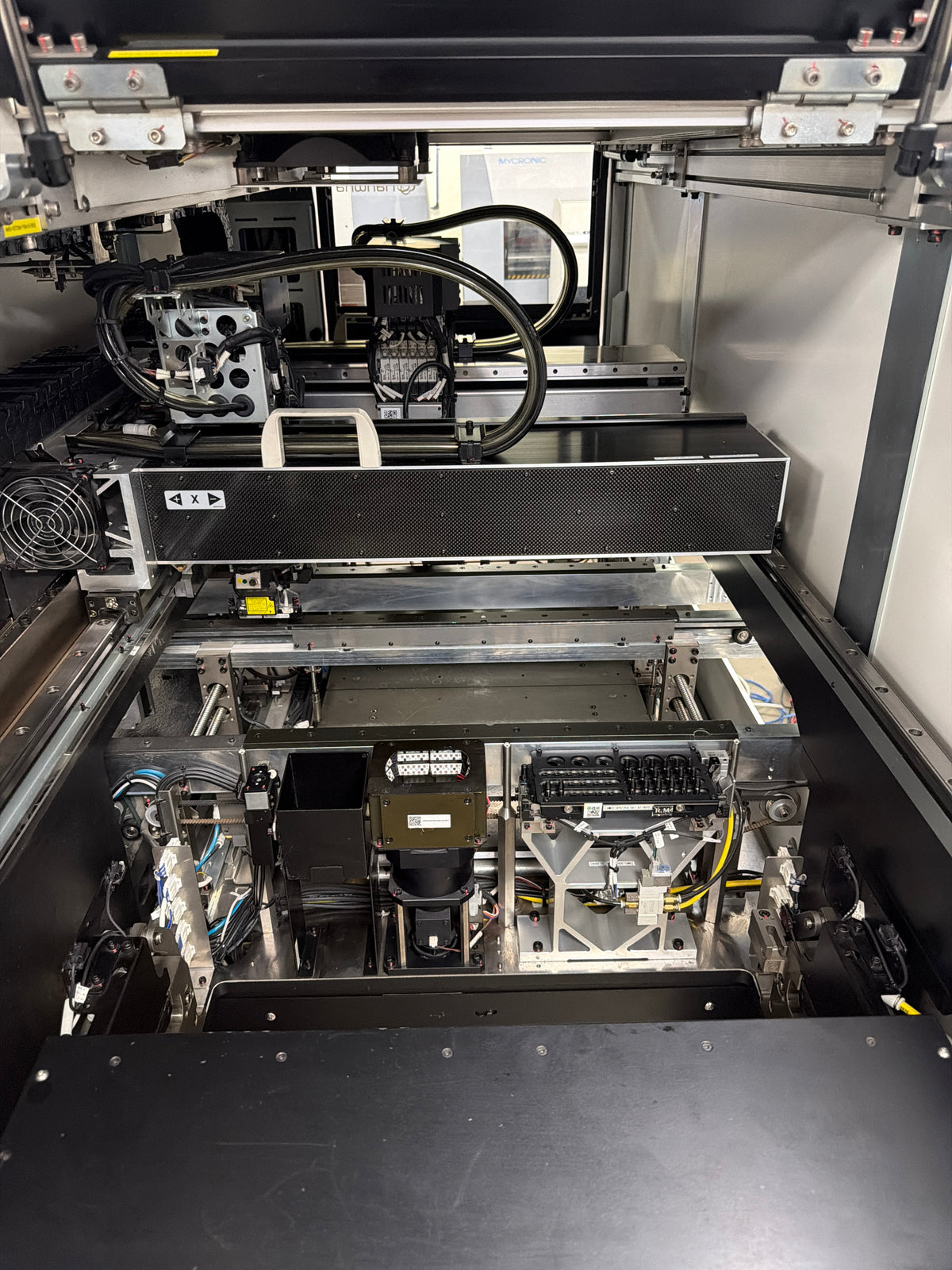

Hanwha HM520MF — S/N DM-0331 [portal-media:07af5787bb123c156501712d4898112bc9d2706d775e4f3e97b28e5edddddb16:44]
Hanwha HM520MF — S/N DM-0331 [portal-media:07af5787bb123c156501712d4898112bc9d2706d775e4f3e97b28e5edddddb16:47]

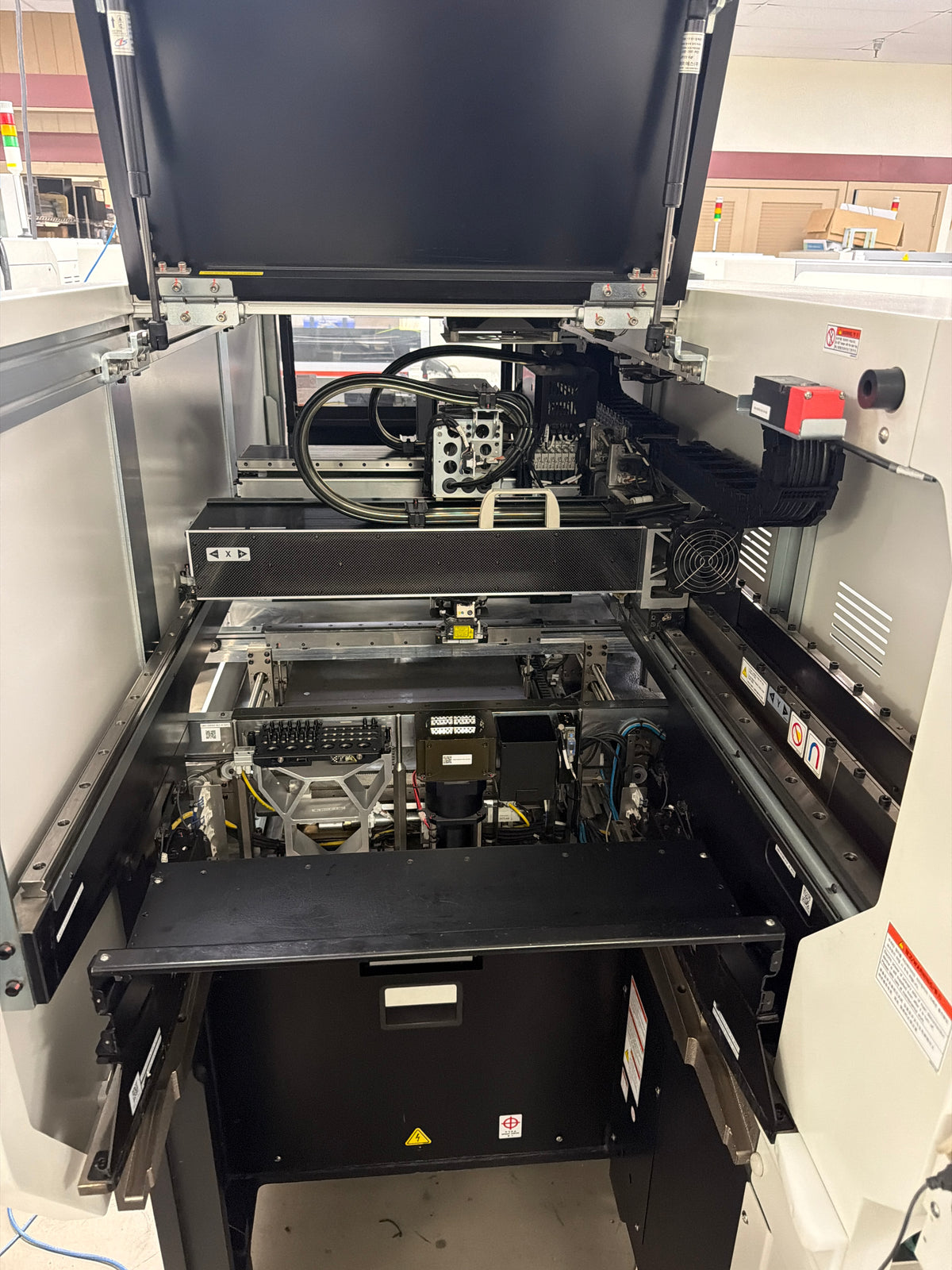

Hanwha HM520MF — S/N DM-0331 [portal-media:07af5787bb123c156501712d4898112bc9d2706d775e4f3e97b28e5edddddb16:46]

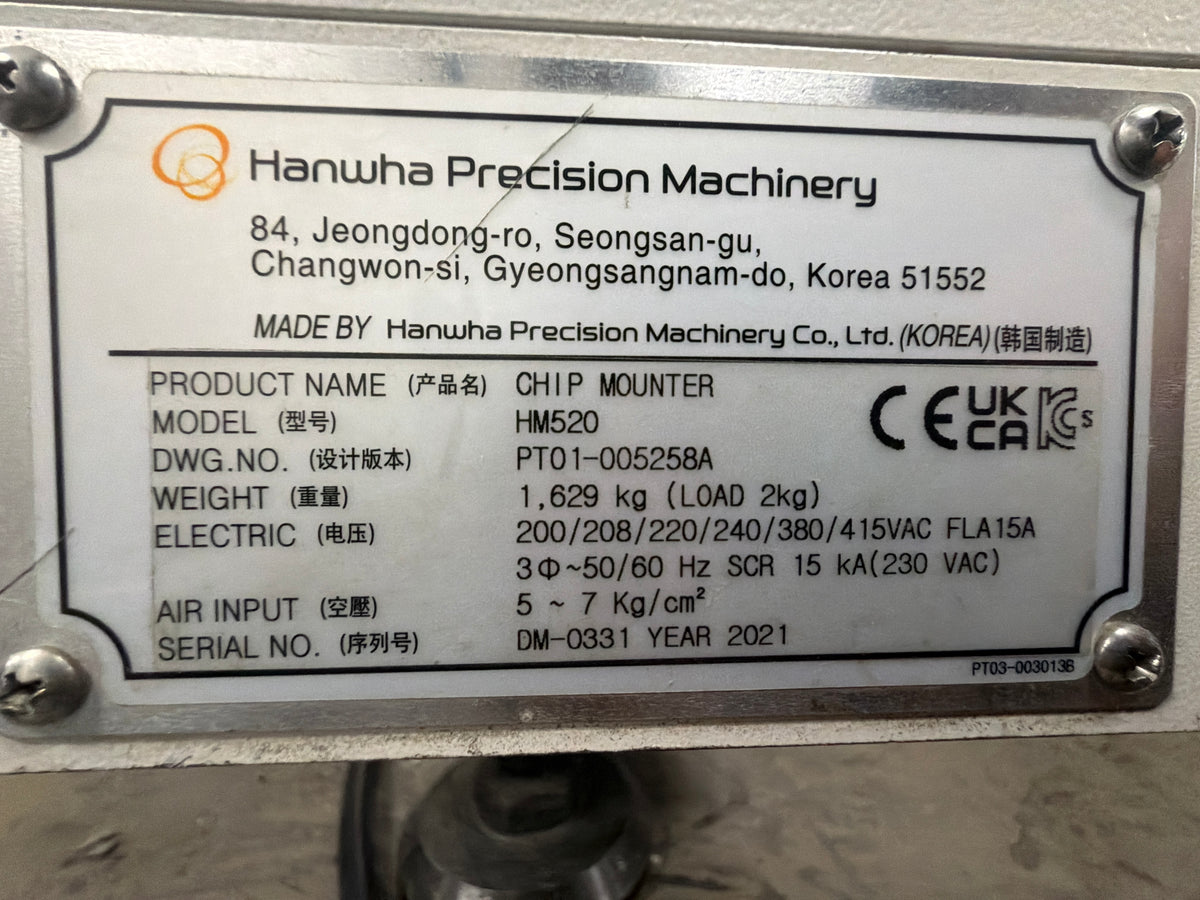

Hanwha HM520MF — S/N DM-0331 [portal-media:07af5787bb123c156501712d4898112bc9d2706d775e4f3e97b28e5edddddb16:43]
Roll over image to zoom in Click on image to zoom
Hanwha HM520MF MultiFunction 60k CPH Dual Head 2021 S/N DM-0331Hanwha HM520MF — S/N DM-0331 [portal-media:07af5787bb123c156501712d4898112bc9d2706d775e4f3e97b28e5edddddb16:44]Hanwha HM520MF — S/N DM-0331 [portal-media:07af5787bb123c156501712d4898112bc9d2706d775e4f3e97b28e5edddddb16:47]Hanwha HM520MF — S/N DM-0331 [portal-media:07af5787bb123c156501712d4898112bc9d2706d775e4f3e97b28e5edddddb16:46]Hanwha HM520MF — S/N DM-0331 [portal-media:07af5787bb123c156501712d4898112bc9d2706d775e4f3e97b28e5edddddb16:43]

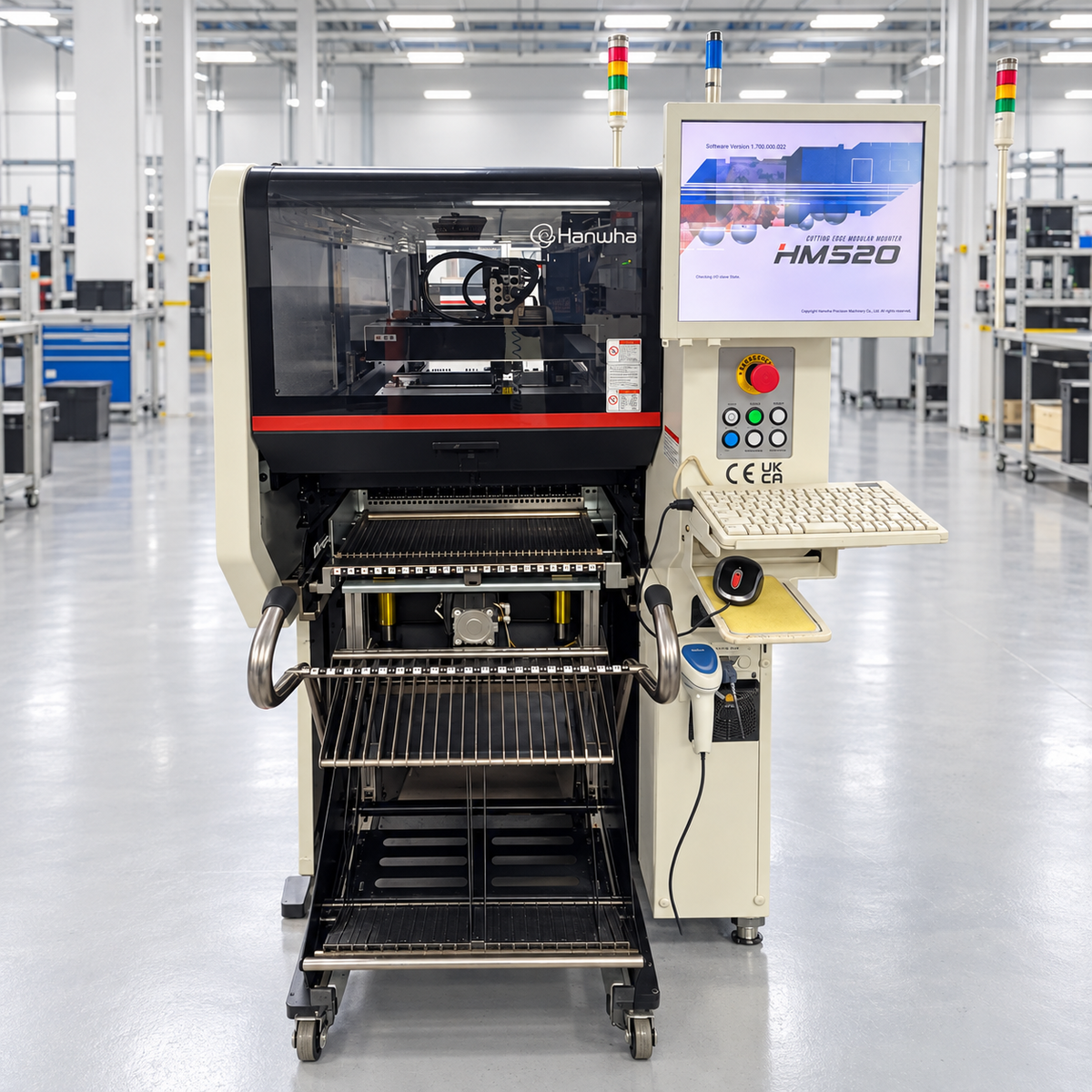

Hanwha HM520MF MultiFunction 60k CPH Dual Head 2021 S/N DM-0331

Hanwha
Price:
$ 0.00
Contact us

Description

Hanwha HM520MF
Serial number: DM-0331
Vintage: 2021

Tape cutters

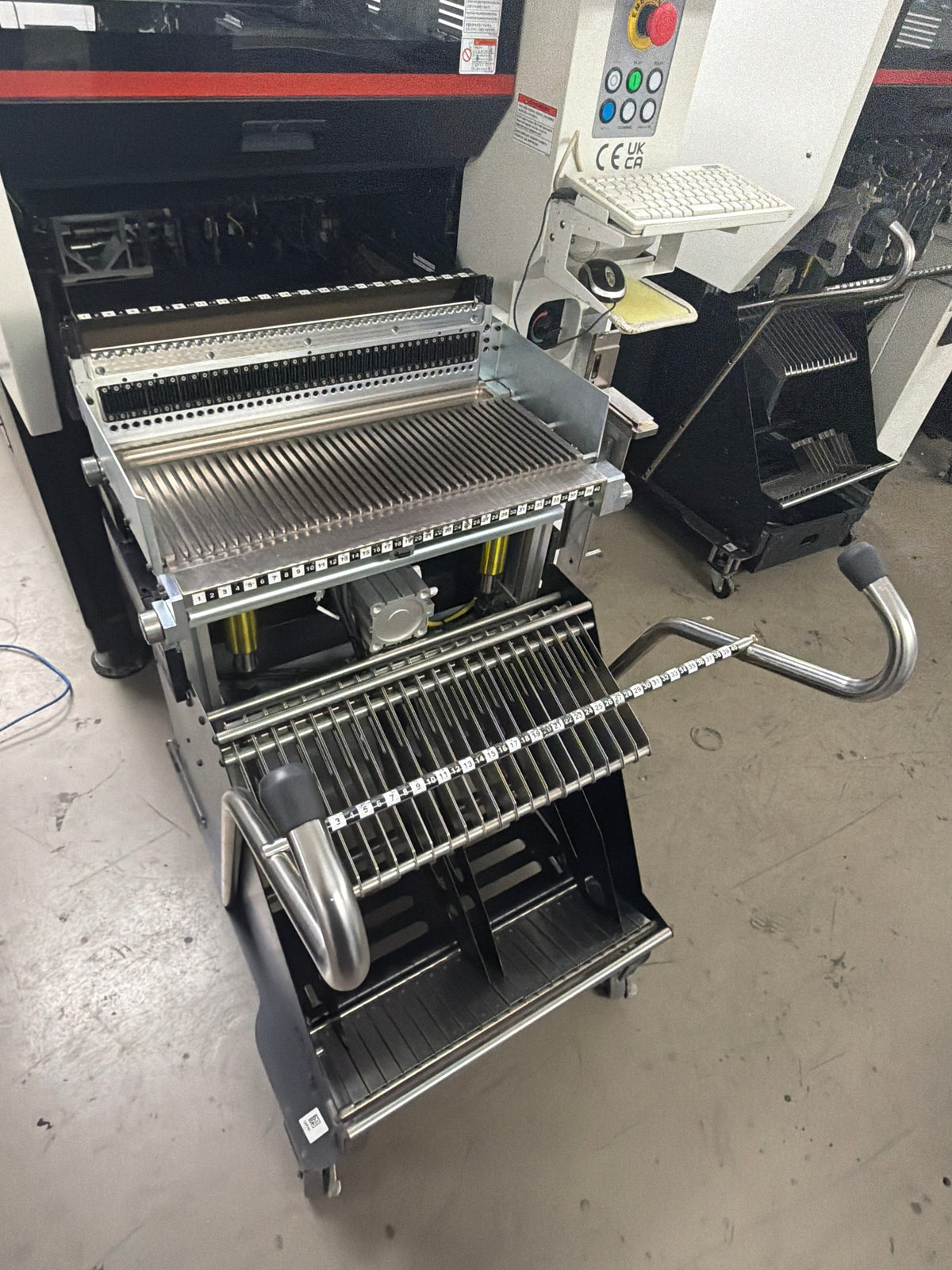

2 x trolleys (included)

Key Technical Specifications
Feature Specification
Gantry Configuration Double Gantry with 6 Spindles per head (12 spindles total, Piano Type)
Placement Speed Up to 60,000 CPH (Optimum)
Placement Accuracy Chip: ±40 μm @ Cpk ≥ 1.0
IC: ±30 μm @ Cpk ≥ 1.0
Component Range Metric 0402 to □55 mm
Max Component Height 15 mm
Feeder Capacity 80 slots (8mm Docking Cart)
PCB Thickness 0.3 mm to 4.2 mm
Machine Weight Approx. 1,605 kg
Dimensions (L × D × H) 890 mm × 2,370 mm × 1,930 mm
