Pemtron
Price:
$ 0.00
Contact us

Description

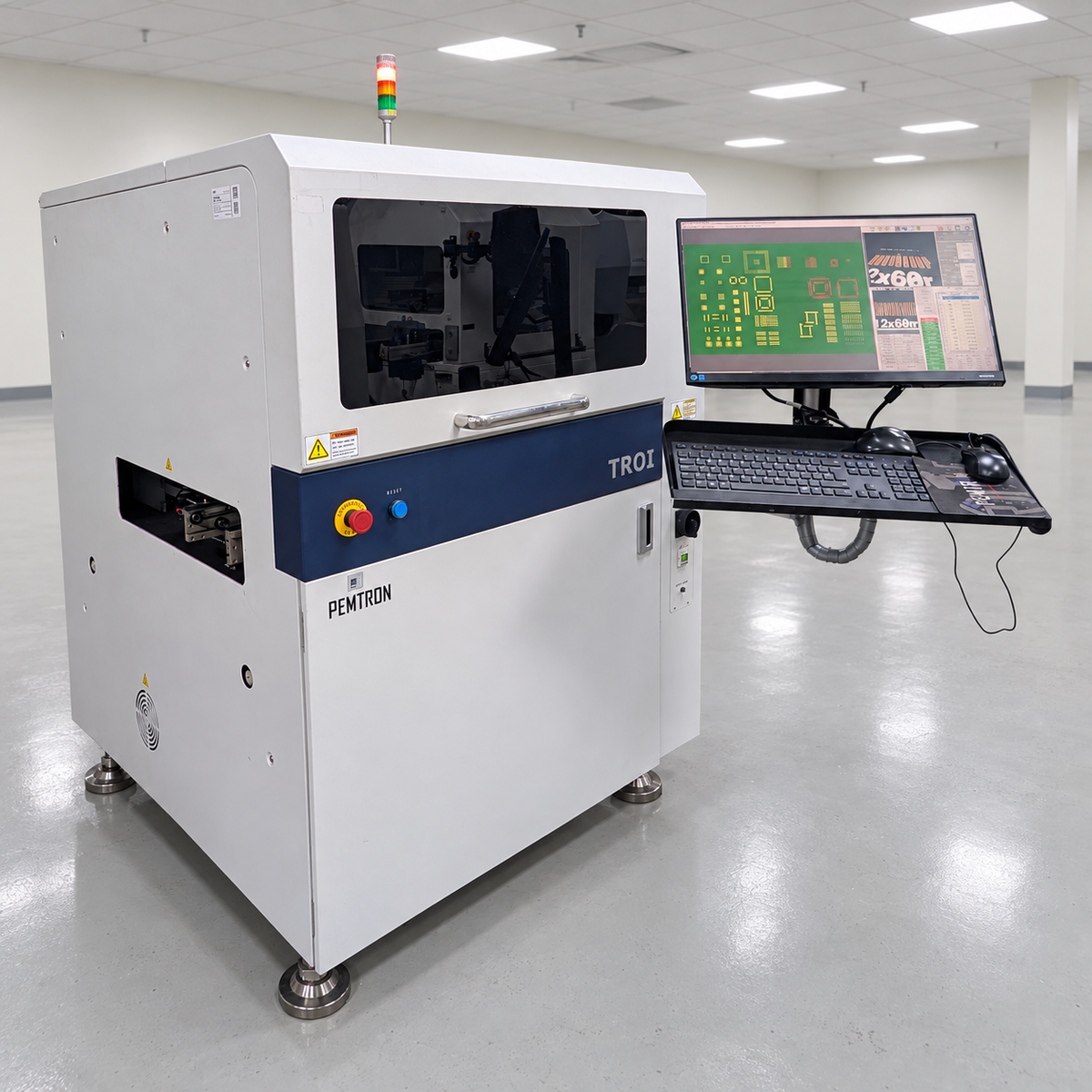

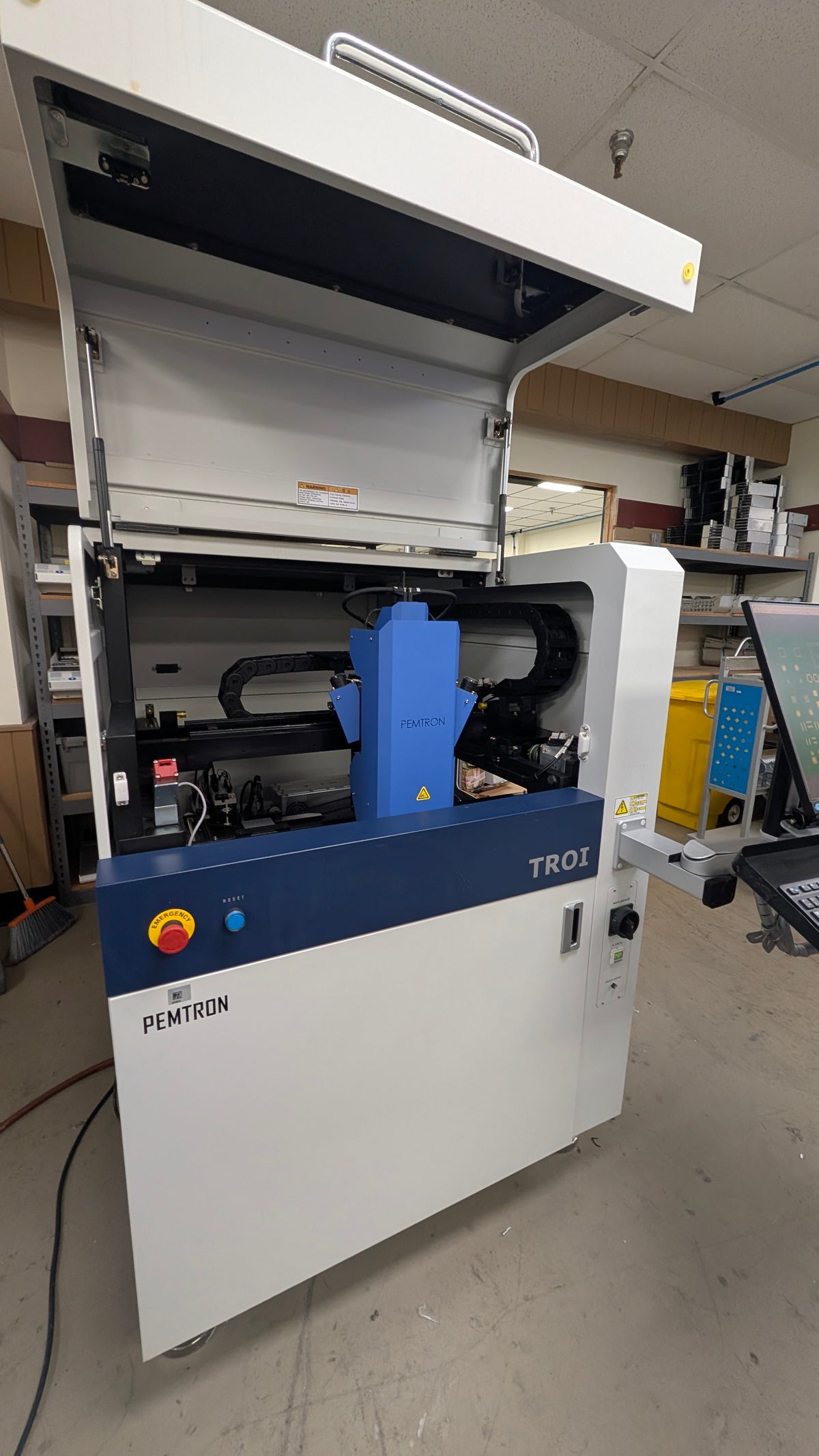

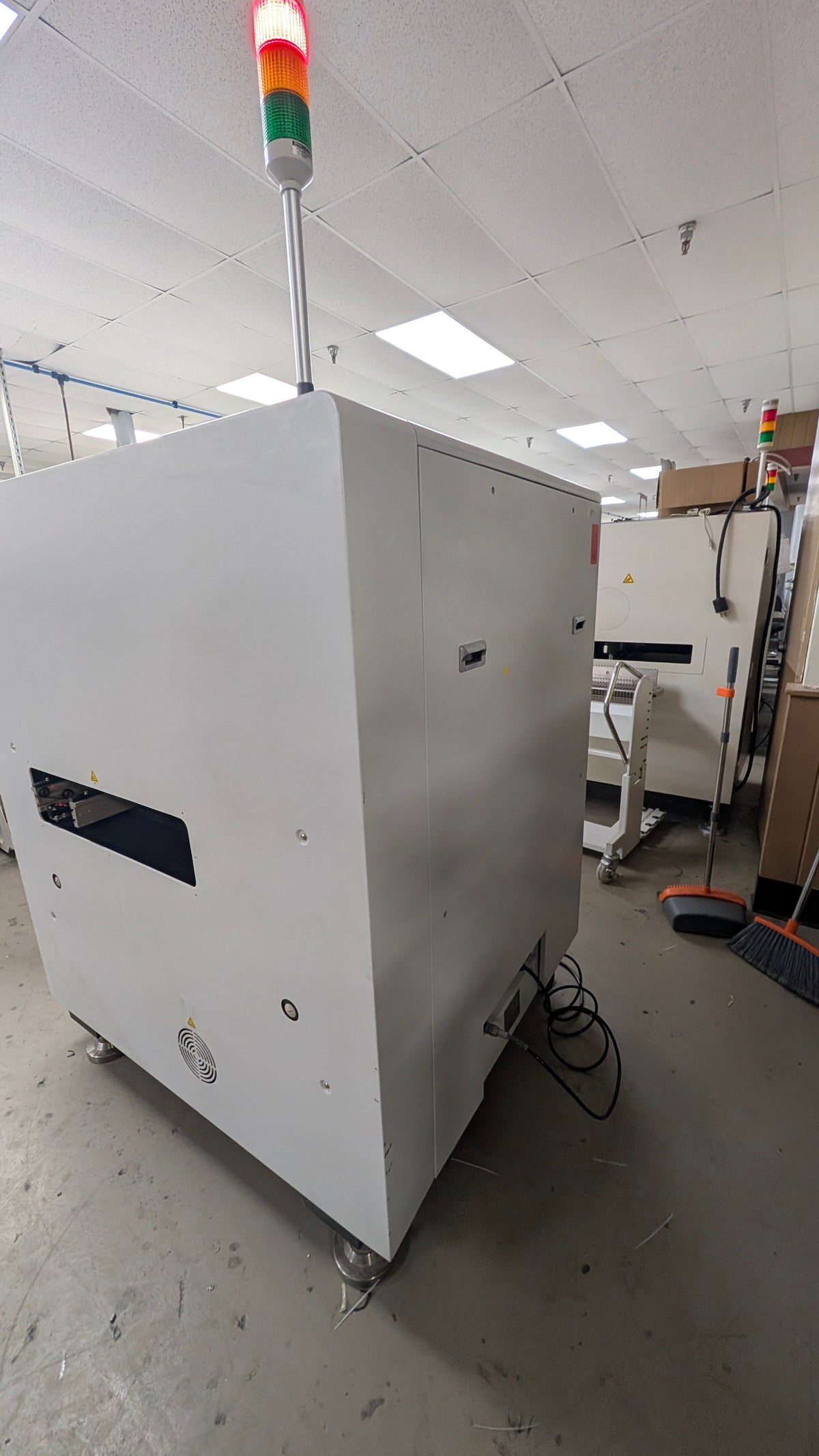

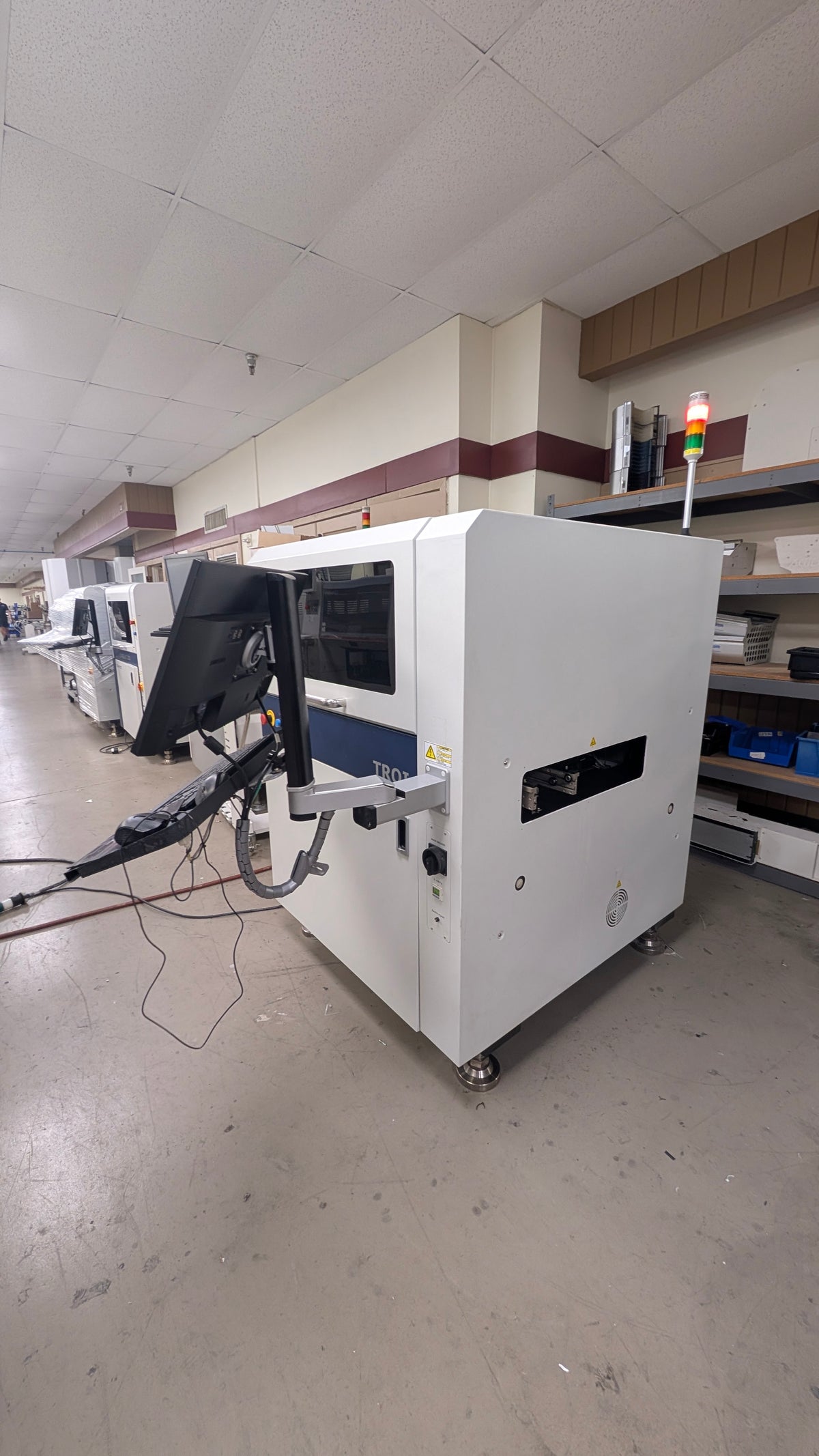

Pemtron TROI-7700EL

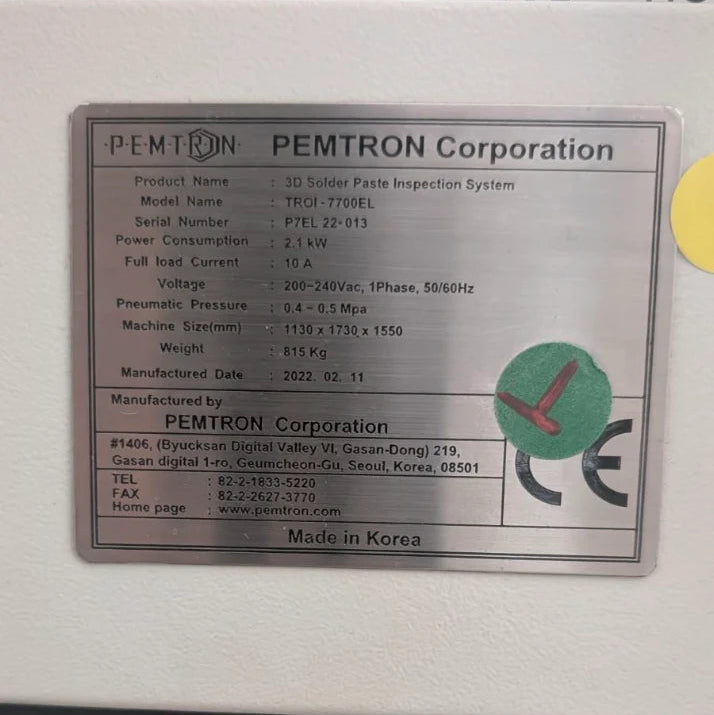

Serial number: P7EL22-013
Vintage: 2022
Inline 3D SPI System

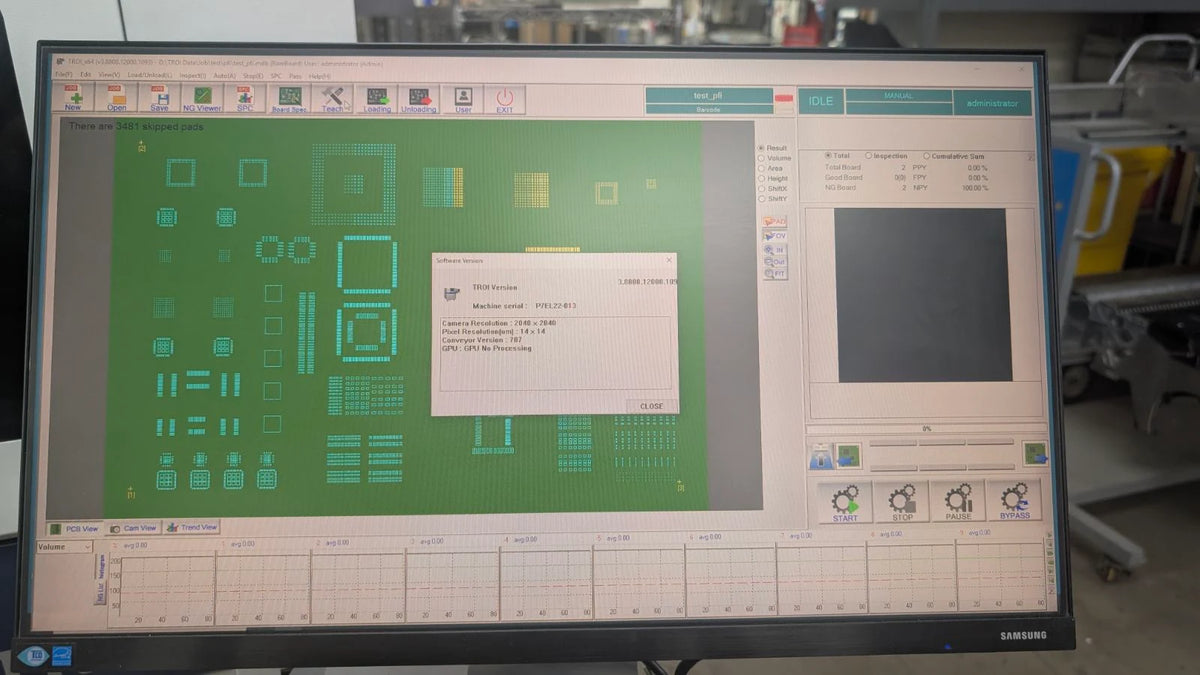

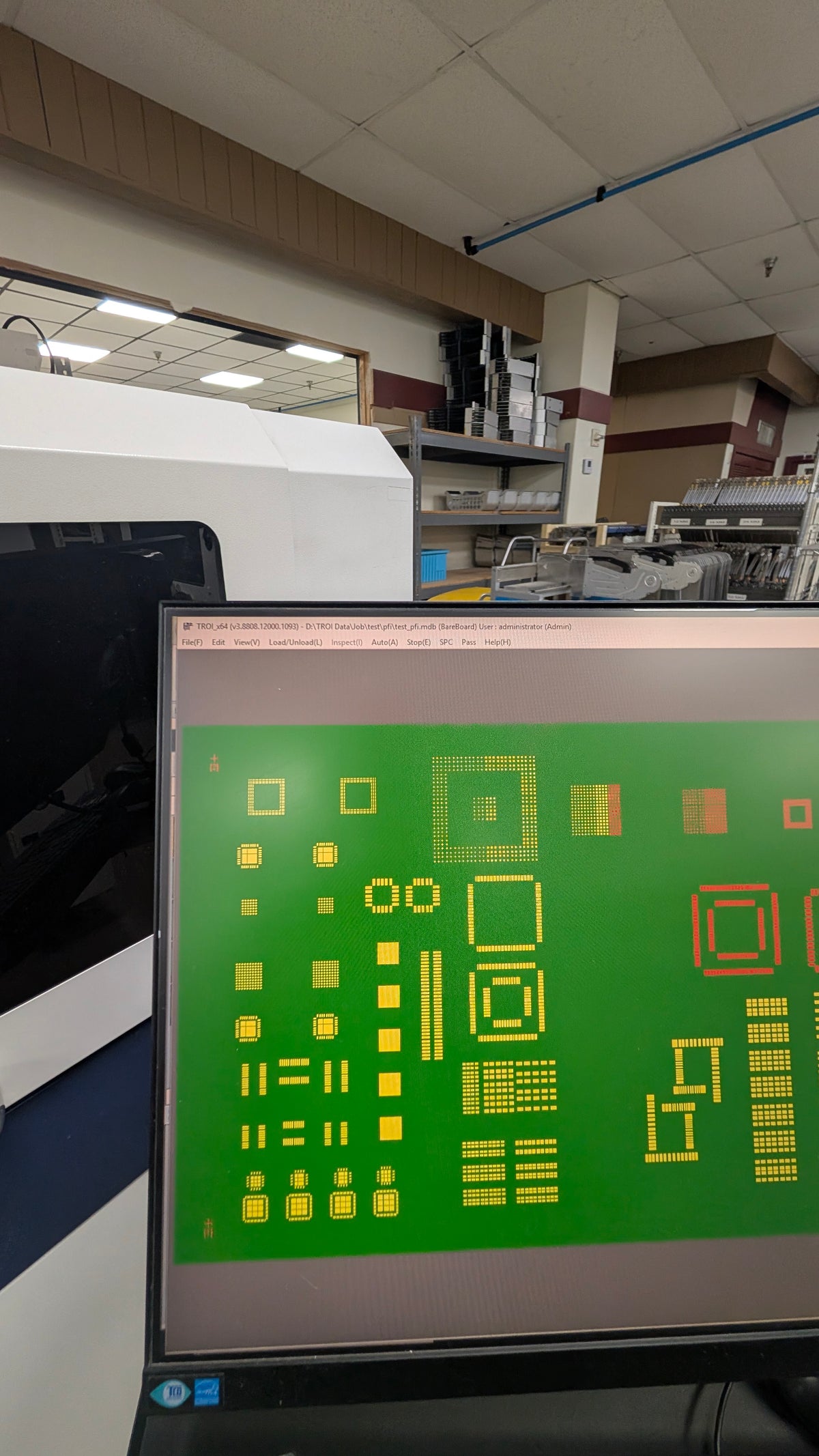

Windows 10 Operating System

Quantity: 1

  • System Type: Color 3D Inline Solder Paste Inspection (SPI) [1]
Vision Algorithm: 2D Vision Inspection + 3D PMP (Phase Measuring Profilometry) Algorithm [1]

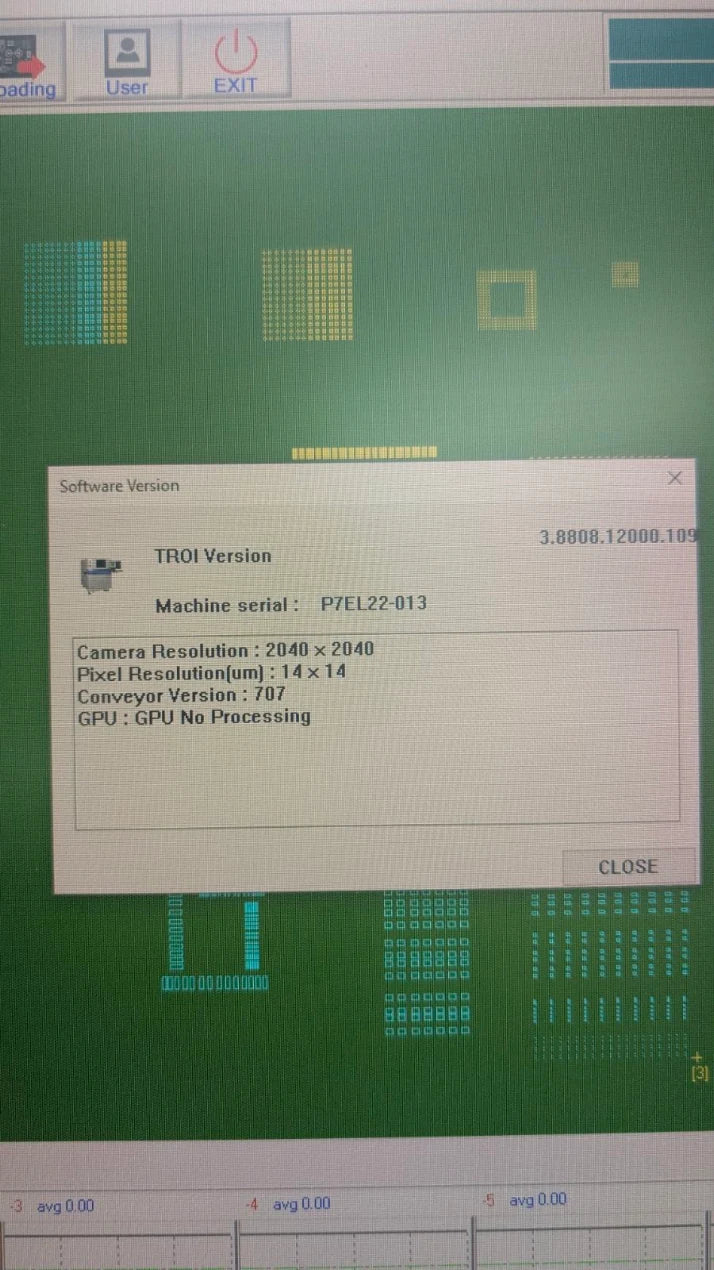

Camera / Resolution: 4MP camera with a 15 ㎛ X/Y Pixel Resolution [1]
Inspection Speed: 32.73 ㎠/sec [1]
Field of View (FOV): 30.7 x 30.7 mm [1]
Height Range & Resolution: 0 ~ 450 ㎛ / 0.4 ㎛ [1]
Repeatability & Accuracy:
  • Height/Volume Repeatability: ±1% (3σ)
  • Height Accuracy: 2 ㎛
  • Gage R&R: < 10% [1]
PCB Size Compatibility:
  • Min: 50 x 50 mm (2 x 2 inch)
  • Max: 510 x 460 mm (20 x 18 inch) [1]
PCB Thickness: 0.4 - 7 mm [1]
Bottom Clearance: 27 mm [1]
Max PCB Warpage: ±5 mm [1]
Typical Load/Unload Time: 5 seconds [1]
