Description

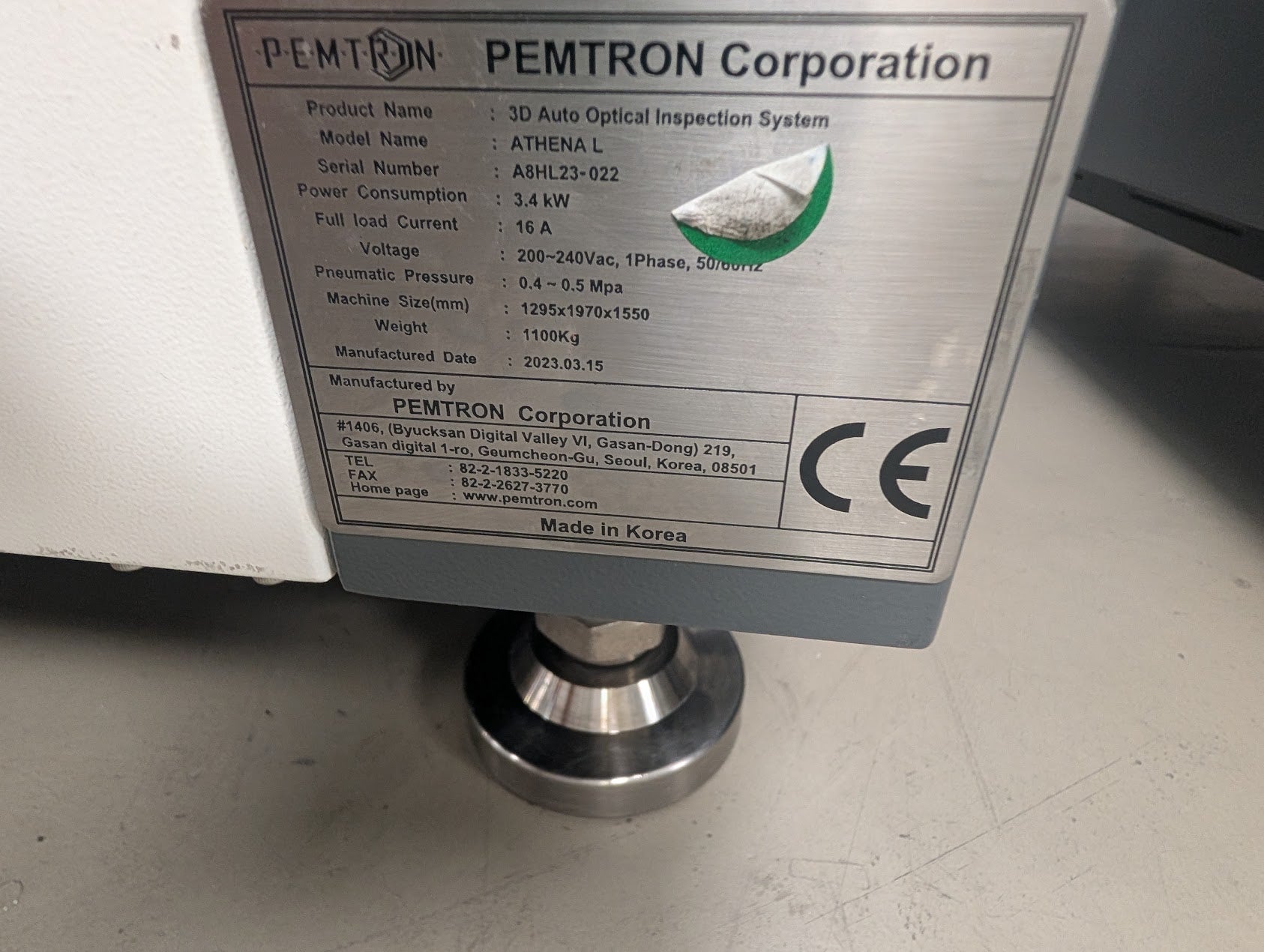

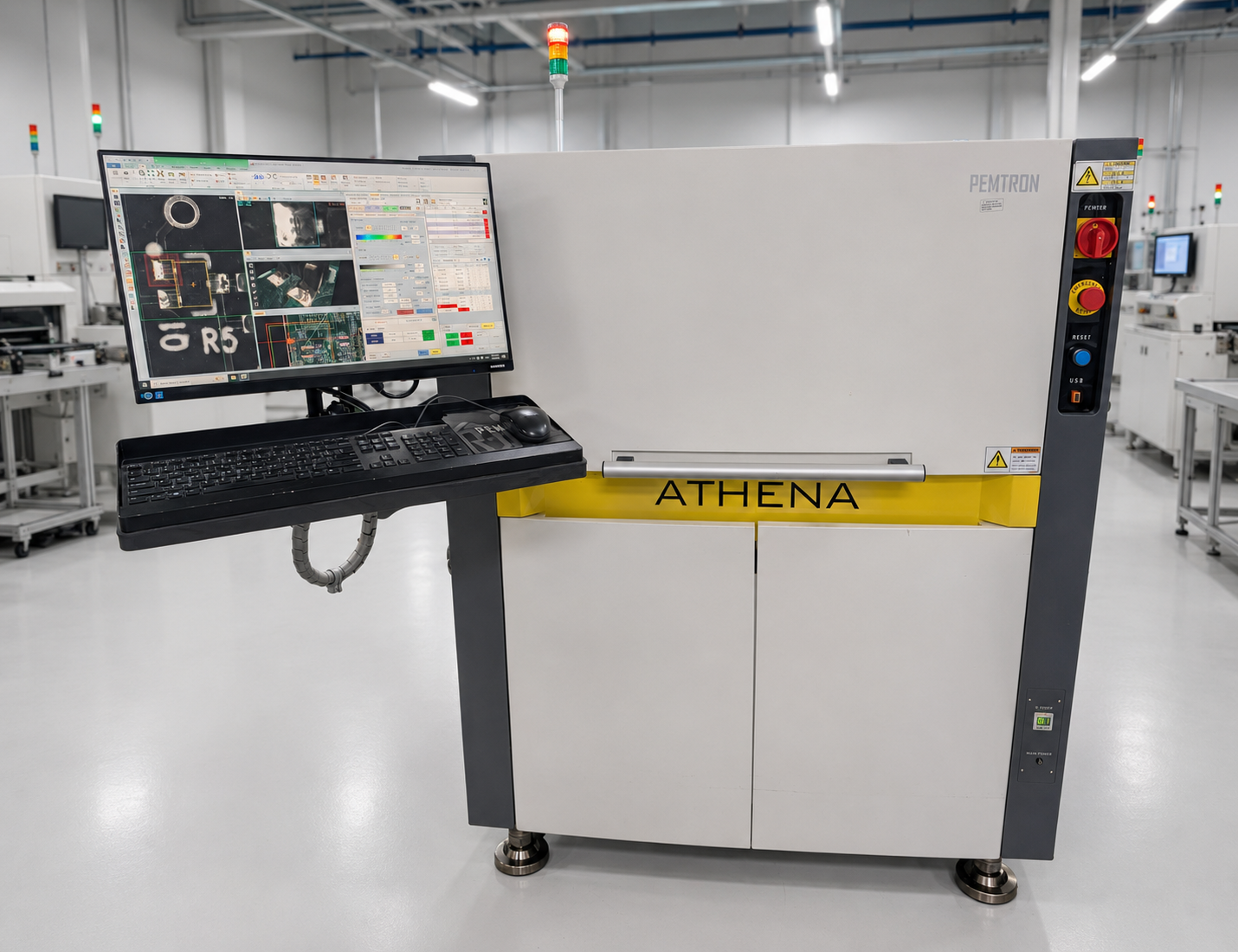

Pemtron ATHENA L 3D AOI - 2023 # A8HL23-22 PFI: 136
- DOM: 3/15/2023

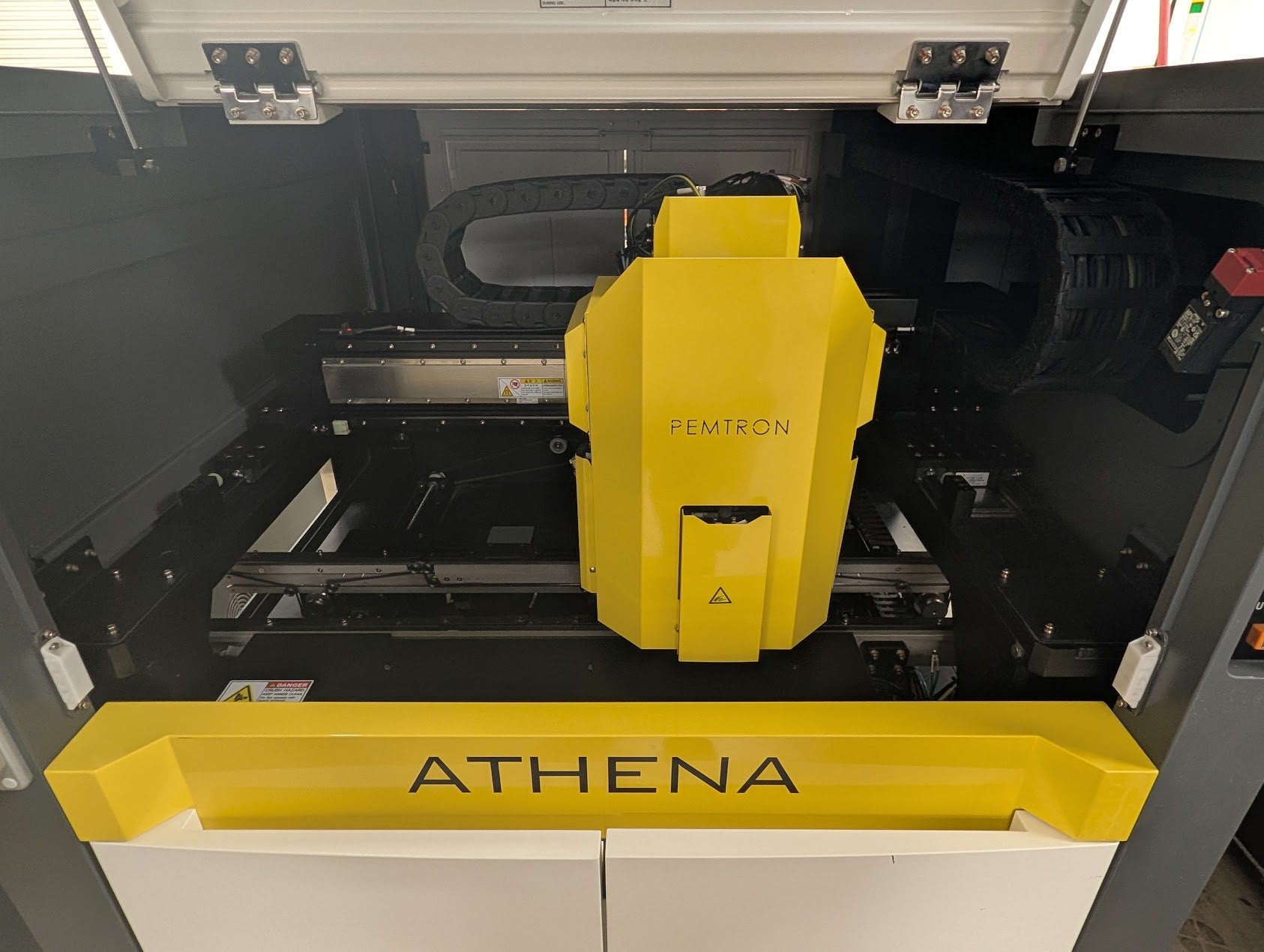

- Linear motor motion stage
- Max board size: 510 x 510 mm
- Board thickness: .4 - 7.0mm
- PCB Clearance: 50mm top and 50mm bottom

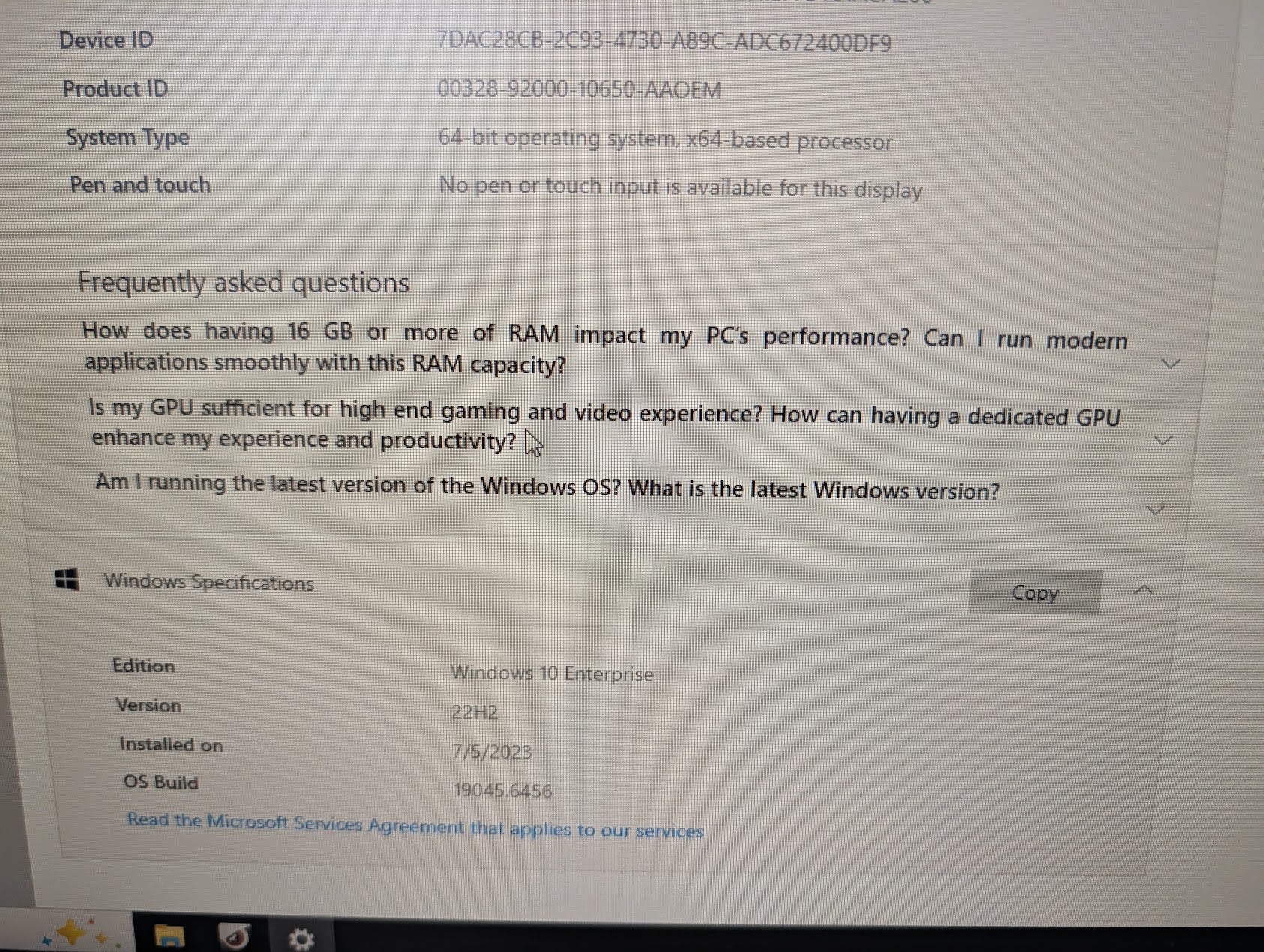

- O/S : Windows 10 Enterprise

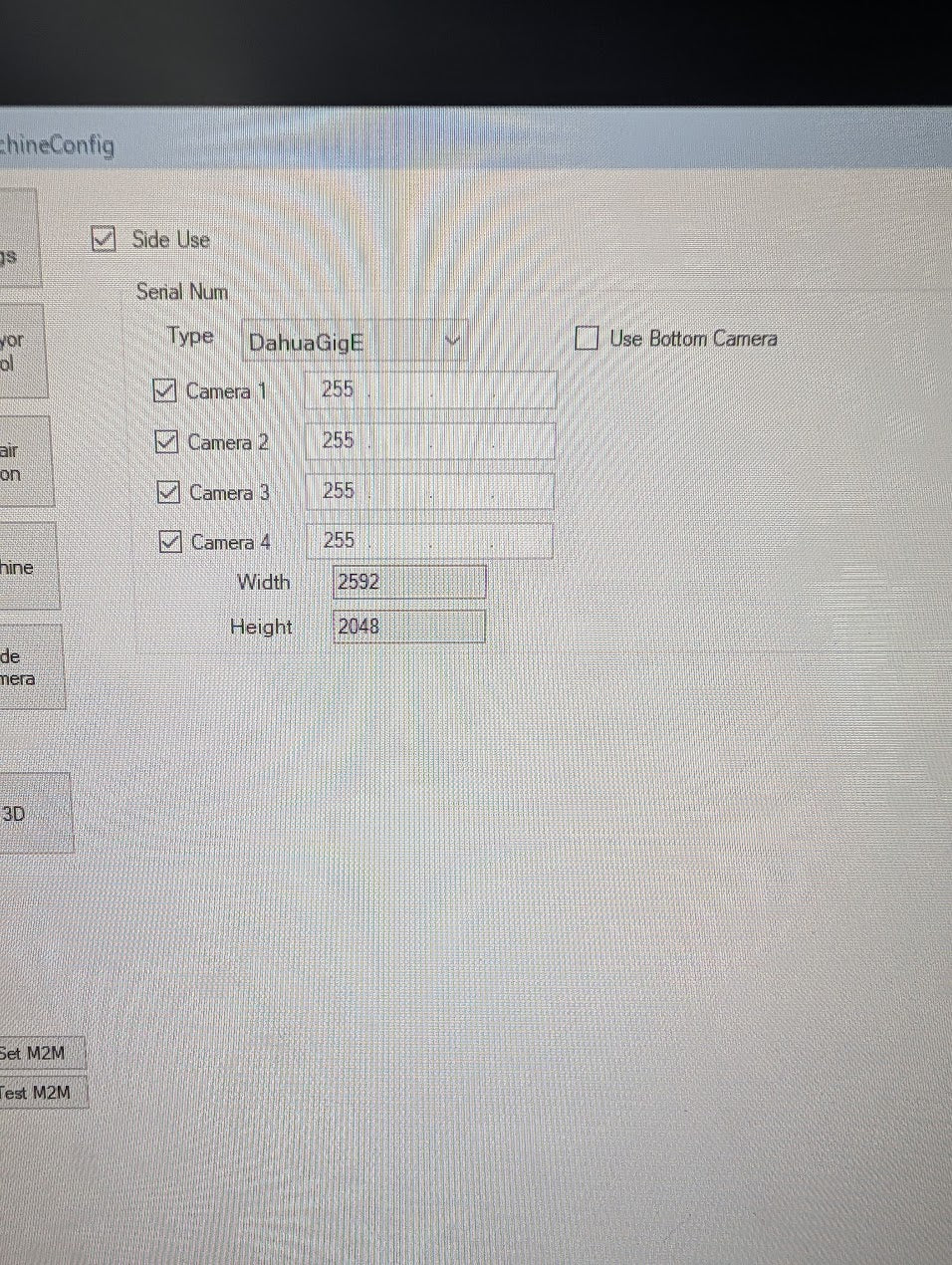

- Optional Side cameras

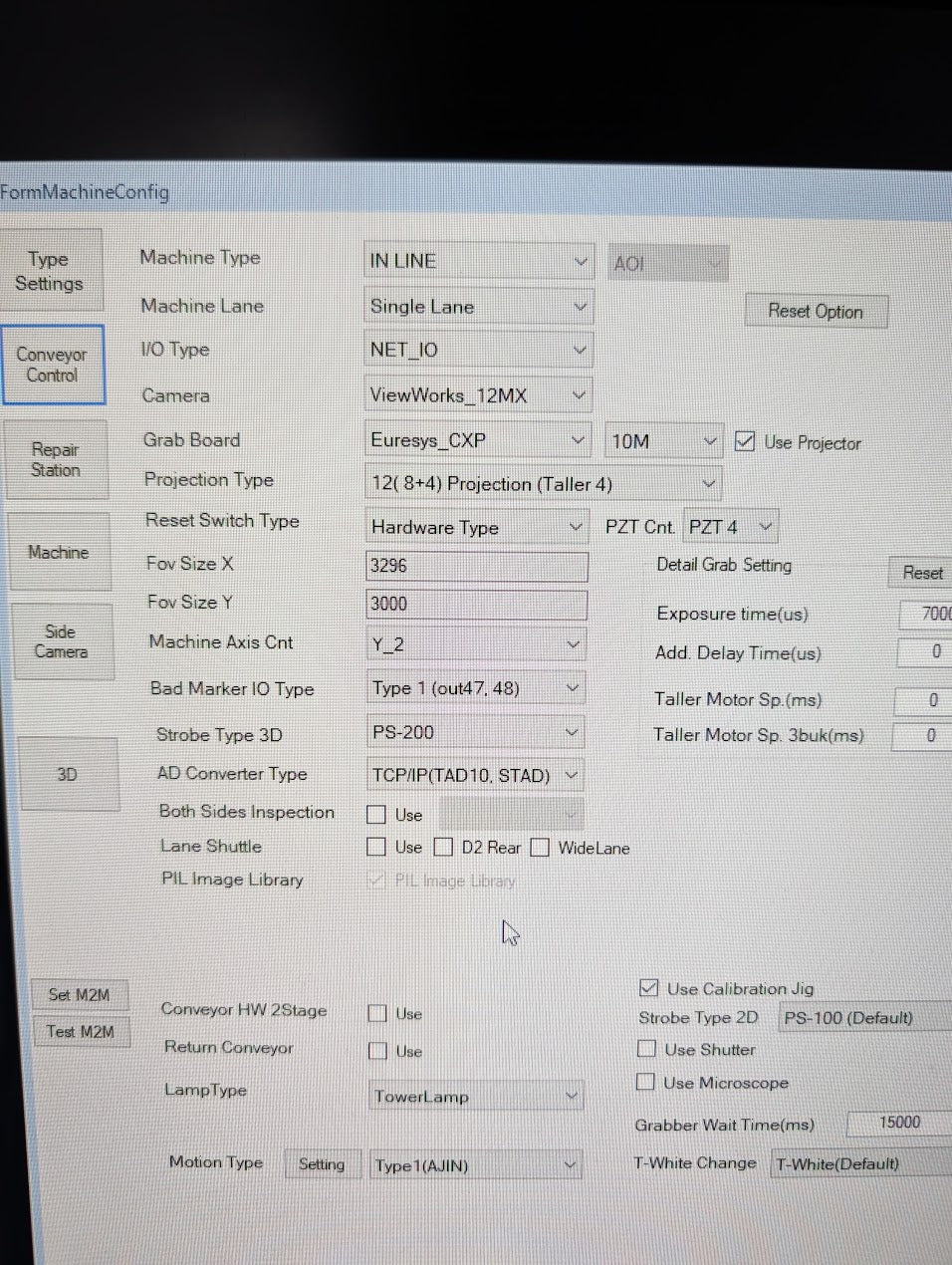

- Projection type 12(8+4)
- 12MP View works camera
Features per the OEM:
- Advanced 3D technology
- Stable and Accurate 3D realization by installing additional projectors
- 3D Formation of Chip among Dense Components and Narrow Parts
- 3D image Formation identical to a Real Image - Improved Repeatability
- Accurate 3D inspection makes repeatability more reliable - Simultaneous Inspection Algorithm (2D and 3D)
- Tele-centric Lens Offers Higher Accuracy & Detection
- High-Speed CPU & Image Process

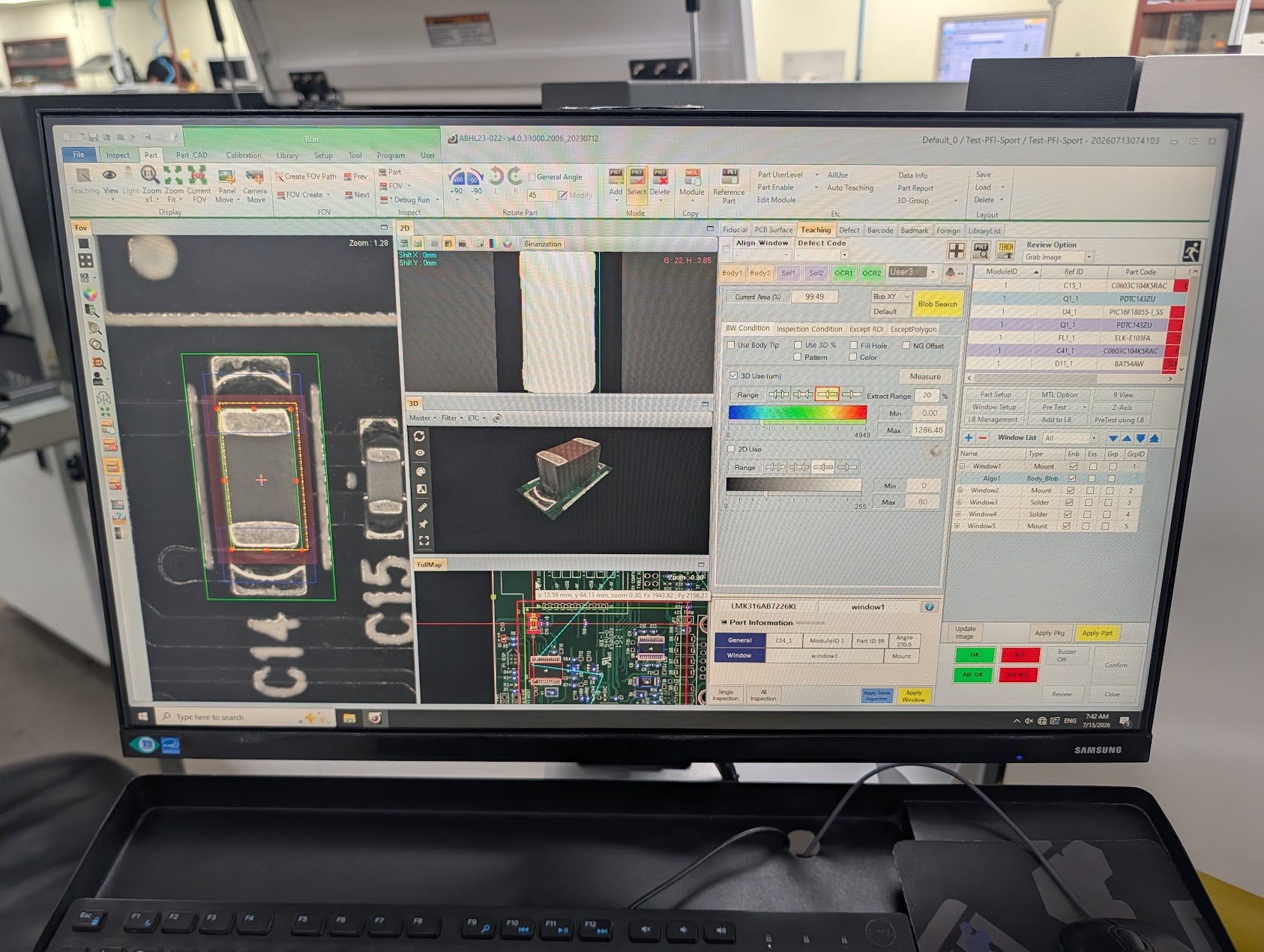

- User-Friendly GUI
