Pemtron ATHENA L 3D AOI - 2023
Pemtron ATHENA L 3D AOI - 2023 # A8HL23-21 PFI: 167

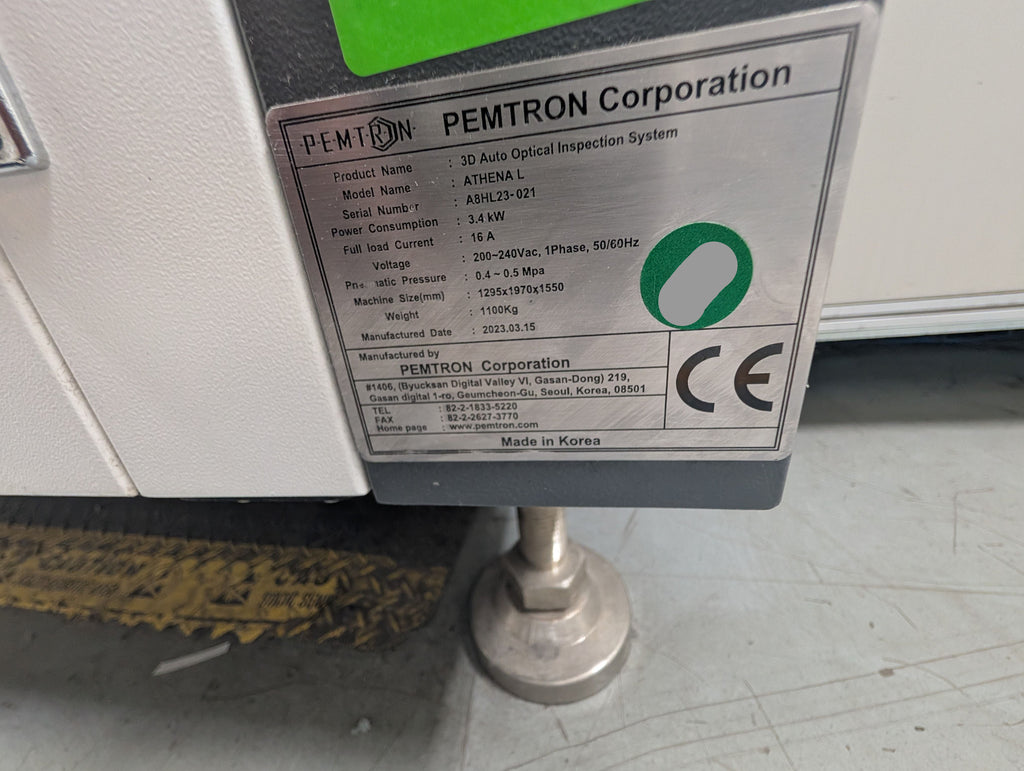

SN: A8HL23-21 DOM: 3/15/2023 PFI ID: 167

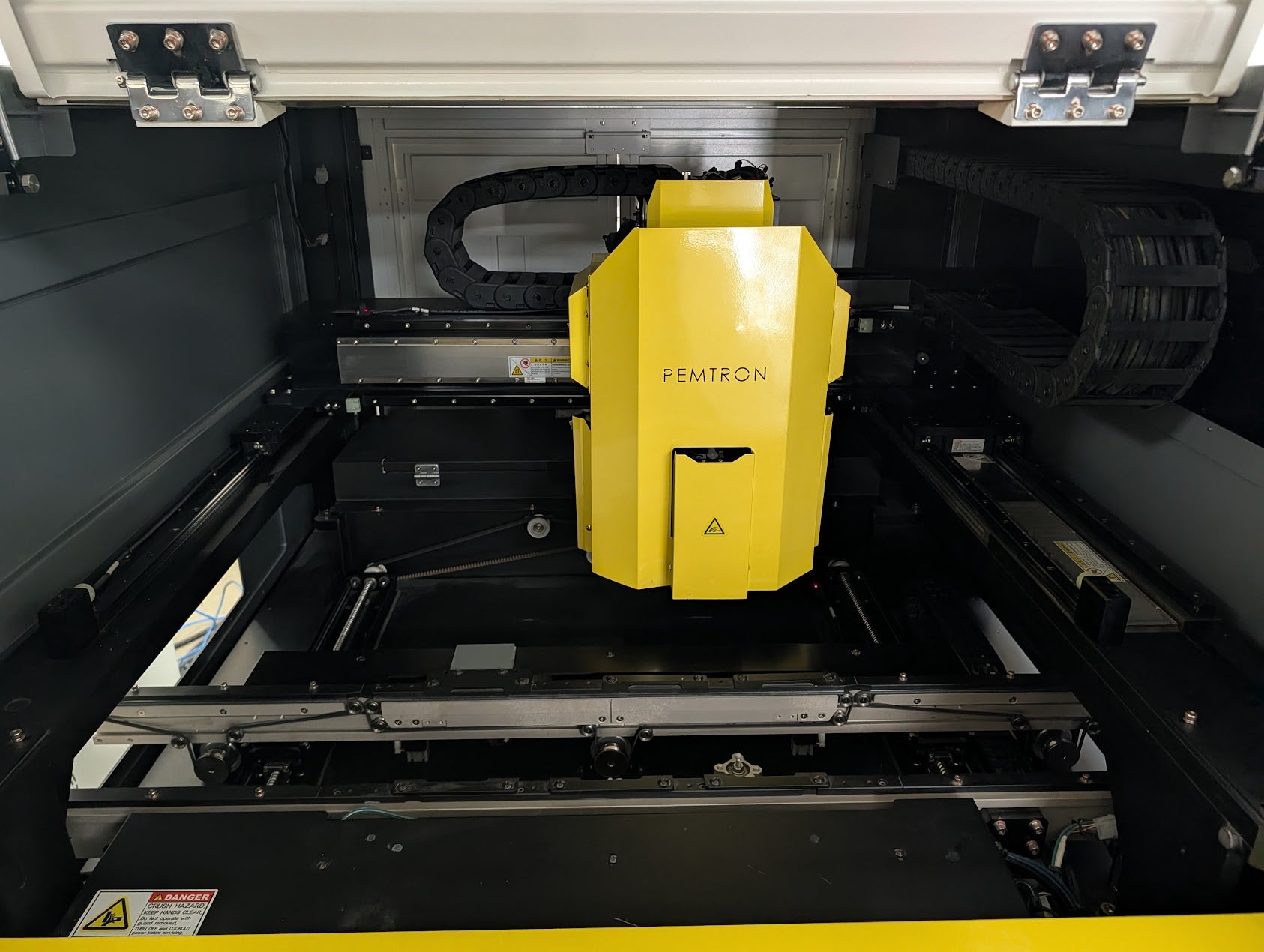

- Linear motor motion stage
- Max board size: 510 x 510 mm
- Board thickness: .4 - 7.0mm
- PCB Clearance: 50mm top and 50mm bottom
- O/S : Windows 10 Enterprise
- Optional Side cameras
- Projection type 12(8+4)
- 12MP View works camera
- PCB Clearance: 50mm top and 50mm bottom
Features per the OEM:
- Advanced 3D technology
- Stable and Accurate 3D realization by installing additional projectors
- 3D Formation of Chip among Dense Components and Narrow Parts
- 3D image Formation identical to a Real Image - Improved Repeatability
- Accurate 3D inspection makes repeatability more reliable - Simultaneous Inspection Algorithm (2D and 3D)
- Tele-centric Lens Offers Higher Accuracy & Detection
- High-Speed CPU & Image Process

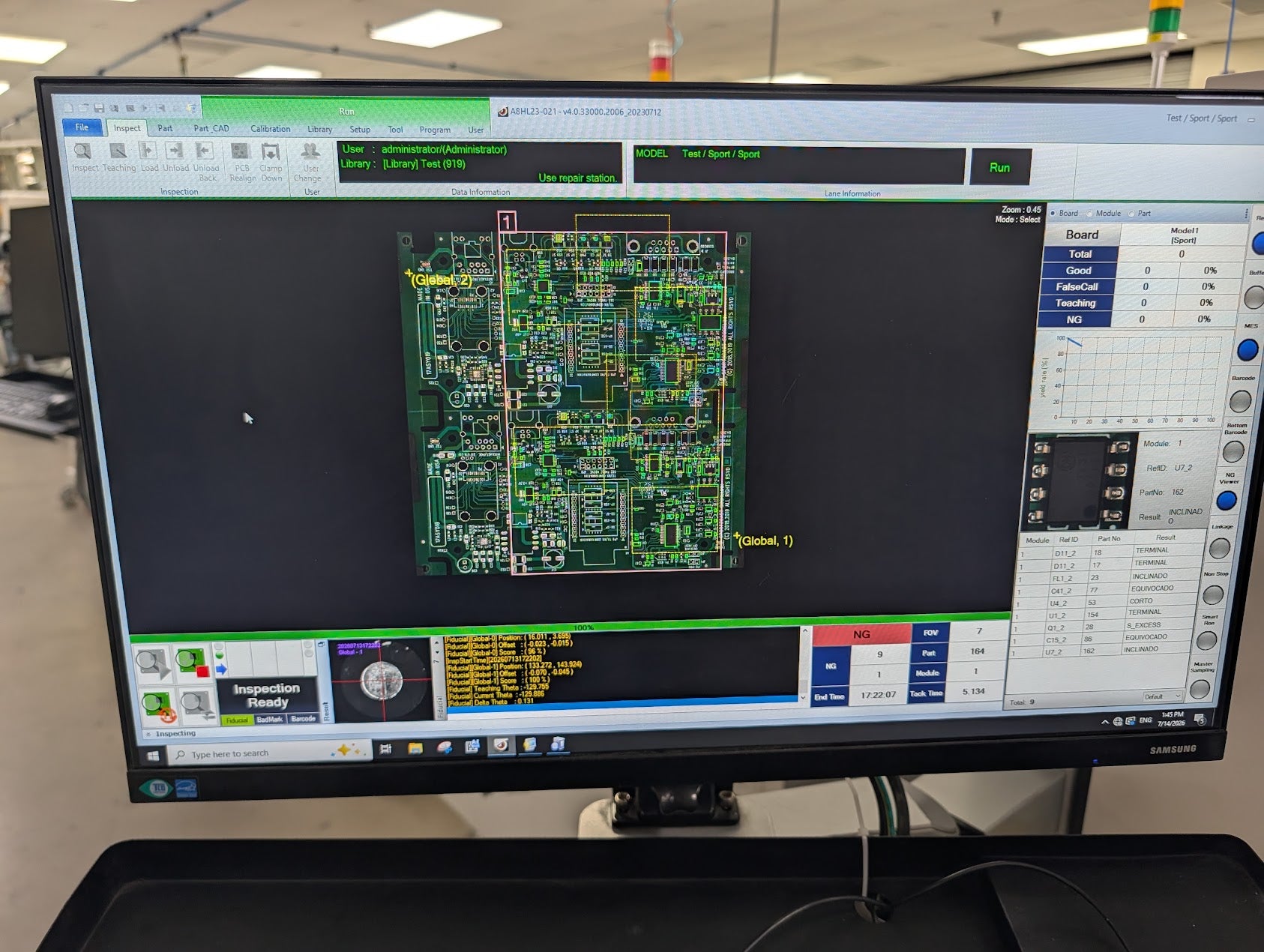

- User-Friendly GUI
Condition details, check-out notes and close-up photos for this unit are available on request.

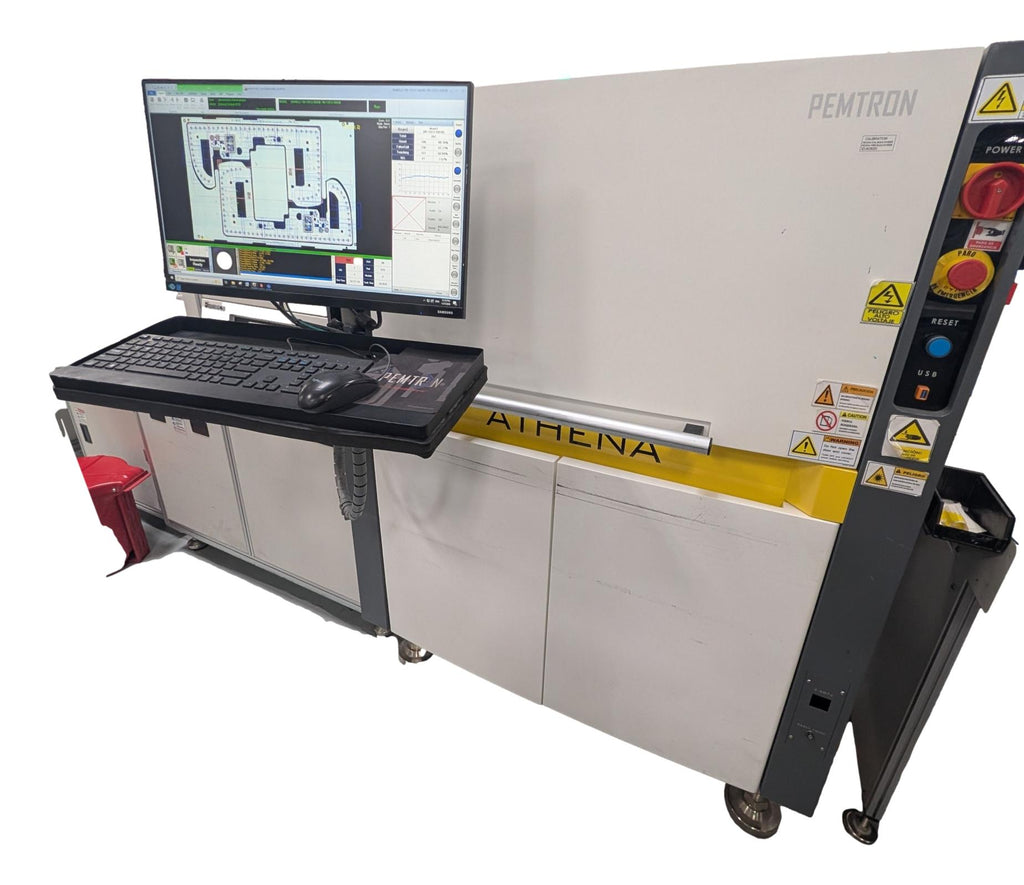

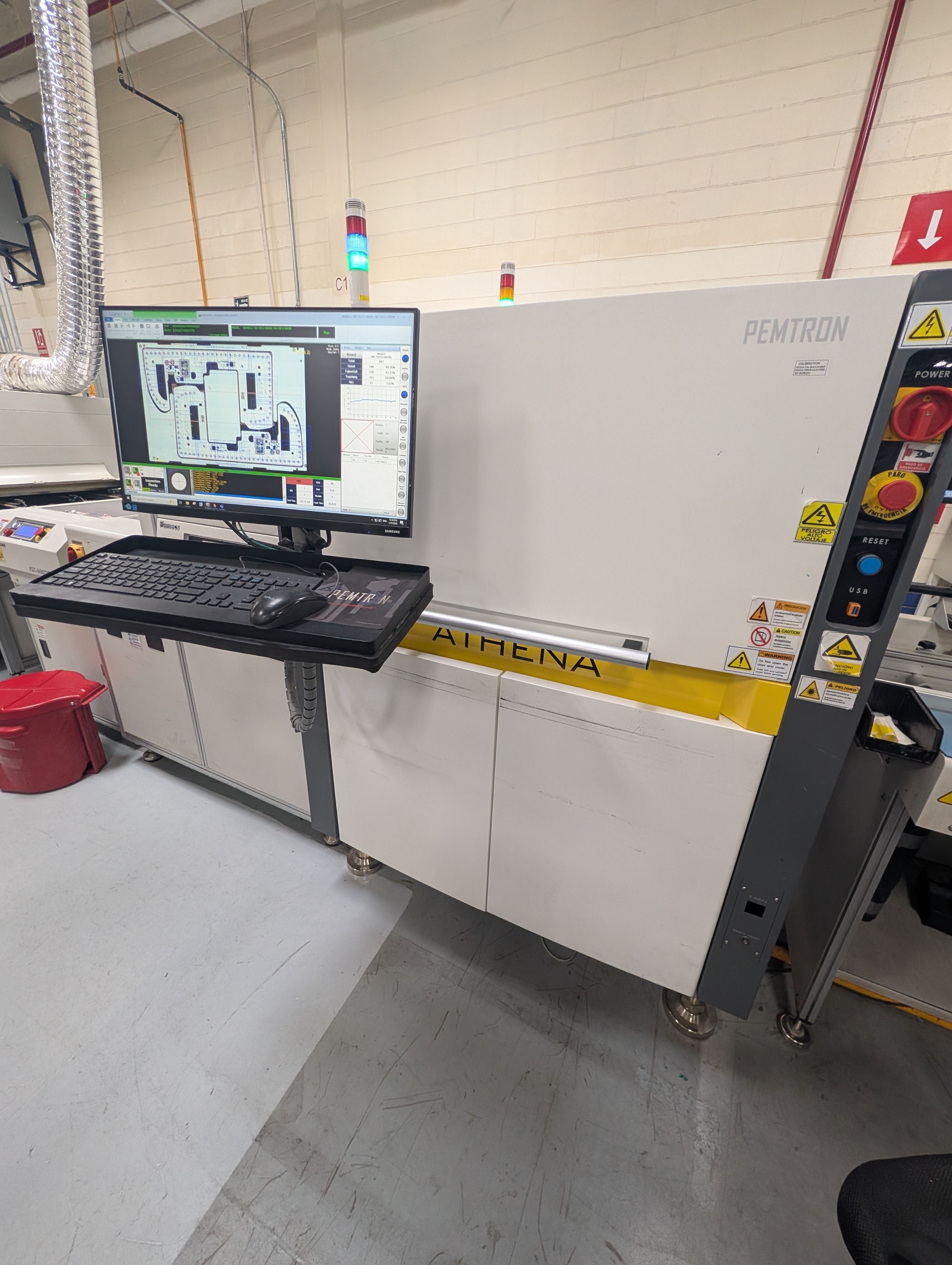

Machine as pictured. Options and details are confirmed on the formal quote.
PFI ships worldwide from Longwood, Florida. Shipping is quoted per order — request a quote. Crates, export packing and installation are quoted by request. Lead times vary by item, so please contact us prior to purchase.
