Description

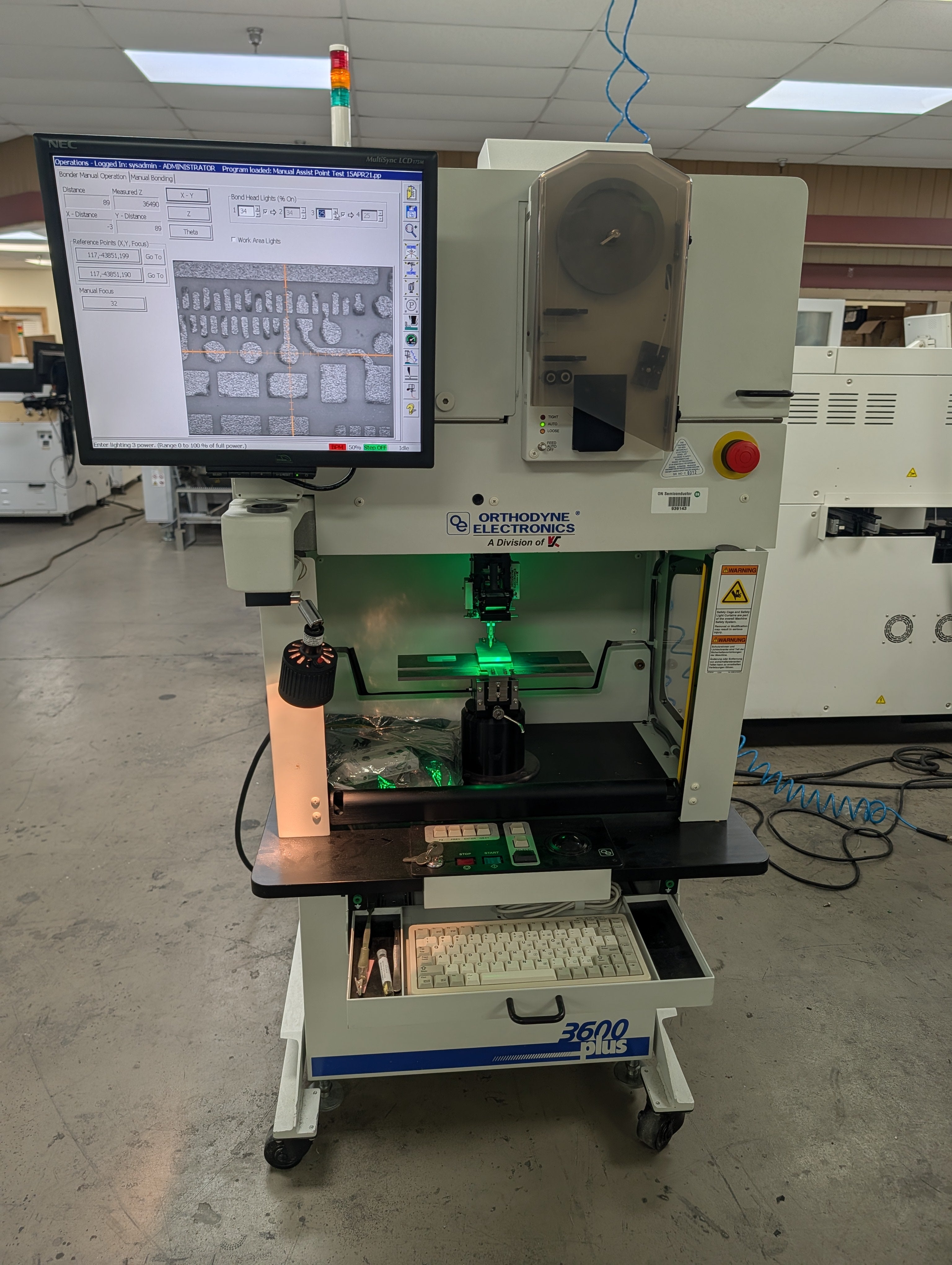

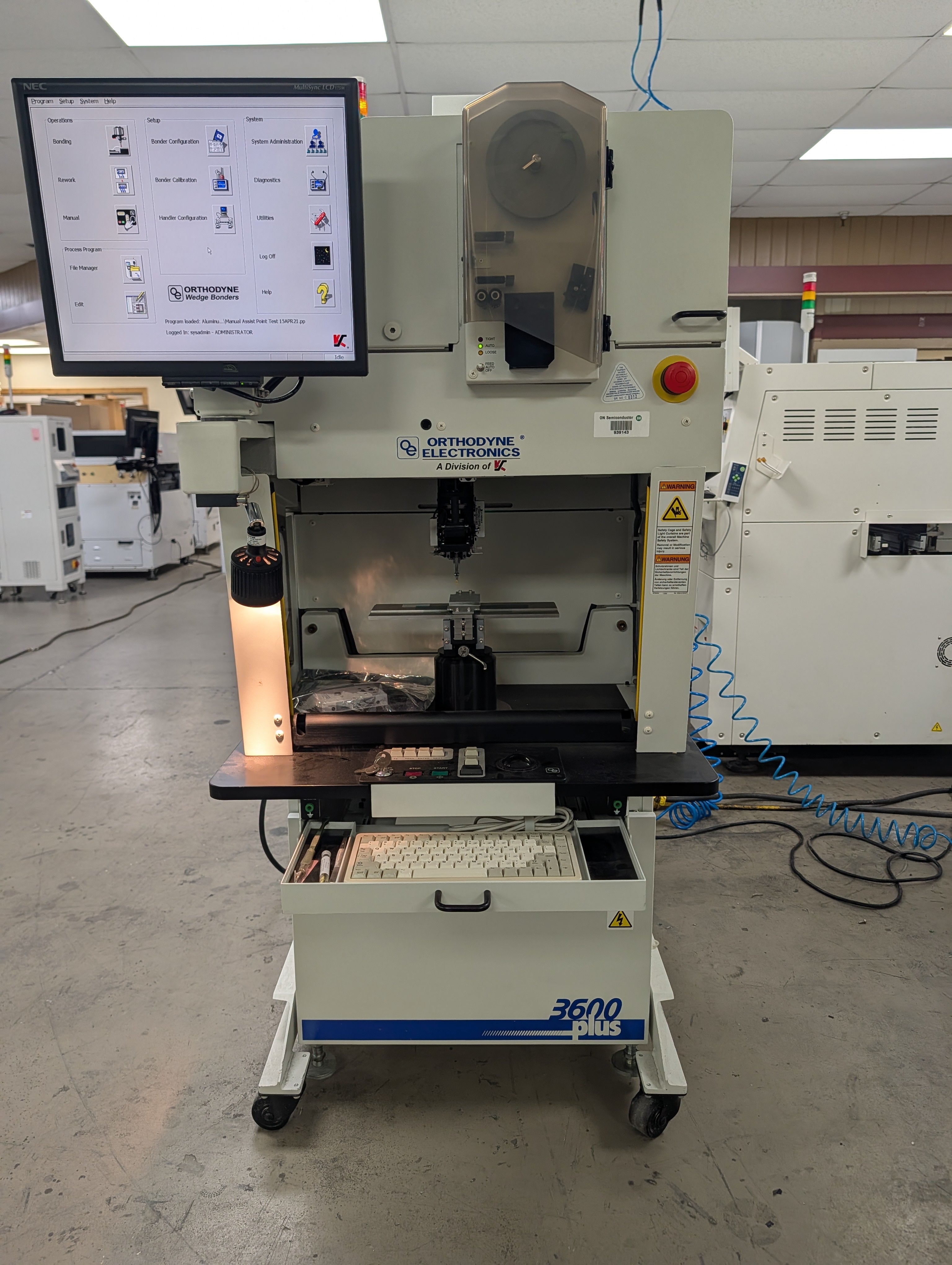

Orthodyne 3600 Plus Wire Bonder
- Heavy Ribbon
- Z Travel: 50 mm
- Theta Travel: +/- 220°
- Focus: 30 mm (Programmable Range)
- Stereo zoom microscope with adjustable work distance
- Monitor: Flat Panel, 17"

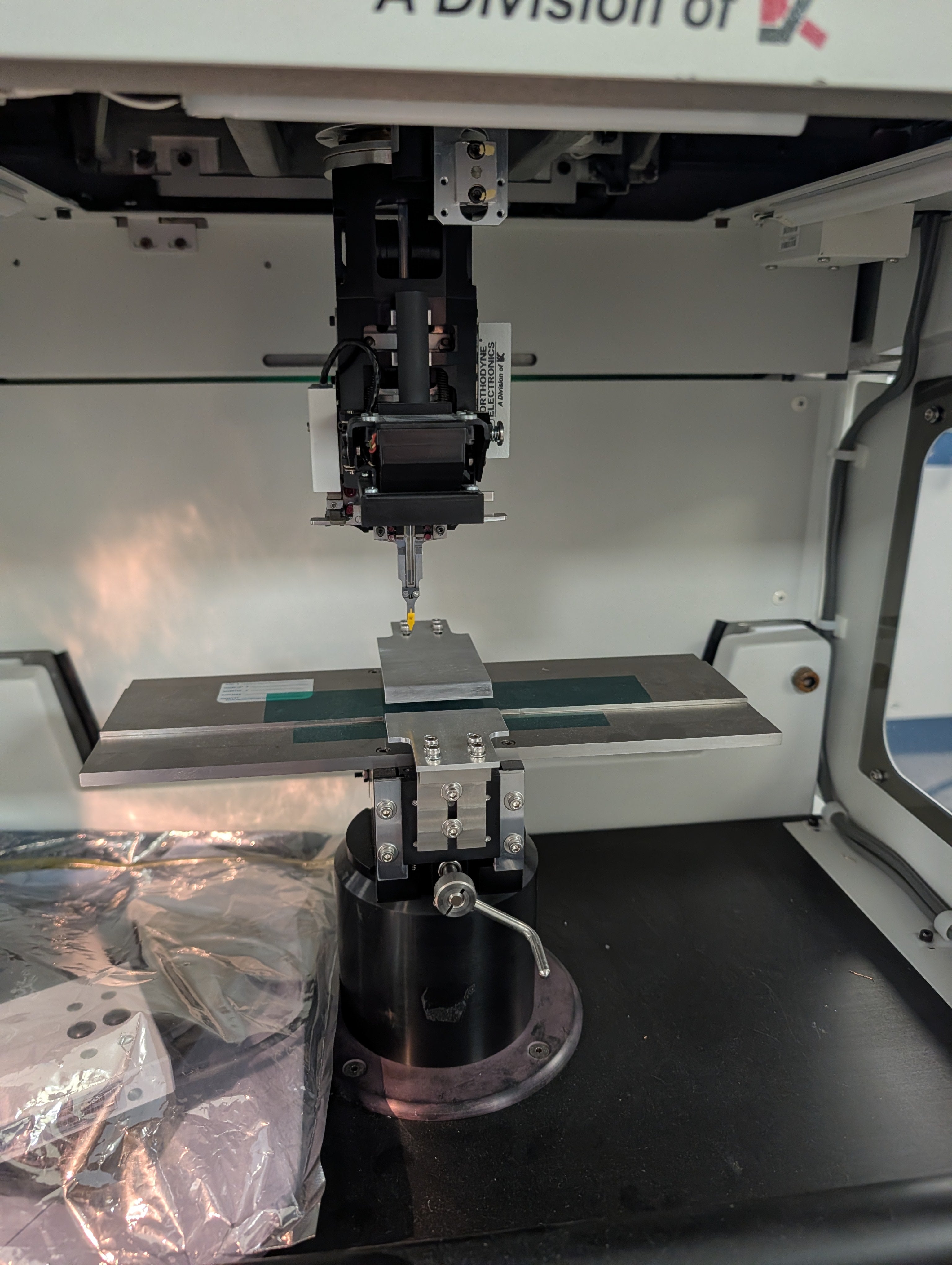

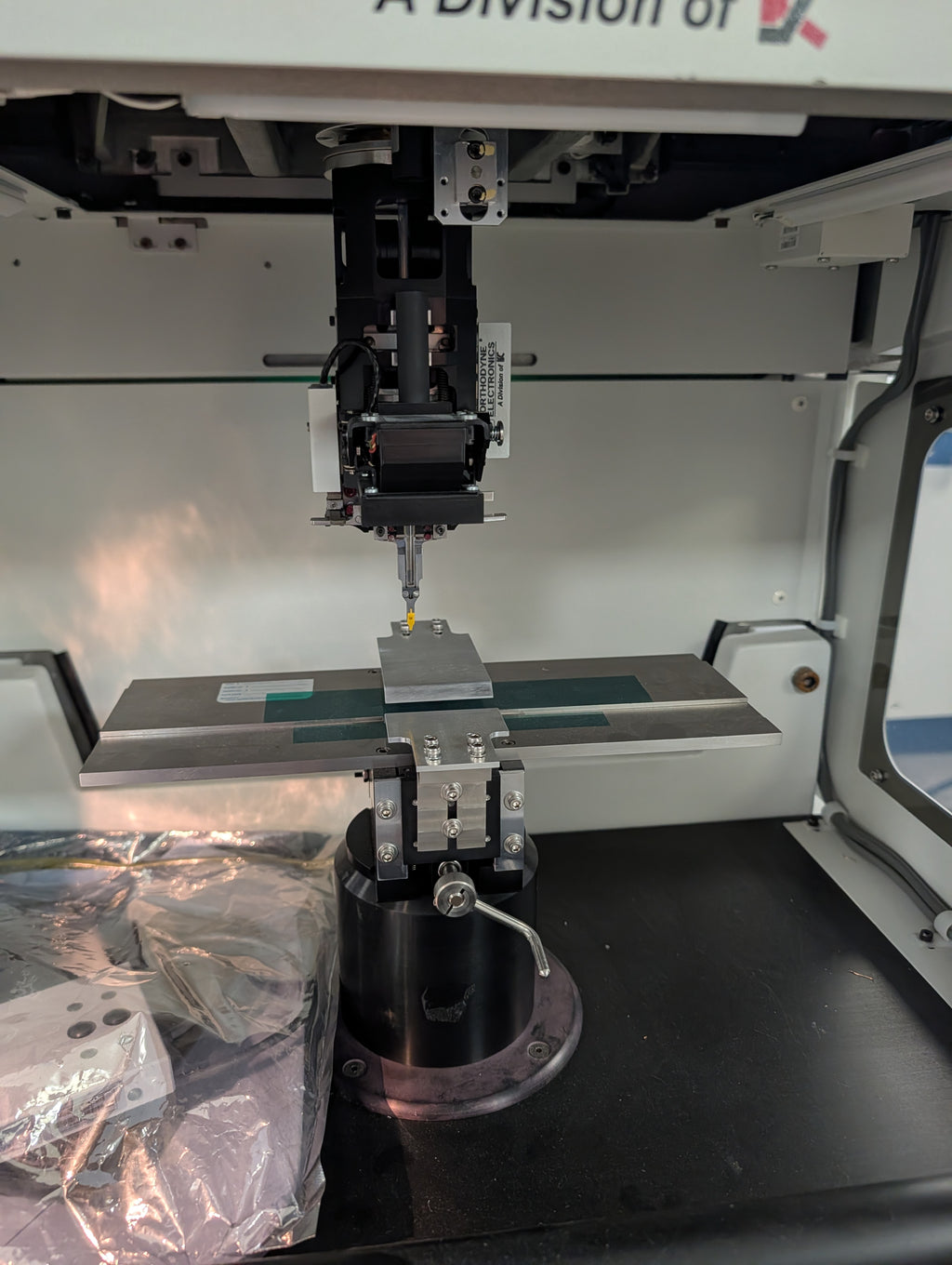

- Transducer, 60/80 kHz
- Forcer: 50 - 1500 gr
- Wire Range: 100 to 500 µm
- Maximum Wire Looping: 40.0 mm
- Die Rotation: +/- 70°
- Pattern Recognition Type:Enhanced OE GS III
- Ethernet
- USB
- Hard Disk Drive (HDD)
- Footprint: 680 mm x 1308 mm
- CE Certification

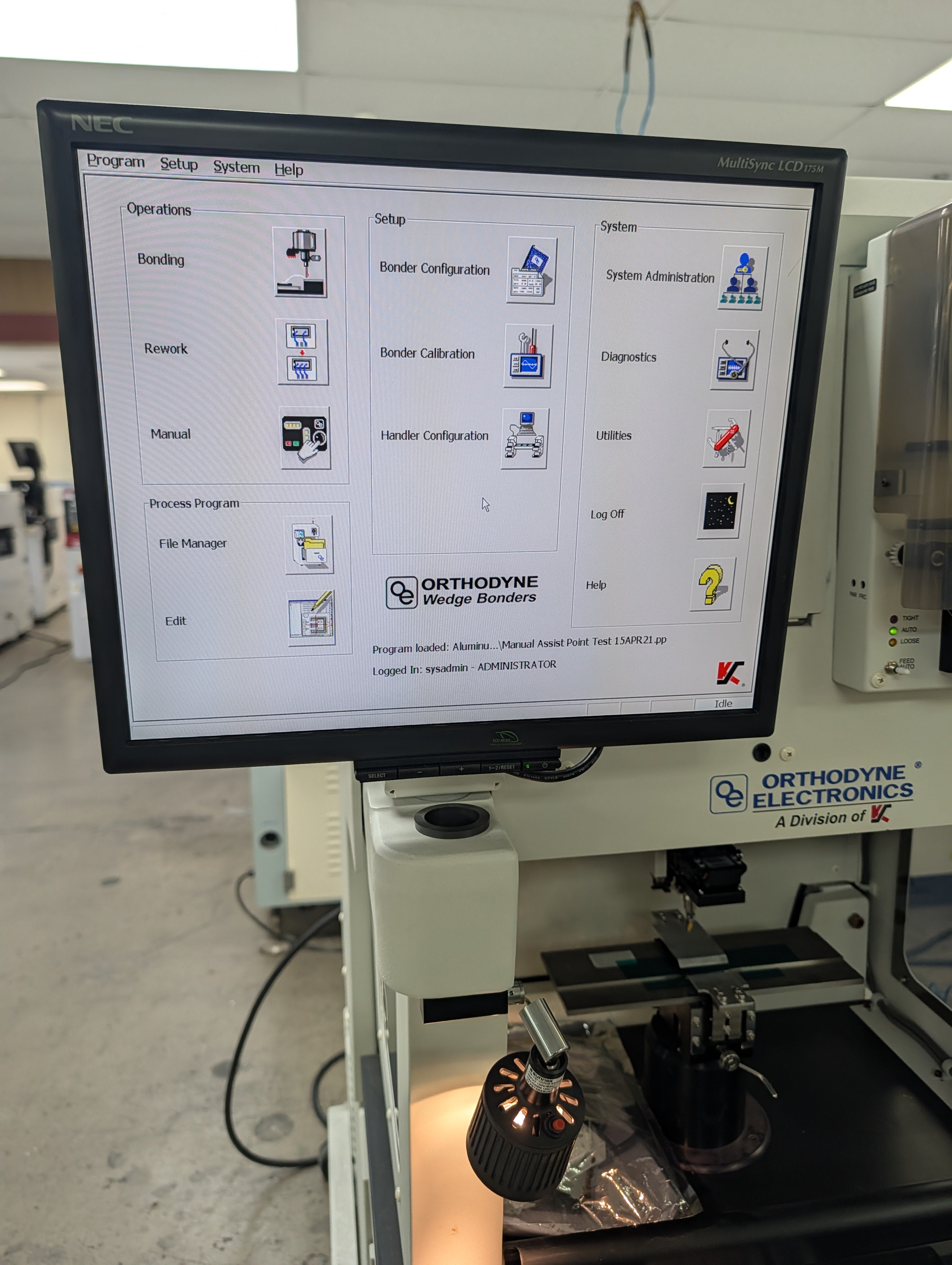

- Operating System: VX Works and Windows XP

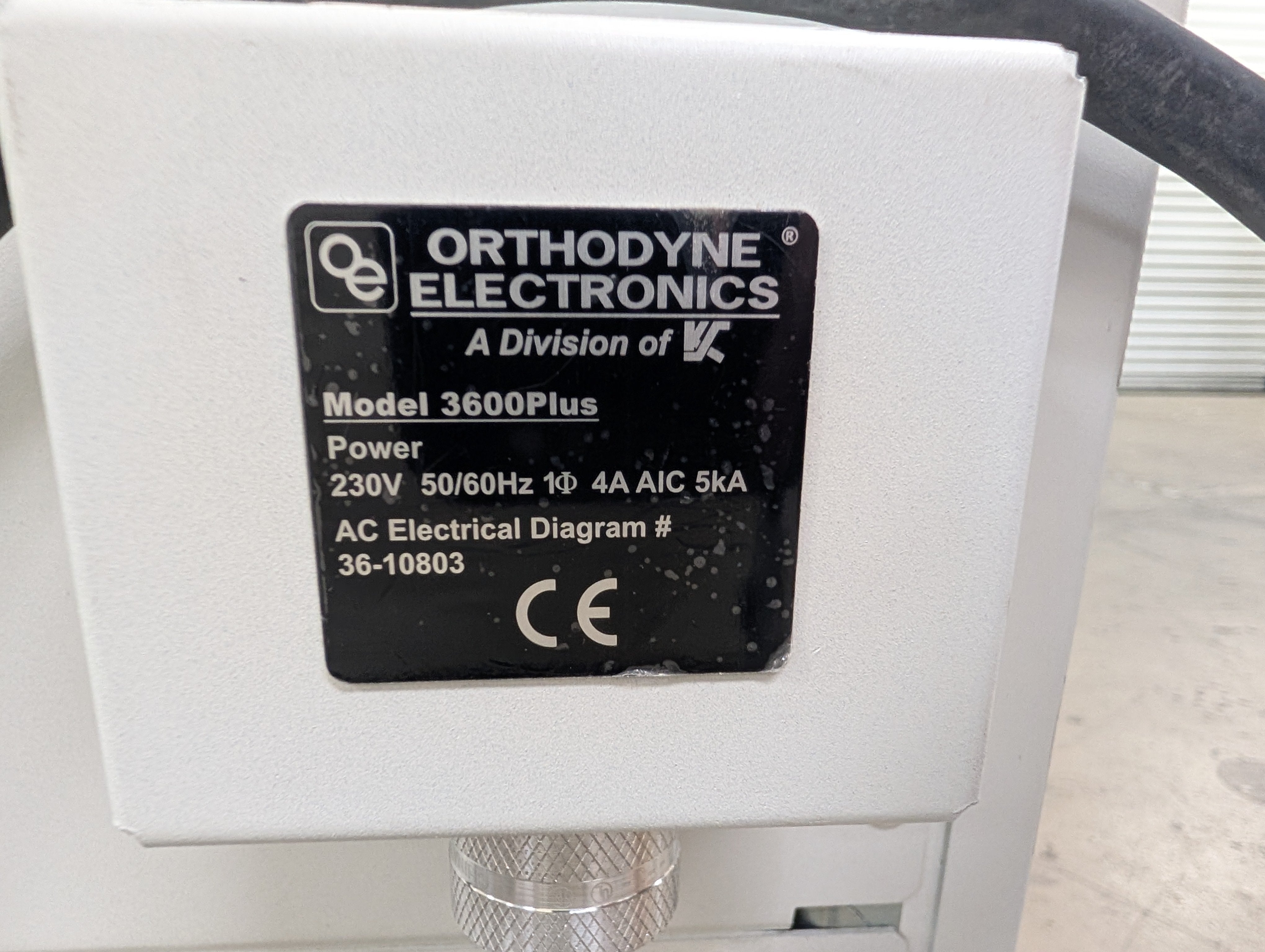

- Power Consumption: 5 A at 230 V
- Power Requirement: 180-240 VAC, Single Phase, 50/60 Hz
Bond Area:
- X: 250 mm
- Y: 150 mm
