Nikon NEXIV VMR-3020 high-precision, automated 3D non-contact measuring system 300 x 200 x 150 mm

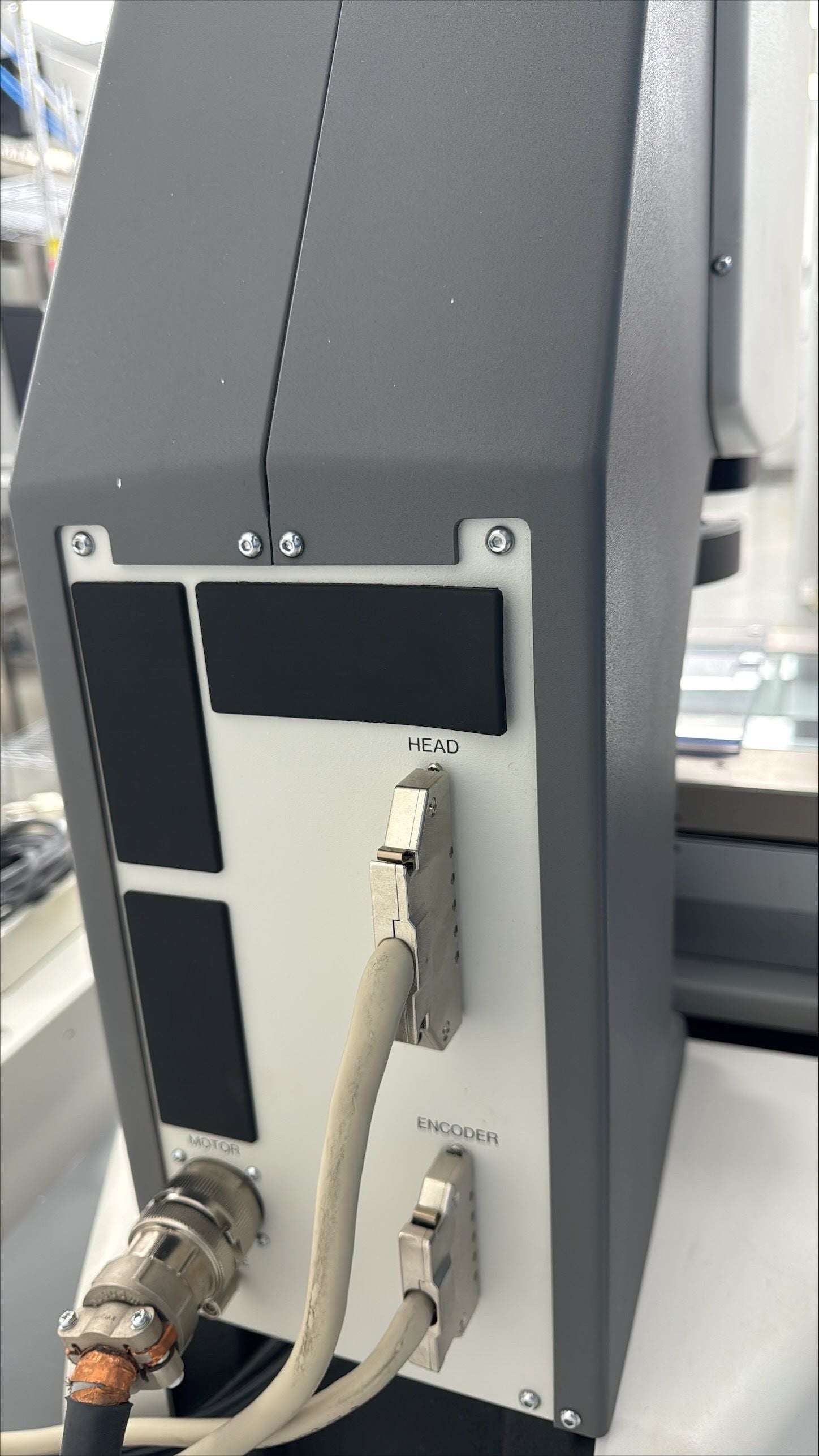

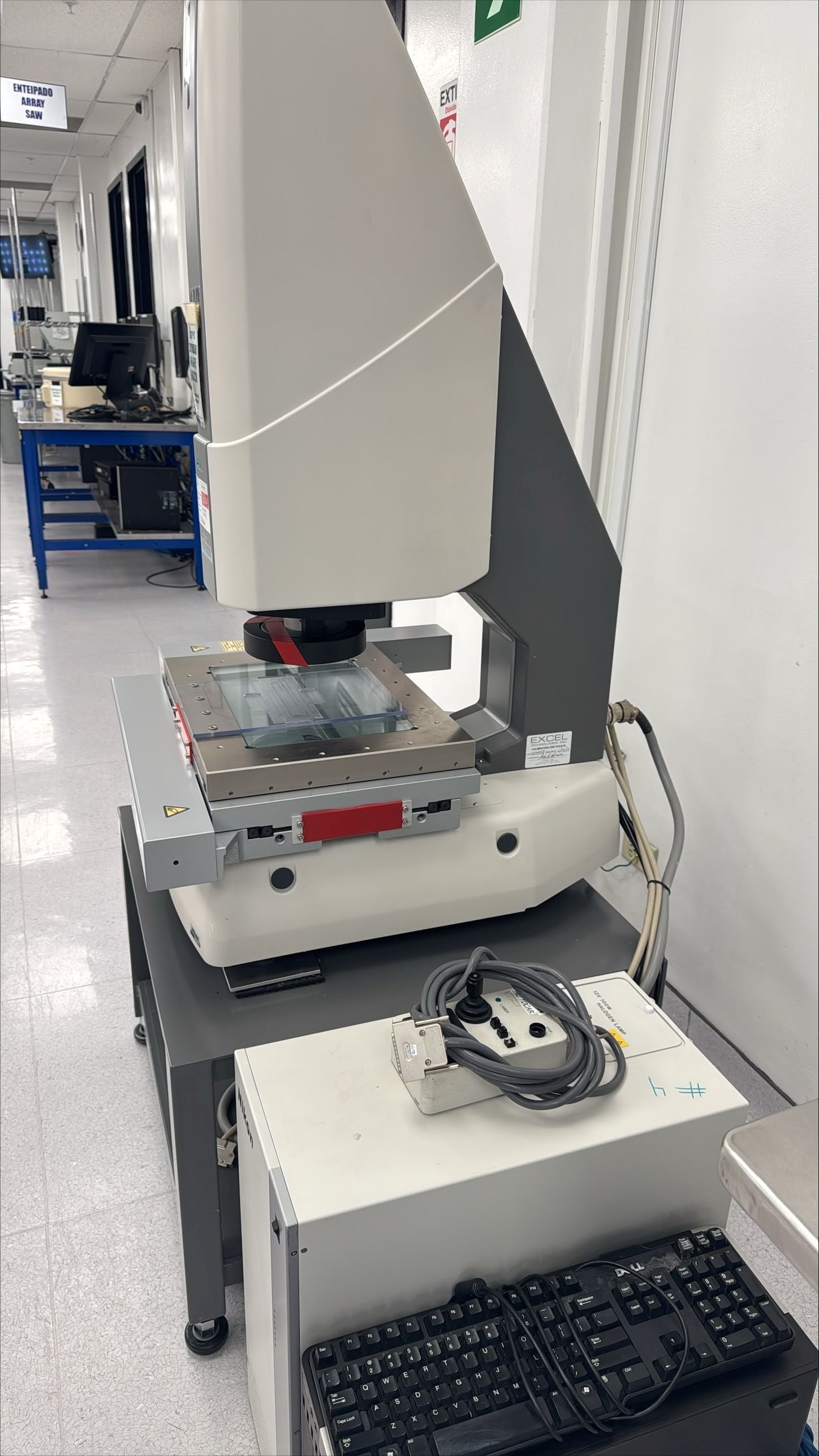

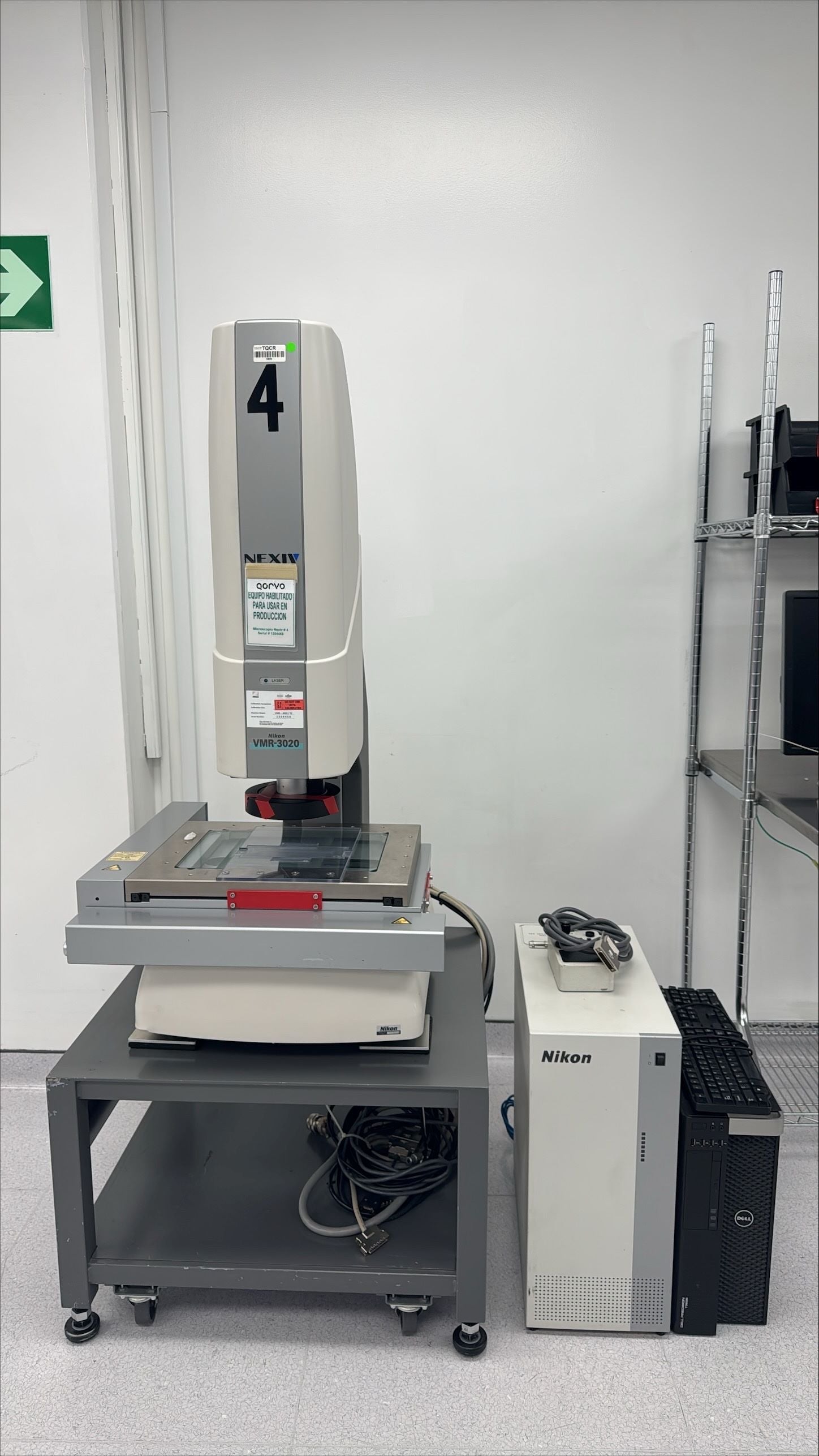

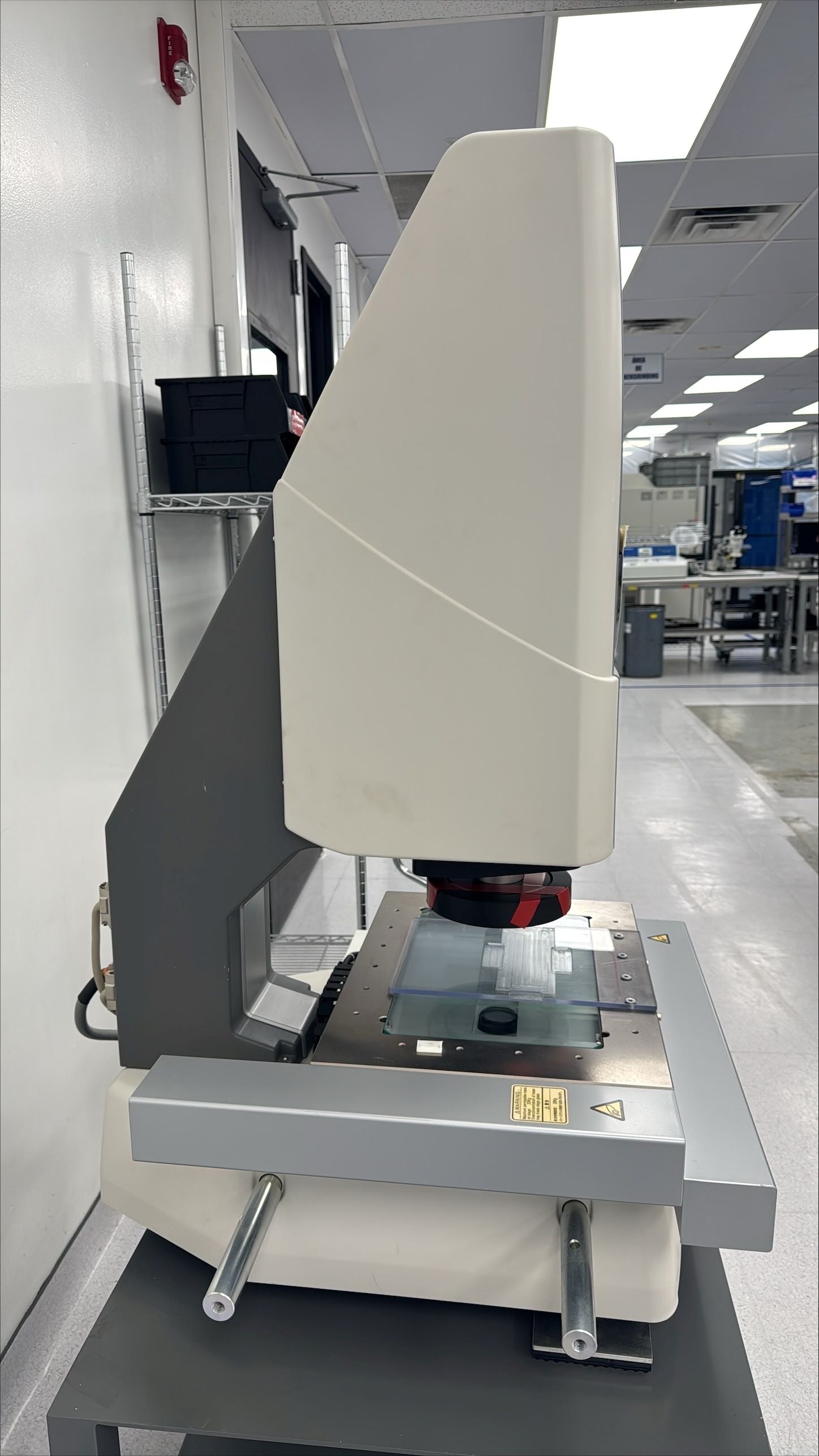

Nikon NEXIV VMR-3020 CNC Video Measuring System

The Nikon NEXIV VMR-3020 is a high-precision, automated 3D non-contact measuring system designed for high-speed inspection of electronic components, molded parts, and medical devices.

TECHNICAL SPECIFICATIONS:
Measurement Range (X, Y, Z): 300 x 200 x 150 mm
Resolution: 0.1 micron
XY Measurement Accuracy: 0.5 + 4L/1000 microns
Z Measurement Accuracy: 1.5 + L/150 microns
Maximum Workpiece Weight: 20 kg (44.1 lbs)
Working Distance: 50 mm

OPTICAL SYSTEM:
Zoom Ratio: 15X high-speed telecentric zoom
Autofocus: TTL (Through-The-Lens) Laser AF and Vision AF
Illumination:
Diascopic (Bottom/Profile)
Episcopic (Top/Coaxial)
8-Segment LED Ring Light (Programmable oblique angles)

SYSTEM FEATURES:
CNC High-Speed Stage: Travel speeds up to 150 mm/sec
Software: NEXIV AutoMeasure (Standard)
Application: Ideal for sub-micron level verification and complex edge detection.
