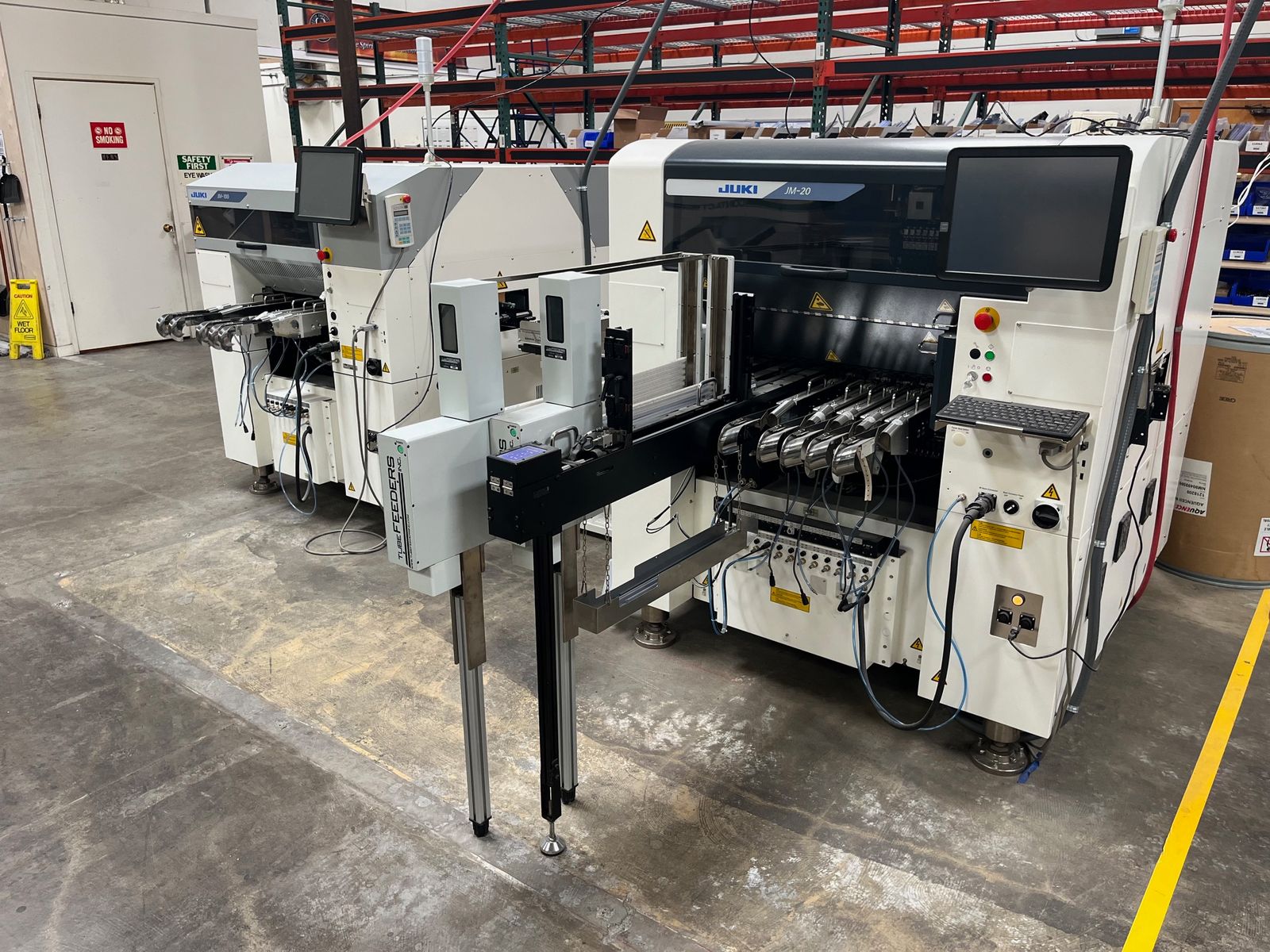

JJUKI JM-20 & JM-100 Odd Form Hybrid SMT & Through-Hole Insertion Package - 2019 & 2022 Barely used, demo use only.
This package was purchased from the OEM March 2022. The JM100 new, and the JM-20 being the OEM demo machine. The equipment has never put into full production use.

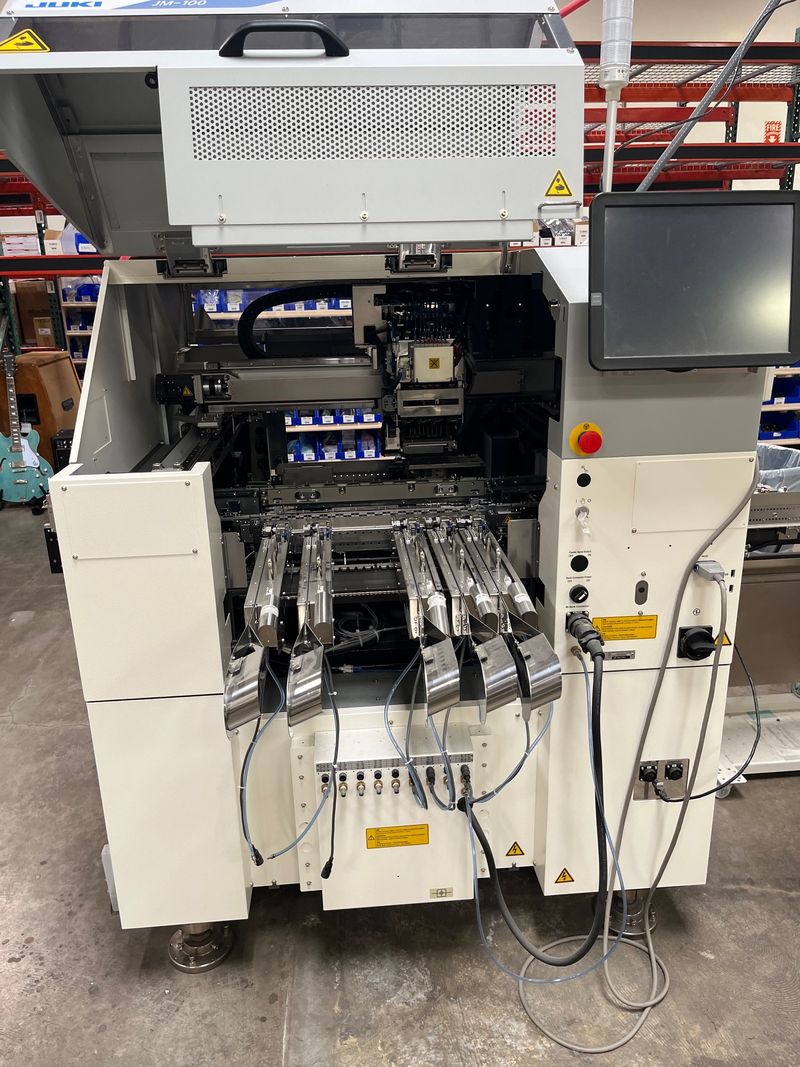

JM-100 with rear mount TR5 Tray Server

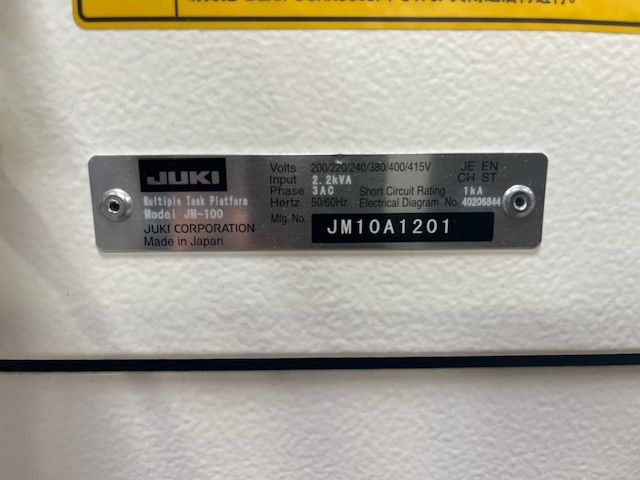

SN: JM10A1201 Purchased New: March 2022
- Conveyor: Clinch
- PCB Size: 410 x 360mm Max, 50 x 50mm Min
- Component Height: 30mm
- 950mm

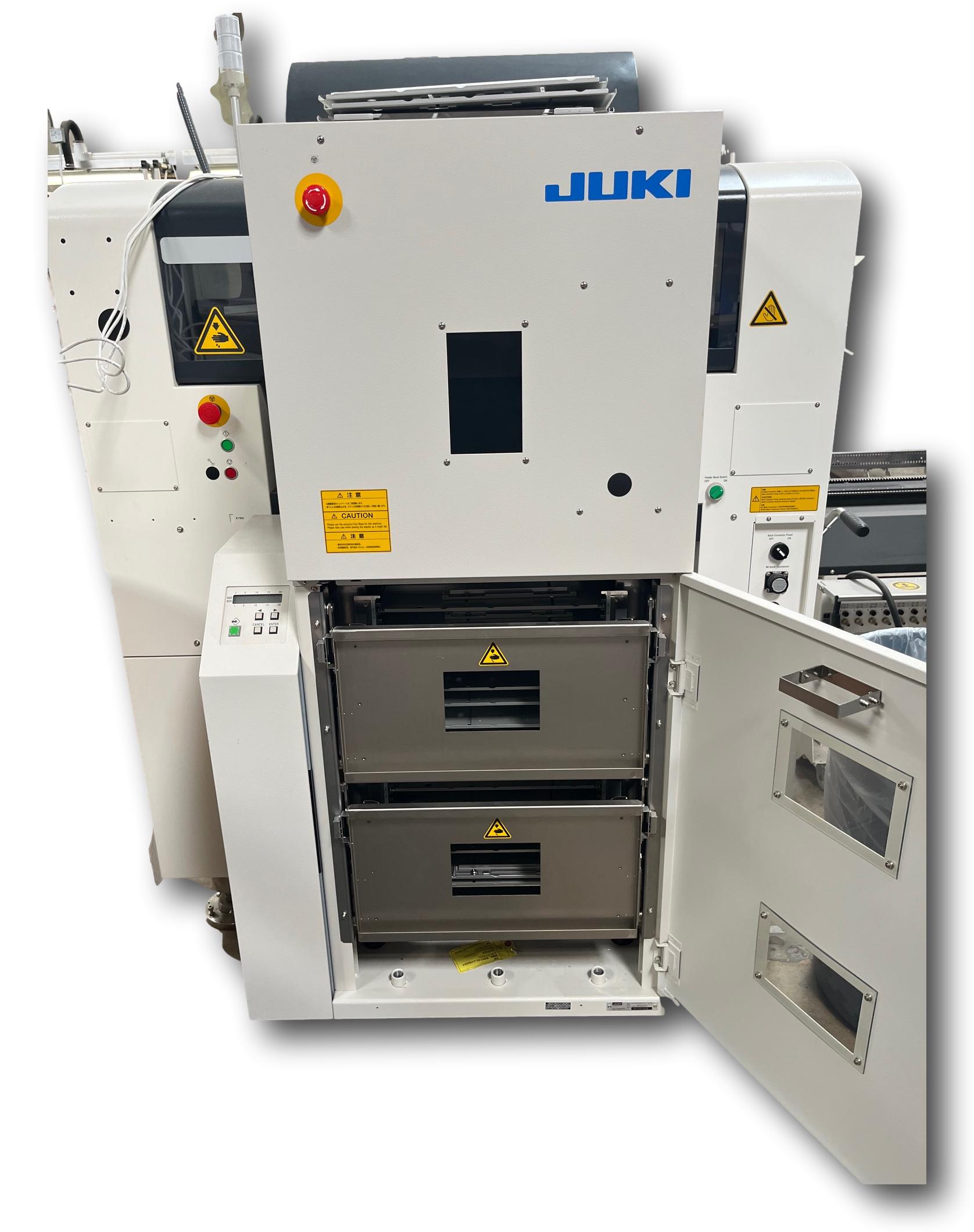

- TR5SNIJE - Full Tray Server - SN 5S15D1028

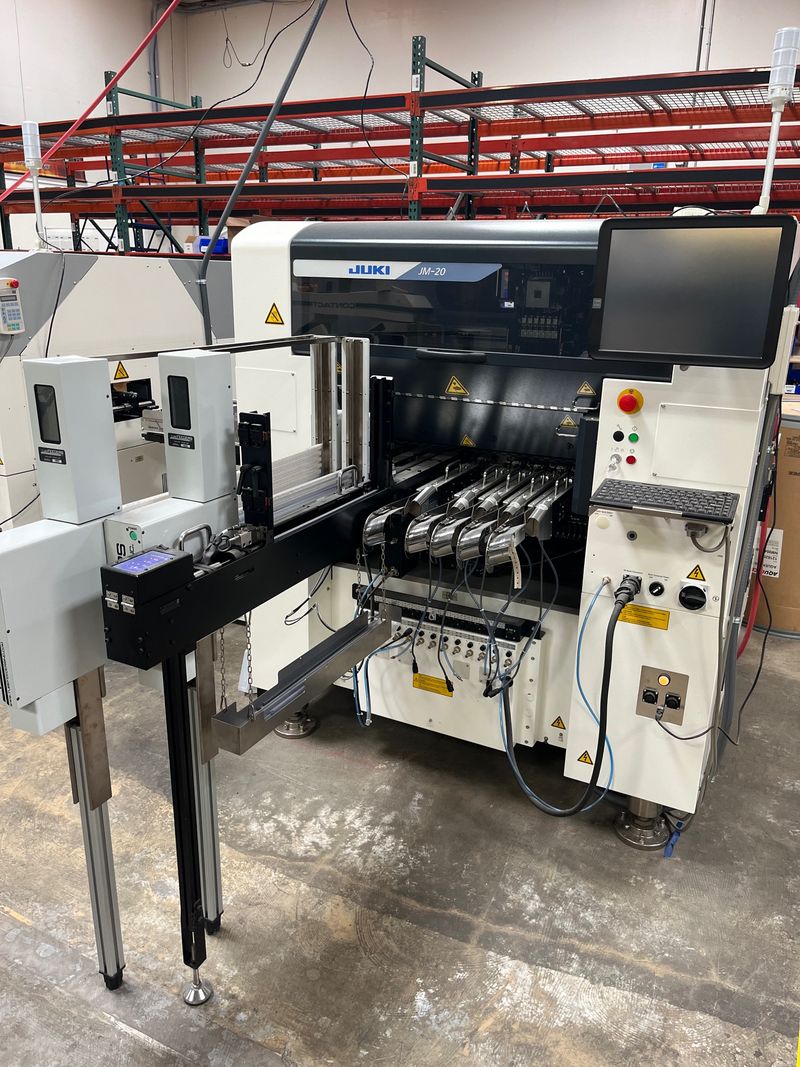

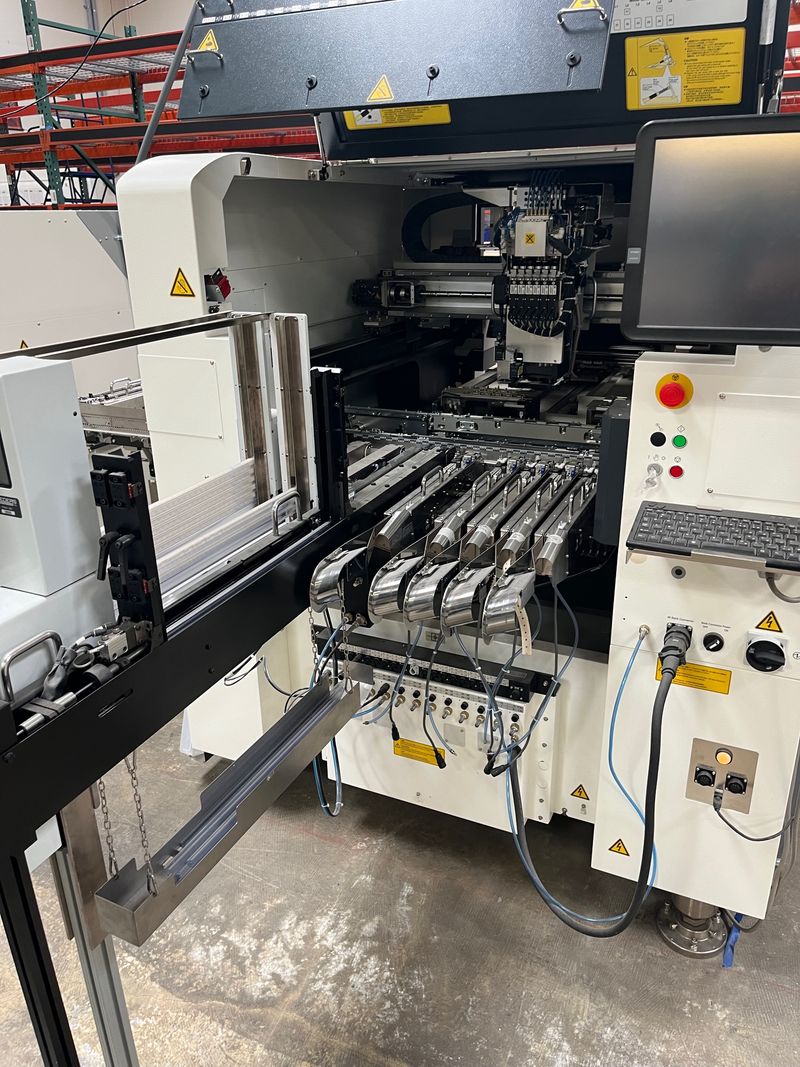

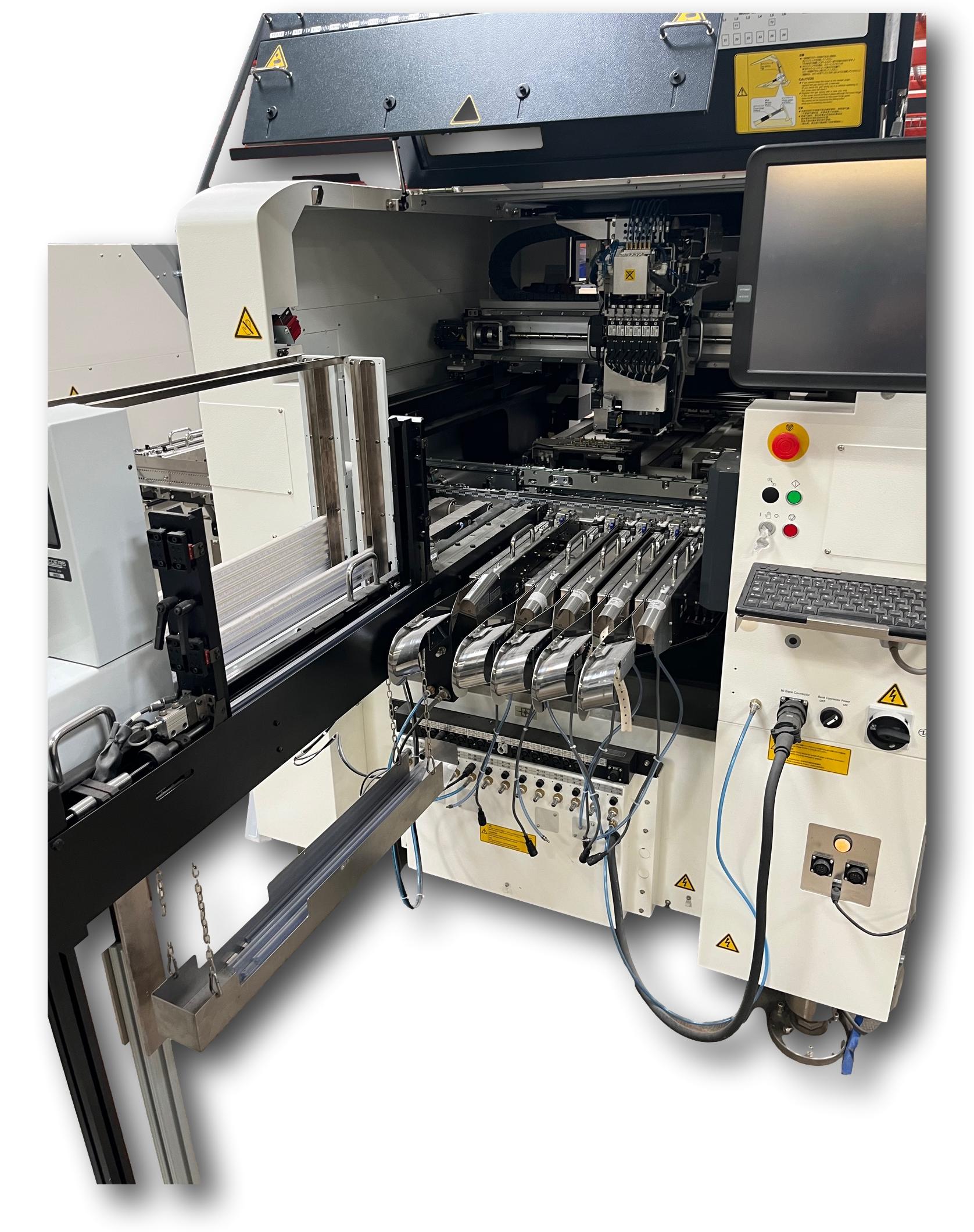

JM-20 Hybrid SMT & Trough Holed Insertion machine with L size conveyor (14"x16") with rear mount TR5 Tray Server

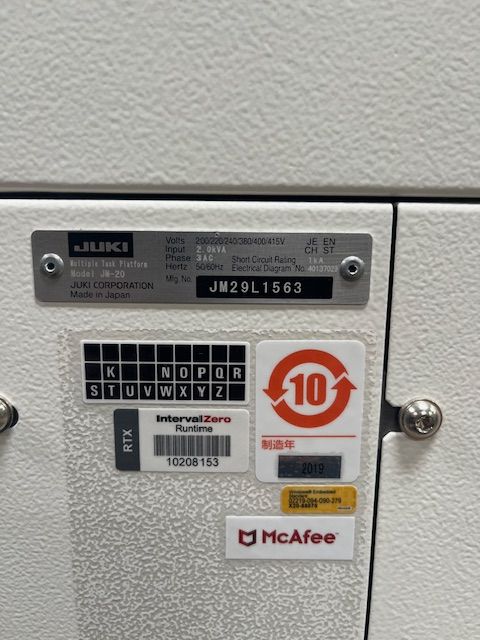

SN: JM29L1563 OEM demo machine, Purchased March 2022, YOM: 2019
- Multi- Nozzle Laser head with 6 nozzles
- Board Fiducial Offset Correction System
- Front/Rear Fixed Feeder Bank
- Dual Height Measurement Sensors
- Automatic Nozzle Chage Station - 1 ea 503 & 508
- Pass through Conveyor for Inline Operation
- Board Edge Clamping System
- Self Calibration Jig
- Bad Mark Reading via OCC
- Board support pins
- 55mm Max component height - standard
Additional JM-20 items:

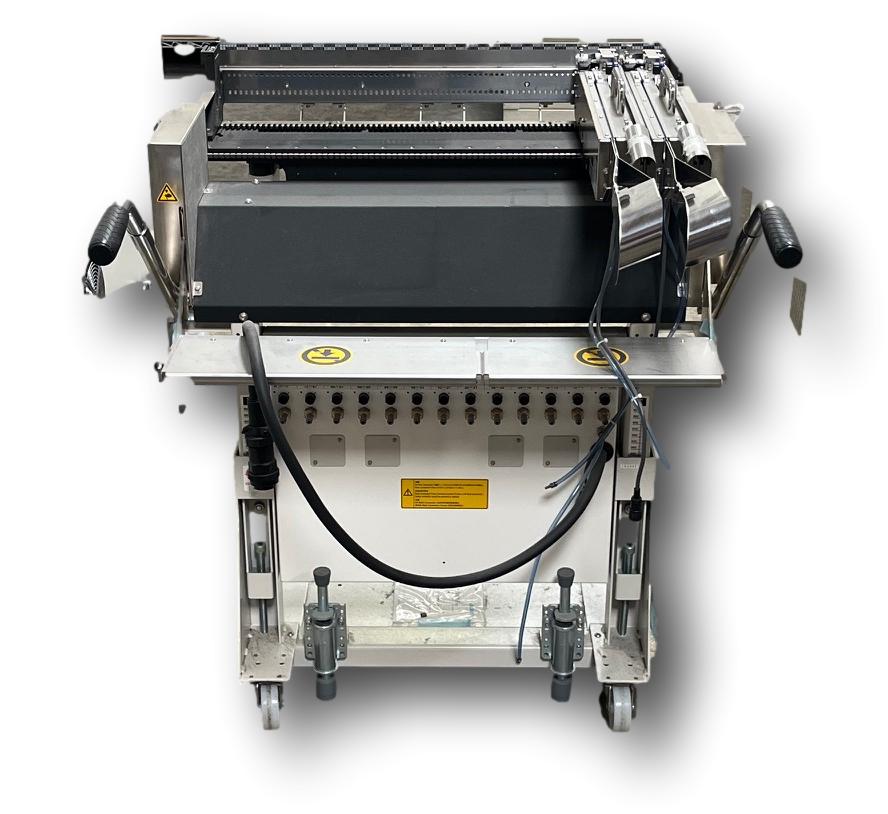

- (1) F/M-FIX R/M Lifter (with trolley) 950mm
- (1) R-ATC Chucking Nozzle
- (13) MRF Large Raidial Feeder w/out body clamps
- (2) Customer Single Component Stack Feeder
- Clinch for JM20L
- Nozzles: 2 ea: 517, 2998 Vacuum nozzle, 2996 Vacuum nozzle
- SMT Drive Cylinder (Front/MFixed Bank)
- SMT Drive Cylinder (Rear/M-Lifter
This equipment is consigned and is located in and EXW California.
