Description

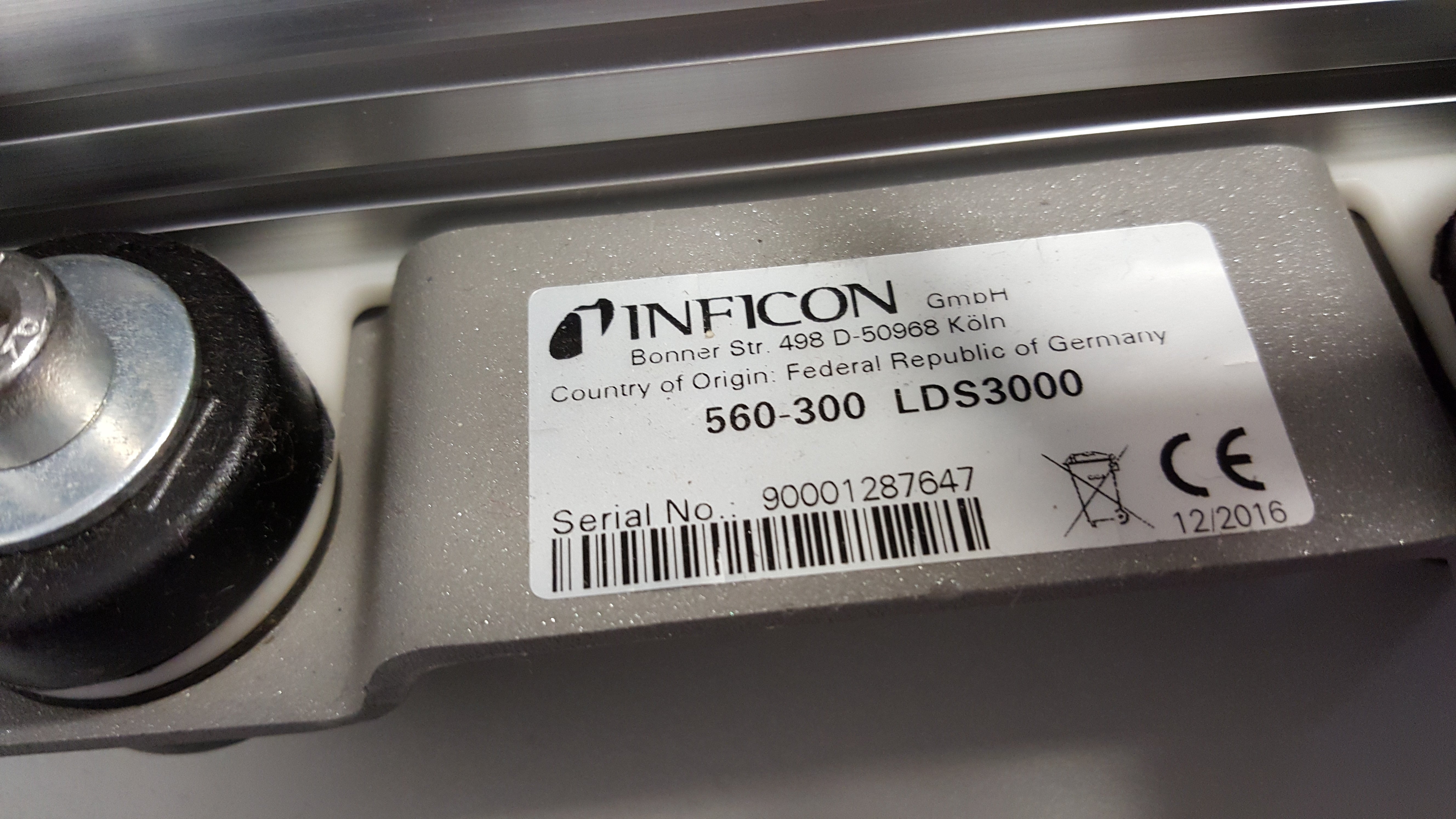

Integrated Infincon Type LDS3000 specs:
Min. detectable leak rate for Helium "ULTRA"-Mode mbar•L/s <1E-11
Min. detectable leak rate for Helium "FINE"-Mode mbar•L/s <5E-11
Min. detectable leak rate for Helium "GROSS"-Mode mbar•L/s <1E-9
Min. detectable leak rate for Helium "Sniffer"-Mode mbar•L/s <1E-7
Measuring units mbar•L/s, Pa•m³/s, Atm cm³, g/a, ppm
Max. inlet pressure "ULTRA"-Mode mbar 0.2
Max. inlet pressure "FINE"-Mode mbar 0.9
Max. inlet pressure "GROSS"-Mode mbar 18
Response time s <1
Digital inputs/outputs (if used with IO1000 Modul) 10 inputs / 8 outputs
Control input V max. 35 (PLC compatible)
Dimensions (L x W x H) mm
330 x 240 x 280
Ambient temperature range
°C 10 - 45
Vacuum connections
DN 16 KF, DN 25 KF
