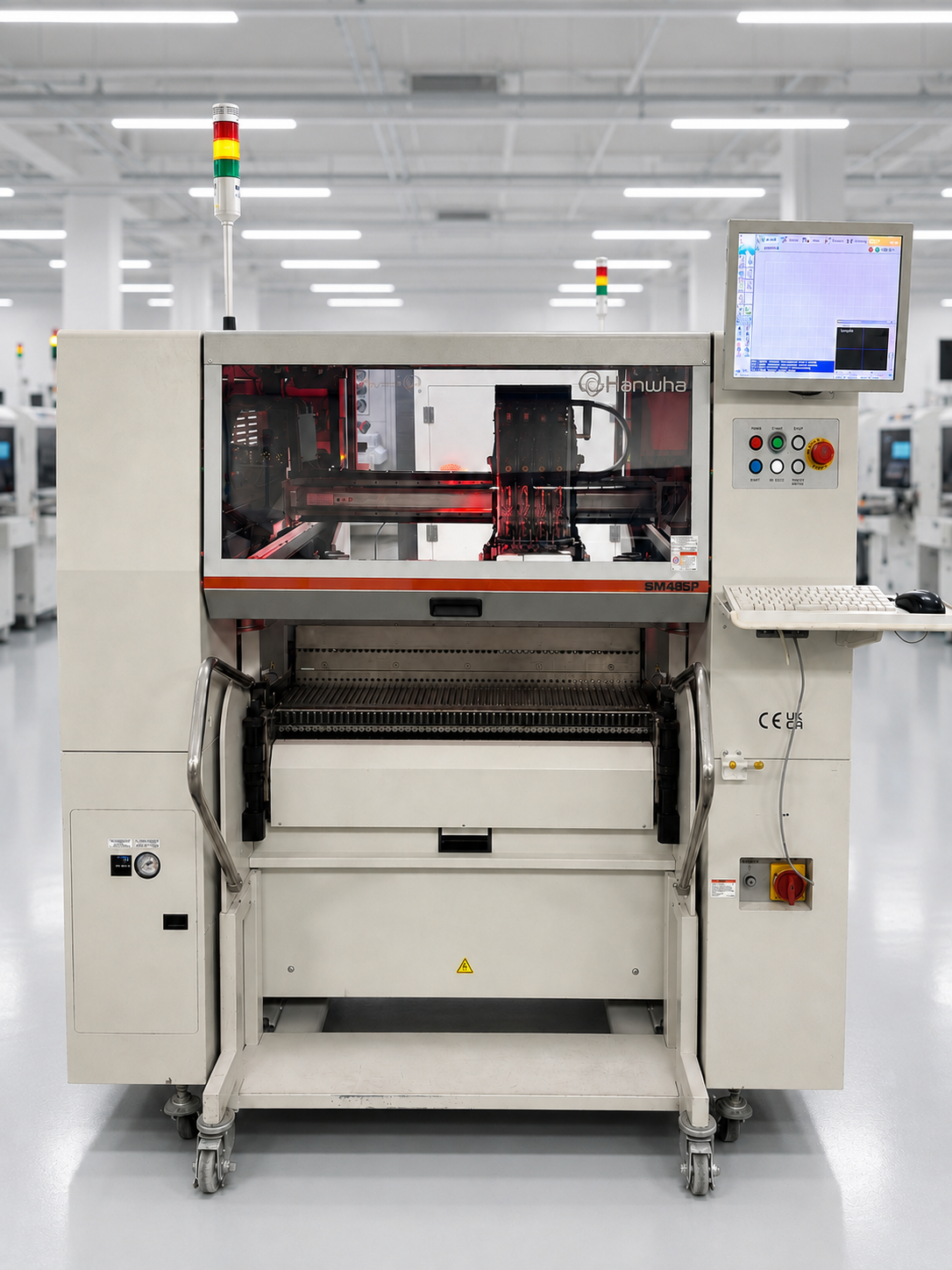

Hanwha SM485 Plus SM485P Multifunction Mounter - 2023 SN DJ-0167

Hanwha Samsung SM485P Multifunction Mounter

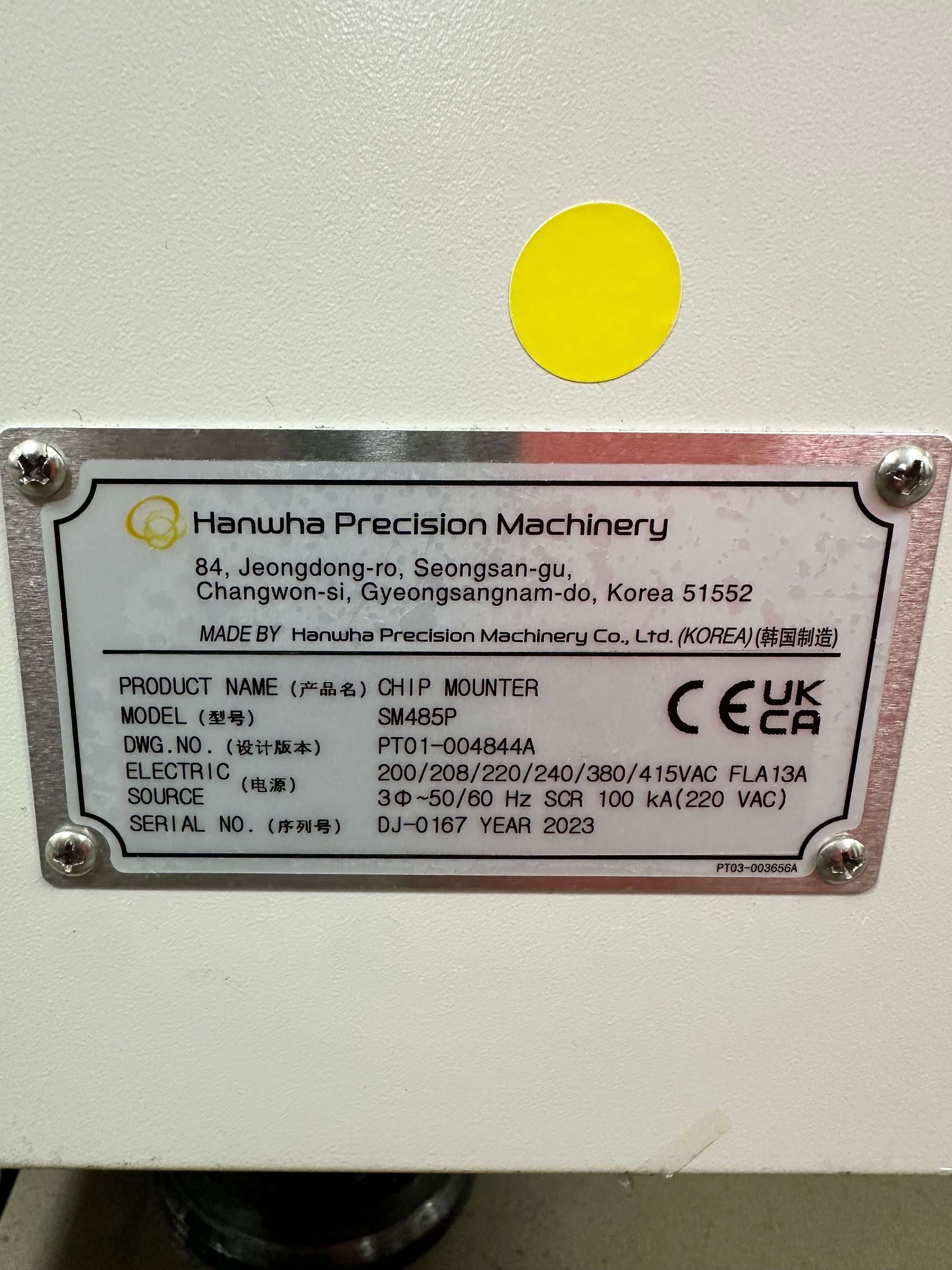

SN DJ-0167

YOM: 2023

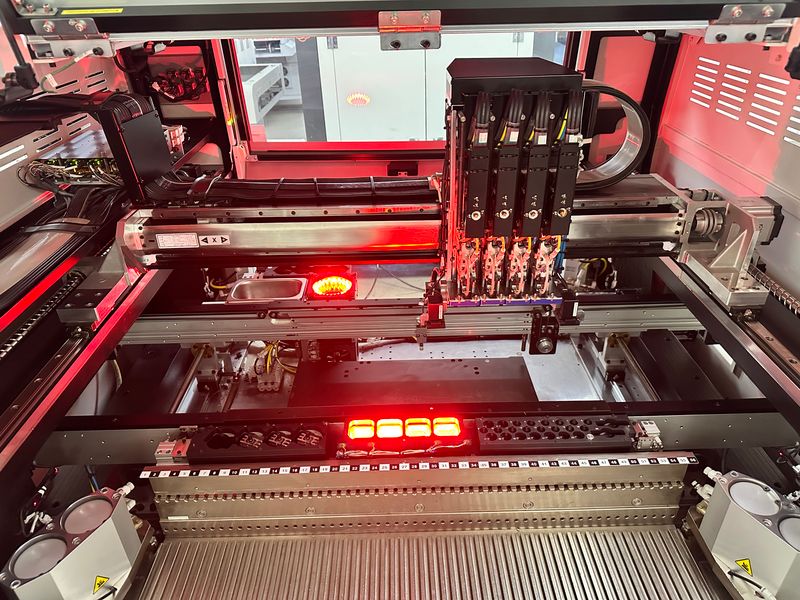

• 4 precision Spindle head

• Multifunction mounter capability for diverse PCB assembly applications

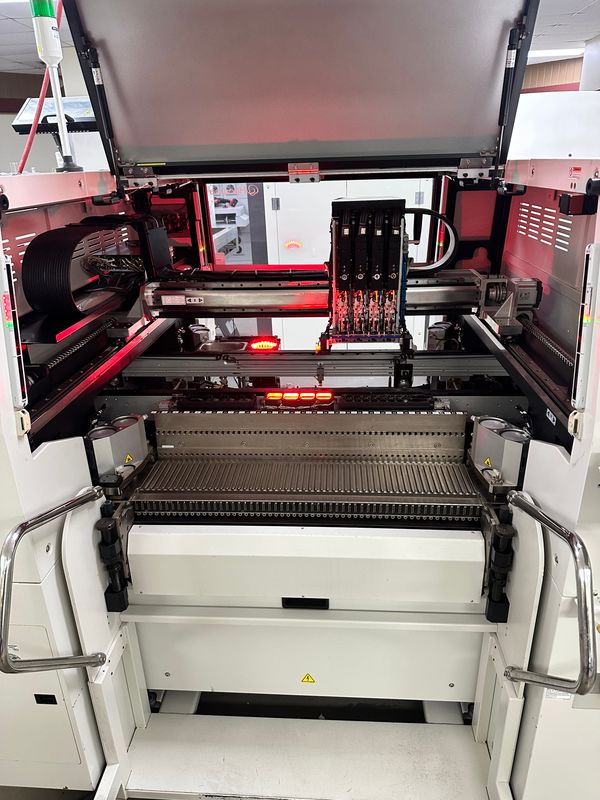

• Front and rear trolleys included with machine.
• Advanced positioning accuracy for fine-pitch and complex component placement

OEM SPECS :

Head configuration :   1 gantry, 4 spindles
Chip placement speed :   12,000 CPH optimum
Odd-form/insertion speed    4,500 CPH optimum
Chip accuracy  :  ±50 μm, Cpk ≥ 1.0
IC accuracy  :  Approximately ±30 μm
Smallest component :   0603 metric / 0201 imperial
Standard component range :   0603 through 22 × 22 mm
Large-component capacity  :  Up to 55 × 55 mm
Long-component capacity  :  Up to 150 × 25 mm
Maximum component height :   32 mm standard
Standard PCB size  :  50 × 40 to 460 × 400 mm
Optional maximum PCB size  :  610 × 460 mm
Feeder capacity  :  Up to 120 × 8 mm feeder positions
Approximate machine size :   1,650 W × 1,690 D × 1,485 H mm
Approximate weight  :  1,600 kg
