ESE · Screen Printing
ESE US-2000XH Screen Printer - 2022
S/N 22072722Sold
Model

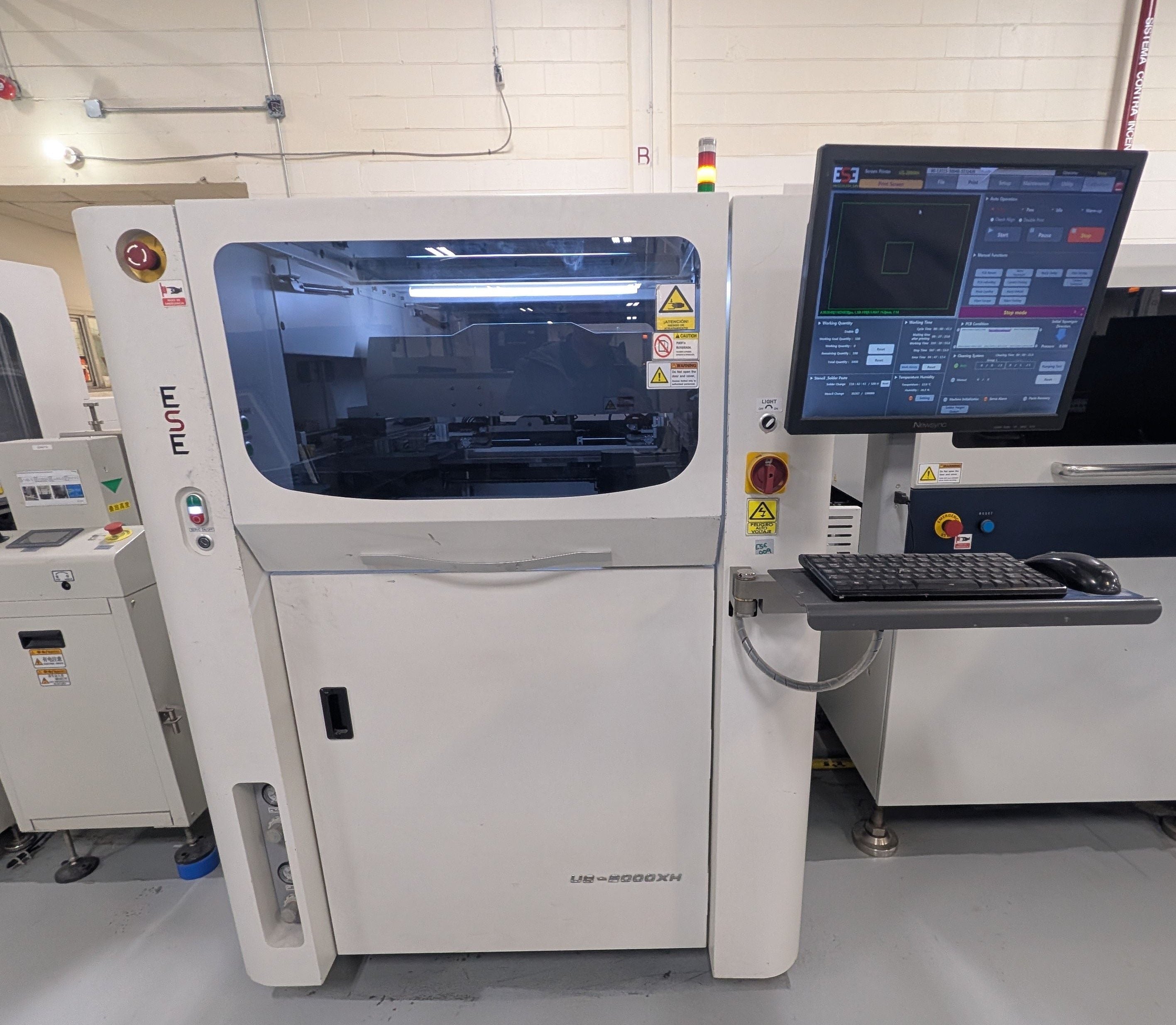

ESE US-2000XH Screen Printer - 2022 #22072722
Serial number
22072722
ESE US-2000XH Screen Printer - 2022 #22072722

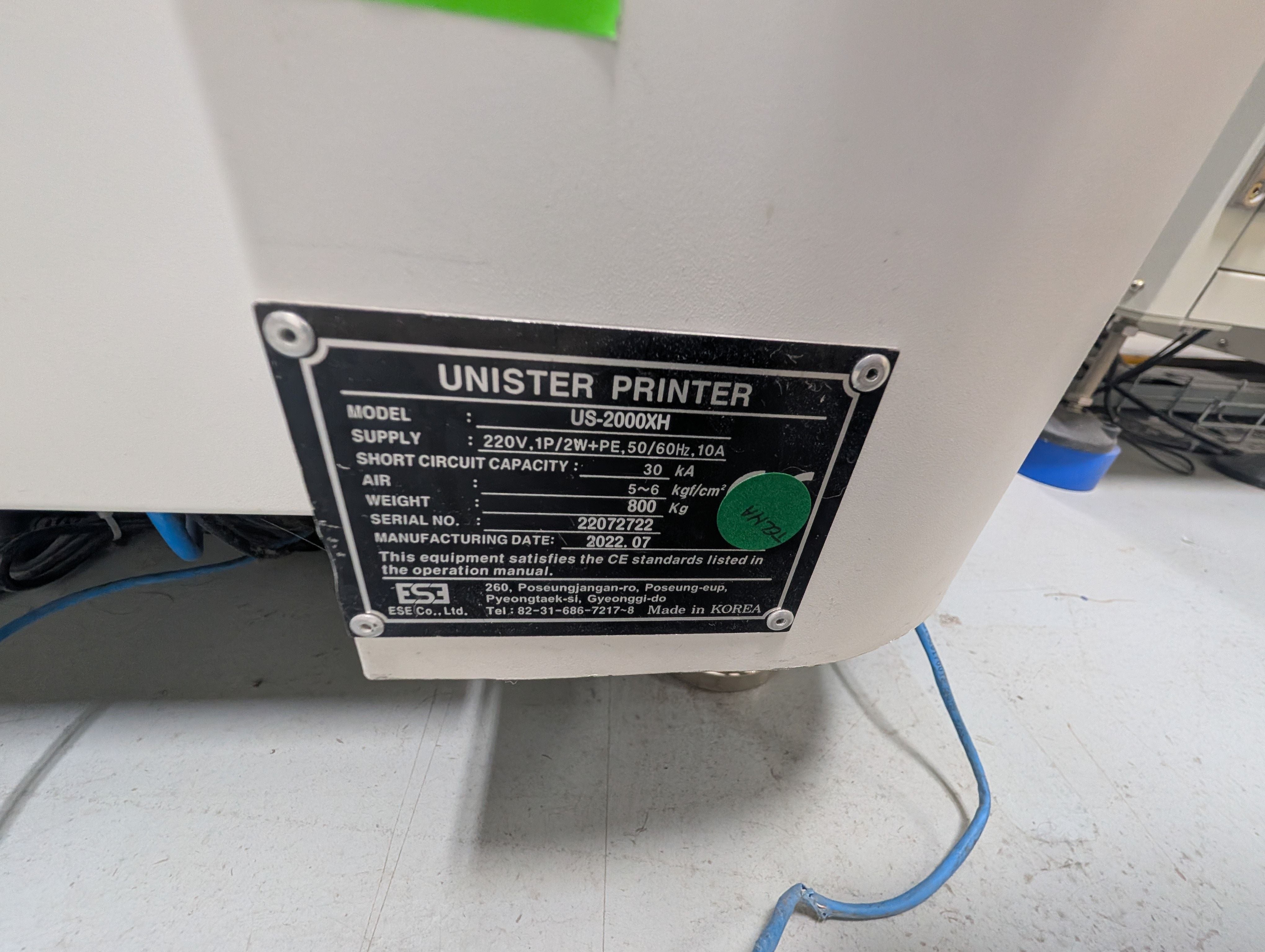

DOM: July 2022 SN: 22072722 - PFI 168
Specs :
- Advanced Features - 2D Inspection: Includes standard 2D solder paste inspection for both the PCB and the stencil apertures.
- Vision System: Equipped with a fast, accurate vision system that uses up/down CCD cameras for fiducial recognition.
-
Cleaning System: Comes standard with an under-stencil cleaning system (USC) that
supports wet, dry, or vacuum cleaning.
Key Specifications
- PCB Size: 50 x 50 ~ 550 x 400mm
- Cycle Time: Approximately 7 seconds.
- Accuracy: Features an alignment accuracy of 12.5um at 6 sigma and a printing repeatabilityof +/-25um at 6 sigma.
- PCB Thickness: Compatible with boards between 0.1 and 5mm thick.
-
Stencil Handling: Can handle standard stencil sizes of 23" and 29
Condition details, check-out notes and close-up photos for this unit are available on request.
Machine as pictured. Options and details are confirmed on the formal quote.
PFI ships worldwide from Longwood, Florida. Shipping is quoted per order — request a quote. Crates, export packing and installation are quoted by request. Lead times vary by item, so please contact us prior to purchase.
