Description

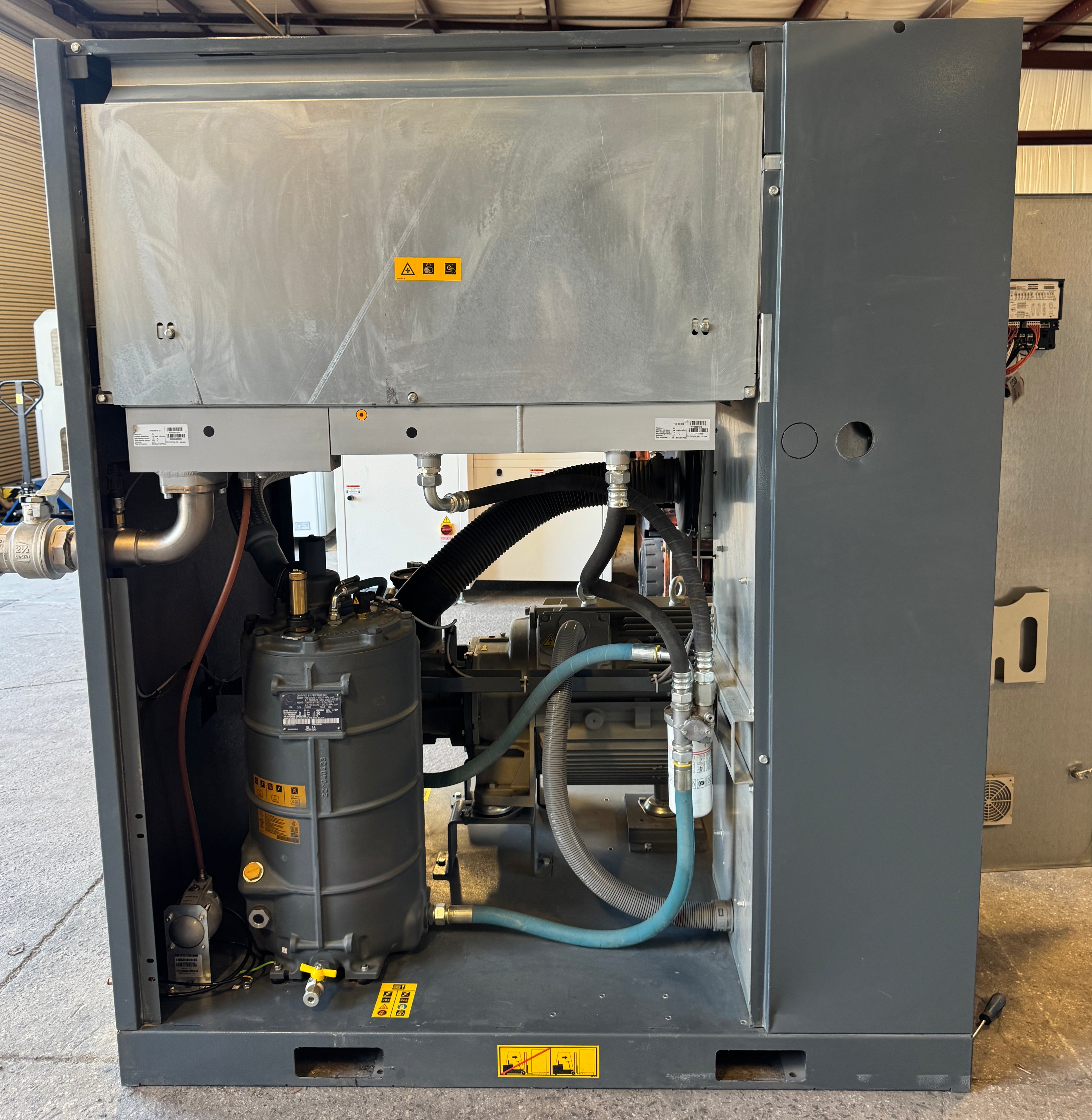

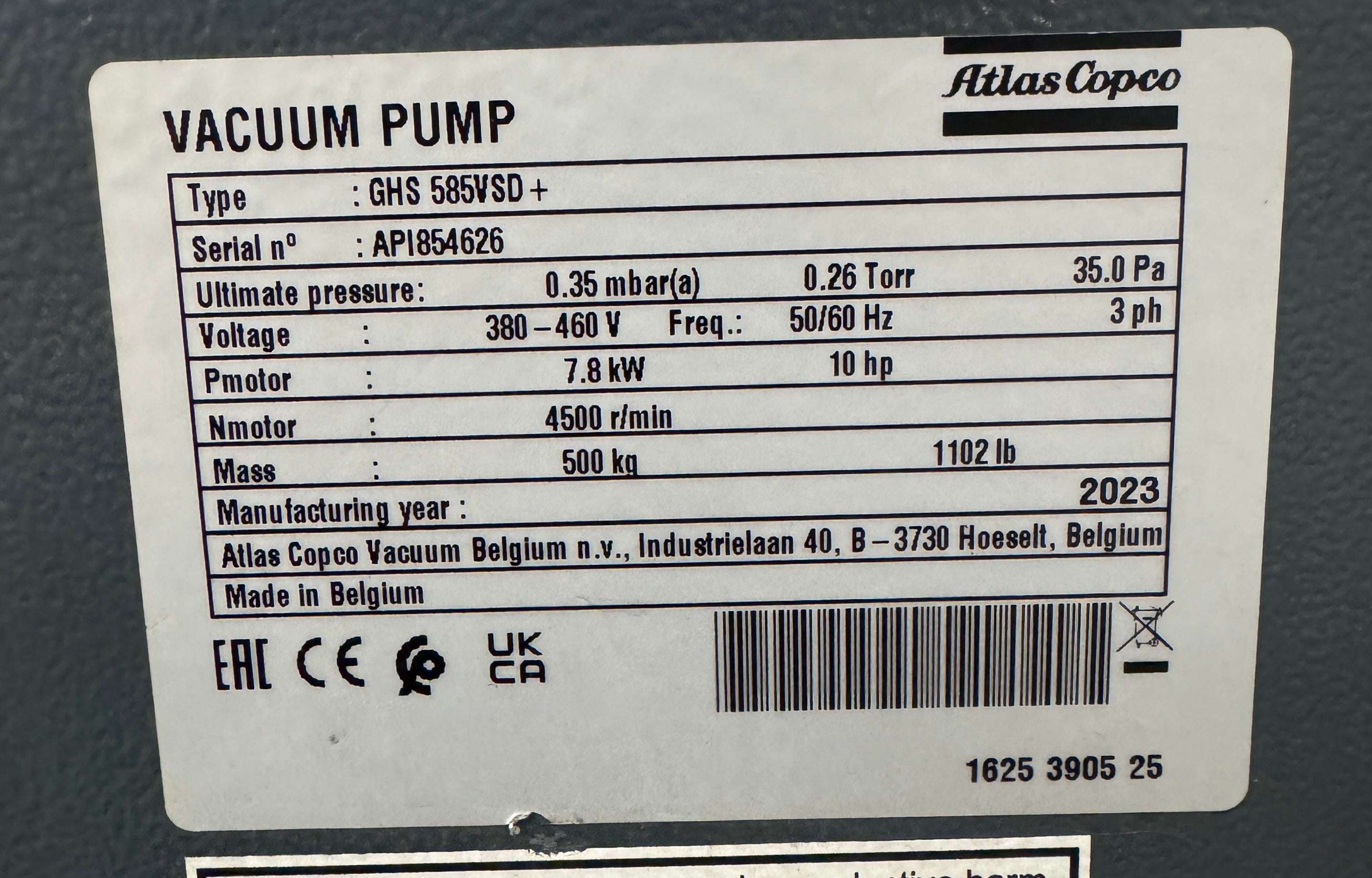

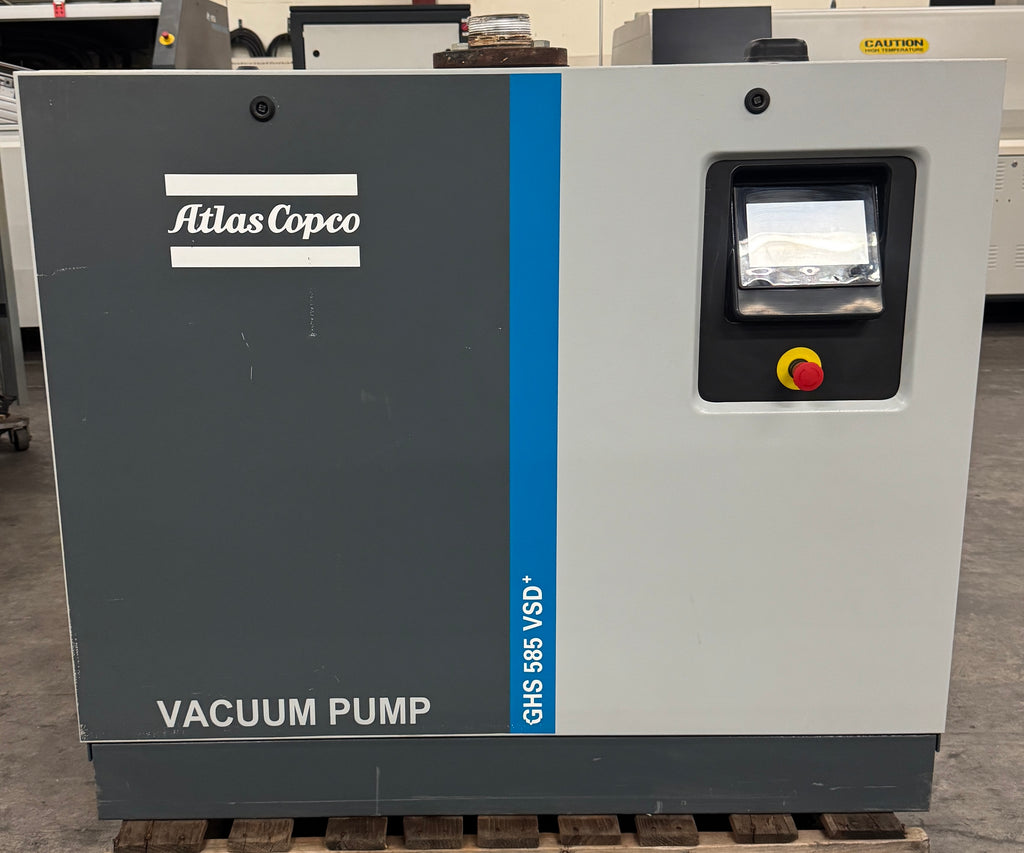

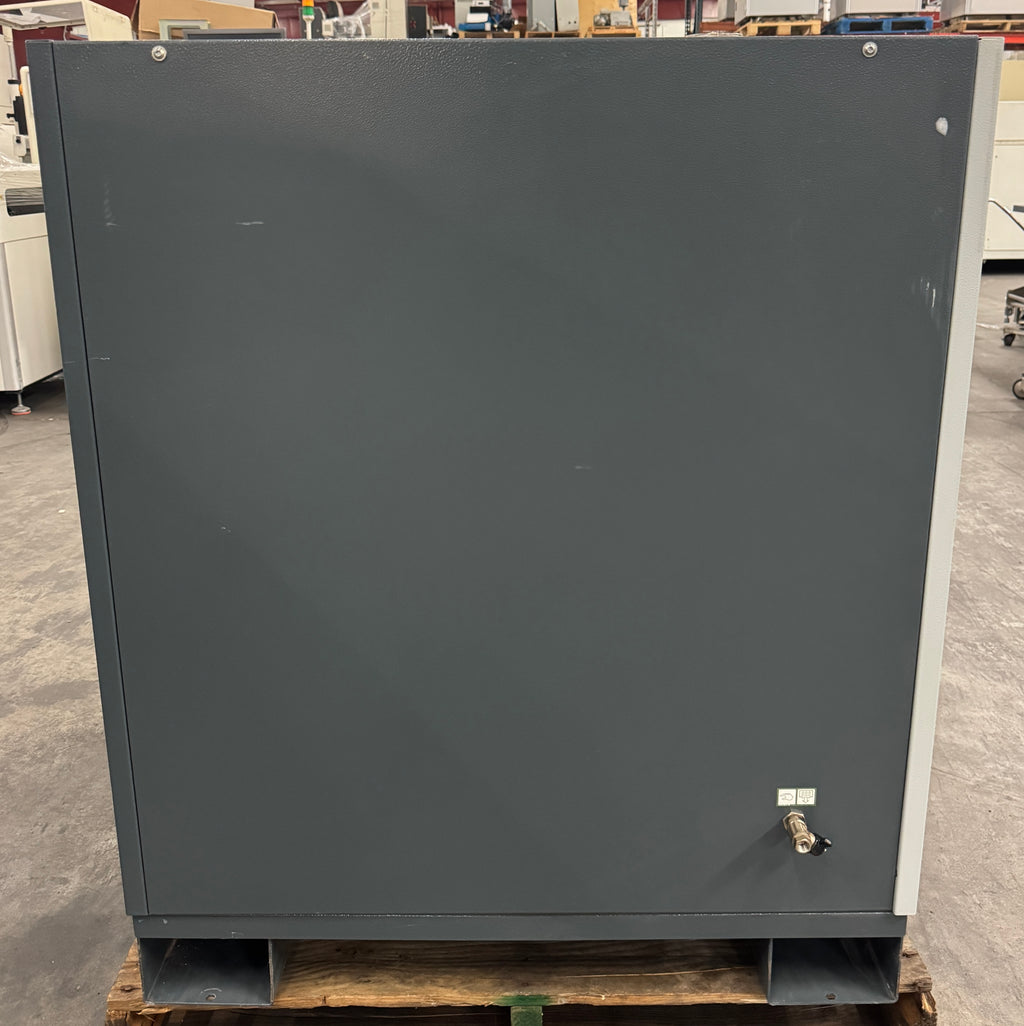

ATLAS COPCO GHS 585VSD+ Variable Speed Vacuum Pump 2023
Removed from working operation
Performance Specifications
Nominal displacement: 560 m³/h (330 cfm)
Ultimate pressure: 0.35 mbar(a)
Motor power: 7.5 kW / 10 HP (Standard)
Drive type: Variable speed drive (VSD) with IE3/IE4 motor
Physical & Operational Data
Oil quantity: 16 liters (4.2 gallons)
Cooling method: Air cooling
Noise level: 51–68 dB(A) depending on load
Inlet / Outlet flange: DN 80 inlet / DN 60 outlet
Weight: Approx. 500–550 kg (1,102–1,212 lbs)
Dimensions (L x W x H): ~1.27 m x 0.93 m x 1.08 m
