Description

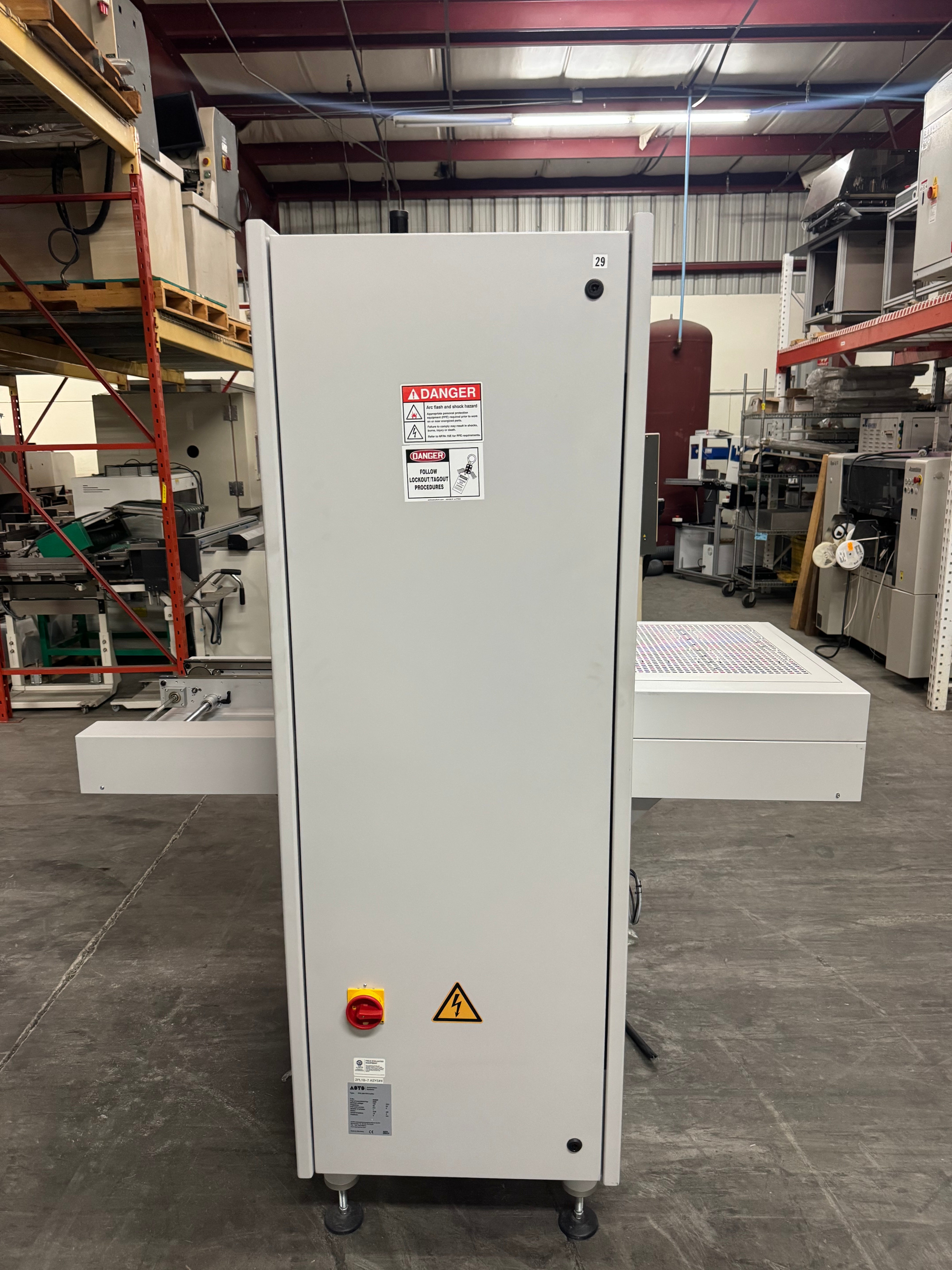

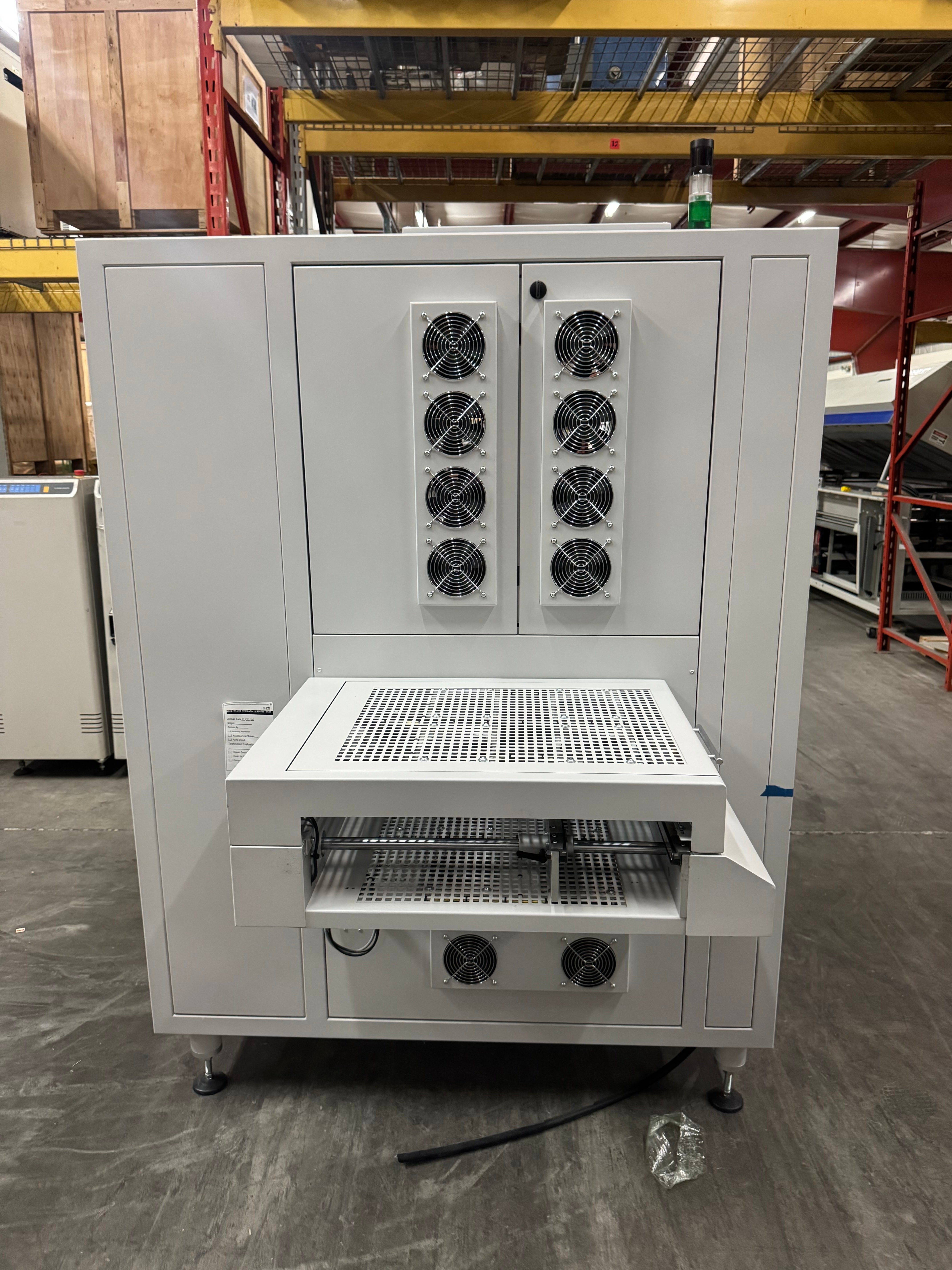

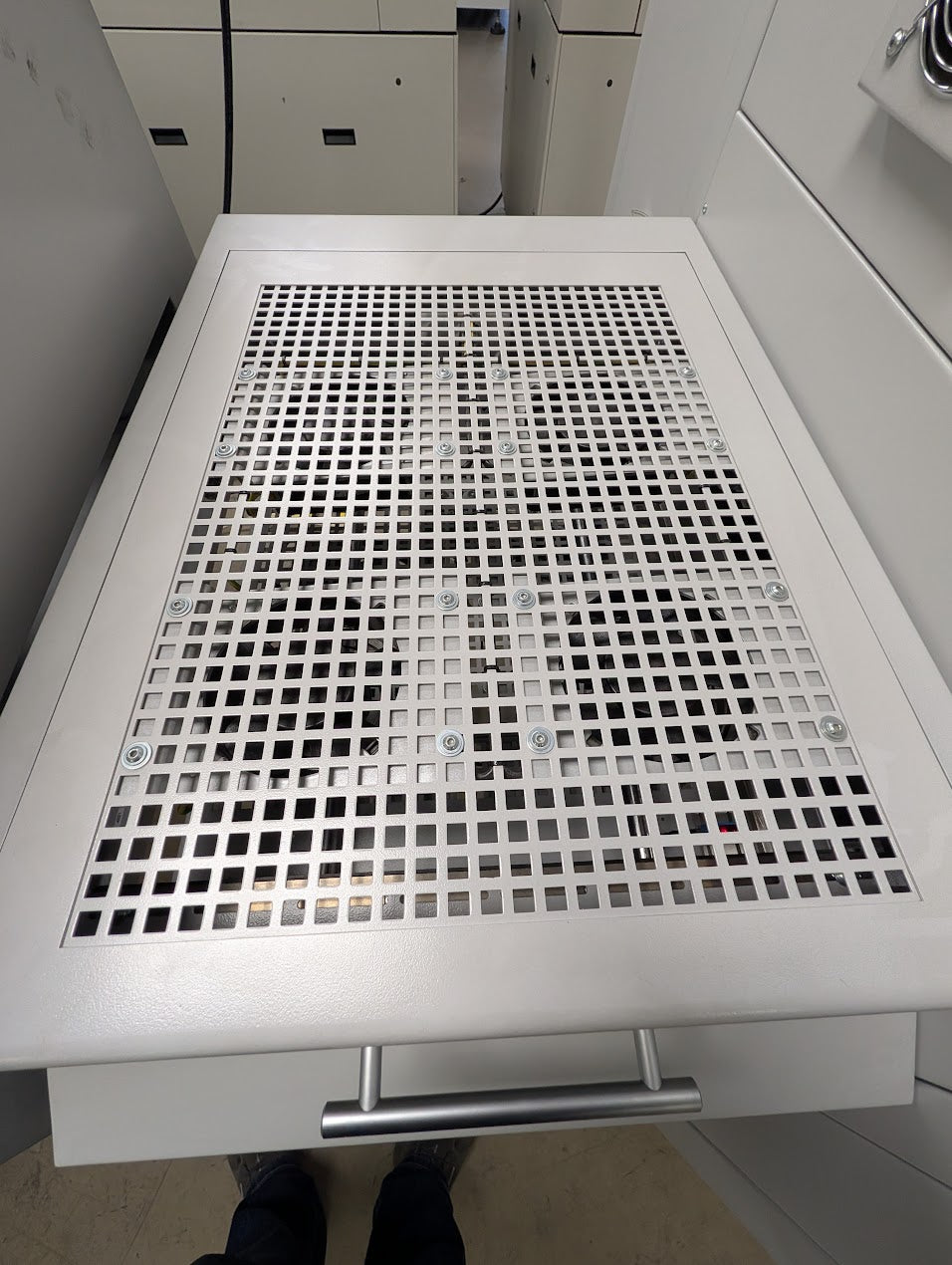

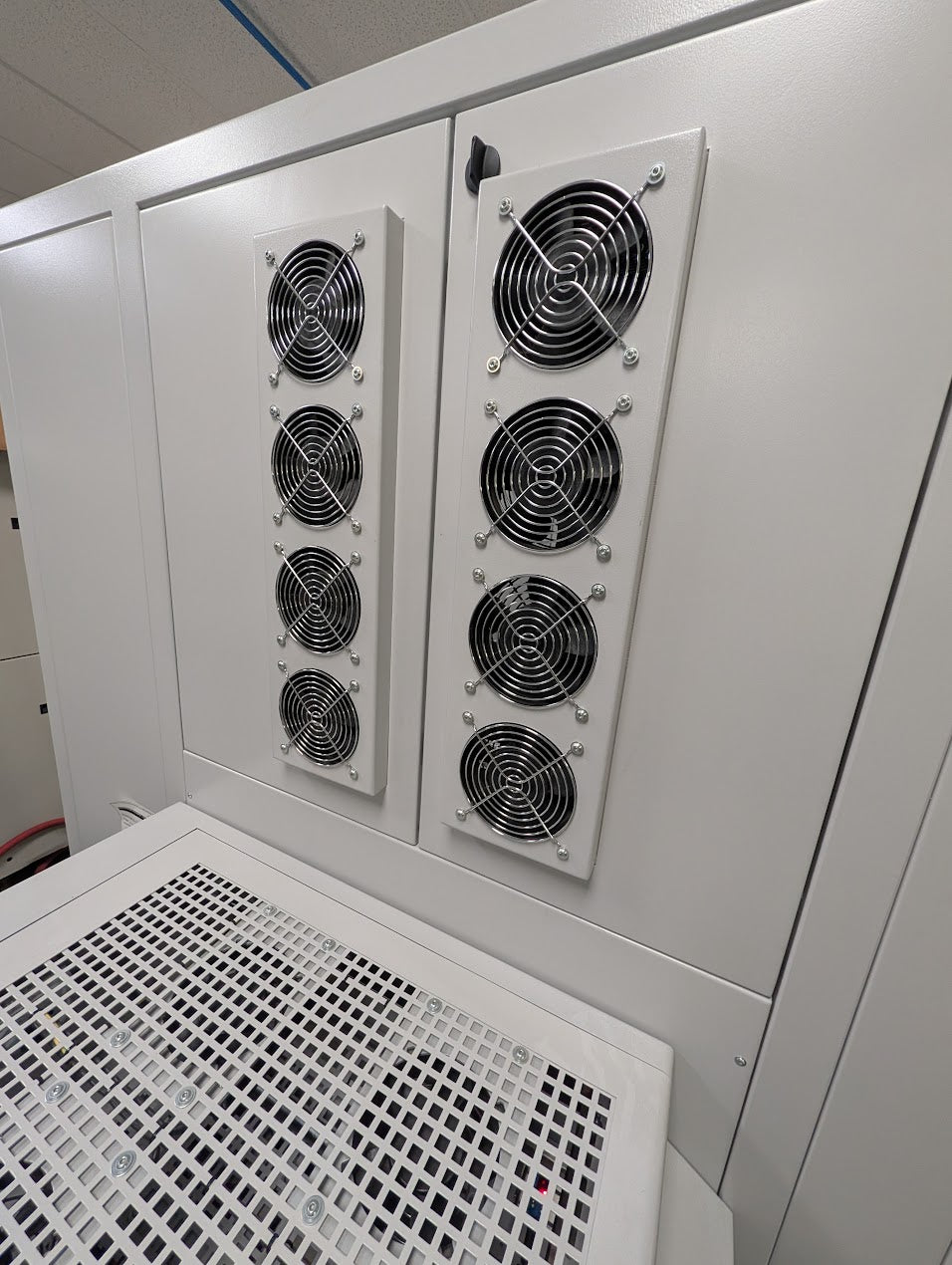

ASYS FPS 30B FIFO Buffer - 2020

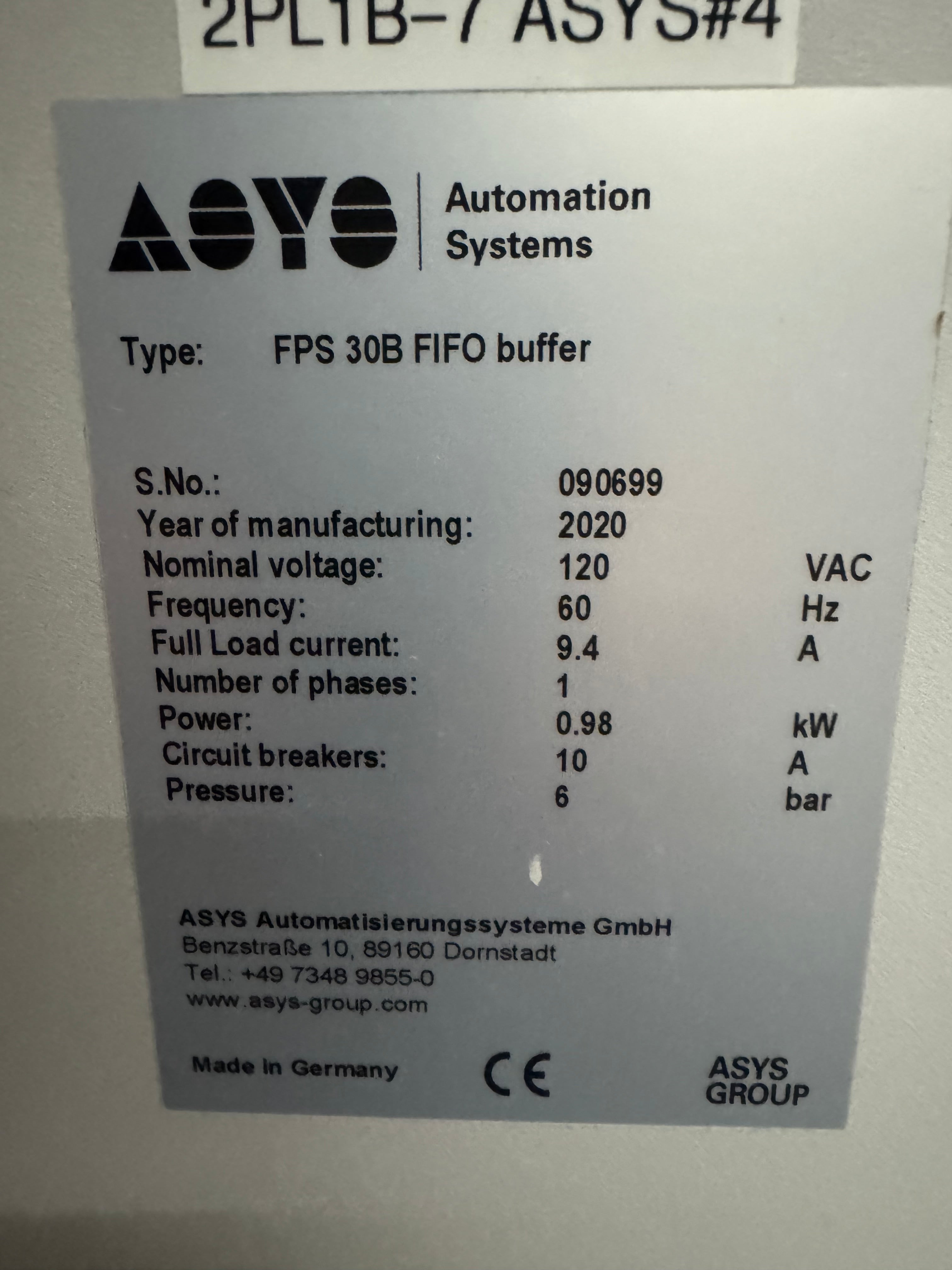

SN: # 090699 YOM: 2020
With:
- Shutter at the outlet
- Shutter at the inlet

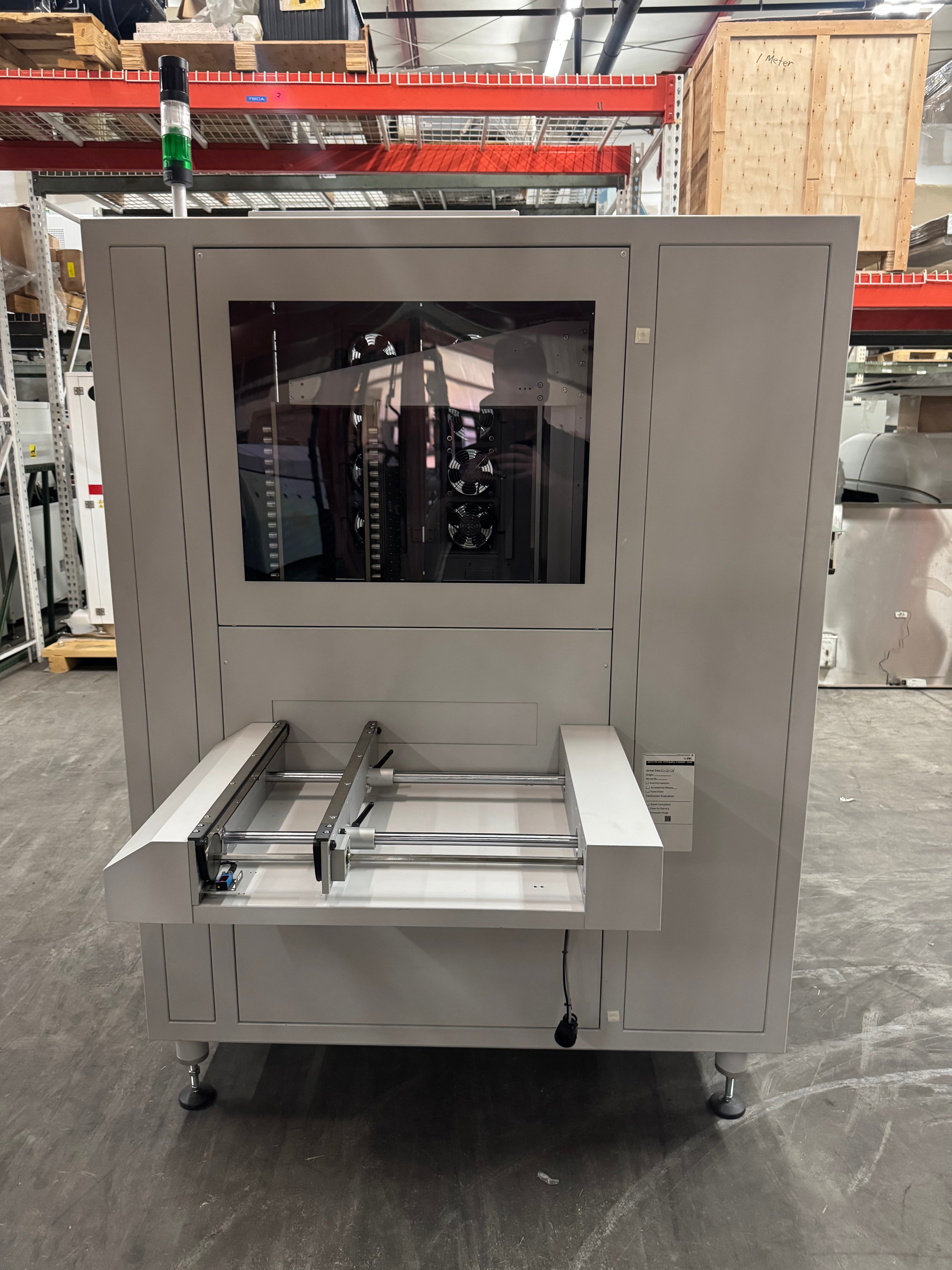

- Outlet conveyor 530mm
- El. and auto width for outlet conveyor

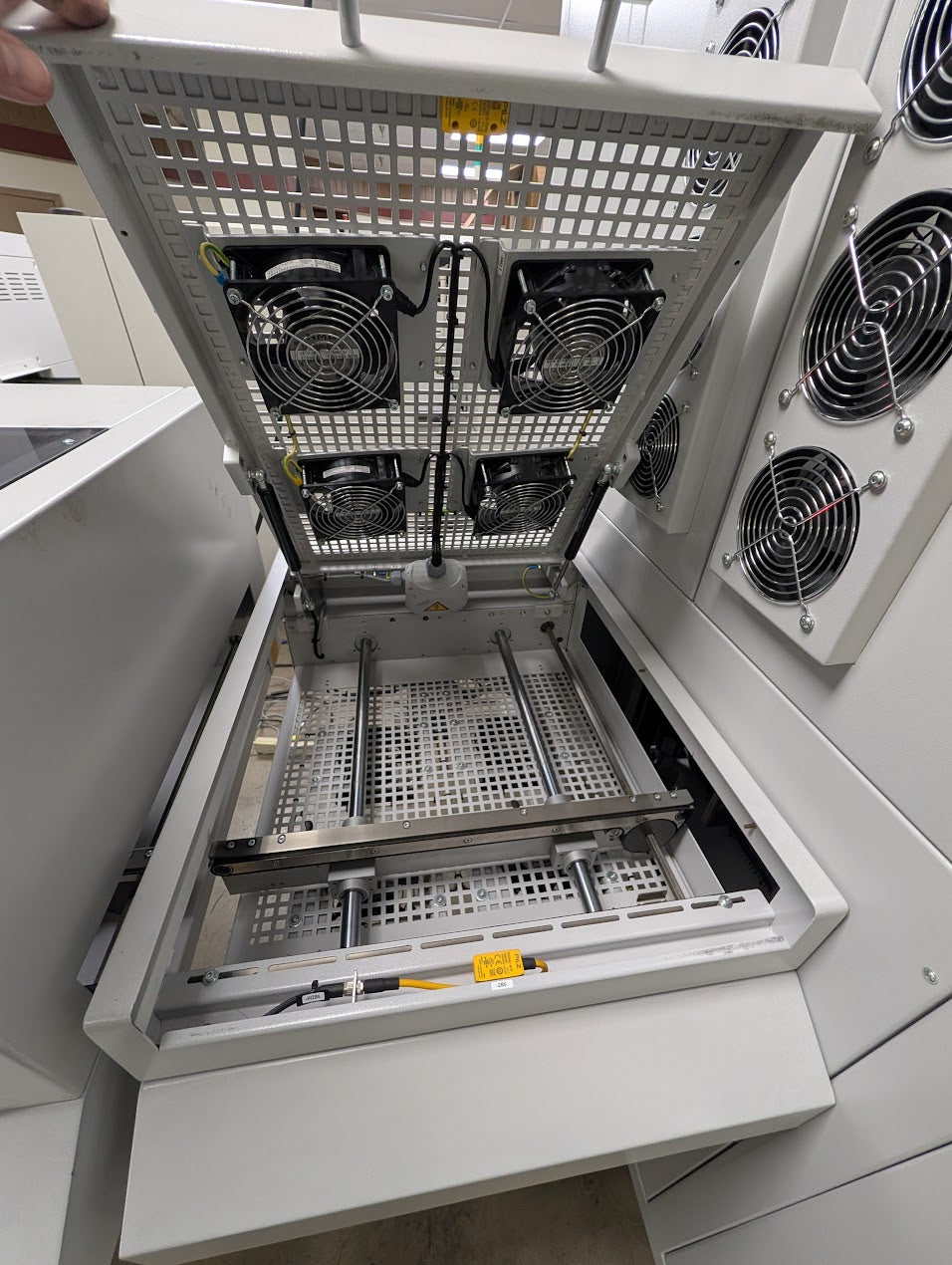

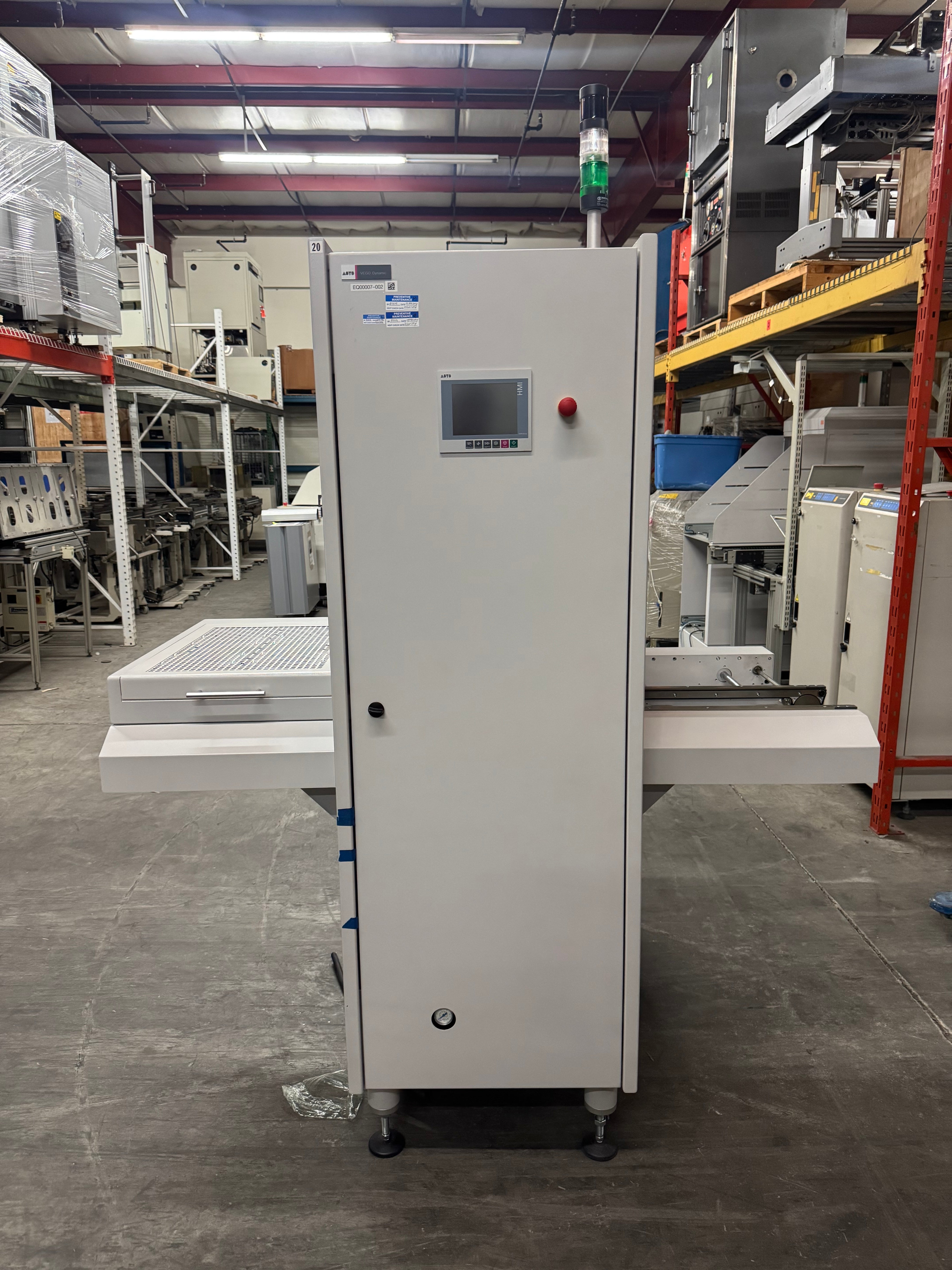

FPS 30B FIFO buffer with single belt drives. Conveyor buffer with FIFO functionality.

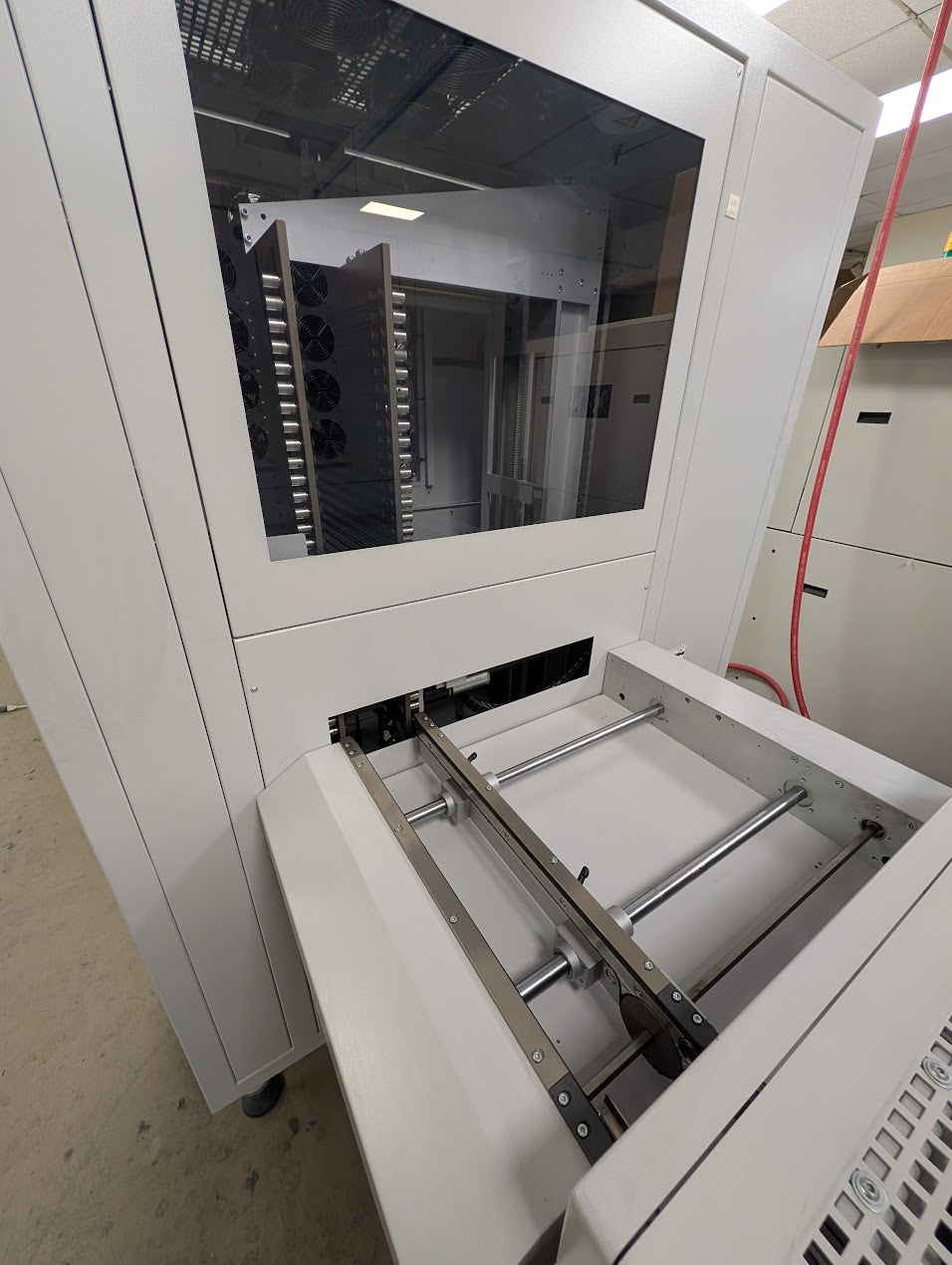

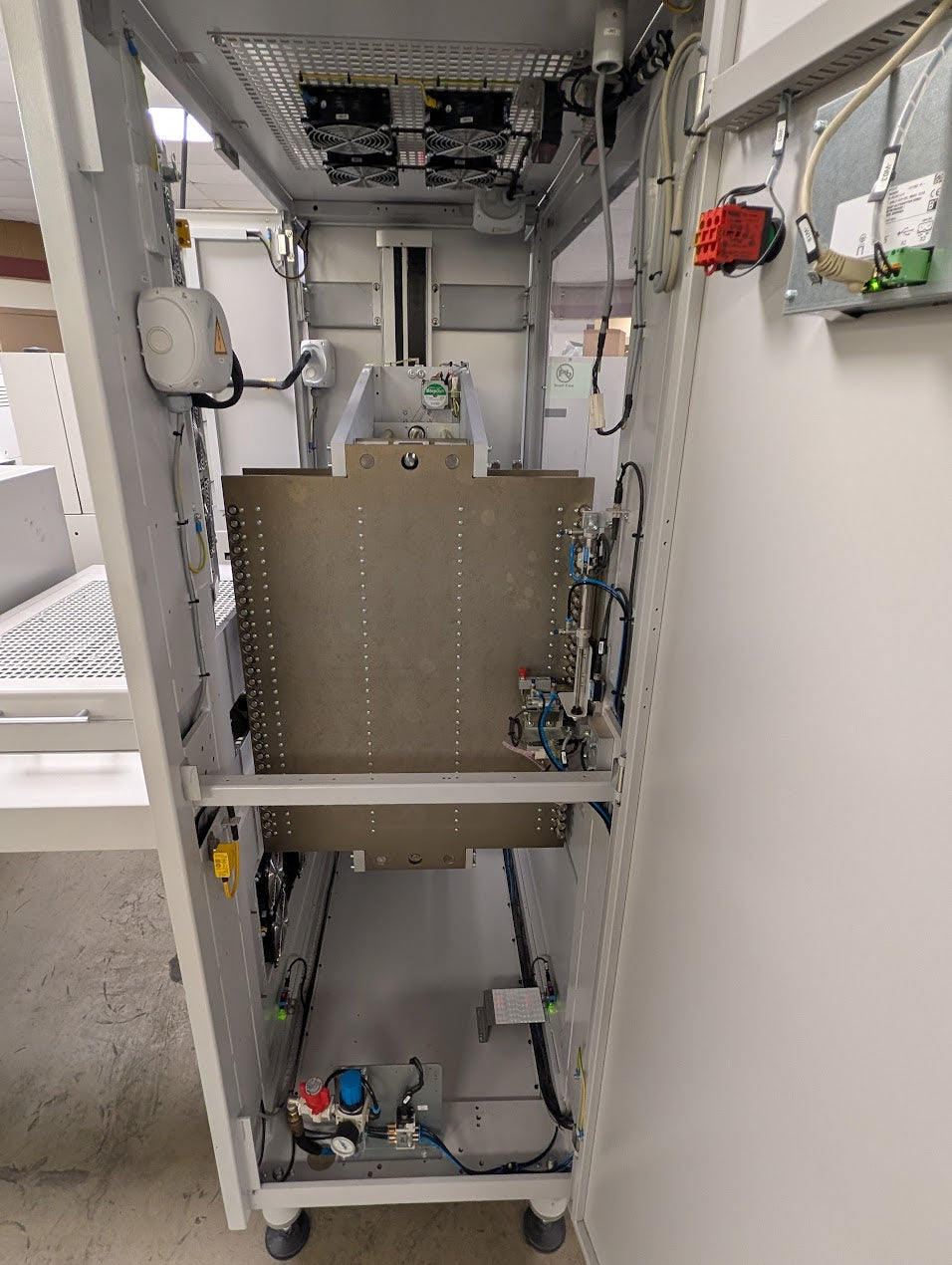

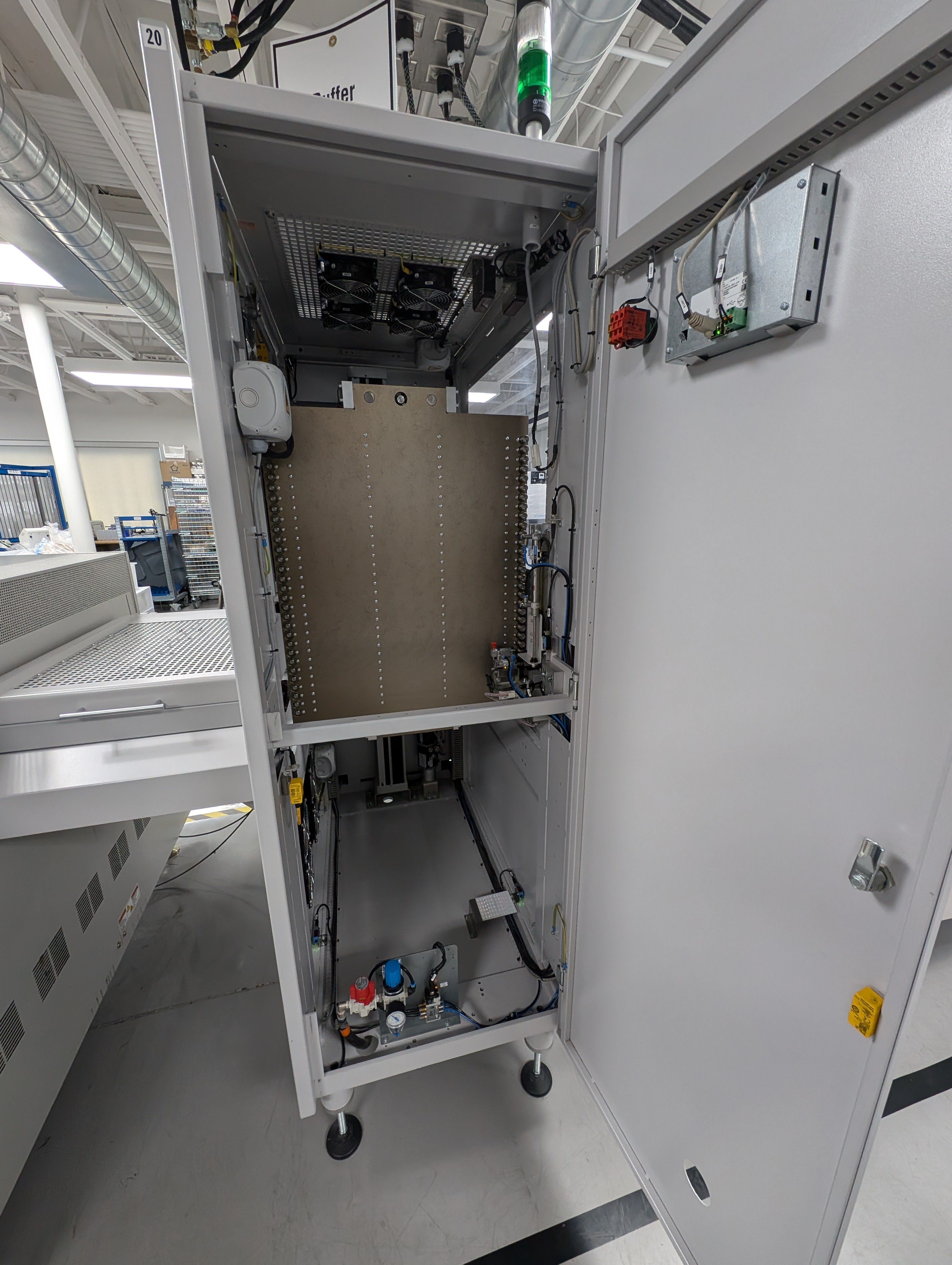

Arriving PCB´s will be stored on a conveyor belt. With a vertical lift axle a set of belt
conveyors will be brought in position for loading or unloading. Without hexagon
shafts inside of the buffer area. The segments are driven by 2 motors outside
the buffer area (1x fix rail side / 1x moveable rail side). Motors are mounted rotatable
with a special clutch mechanism to get a force closure with the drive wheels of the
buffer segments.
- First-In/First-Out function
- 30 buffer slots at pitch 20mm
PCB thickness max. 3mm
Component heights at usage of 30 slots +/- 9mm
- no shafts in the buffer area
- Electrical transport width adjustment activated by the
panel buttons (automatic transport width adjustment
optional available)
- conveyor belt ESD compliant

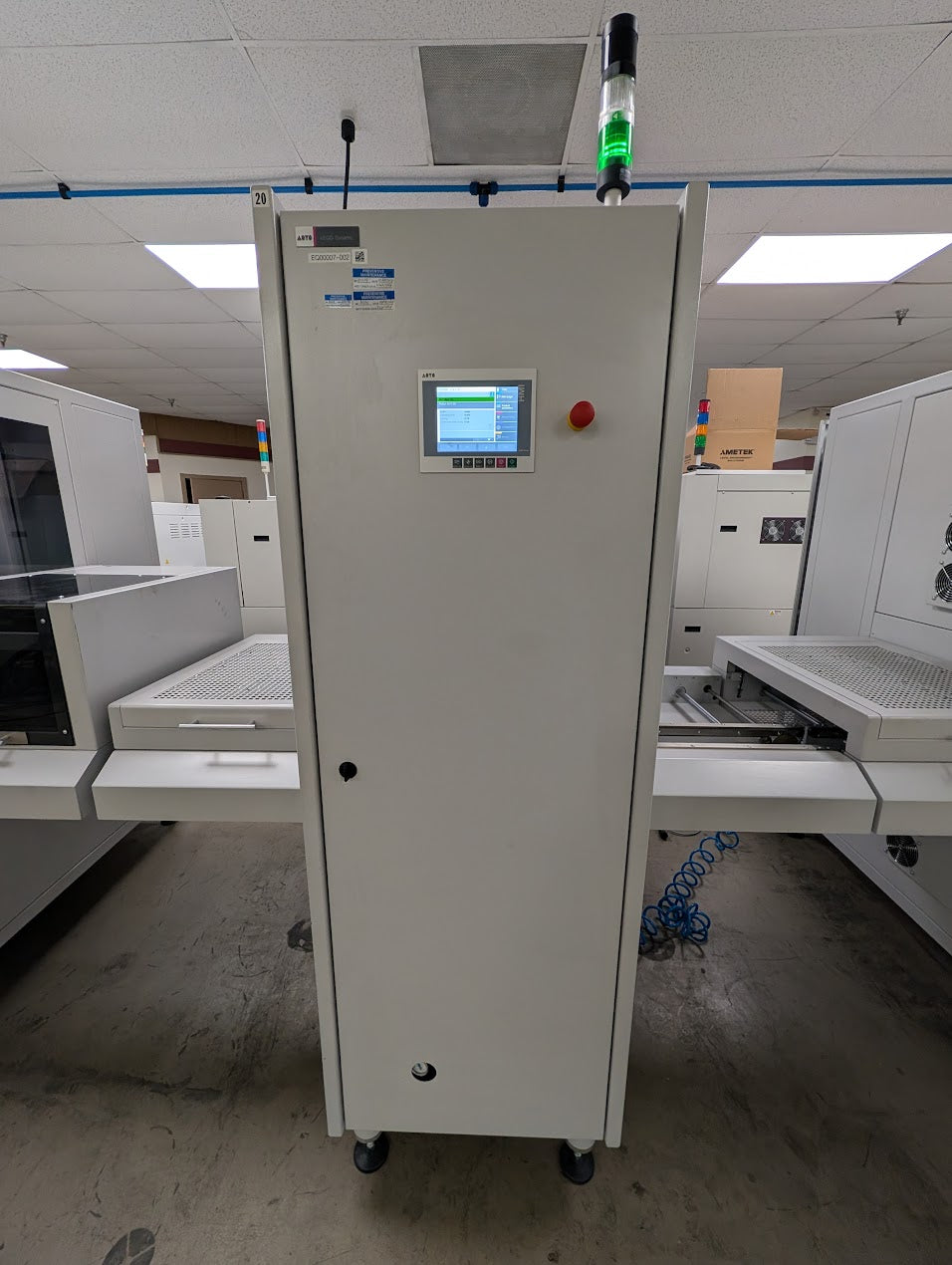

- PLC (Power-PC CPU 400MHz) with graphic color display
+ touch function
- operator guidance and error messages in clear text
- modification of recipe and product parameters
during automatic operation possible
- flashlight with 2 LED signal lights + buzzer
color white / green
other colors on request
signal light height 1000mm from transport height
to the lower edge of the lamp
- Module ready for connection with interface cable and Schuko plug
Technical specification:
- dimensions: 600mm x 1375mm x 1785mm (LxWxH)
- transport height 920mm +/- 50mm
- color: RAL 7047 (telegrey), powder-coated, antistatic
- transport direction from left to right
- fixed rail and operating side front
- PCB width 50 - 460mm
- PCB length 100 - 460mm
(with additional options from 70mm to 510mm)
- PCB weight max. 2kg.
- Max weight total 40kg
- PCB edge support: 3mm
- component clearance: -40 / + 40mm
