Description

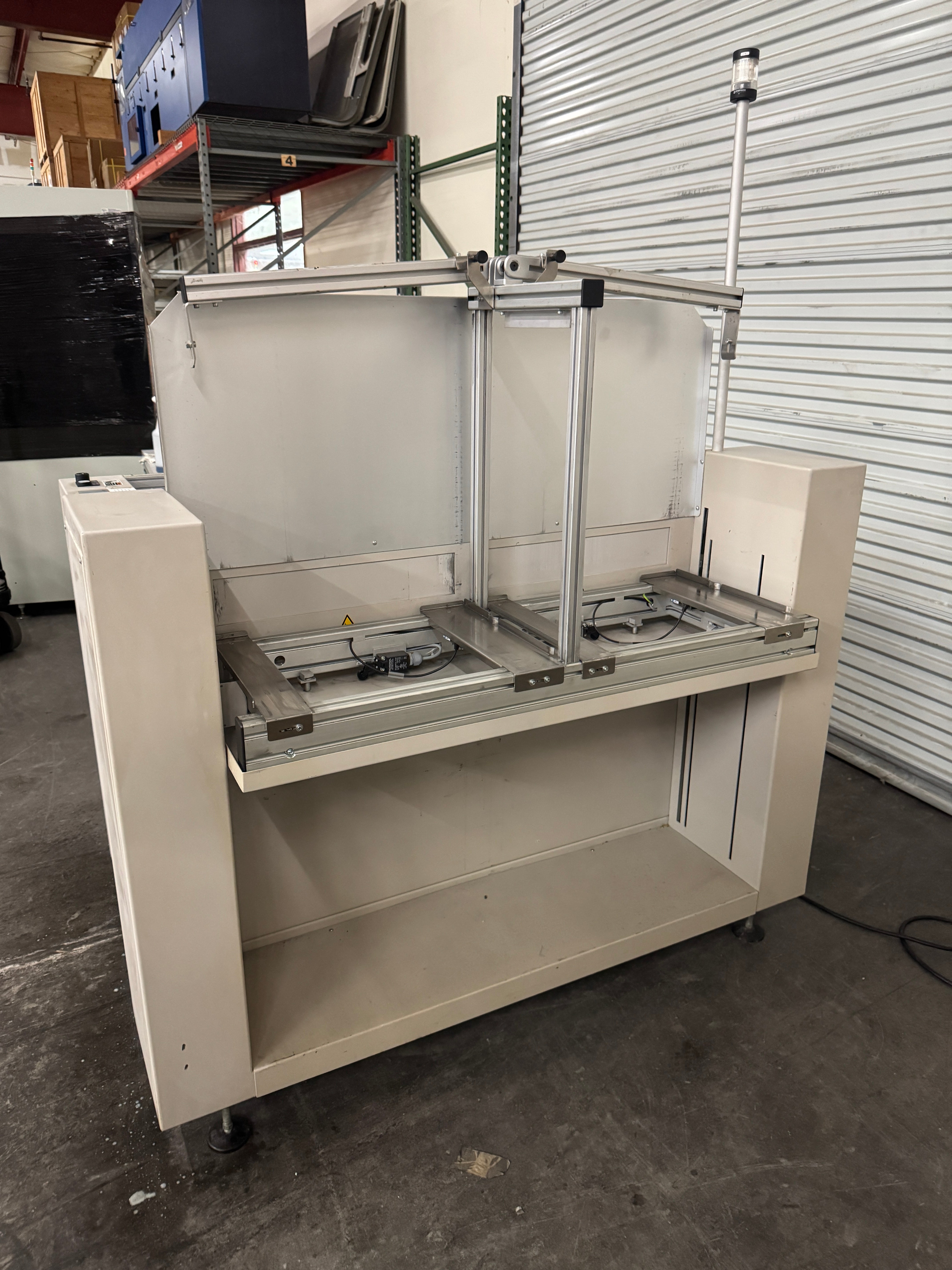

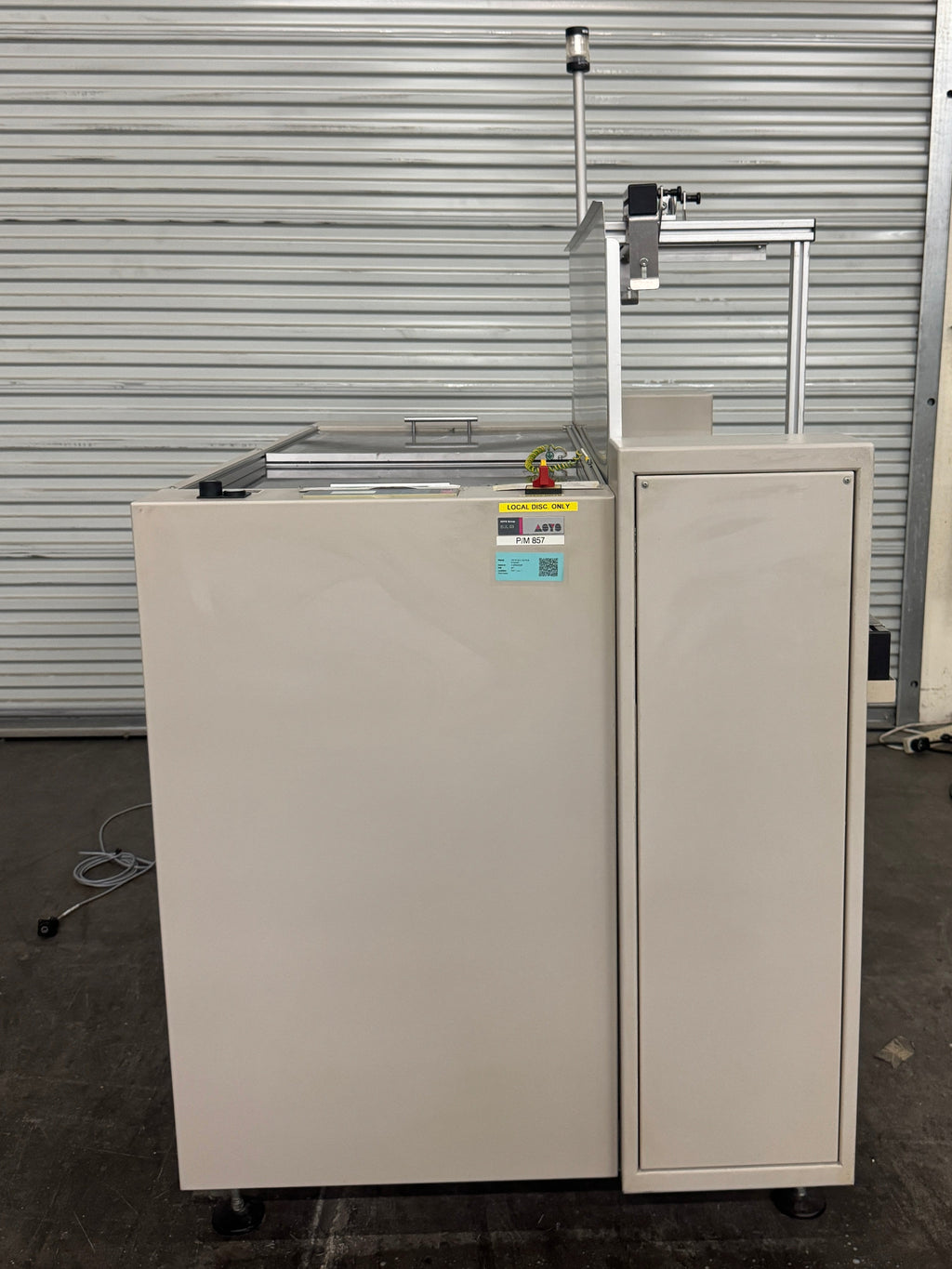

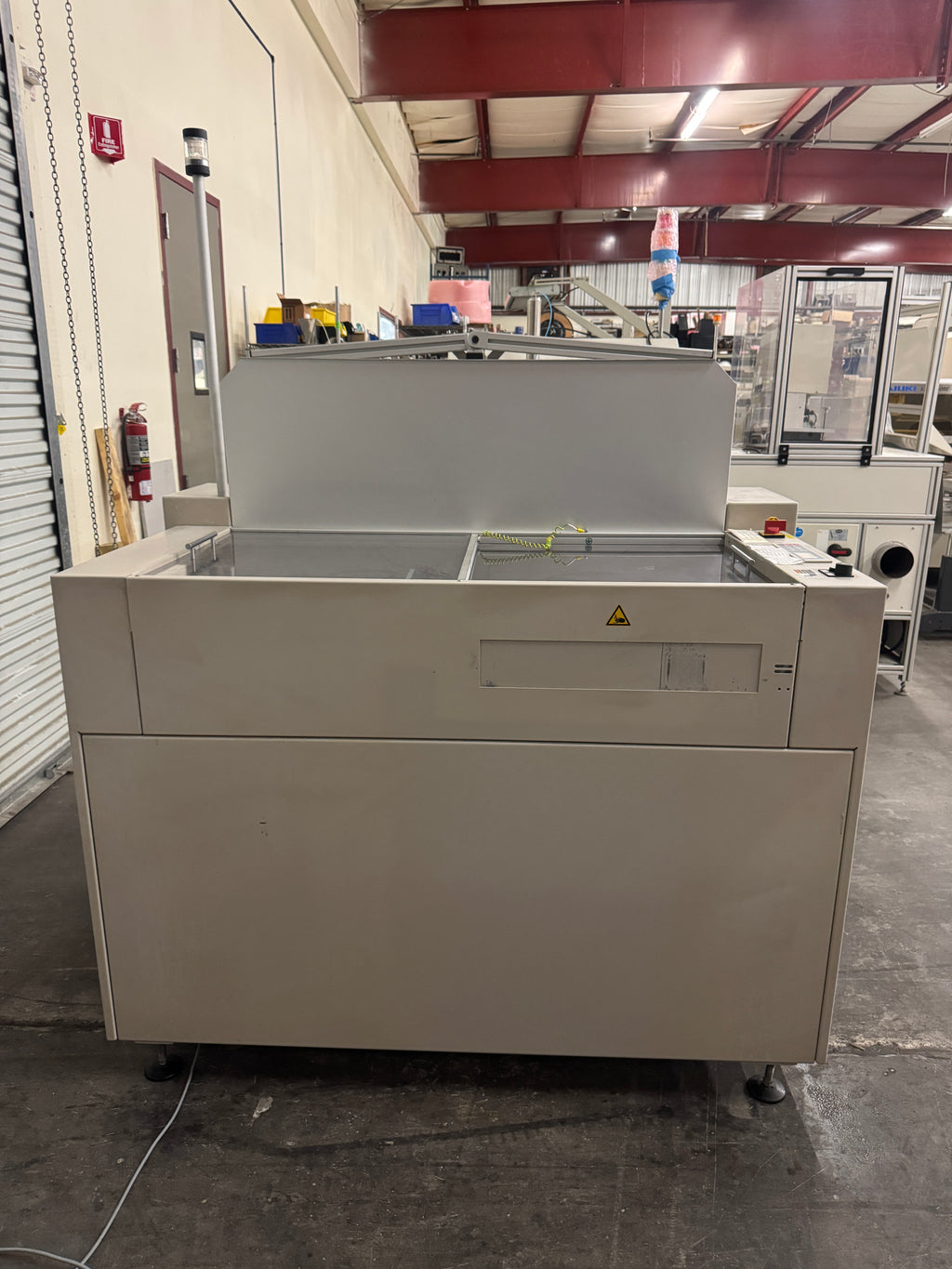

The Line Unloader unloads PCBs from upstream and loads
them into magazines. The magazine platform can accommodate up to two magazines. The integrated side shuttle
distributes board to either magazine. An electrical pusher arm
moves the PCBs into the magazine.
Once a PCB is loaded, the magazine platform will index to the
next slot. A programmable pre-warning limit will alert an operator to change the magazines manually. The powder coated
steel frame ensures process stability and excellent durability.
Features
_ Electrical pusher with adjustable force limiter
_ Two point magazine clamping system

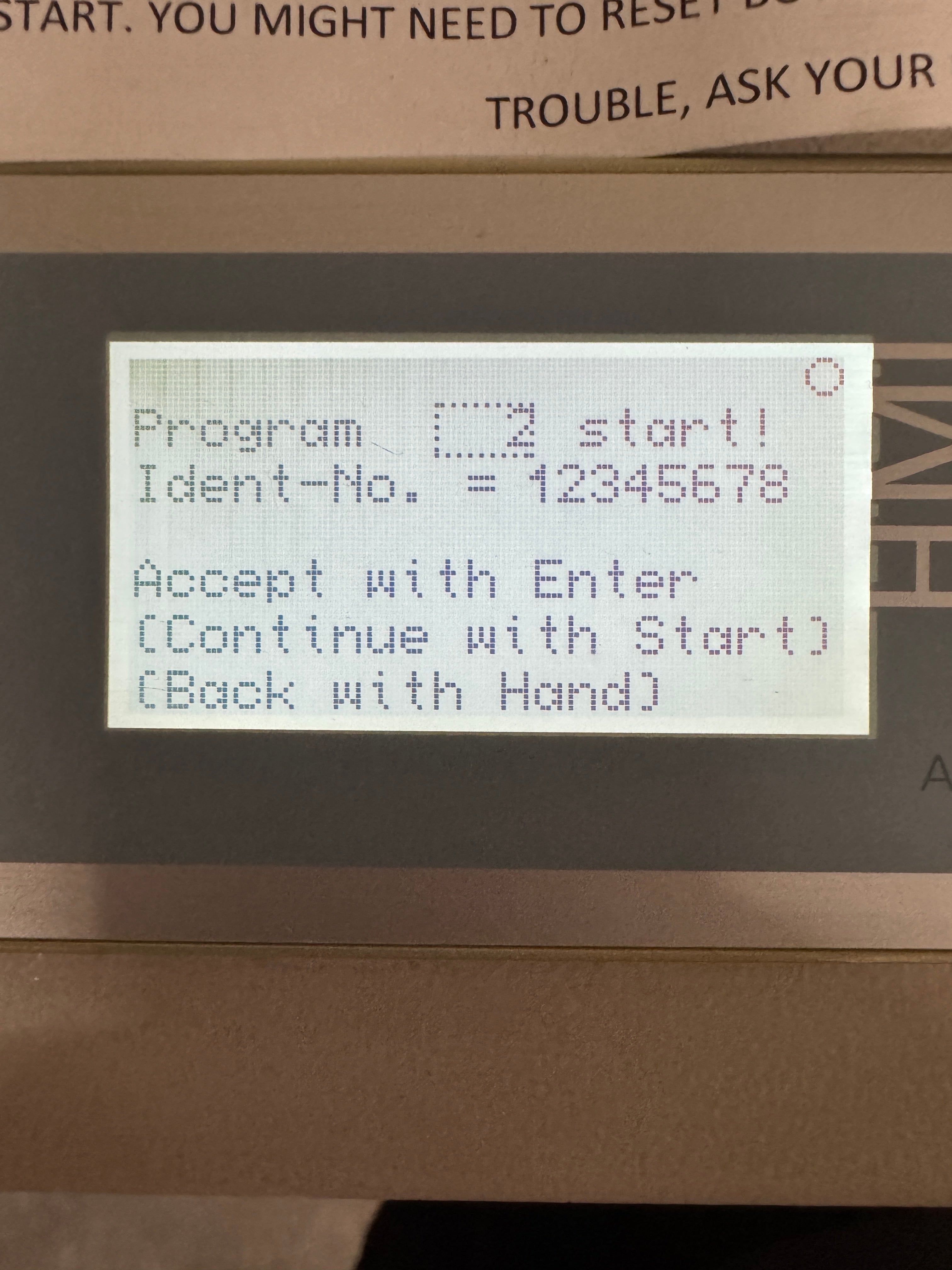

_ LCD control panel
_ Single-color signal lamp and horn
_ Anti-static conveyor belts
_ SMEMA Interface
