Description

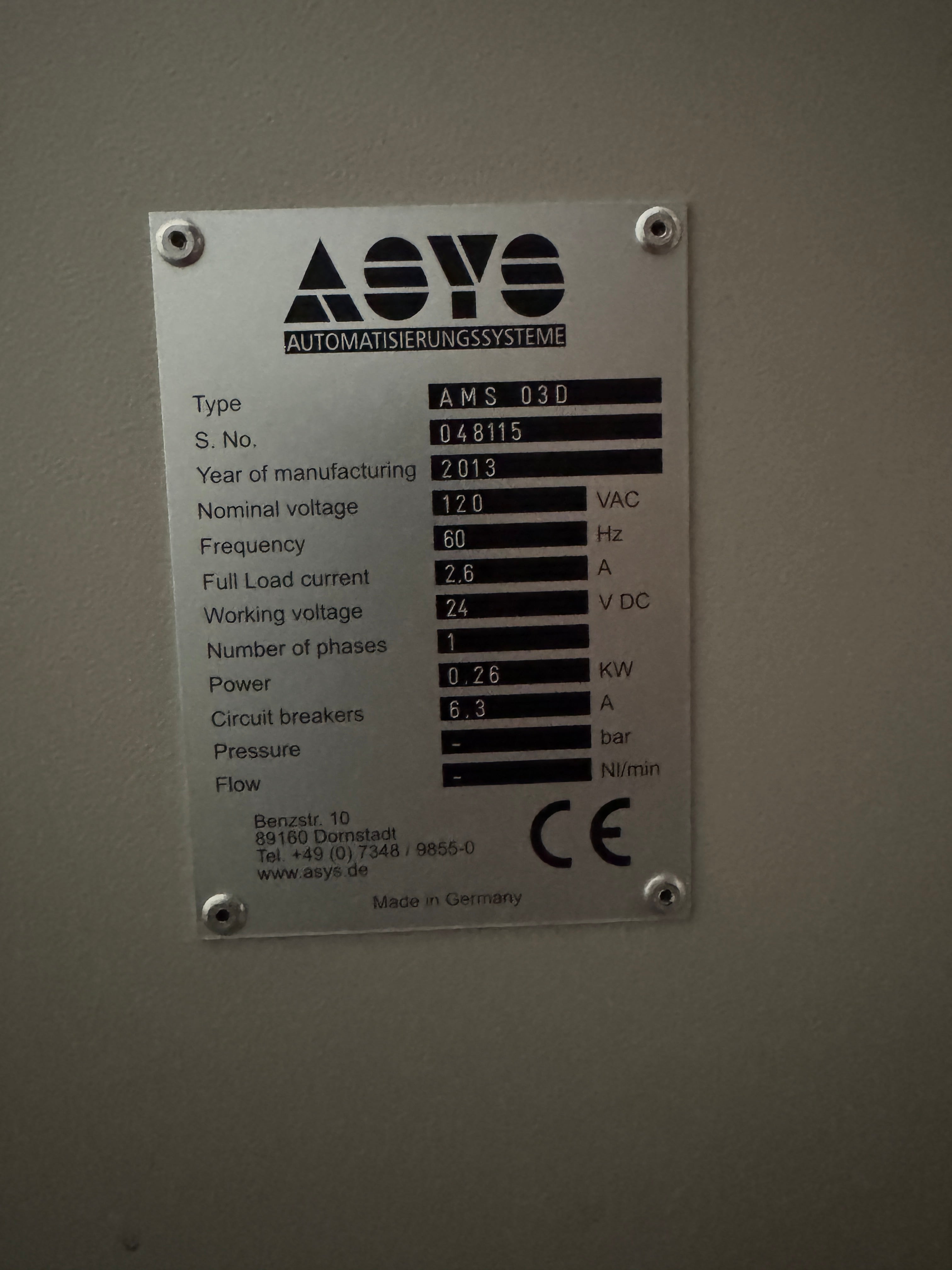

Equipment Type: Magazine Loader
- Yr 2013
- Minimum Width: 3”
- Maximum PCB Size:
- Width: 10.75”
- Length: 20”
- Belt Track Length: 23.5”
- Conveyor Sections: 1
- Section 1 Length: 23.5”
- Width Adjust Style: Powered
- Board Flow Direction: Left to Right
- SMEMA Compliant
- Volts: 120
- Phase: 1

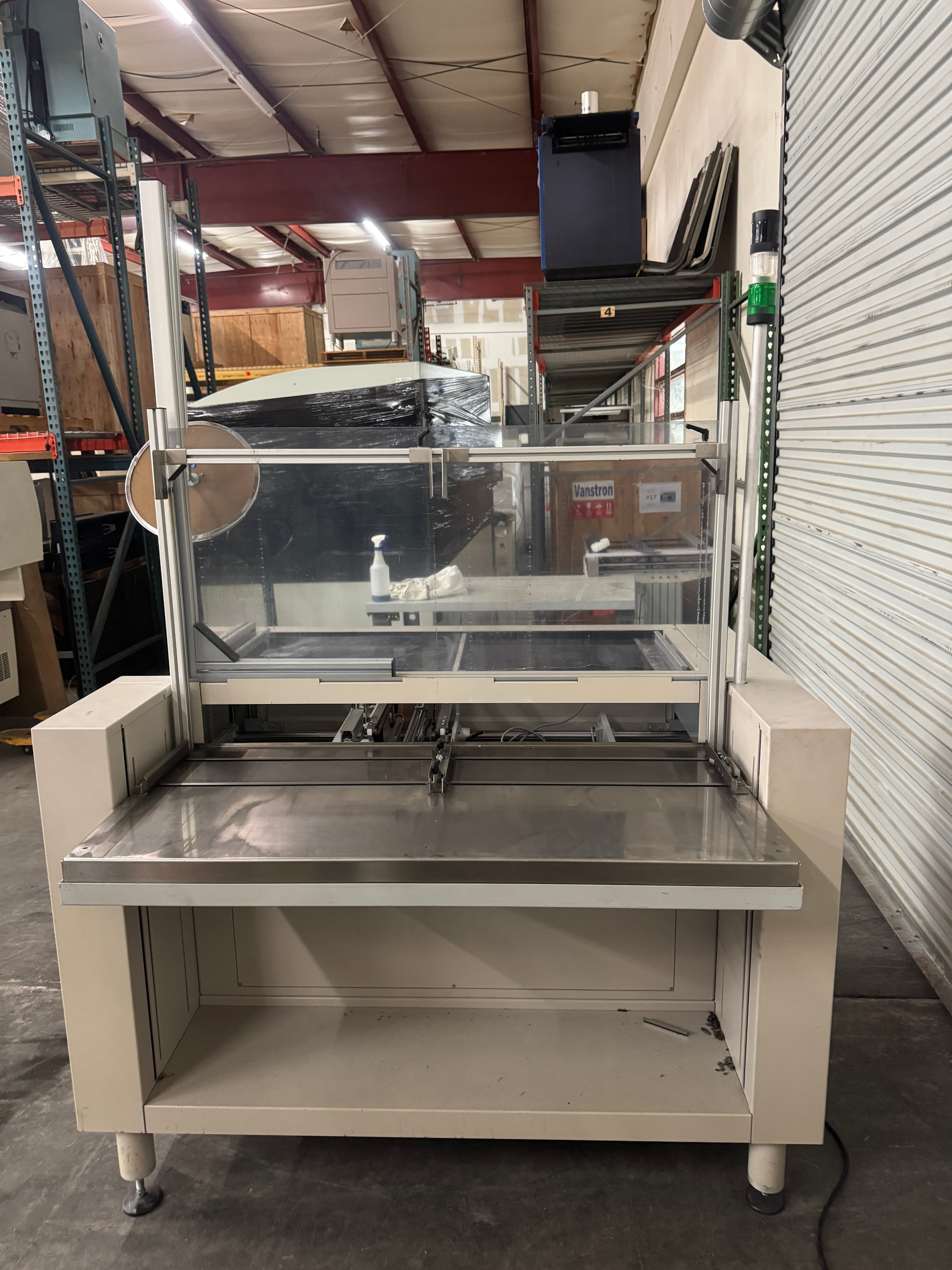

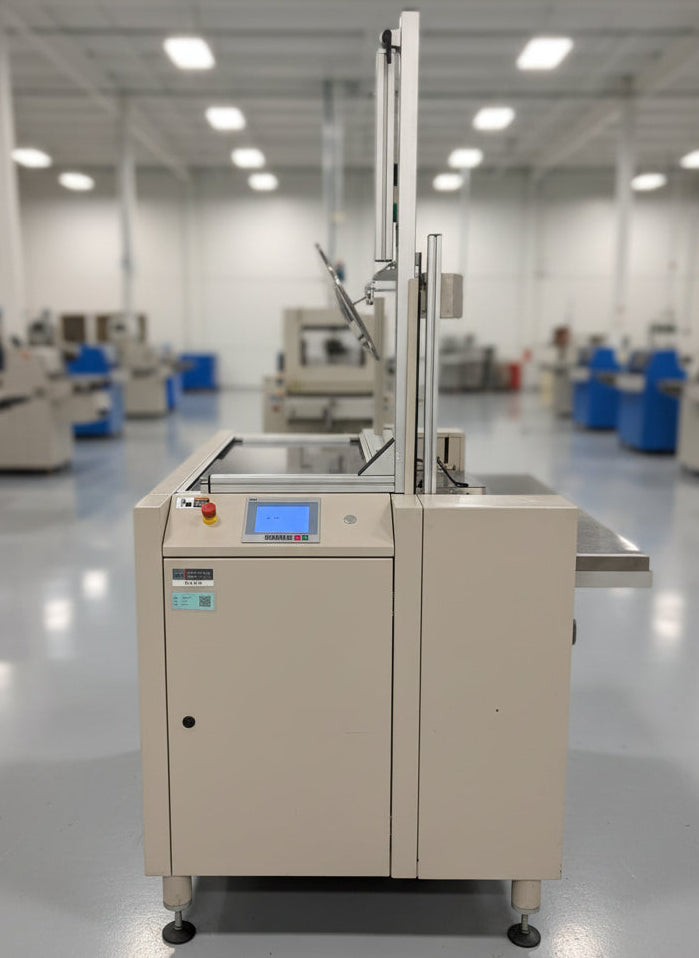

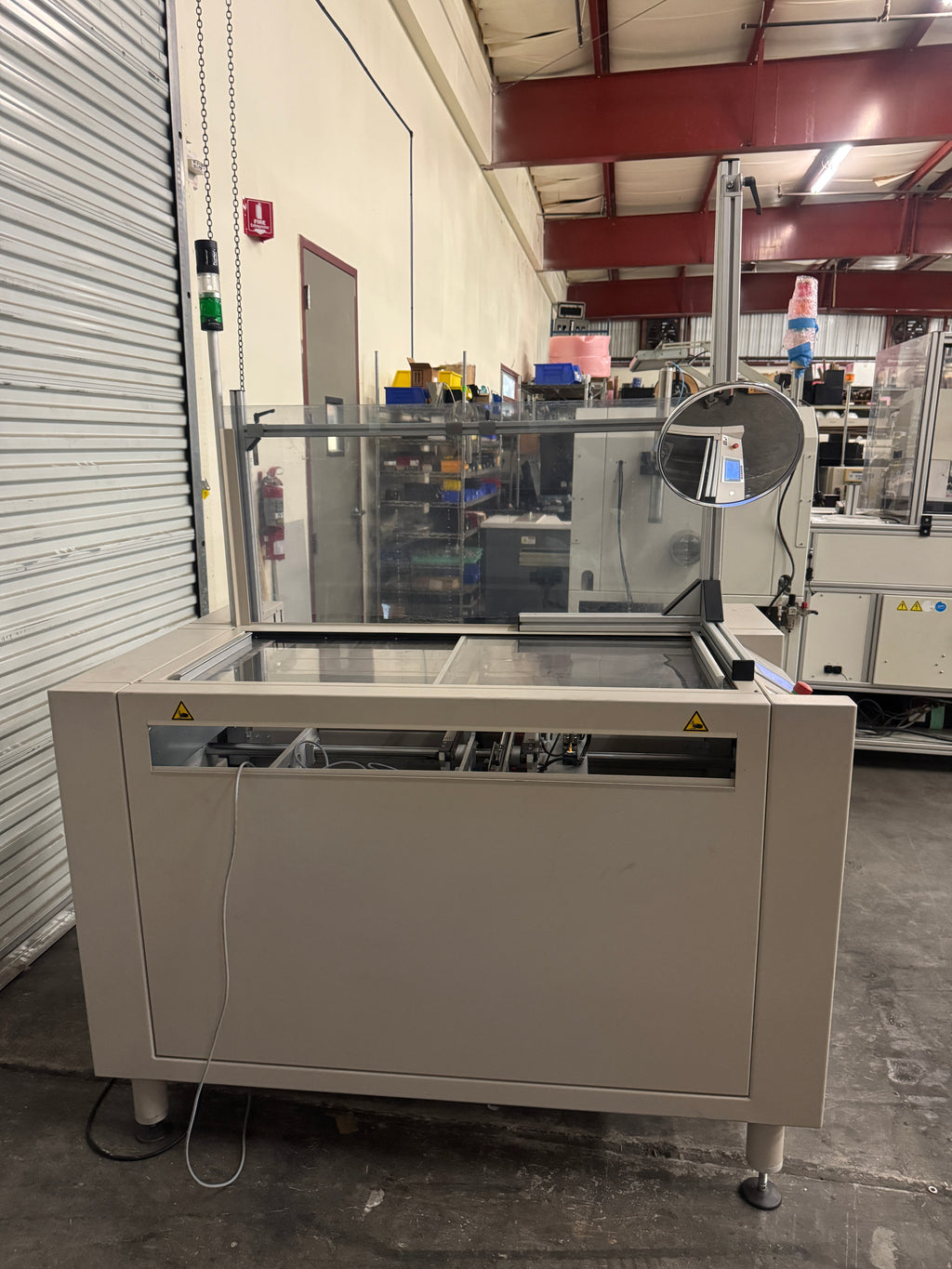

The loading station AMS 03D is used to automatically unload PCBs from an SMT-production line or from individual process machines e.g. stencil printers, pick and place systems, reflow ovens or test systems. Arriving PCBs are taken over onto the inlet conveyor and then transported sideways on an integrated shuttle and subsequently pushed into the magazine with an inserter mechanism.
