Description

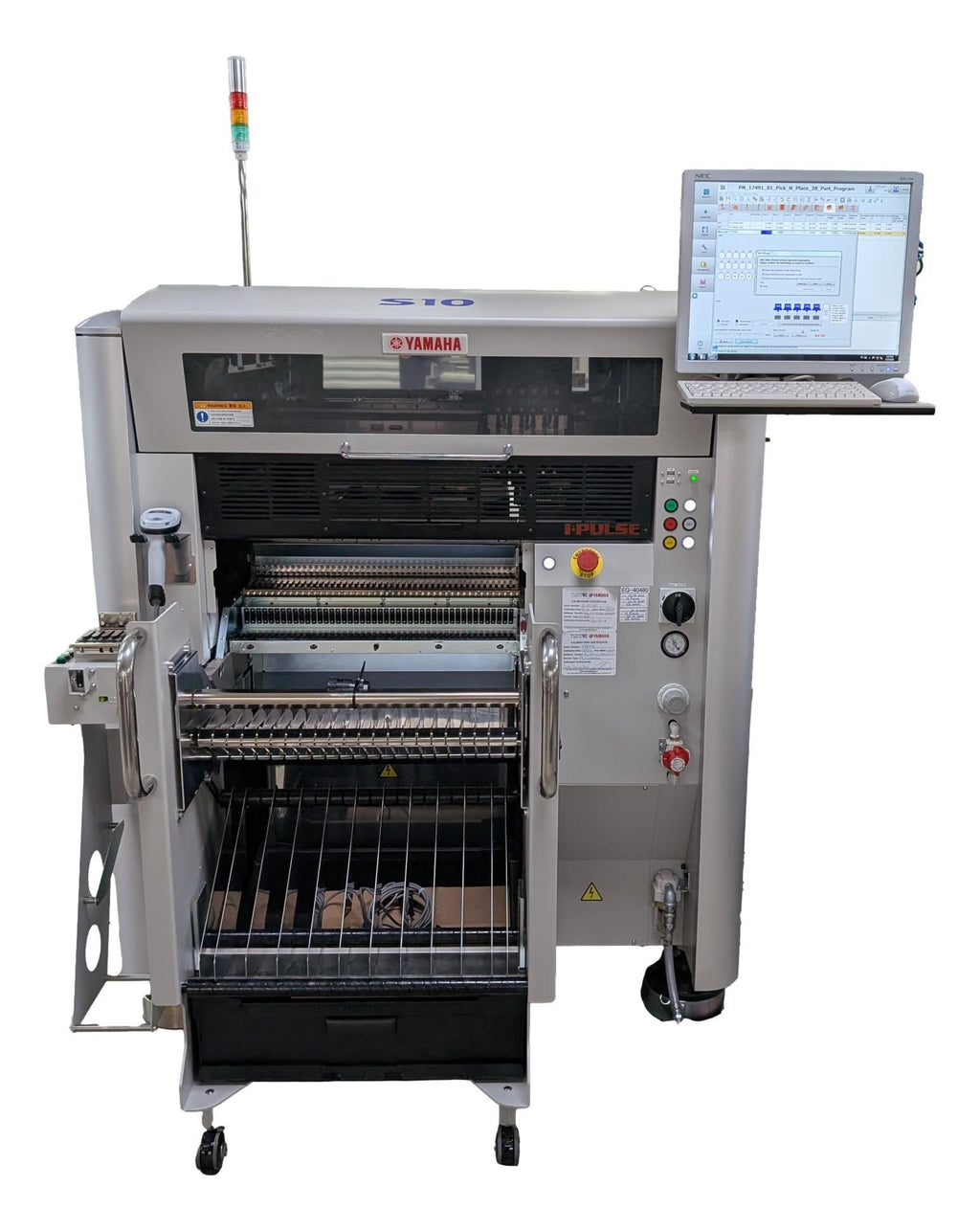

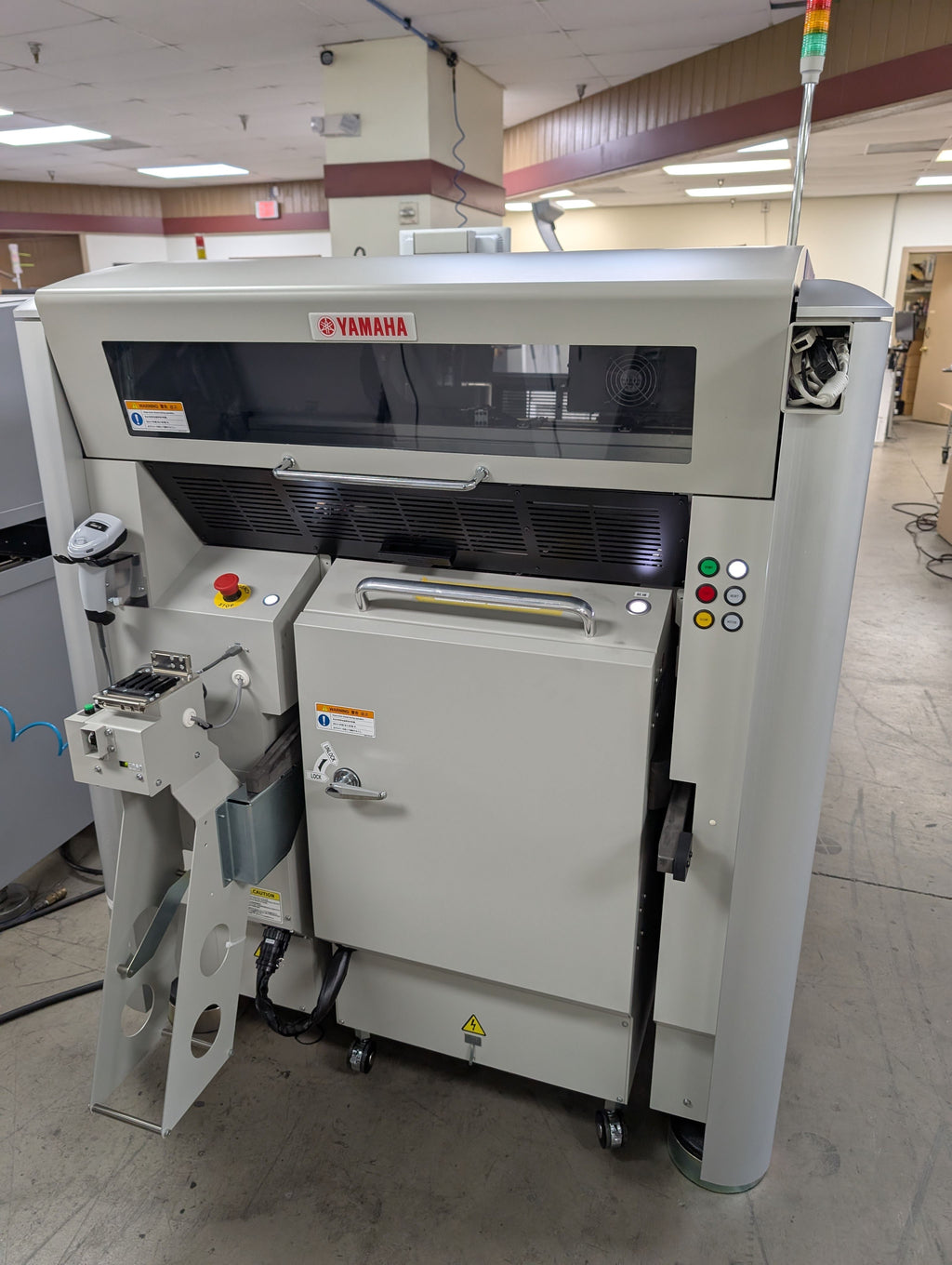

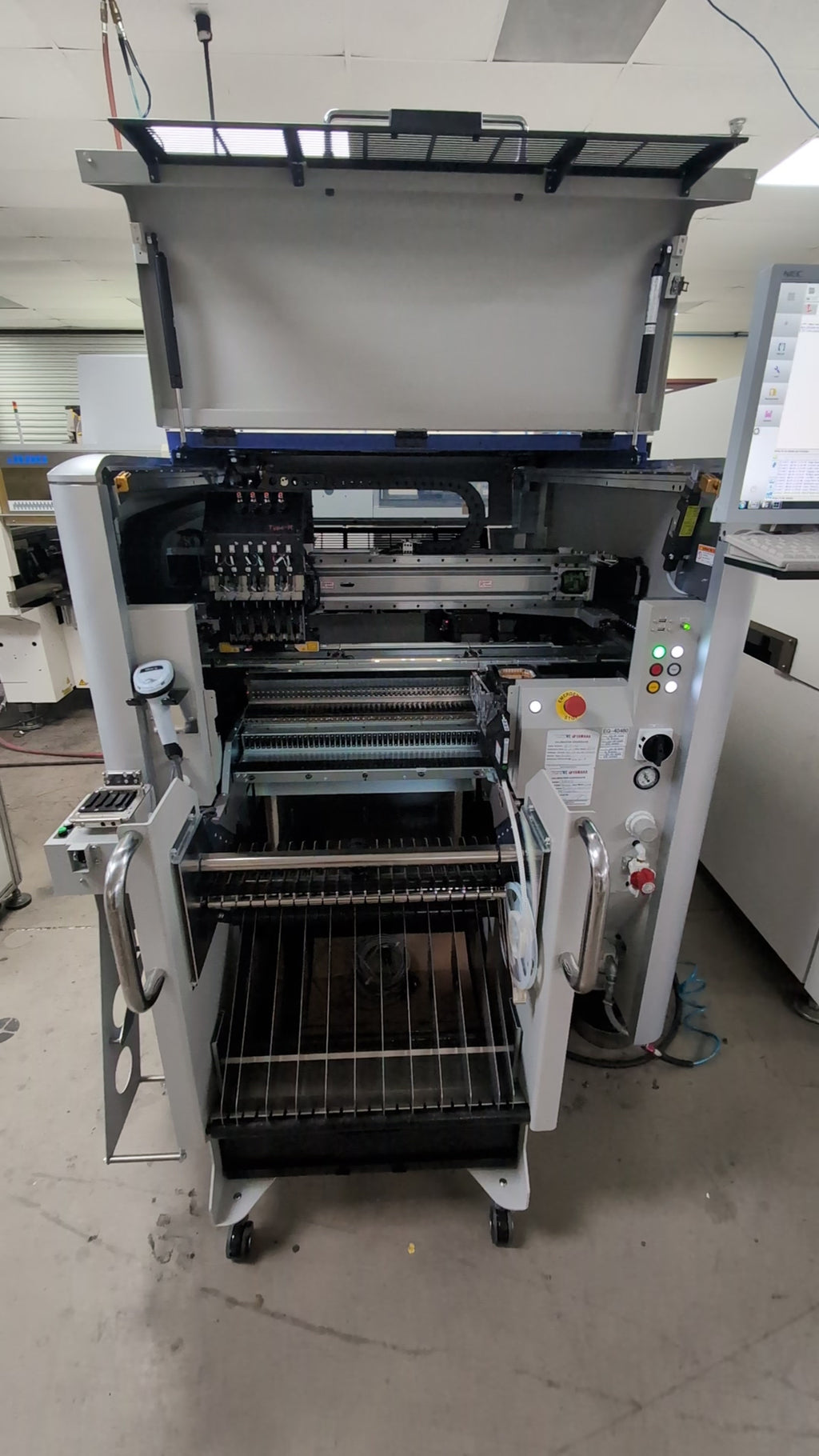

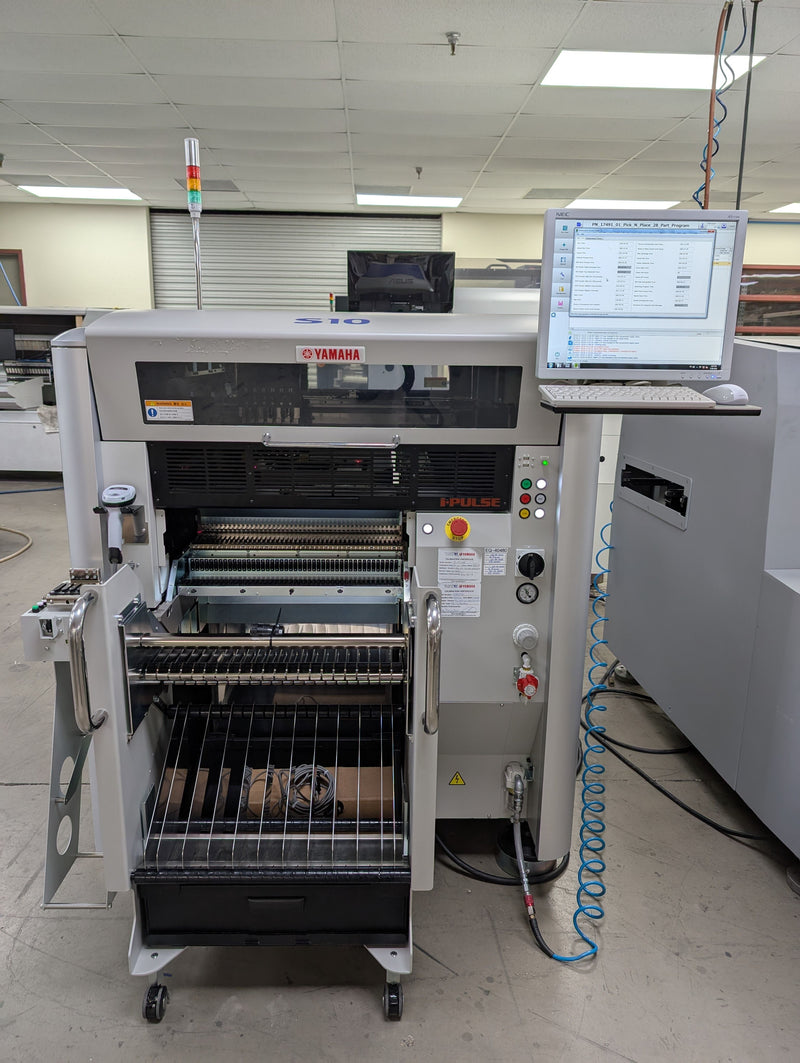

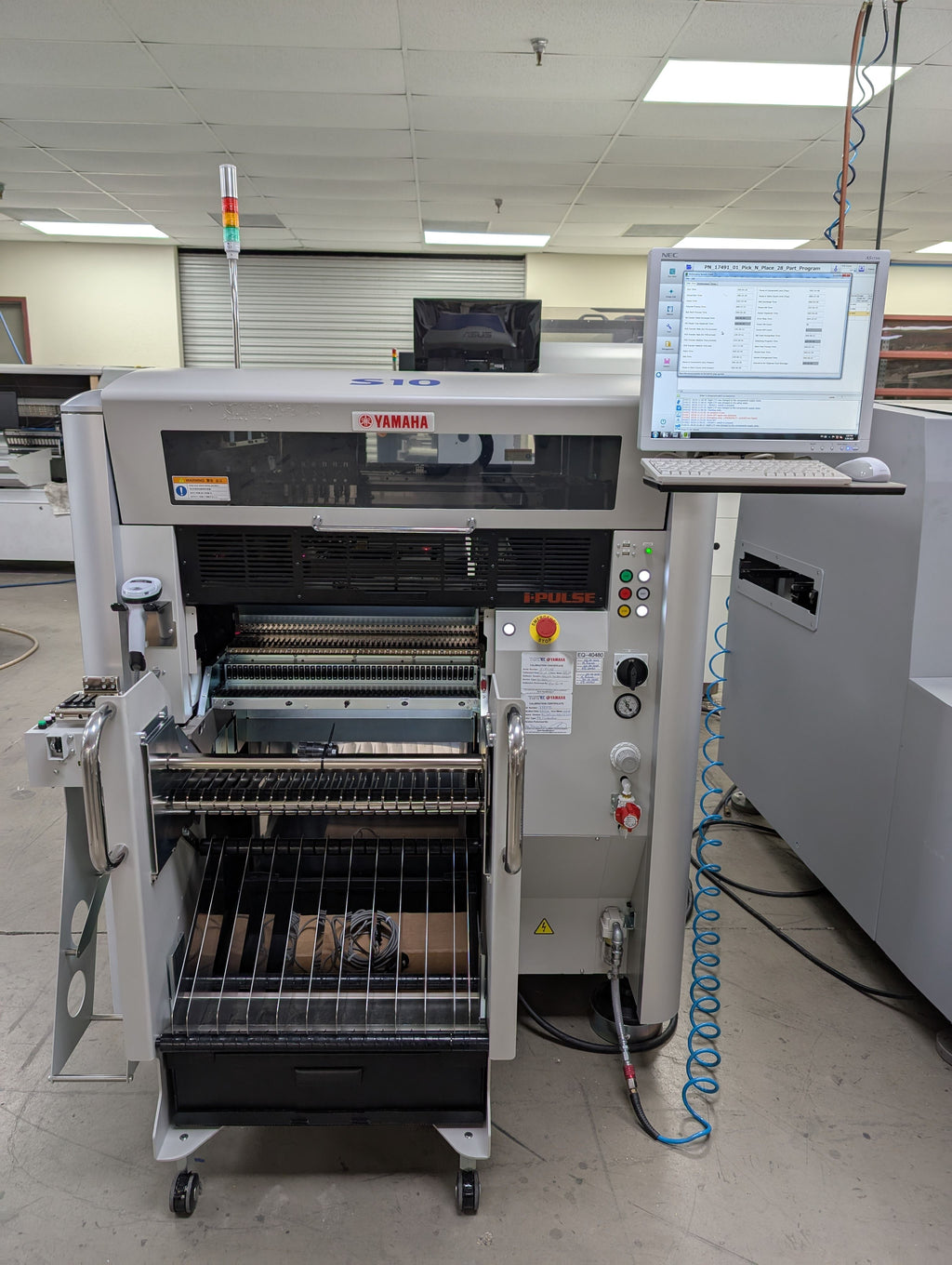

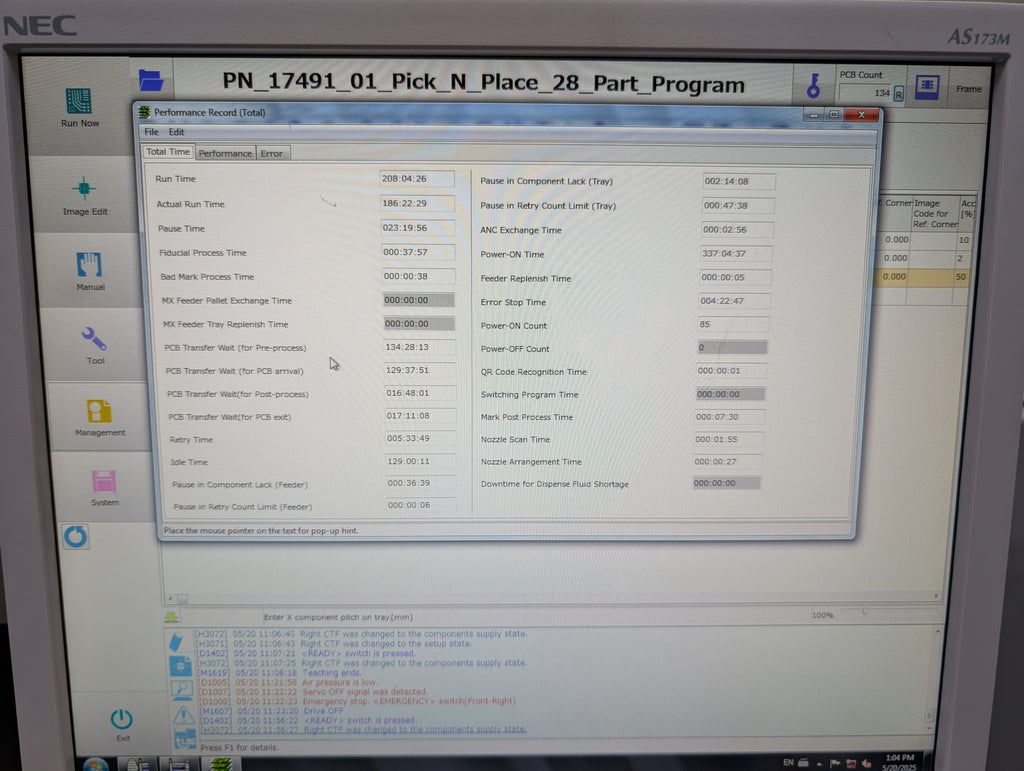

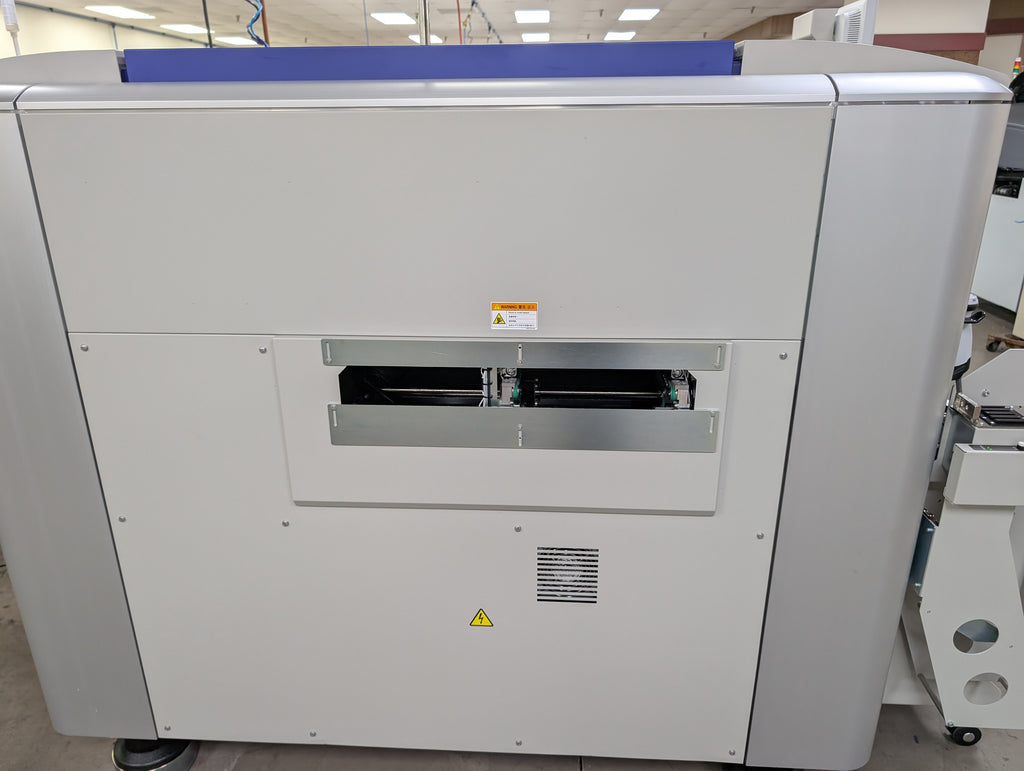

Yamaha S10 iPulse High Speed Pick and Place
DOM: 11/11/2021 SN: Y58970
Specifications:
- Board thickness 0.4 – 4.8mm
- Board flow direction Left to right (Std)
- Board transfer speed Max 900mm/sec

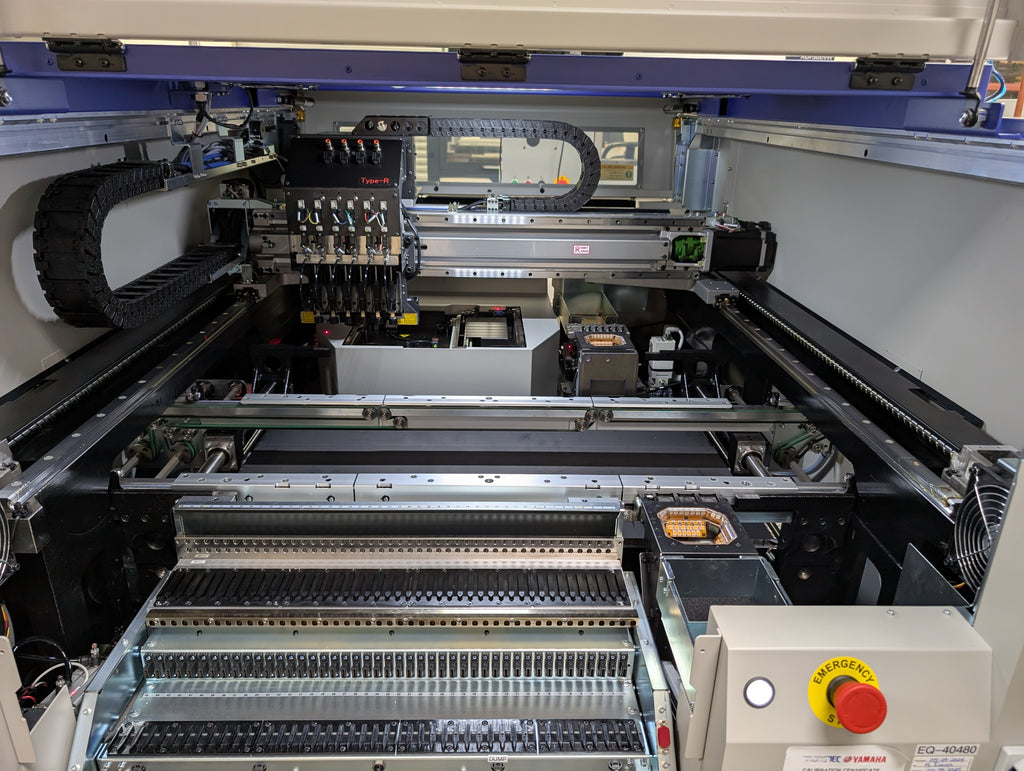

- Placement speed (12 heads + 2 theta) Opt. Cond. 0.08sec/CHIP (45,000CPH)
- Placement accuracy A (μ+3σ) CHIP +/- 0.040mm
- Placement accuracy B (μ+3σ) IC +/- 0.025mm
- Placement angle +/- 180 degrees
- Z axis control/ Theta axis control AC servo motor
- Component height Max 30mm*1 (Pre-placed components: max 25mm)
- Applicable components 0201mm – 120 x 90mm, BGA, CSP, connector, etc.
- Component package 8 – 56mm tape (F1/F2 Feeders), 8 – 88mm tape (F3 Electric Feeders), stick, tray
- Drawback check Vacuum check and vision check
- Board positioning Board grip unit, front reference, auto conveyor width adjustment
- Component types Max 90 types (8mm tape), 45 lanes x 2
- Transfer height 900 +/- 20mm
-
Machine dimensions, weight L1250 x D1750 x H1420mm, Approx. 1150kg
