Description

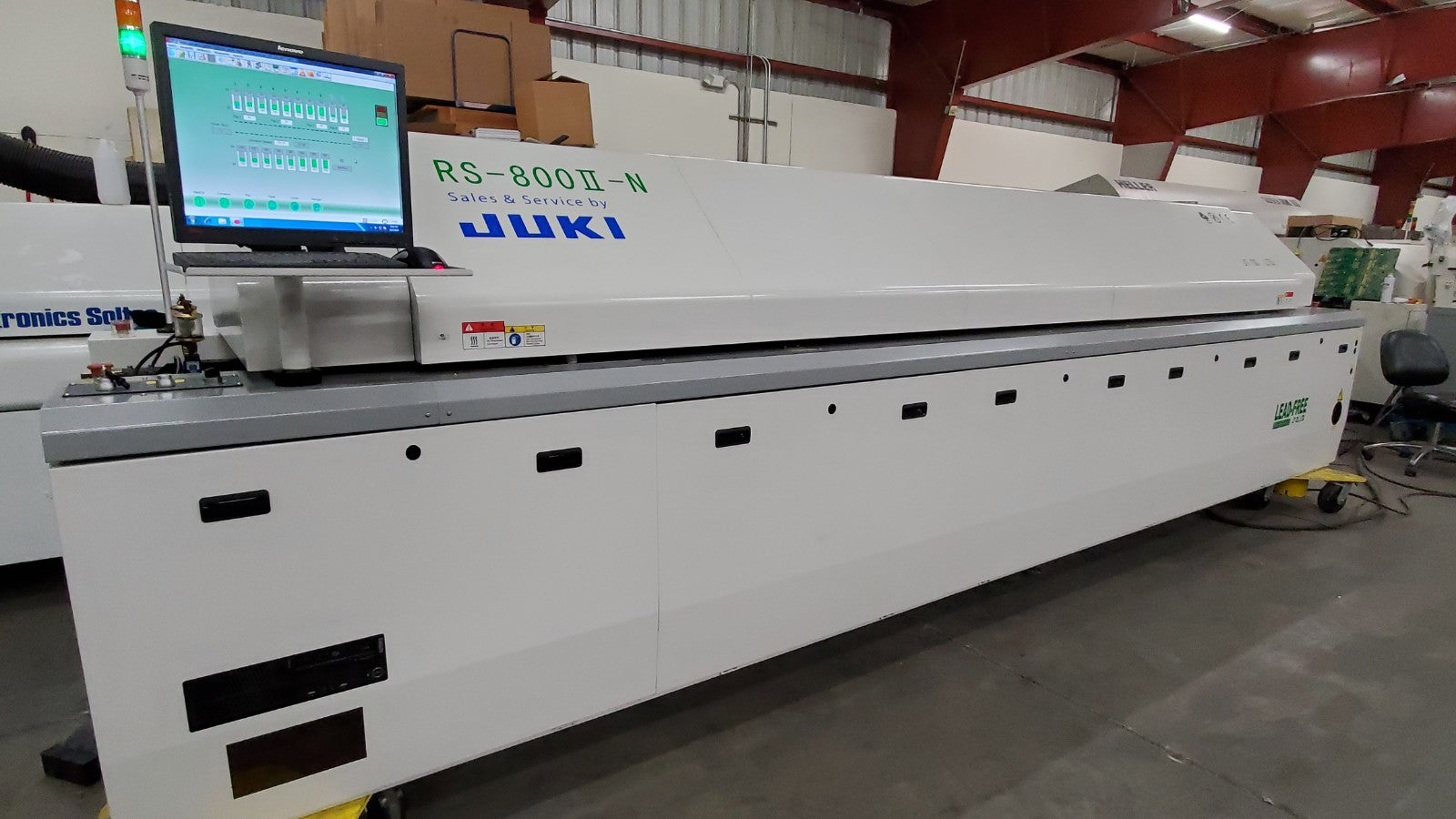

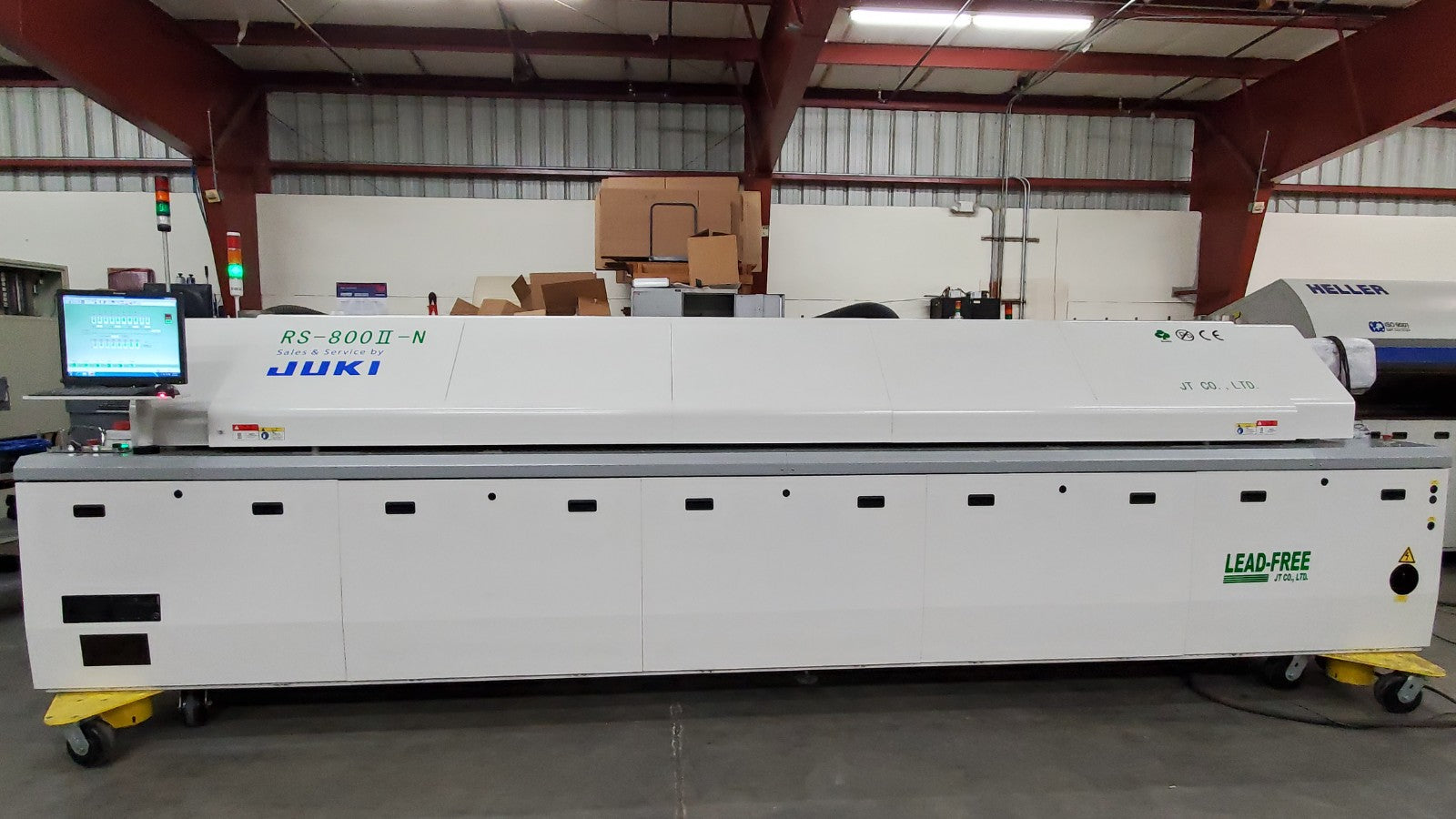

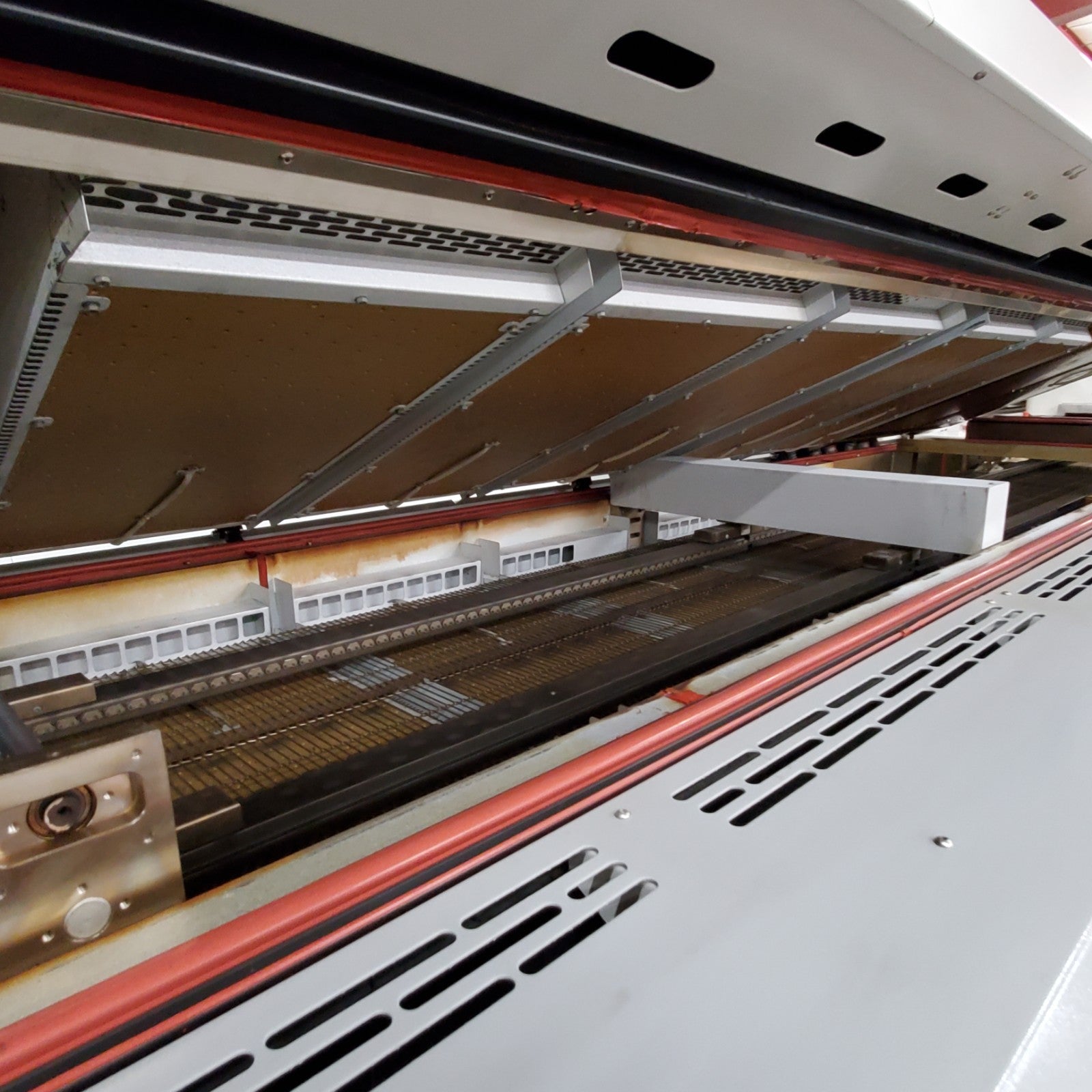

JUKI RS-800II-N 8 zone Nitrogen Reflow Oven
10-2013 vintage

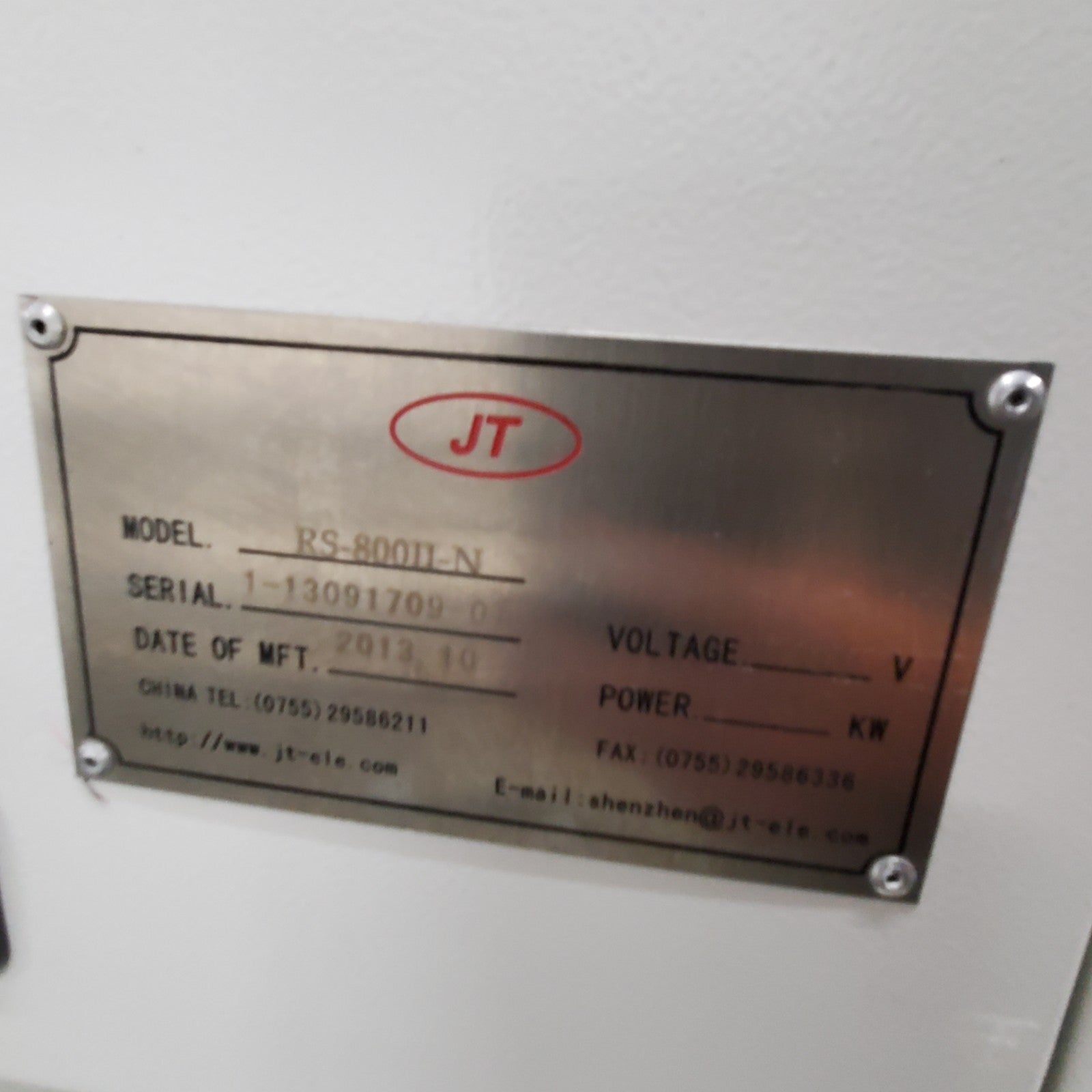

SN 1-13091709-01
Machine is very clean and in excellent condition
Number of Heating Zones 8
Number of Cooling Zones 2
Total heated length 3,120 mm
Total cooled length 800 mm
Temperature Range Heating Zones 20 – 300 °C
Separate Top and Bottom control of temperature
Blower Fan top and bottom
Blower Fan frequency separately controllable in zones
Warm-up time approx. 35 Min.
Nitrogen Option : Enabled
∆T Crossprofile < ±2 °C

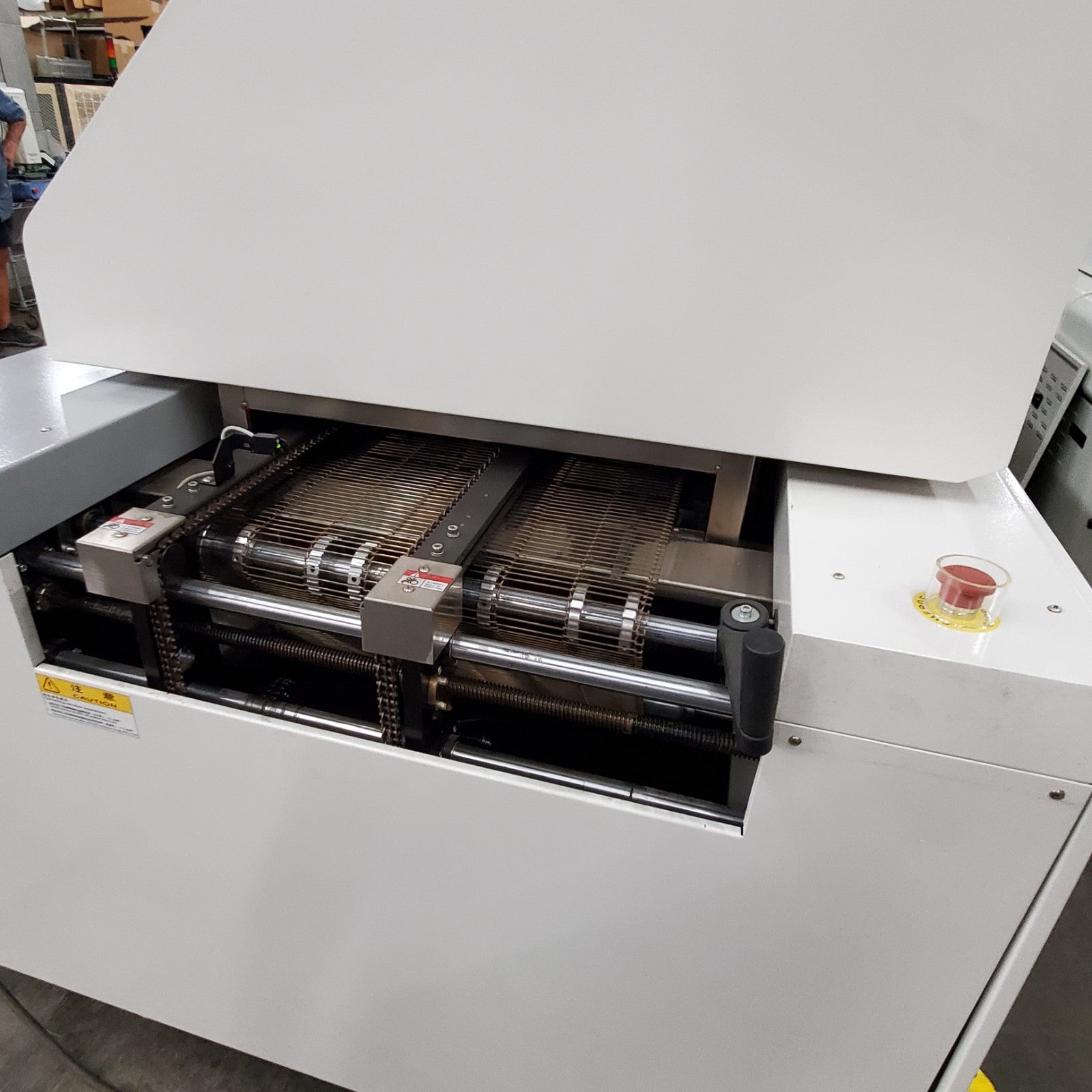

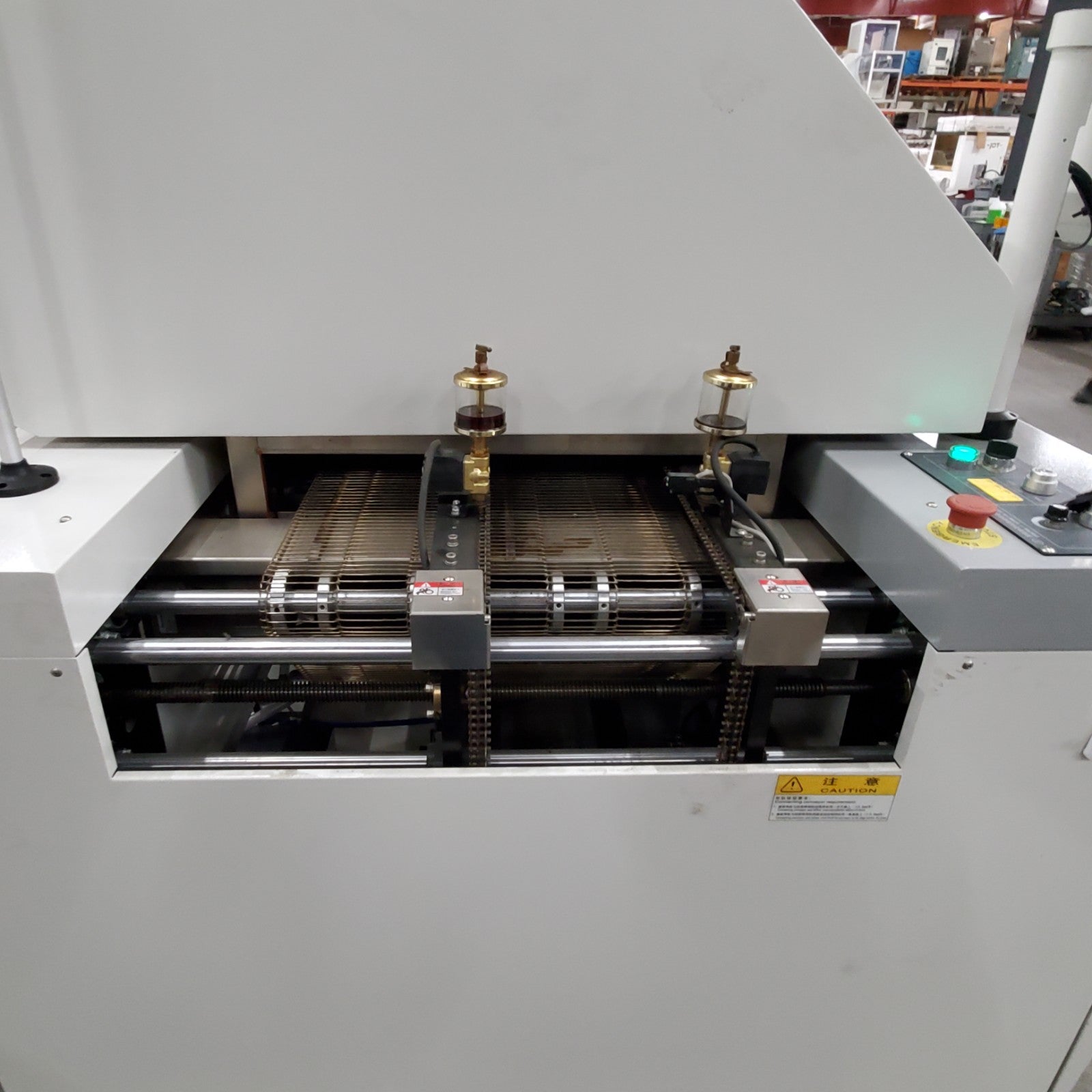

PCB handling and transport
PCB width min. 50 mm / max. 460 mm
PCB space top 25 mm / bottom 30 mm
Conveyor speed range 30 – 200 cm / min
Dimensions (L × W × H) 5,380 × 1,320 × 1,505 mm
Weight 2,400 kg
