Description

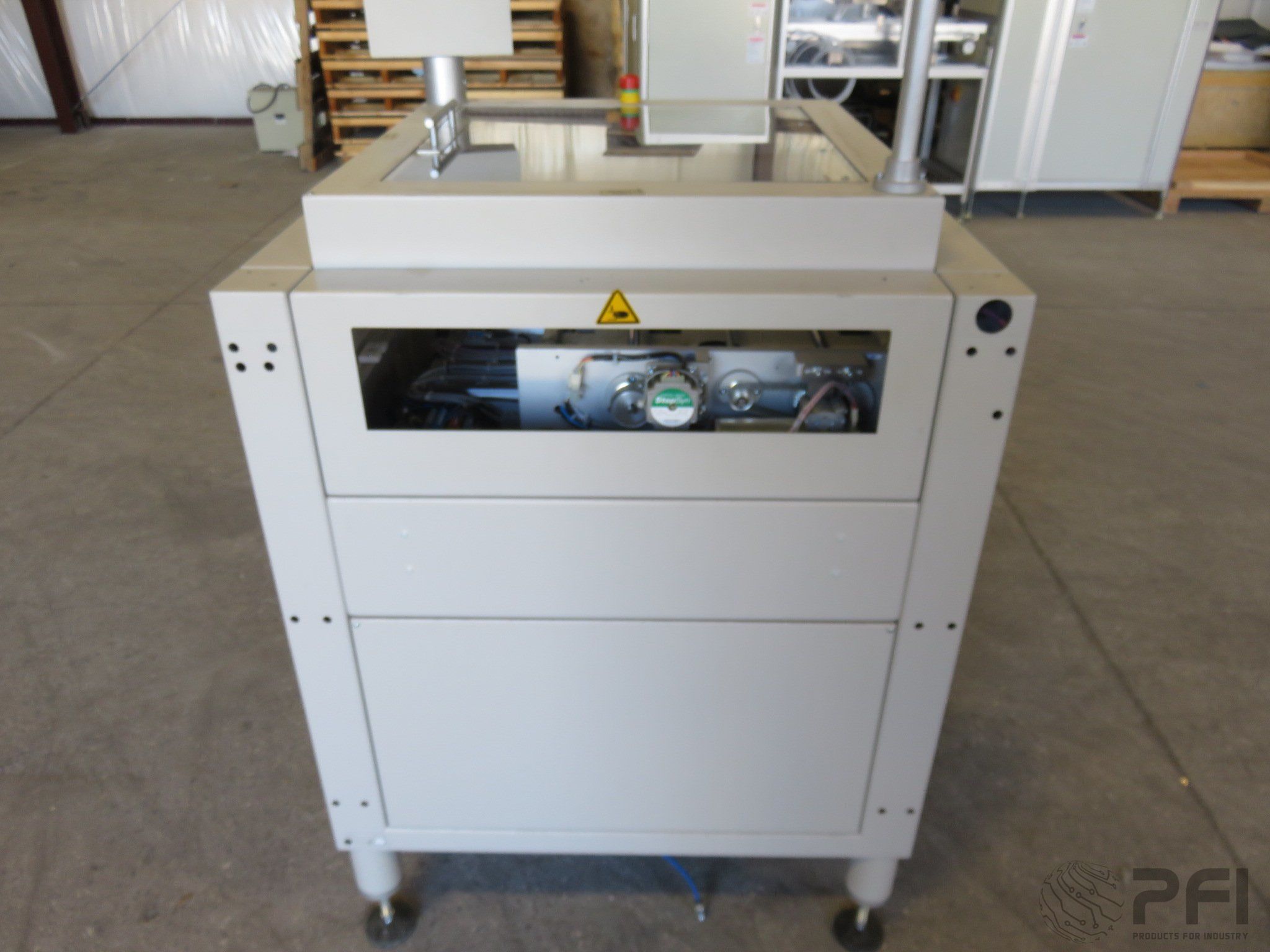

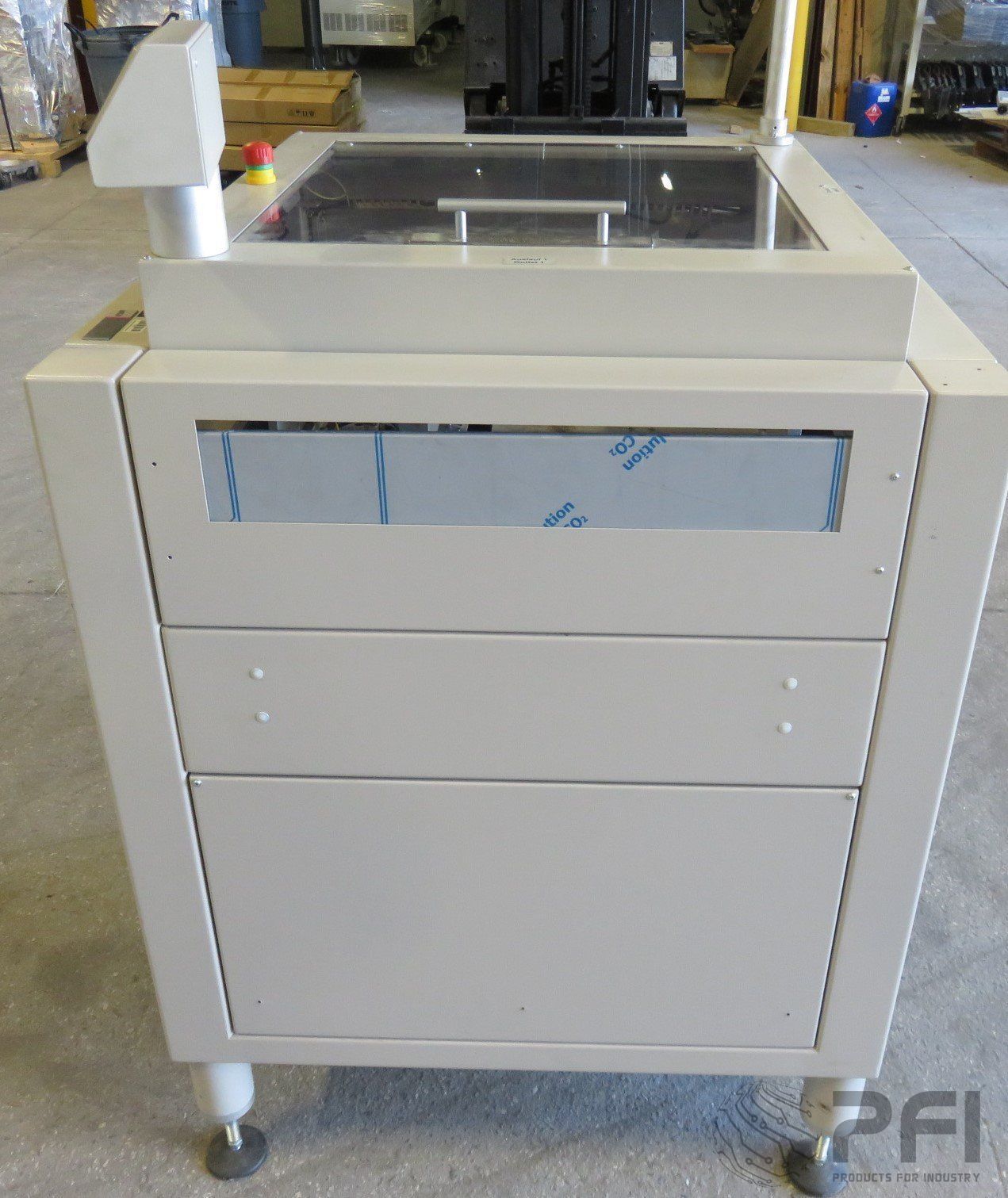

The AEM 02 is used for changing the direction in production lines. Subsequently, it can also be used to split or combine lines.
Programmable width adjust.
460mm max width
2014 vintage
Left turn or Pass through.
110V 90psi
Good working condition.

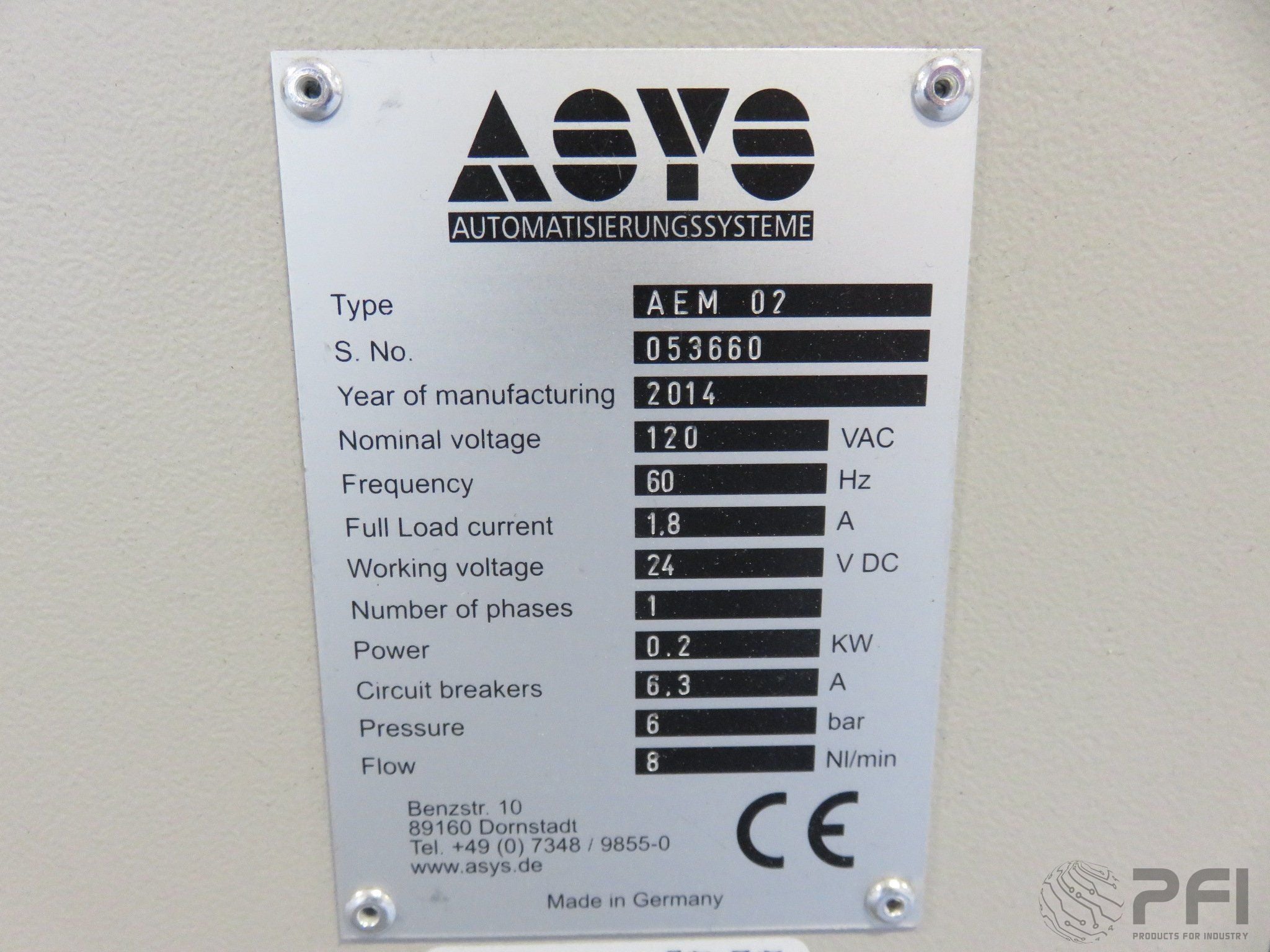

Serial # 053660
The integrated rotating and linear drive means that the system provides you with great flexibility. The machine is based on a stable steel tubing system which can support up to 4 additional inlet/outlet conveyors.
The assembly is taken over onto the inlet conveyor and depending on the selected operating mode, is either turned or transported in a straight line through the machine to the corresponding downstream system.
Features
- Colour display with graphical user interface
- Product parameters can be changed during running operation
- Product memory function
- Symmetrical system design
Individual configuration of the inlets and outlets - Operating modes:
- Feed-in
- Feed-out
- Pass-through
- Pass-through/Feed-out
- Pass-through/Feed-in
