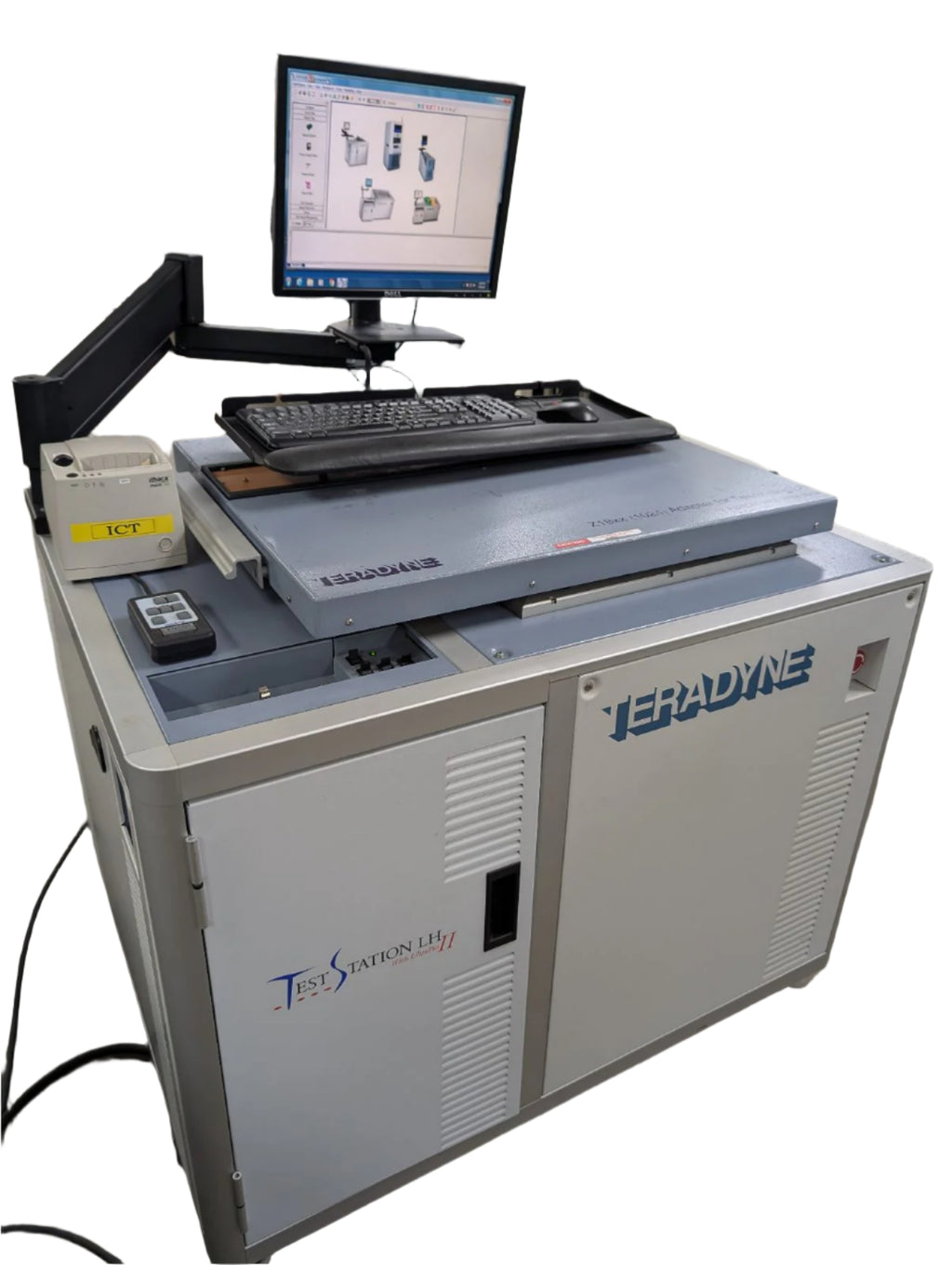

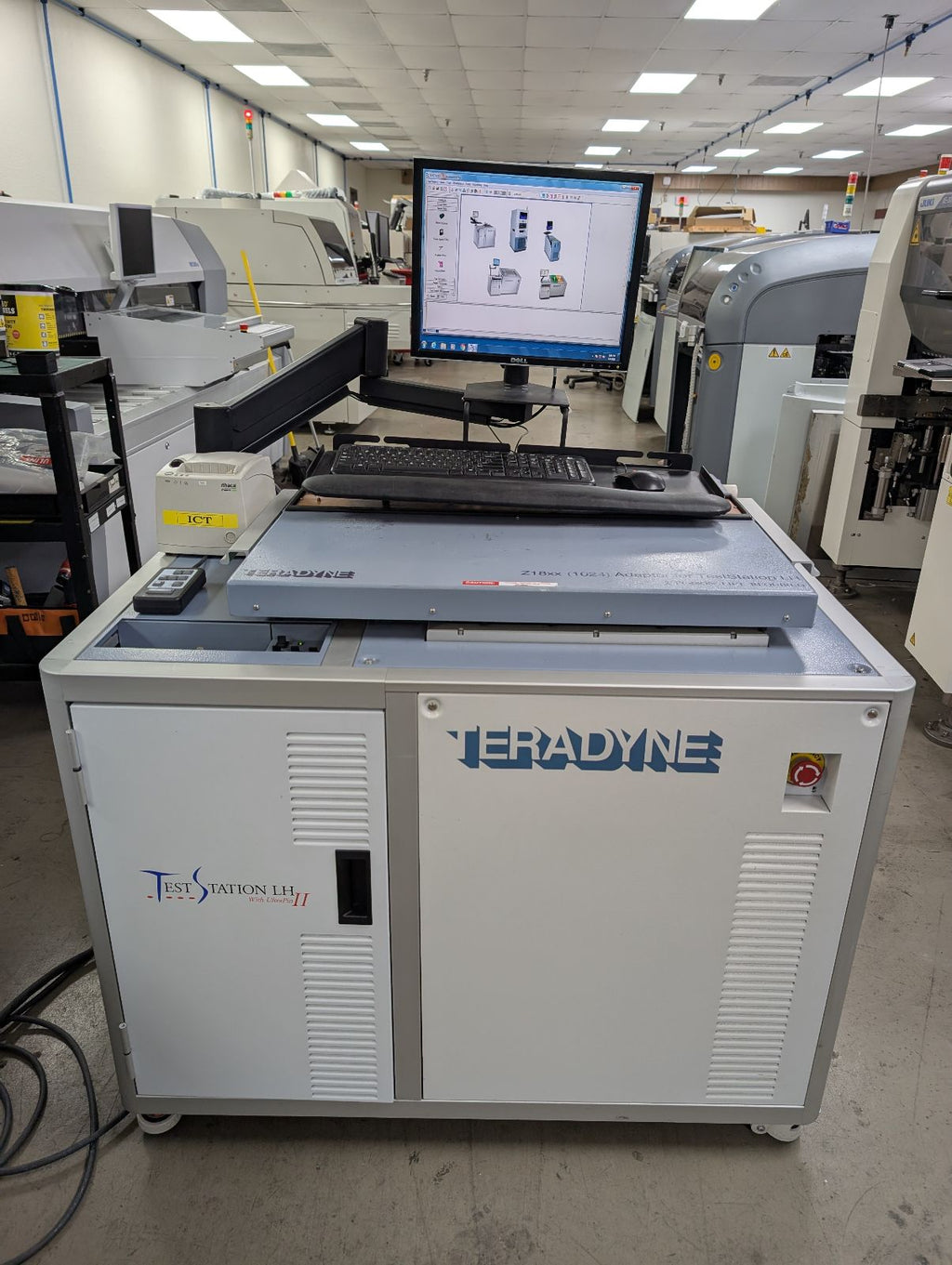

Teradyne Test Station LH 121 Ultra Pin II - In Circuit Tester

Teradyne Test Station LH 121 Ultra Pin II In Circuit Tester

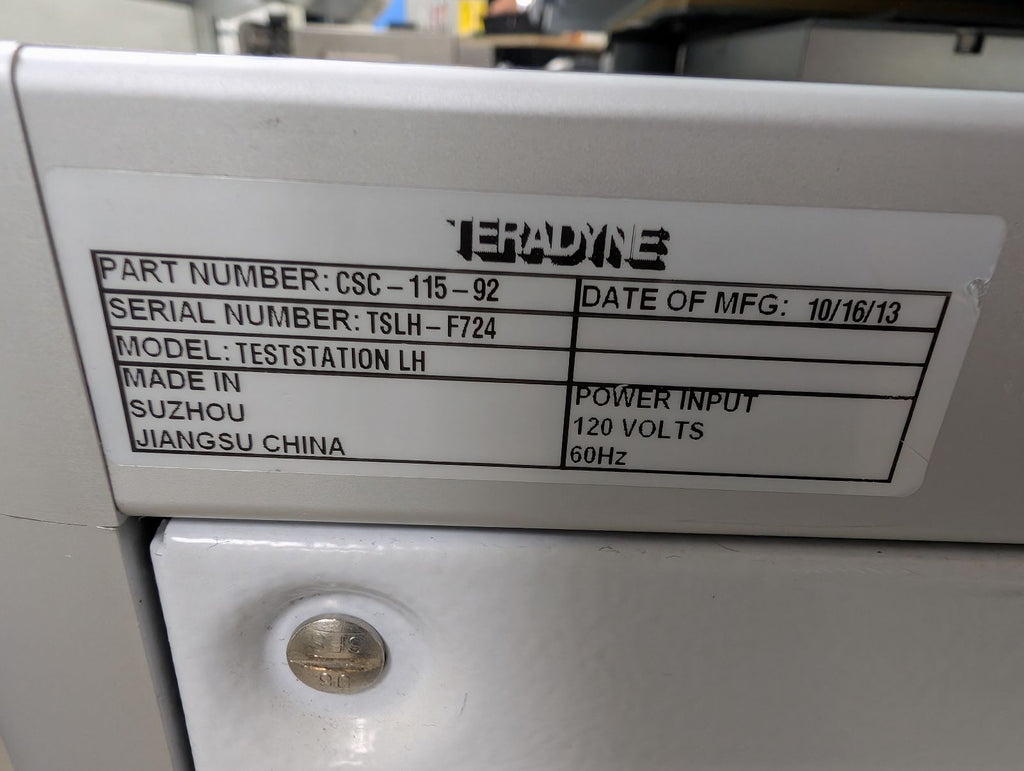

DOM: 10/1/2013  SN: TSL-F724

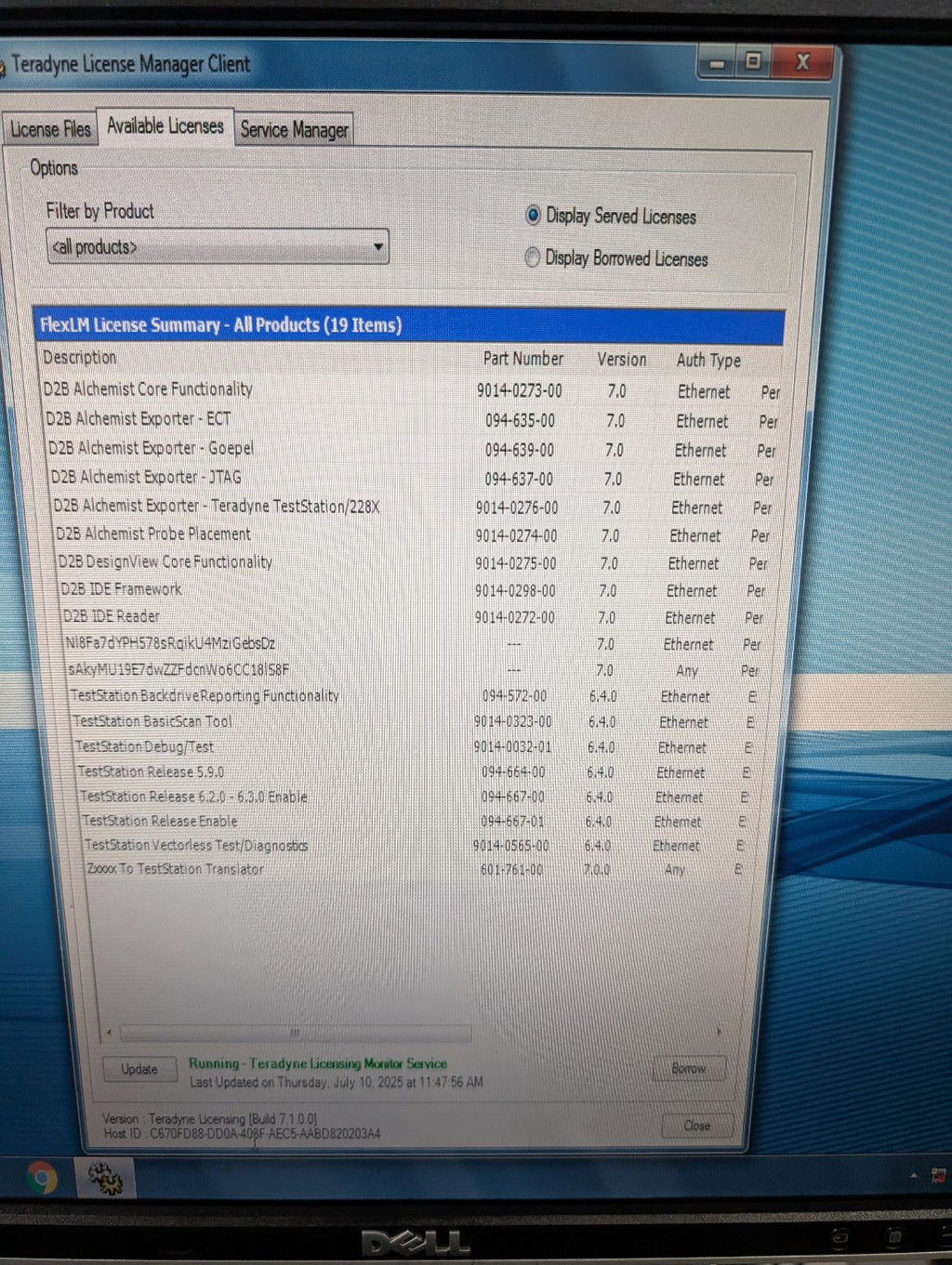

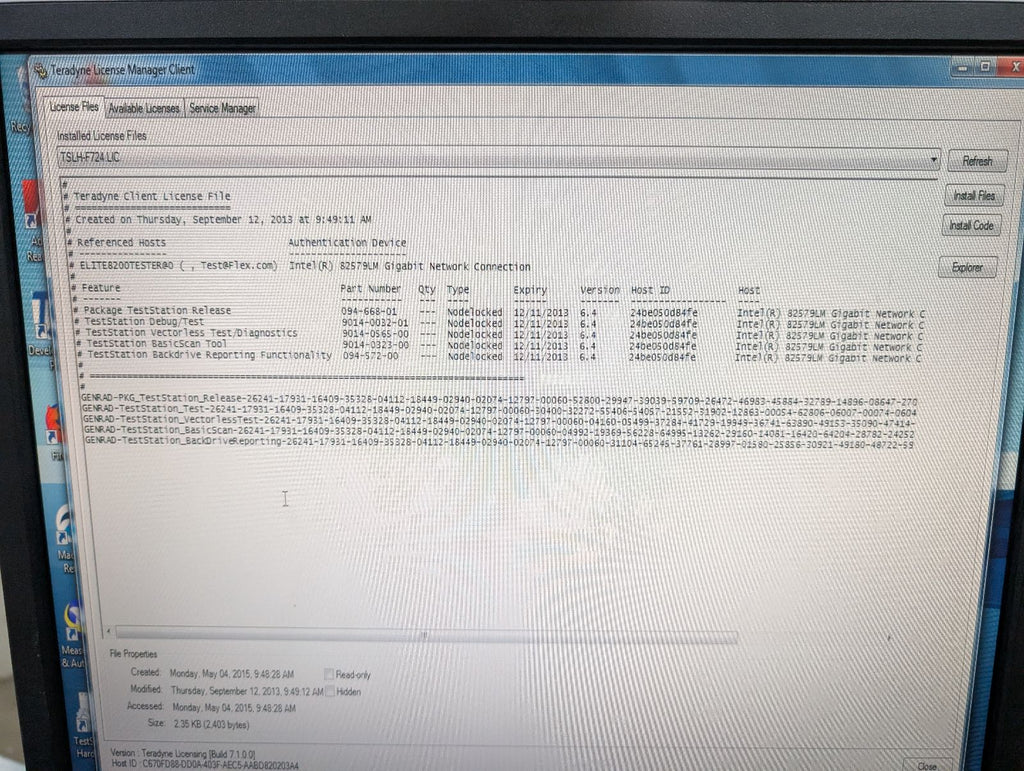

OS: Windows 7, 8X_SW Version: R720

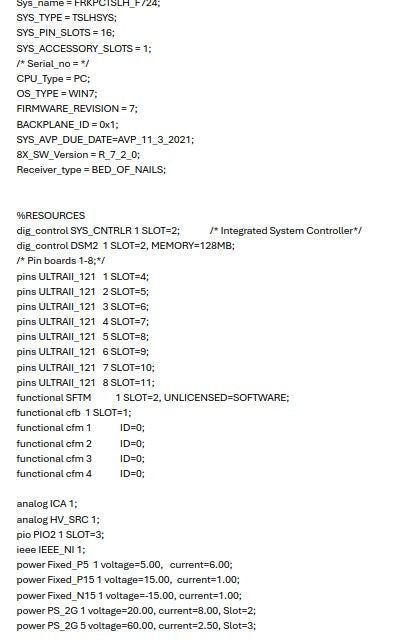

Configured with:

• DSM2

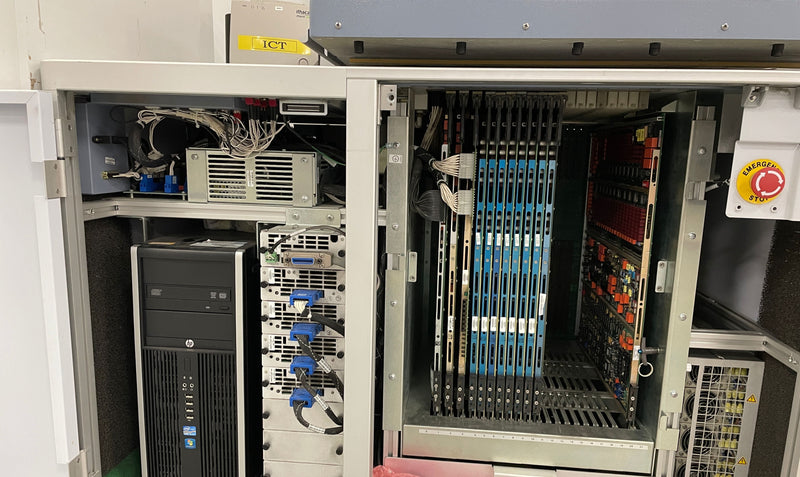

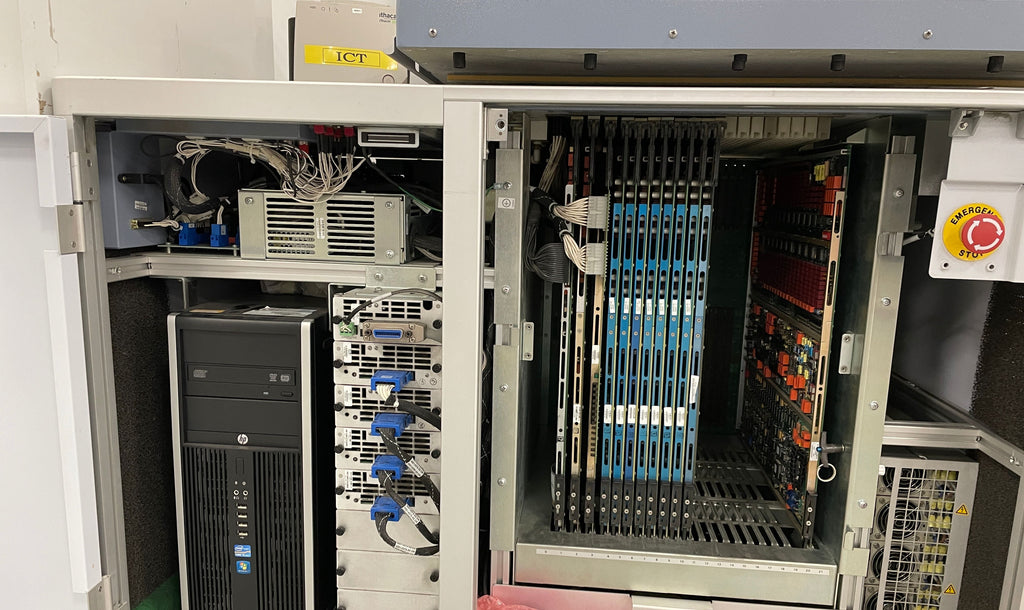

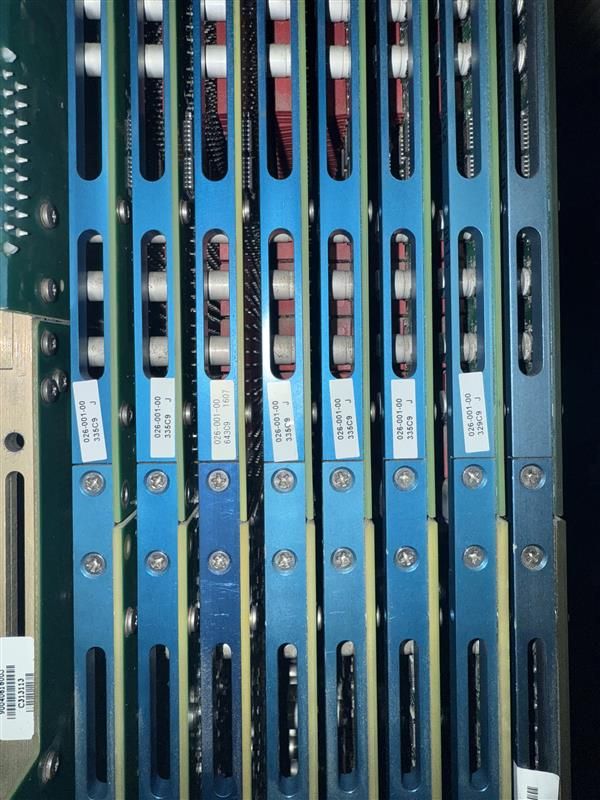

• (8) Ultra II-121 Pin cards (026-001-00)
• ICA
• HV_SRC

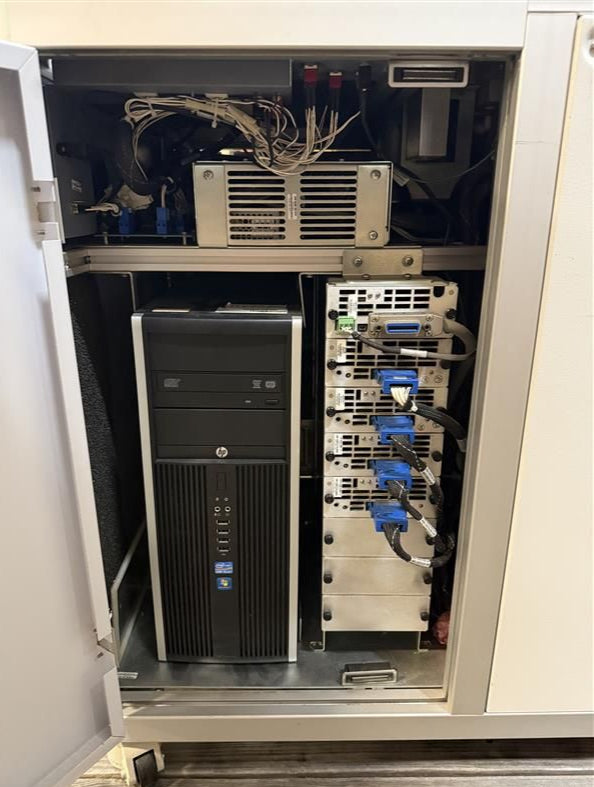

Alliance Power Supplies:

• Fixed_P5  1 voltage=5.00,   current=6.00
• Fixed_P15 1 voltage=15.00,  current=1.00
• Fixed_N15 1 voltage=-15.00, current=1.00
• PS_2G 1 voltage=20.00, current=8.00, Slot=2
• PS_2G 5 voltage=60.00, current=2.50, Slot=3
• PS_2G 6 voltage=60.00, current=2.50, Slot=4
• PS_2G 7 voltage=7.00, current=15.00, Slot=1
