Description

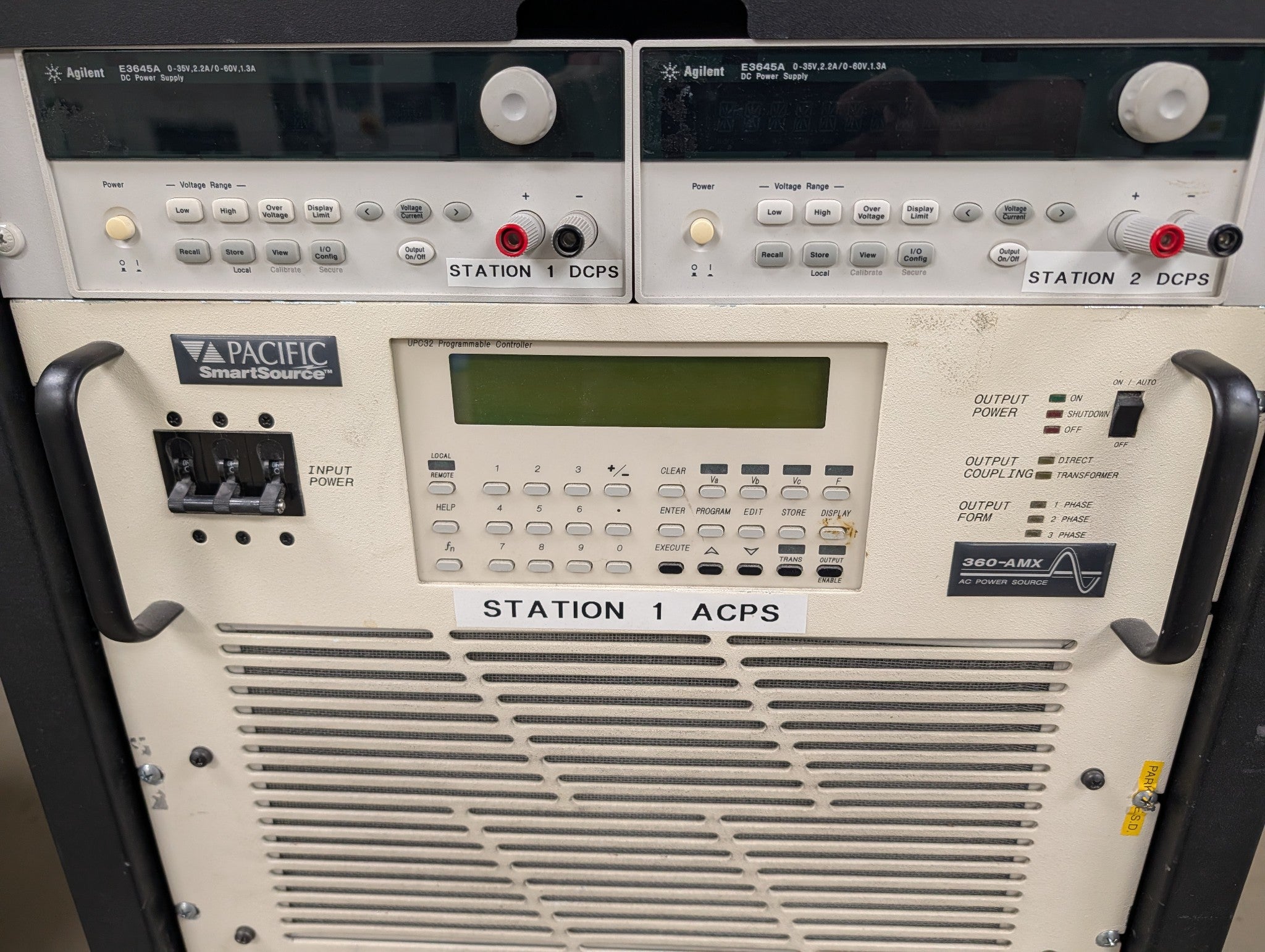

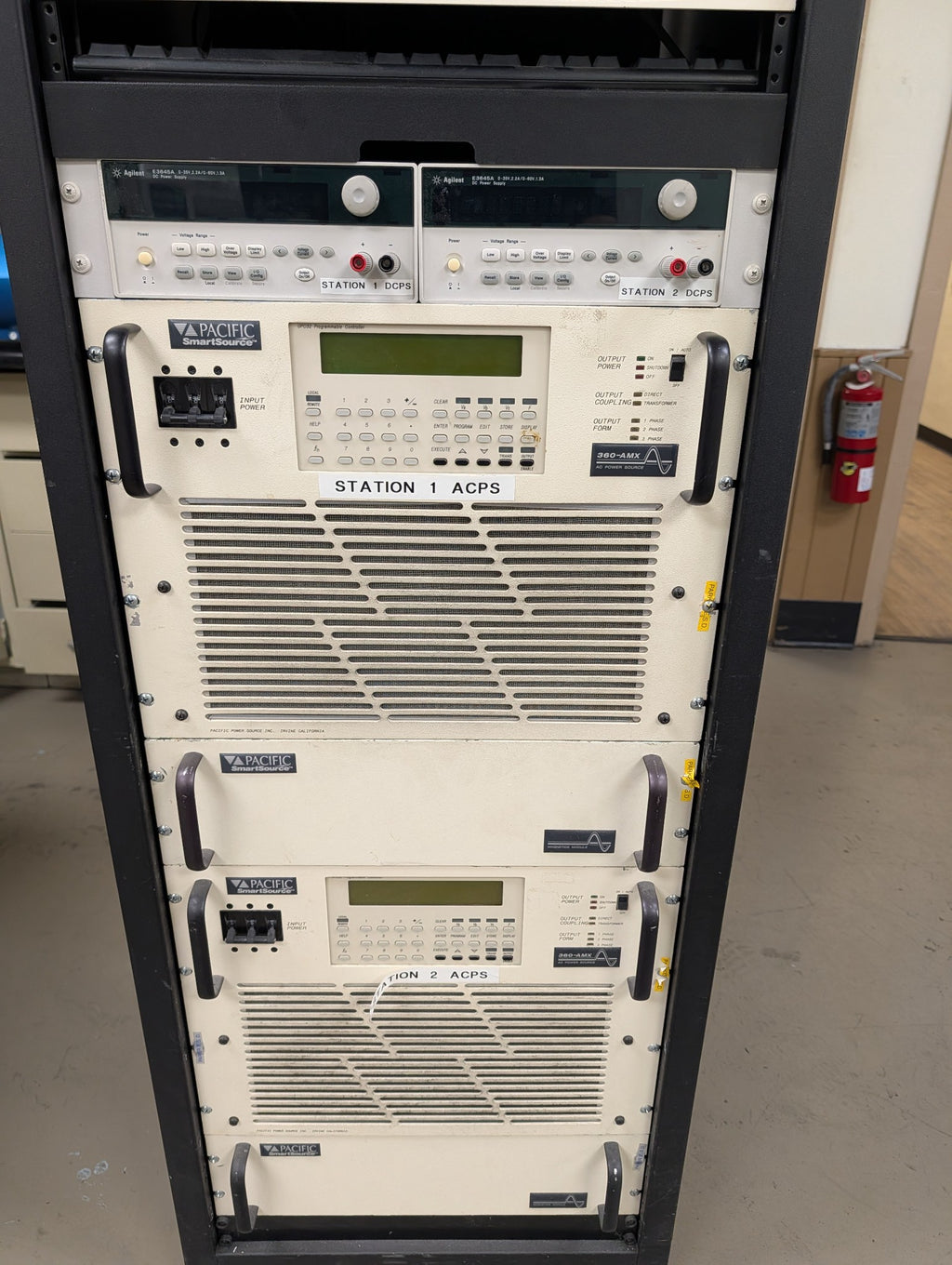

Rack mounted Pacific Power 360-AMX AC Power sources x 2 units coupled with 2 x agilent E3645A DC power supplies
6000 VA, 48/16 Arms, 20 - 5000 Hz

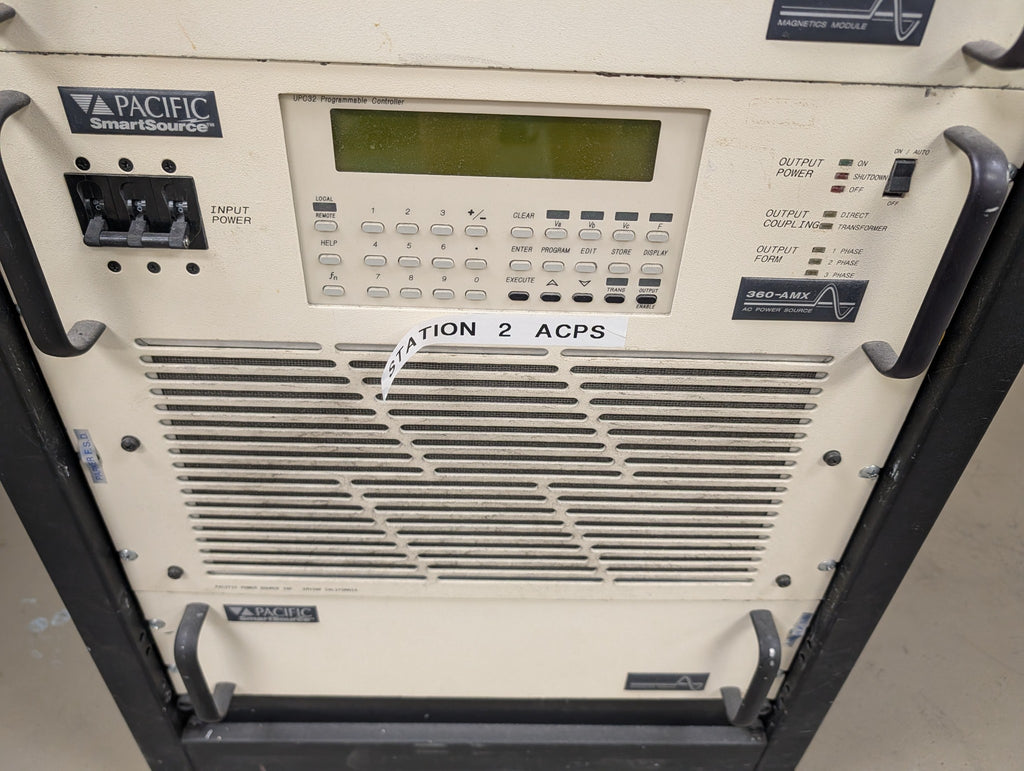

The Pacific Power 360AMX AC power supply is a programmable 6000VA power source that operates over a frequency range of 20 – 5000 Hz. It has a max (VRMS) output voltage of 135/270, 135 (L-N). Additionally, this device has ARMS output amps of 48/16, and an A Peak output amps of 210/70.
- Advanced linear amplifiers provide very low voltage distortion, no switching noise, fast voltage and current slew rates, exceptionally low output impedance and high peak current capability
- Single or split phase selectable output from front panel or bus command
- 20 to 5,000 Hz. full power bandwidth operation – 5Hz to 50KHz small signal bandwidth, 3dB at 10% of full voltage
- Precision voltage programming – 0.05% with continuous self-calibration (CSC) engaged
- True-RMS metering of volts, amps, and power
- GPIB (IEEE-488.2) or RS-232 interface
- Waveform library – arbitrary waveform generator
- Up to 99 programs with associated transients for static and dynamic test applications
+ Magnetics Module x2
With the Pacific Power Source 13435, the election of direct or transformer coupled range is performed by the controller via front panel or bus command. The standard frequency range for transformer coupled outputs is 45 to 1,200 Hz and 45 to 5,000 Hz. Standard output ratios for the Pacific Power 134350 AMX Magnetics Module Transformer are 1.5:1, 2.0:1, and 2.5:1. Transformer outputs are supplied internally or externally via a Magnetics Module.
+ Agilent DC Power Supply E3645A
Keysight / Agilent E3645A 80W DC Power Supply, 35V, 2.2A or 60V, 1.3A
